A Waveguide RF Window is a specialized microwave component designed to allow radio-frequency (RF) and microwave energy to pass through a waveguide while providing a physical barrier between two different environments. It is commonly used in high-power RF systems, radar equipment, satellite communication, aerospace systems, broadcasting, particle accelerators, and industrial microwave equipment.
The primary purpose of an RF window is to maintain RF transmission while providing isolation, pressure separation, vacuum integrity, environmental protection, or protection against contaminants. Unlike a conventional electrical connector, a waveguide RF window is integrated directly into the waveguide transmission path.
What Is a Waveguide RF Window?
A Waveguide RF Window is a dielectric or specially engineered structure installed across a waveguide to separate two regions while allowing microwave signals to travel through with minimal disruption.
In many applications, the two sides of an RF window may operate under different atmospheric conditions. For example, one side may be exposed to air while the other side operates under vacuum or controlled pressure. The RF window allows electromagnetic energy to pass between these regions without requiring the surrounding environments to be physically connected.
The design of the window is critical because it must provide both mechanical isolation and efficient RF transmission.
How Does a Waveguide RF Window Work?
A waveguide carries electromagnetic energy through a controlled metallic structure. When an RF window is introduced into the transmission path, its dielectric material interacts with the electromagnetic field.
The window is engineered so that the microwave signal can pass through while maintaining acceptable RF characteristics.
A properly designed RF window minimizes:
- Insertion loss
- Reflected power
- VSWR
- RF arcing
- Electromagnetic discontinuities
At the same time, it provides the required mechanical separation between the two sides of the waveguide.
The window’s thickness, dielectric constant, geometry, operating frequency, and waveguide dimensions all influence its RF performance.

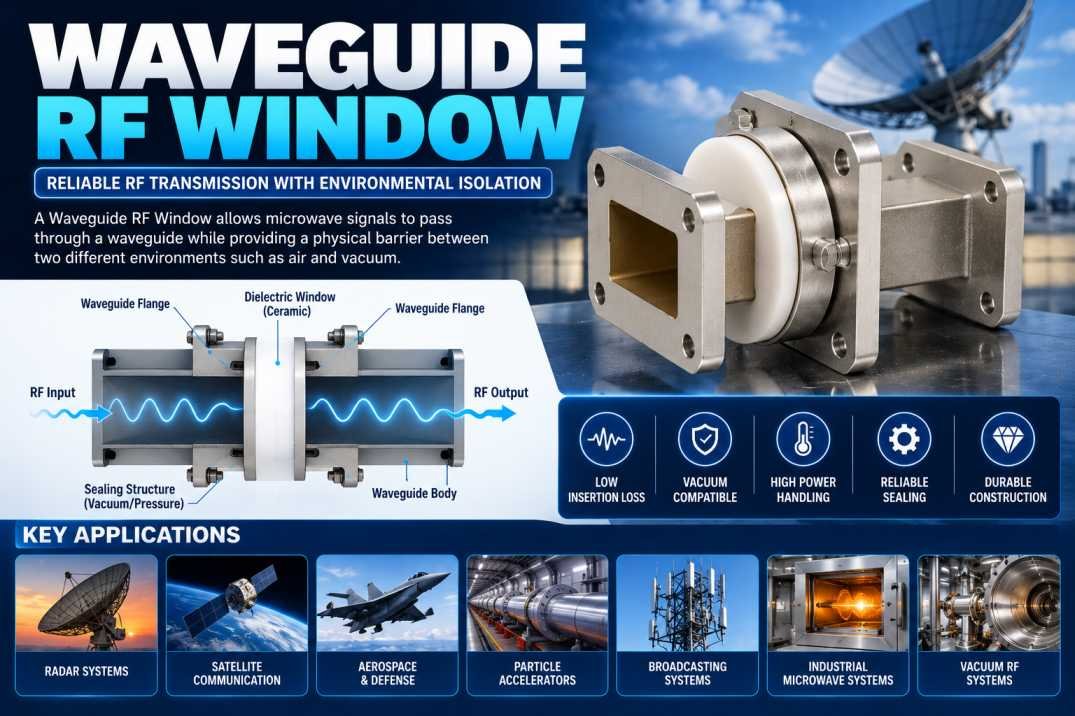

Construction of Waveguide RF Window
A typical Waveguide RF Window consists of a waveguide body, dielectric or insulating window material, sealing structures, and mechanical mounting features.
Waveguide Body
The metallic waveguide provides the electromagnetic transmission path. It is normally manufactured from conductive materials selected according to frequency, power level, environmental conditions, and mechanical requirements.
Dielectric Window
The dielectric section forms the actual RF barrier. Materials are selected according to their dielectric properties, thermal stability, mechanical strength, and RF loss characteristics.
Depending on the application, materials such as ceramic or other low-loss dielectric materials may be used.
Sealing Structure
In applications involving vacuum or pressure differences, the window requires reliable sealing. The sealing arrangement prevents gas leakage while maintaining the required RF performance.
Mounting Interface
The RF window may incorporate flanges or other mechanical interfaces for installation into the waveguide system. Accurate mechanical dimensions are important because even small discontinuities can affect microwave performance.
Key Features of Waveguide RF Window
Waveguide RF Windows are designed to provide several important functions in microwave systems:
- High-frequency RF transmission
- Environmental isolation
- Pressure separation
- Vacuum compatibility
- Low RF insertion loss
- Controlled impedance transition
- High mechanical strength
- High-power handling capability
- Reliable sealing
- Protection against contamination
- Compact integration into waveguide systems
The exact characteristics depend on the design and application requirements.
Types of Waveguide RF Windows
Different RF window configurations are used according to operating frequency, power level, pressure conditions, and mechanical requirements.
Ceramic RF Windows
Ceramic windows are widely considered for demanding RF applications because ceramic materials can provide suitable dielectric, mechanical, and thermal properties.
They may be used in high-power microwave systems, vacuum equipment, and specialized RF transmission systems.
Vacuum RF Windows
Vacuum RF windows are specifically designed to separate a vacuum environment from atmospheric or pressurized regions while allowing RF energy to pass through.
They are particularly important in systems where maintaining vacuum integrity is critical.
Pressure RF Windows
Pressure-rated RF windows are designed to withstand a pressure difference between the two sides while maintaining reliable microwave transmission.
High-Power RF Windows
High-power RF windows require careful thermal and electrical design. They must withstand high electromagnetic fields and manage heat generated by RF losses.
Electrical Performance Parameters
When evaluating a Waveguide RF Window, several RF parameters are important.
| Parameter | Importance |
|---|---|
| Frequency Range | Defines the operating RF band |
| Insertion Loss | Indicates signal power lost through the window |
| VSWR | Indicates impedance mismatch |
| Return Loss | Indicates reflected RF energy |
| Power Handling | Defines the RF power capability |
| Isolation | Defines environmental separation |
| Pressure Rating | Important for pressure or vacuum applications |
| Dielectric Loss | Influences RF efficiency |
| Thermal Performance | Important for high-power operation |
Actual values depend on the specific RF window design and manufacturer.
Why Is a Waveguide RF Window Important?
A conventional waveguide is designed primarily to transmit electromagnetic energy. However, some systems require the transmission path to provide additional environmental separation.
For example, a microwave source may operate in one environment while the downstream waveguide system operates under vacuum. Directly connecting the two environments could compromise system operation.
A Waveguide RF Window solves this problem by creating a physical barrier without interrupting the RF transmission path.
This makes RF windows particularly valuable in systems where RF performance and environmental isolation must be achieved simultaneously.
Applications of Waveguide RF Window
Radar Systems
Radar equipment uses waveguide technology extensively for transmitting high-frequency microwave energy. RF windows can provide environmental protection and isolation within radar transmission systems.
Satellite Communication
Satellite and space communication systems often require lightweight, reliable, and carefully engineered microwave components. RF windows can be incorporated into waveguide assemblies where environmental separation is required.
Aerospace and Defense
Aerospace and defense systems can require high-reliability microwave components capable of operating under demanding mechanical and environmental conditions.
Particle Accelerators
RF windows are important in accelerator systems where microwave energy may need to pass between vacuum regions while maintaining vacuum integrity.
Broadcasting Systems
High-power RF transmission equipment can use waveguide components and RF windows to provide controlled transmission and environmental separation.
Industrial Microwave Systems
Industrial heating, processing, plasma generation, and other microwave systems can use RF windows to isolate process chambers from RF transmission equipment.
Vacuum RF Systems
Vacuum systems are one of the most important applications for RF windows. The window allows RF energy to enter or leave a vacuum chamber while preventing atmospheric leakage.
Advantages of Waveguide RF Window
A properly designed Waveguide RF Window provides several system-level advantages.
Environmental Isolation: It separates different pressure, vacuum, or atmospheric environments.
RF Transmission: It allows microwave energy to pass through while maintaining controlled RF performance.
High-Power Capability: Specialized designs can support high RF power levels.
Vacuum Integrity: Vacuum-compatible windows help prevent leakage between environments.
Mechanical Protection: The window provides a physical barrier against contaminants and environmental exposure.
System Integration: RF windows can be designed with standard or customized waveguide interfaces.
Factors to Consider When Selecting a Waveguide RF Window
Selecting the correct RF window requires consideration of both RF and mechanical requirements.
Operating Frequency
The RF window must support the complete frequency range of the system.
Waveguide Size
The window must match the waveguide type and dimensions used in the application.
RF Power
High-power systems require a window designed to withstand the required electromagnetic field levels and thermal load.
Pressure or Vacuum Requirements
For vacuum applications, the window must meet the required pressure differential and leakage specifications.
Insertion Loss and VSWR
Low insertion loss and controlled VSWR are important for efficient microwave transmission.
Thermal Requirements
The window must be capable of dissipating or tolerating heat generated during operation.
Material Compatibility
The dielectric, metal, seal, and other materials should be suitable for the operating temperature, environment, and RF conditions.
Waveguide RF Window vs Conventional RF Connector
A conventional RF connector primarily provides a detachable electrical connection between RF components. A Waveguide RF Window serves a different purpose.
The RF window is primarily designed to provide environmental or pressure separation while maintaining RF transmission. It is therefore especially useful in vacuum systems, high-power microwave equipment, and specialized waveguide assemblies.
Maintenance and Reliability
Waveguide RF Windows are generally designed for long-term operation, but system reliability depends on proper installation and environmental control.
Important considerations include:
- Inspecting mechanical interfaces
- Maintaining proper flange alignment
- Avoiding excessive mechanical stress
- Monitoring RF performance
- Checking for signs of overheating
- Maintaining required vacuum or pressure conditions
- Protecting dielectric surfaces from contamination
In high-power systems, abnormal VSWR, excessive temperature, or unexpected reflected power can indicate a problem that requires investigation.
Conclusion
A Waveguide RF Window is an essential microwave component that combines efficient RF transmission with physical and environmental separation. It enables microwave energy to pass through a barrier while maintaining pressure, vacuum, or environmental isolation between two regions.
From radar and satellite communication to particle accelerators, aerospace, defense, broadcasting, and industrial microwave systems, RF windows support reliable operation where conventional waveguide transmission alone is not sufficient.
When selecting a Waveguide RF Window, engineers should evaluate frequency range, waveguide dimensions, insertion loss, VSWR, power handling, pressure or vacuum requirements, thermal performance, materials, and sealing technology. Properly matching these parameters helps ensure dependable RF transmission and long-term system performance.
FAQs About Waveguide RF Window
1. What is a Waveguide RF Window?
A Waveguide RF Window is a microwave component that allows RF energy to pass through a waveguide while physically separating two different environments.
2. What is the main purpose of an RF window?
Its main purpose is to provide environmental, pressure, or vacuum isolation while maintaining microwave signal transmission.
3. Where are Waveguide RF Windows used?
They are used in radar, satellite communication, aerospace, defense, broadcasting, particle accelerators, vacuum systems, and industrial microwave equipment.
4. What materials are used for RF windows?
Depending on the application, RF windows may use ceramic or other dielectric materials combined with conductive waveguide structures and specialized sealing systems.
5. Can an RF window be used in high-power systems?
Yes. Specialized high-power RF windows are designed to withstand high electromagnetic fields and thermal loads.
6. What RF parameters are important for an RF window?
Important parameters include frequency range, insertion loss, VSWR, return loss, power handling, dielectric loss, and thermal performance.
7. What is a vacuum RF window?
A vacuum RF window allows microwave energy to pass between a waveguide and a vacuum environment while helping maintain vacuum integrity.
8. How does an RF window affect microwave signals?
A properly designed RF window allows RF energy to pass with controlled insertion loss and reflection. Its geometry and dielectric properties influence the overall RF performance.
9. What should be checked before selecting an RF window?
Engineers should check operating frequency, waveguide size, RF power, pressure differential, vacuum requirements, insertion loss, VSWR, thermal performance, and mounting configuration.
10. Why are RF windows important in microwave systems?
They allow microwave systems to combine reliable RF transmission with environmental or vacuum isolation, making them valuable in specialized high-frequency applications.
