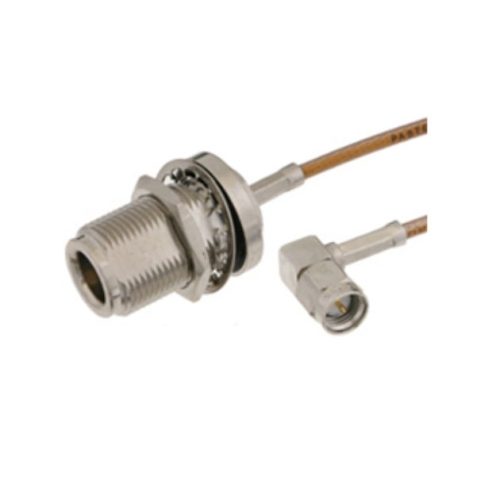

Low loss RA SMA Male to N Female Cable Using RG316 Coax
Low Loss RA SMA Male to N Female Cable Using RG316 Coax is a flexible RF cable assembly designed for reliable signal transmission and convenient equipment connectivity. It features right-angle SMA male and N female connectors, making it suitable for installations with limited space and tight routing requirements. The RG316 coaxial cable provides dependable RF performance, flexibility, and durability for various applications. This cable assembly is suitable for antennas, wireless communication systems, RF equipment, test and measurement instruments, telecommunications, GPS systems, and laboratory setups requiring secure connections and reliable signal transmission.
Cable
| Cable Type | LL142 |
| Inner Conductor Type | Solid |
| Inner Conductor Material and Plating | Copper, Silver |
| Dielectric Type | PTFE |
| Number of Shields | 3 |
| Shield Layer 1 | Silver Plated Copper Tape |
| Shield Layer 2 | Aluminum Polyester |
| Shield Layer 3 | Silver Plated Copper Wire |
| Jacket Material | FEP, Green |
| Jacket Diameter | 0.195 in [4.95 mm] |
Electrical Specifications
| Frequency Range | DC-18 MHz |
| Characteristic Impedance | 50 ohms |
| VSWR | 1.4:1 |
| Return Loss | 15.56dB |
| Insertion Loss | 0.33 [1.31] dB/ft [dB/m] |
| Velocity of Propagation | 83% |
| RF Shielding | 95 dB |
| Capacitance | 25 [82.02] pF/ft [pF/m] |
Connectors
| CONNECTOR | CONNECTOR1 | CONNECTOR2 |
|---|---|---|
| Type | SMA Male | N Female |
| Polarity | Standard | Standard |
| Impedance | 50 Ohms | 50 Ohms |
| Mount Method | Bulkhead | |
| Contact Material & Plating | Beryllium Copper, Gold | Beryllium Copper, Gold |
| Dielectric Type | PTFE | PEI |
| Coupling Nut Material & Plating | Passivated Stainless Steel | |
| Coupling Nut Plating Specification | SAE-AMS-2700 | |
| Torque | 5 in-lbs [0.57 Nm] | [ ] |
| Hex Size | 5/16 Inch | |
| Body Material & Plating | Passivated Stainless Steel | Passivated Stainless Steel |
| Body Plating Spec. | SAE-AMS-2700 | SAE-AMS-2700 |
| Operating Range | -55 to +125 degree C | |
