Phase Stable LP 180P

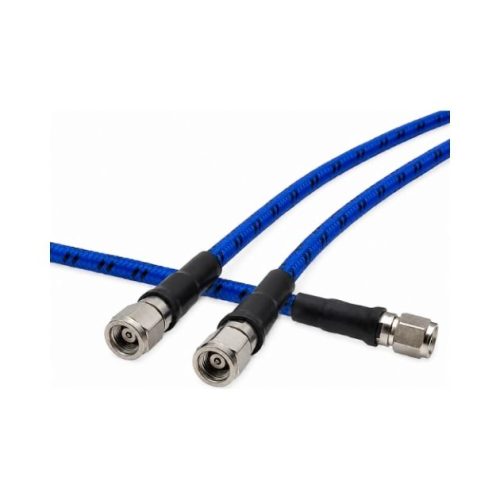

Phase Stable LP 180P is a precision RF cable designed to deliver consistent phase performance and reliable signal transmission in demanding high-frequency applications. Its specialized construction helps maintain stable electrical characteristics, excellent signal integrity, and repeatable performance during operation and cable movement. The LP 180P is suitable for RF test and measurement equipment, telecommunications, aerospace, defense, wireless communication, laboratory systems, and electronic applications. Its flexible design enables convenient routing and installation in compact or complex equipment configurations. With dependable phase stability and reliable RF performance, LP 180P supports precision systems requiring accurate measurements and consistent signal transmission.
Construction
| Construction | Size (mm) | Materials |
|---|---|---|
| Center Conductor | 0.29 | Silver plated copper |
| Dielectric | 0.94 | PTFE |
| Outer Conductor | 1.06 | Silver-plated copper tape wrap |
| Interlayer | 1.20 | PTFE |
| Outer Shield | 1.50 | Silver-plated copper wire braid |
| Jacket | 1.80 | FEP |
Electrical Specification
| Frequency | DC-110 GHz |
| Impedance | 50 Ω |
| Velocity of Propagation | 82% |
| Shielding Effectiveness | >90 dB |
| Withstanding Voltage | 500 V |
| *Mechanical Phase Stability | <±12° @110GHz |
| Amplitude Stability vs Shaking | <±0.2dB @110GHz |
| Temp Phase Stability | <1500ppm (-40°C to +85°C) |
| * Wrapped 360° around a 18 mm radius mandrel. | |
Mechanical & Environmental
| Min. Bending Radius Static | 10 mm |
| Min. Bending Radius Repeated | 20 mm |
| Weight | 9 g/m |
| Temperature (Operation) | -50 ~ 125 °C |
| Temperature (Storage) | -60 ~ 125 °C |
