Multi-Band Combiner
Multi Band Combiners are advanced RF devices used in telecom and wireless communication systems to combine multiple frequency bands into a single RF output while maintaining stable signal transmission and minimal insertion loss. These combiners are widely used in 4G, 5G, DAS, IBS, telecom towers, and broadband communication networks where efficient spectrum management and simplified RF infrastructure are essential.
At SRFS Teleinfra, we manufacture and supply high-performance Multi Band Combiners engineered for low PIM performance, excellent isolation, low insertion loss, and reliable RF signal combining across multiple telecom frequency bands. Our combiners are designed using advanced RF technology and precision manufacturing standards to ensure stable network performance and long operational life in demanding telecom environments.
Our multi-band combiners support various telecom frequency combinations including tri-band, quad-band, and penta-band RF configurations for 2G, 3G, 4G LTE, and 5G communication systems. These solutions help reduce antenna requirements, optimize RF infrastructure, and improve network efficiency in modern telecom installations.

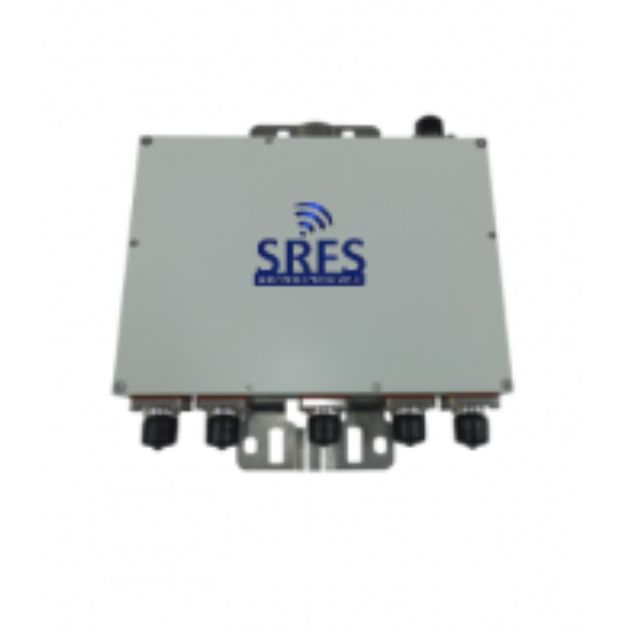

Penta-Band/Pentaplexer Combiner 698-960,1710-1880,1920-2170, 2300-2700, 3300-4000 MHz
What is a Multi Band Combiner?
A Multi Band Combiner is an RF component designed to combine multiple frequency bands into a single output path while maintaining proper isolation and impedance matching. These devices use advanced filtering and combining techniques to manage multiple wireless frequency bands efficiently in telecom and RF communication systems.
Multi-band combiners are commonly used in telecom infrastructure to reduce the number of antennas and RF feeders required, helping simplify network deployment and lower installation costs.
Features of Multi Band Combiner
- Wide multi-frequency band support
- Low insertion loss performance
- Low PIM RF design
- Excellent port isolation
- High power handling capability
- Stable RF signal combining
- Compact and durable construction
- IP-rated outdoor protection
- Reliable impedance matching
- Suitable for indoor and outdoor telecom installations
Types of Multi Band Combiners
Tri-Band Combiner
Combines three telecom frequency bands into a single RF output for telecom and DAS systems.

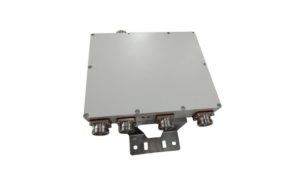

Quad-Band Combiner
Designed for combining four RF frequency bands in 4G LTE and 5G communication systems.

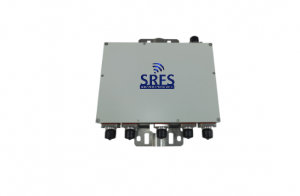

Penta-Band Combiner
Supports five telecom frequency bands for advanced multi-network RF communication applications.

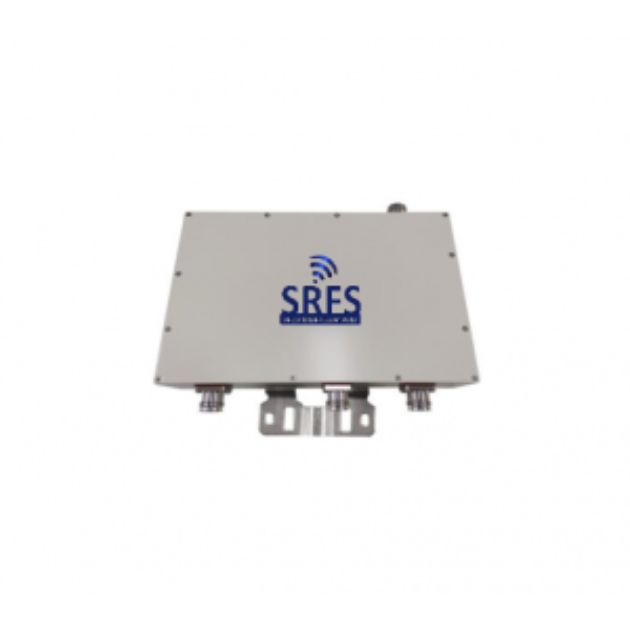

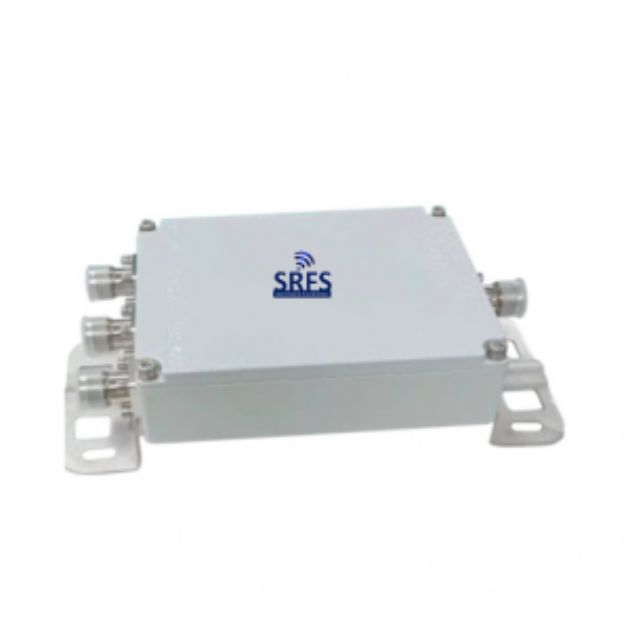

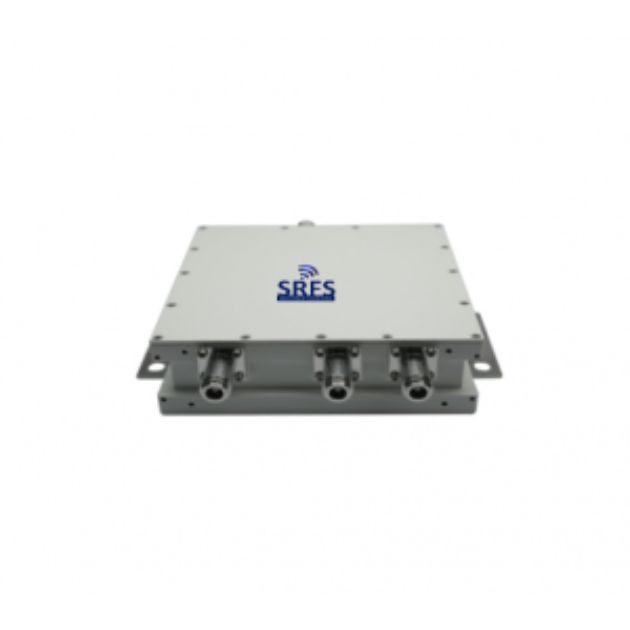

Triplexer Combiner
Used for separating and combining different RF frequency bands with high isolation performance.

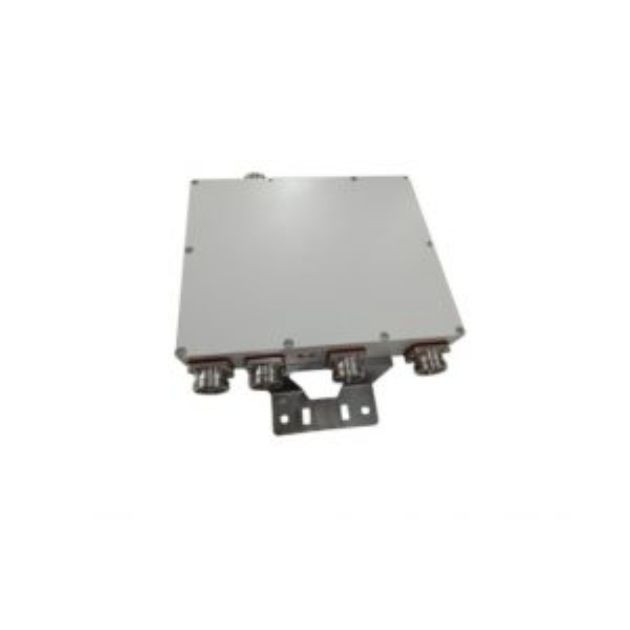

Quadplexer Combiner
Provides efficient multi-band RF combining for broadband and telecom network installations.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 698 MHz – 4000 MHz |
| Impedance | 50 Ohm |
| VSWR | ≤ 1.30 |
| PIM | ≤ -165 dBc |
| Isolation | ≥ 20 dB |
| Power Handling | Up to 300W |
| Connector Type | N Female |
| Protection Grade | IP65 |
| Operating Temperature | -35°C to +75°C |
Applications of Multi Band Combiner
Multi Band Combiners are widely used across telecom and RF communication systems including:
- 4G / 5G Telecom Networks
- DAS (Distributed Antenna Systems)
- IBS (In-Building Solutions)
- Telecom BTS Installations
- RF Signal Distribution Systems
- Wireless Communication Networks
- Broadband Communication Systems
- Antenna Combining Applications
- Small Cell Network Infrastructure
- RF & Microwave Communication Systems
Key Performance Factors
Choosing the right Multi Band Combiner depends on several important RF performance parameters:
- Frequency band compatibility
- Low insertion loss performance
- Port isolation capability
- Low PIM characteristics
- Power handling capacity
- VSWR performance
- Connector compatibility
- Environmental durability and IP protection
Proper multi-band combiner selection ensures stable RF performance, efficient signal management, reduced infrastructure complexity, and reliable telecom network operation.
Multi Band Combiner Product Specifications
| Multi Band Combiner Type | Frequency Range | Impedance | Application |
|---|---|---|---|
| Tri-Band Combiner | 698–4000 MHz | 50 Ohm | Telecom & DAS Applications |
| Triplexer Combiner | 1710–4000 MHz | 50 Ohm | 4G LTE & 5G Networks |
| Quad-Band Combiner | 698–4000 MHz | 50 Ohm | Multi Operator RF Systems |
| Quadplexer Combiner | 698–4000 MHz | 50 Ohm | Broadband RF Communication |
| Penta-Band Combiner | 698–4000 MHz | 50 Ohm | Advanced Telecom Infrastructure |
Why Choose us
Low PIM RF Performance
Our multi-band combiners are engineered for low passive intermodulation to ensure stable and interference-free telecom communication.
Wide Frequency Support
Suitable for 2G, 3G, 4G LTE, and 5G telecom applications across broadband RF frequency ranges.
Trusted RF & Telecom Solutions
SRFS Teleinfra delivers premium-quality RF combiners with reliable performance, technical support, and advanced telecom connectivity solutions.
Durable Outdoor Construction
Manufactured with rugged IP-rated housing for reliable indoor and outdoor telecom installations.
Frequently Asked Questions
A multi-band combiner is an RF device used to combine multiple telecom frequency bands into a single RF output.
They are widely used in telecom towers, DAS systems, IBS networks, 4G LTE, 5G communication systems, and broadband RF installations.
Multi-band combiners reduce antenna requirements, simplify RF infrastructure, improve spectrum efficiency, and lower installation costs.
Most telecom multi-band combiners support frequencies from 698 MHz to 4000 MHz.
Low PIM helps reduce signal interference and improves telecom network performance in RF communication systems.
Standard multi-band combiners are designed with 50 Om impedance.
Yes, multi-band combiners are widely used in 4G LTE and 5G telecom infrastructure applications.
Most telecom multi-band combiners use N Female RF connectors.
Yes, many multi-band combiners are designed with IP65-rated protection for outdoor telecom environments.
SRFS Teleinfra offers premium-quality multi-band combiners with low PIM, stable RF performance, durable construction, and reliable telecom connectivity solutions.
