SMA Cable Assembly
SMA Cable Assemblies are high-performance RF cable solutions designed for stable signal transmission in telecom, wireless communication, RF, microwave, GPS, IoT, and testing applications. These assemblies use precision SMA connectors combined with low-loss coaxial cables to deliver reliable connectivity, low insertion loss, and excellent high-frequency performance across demanding RF environments.
At SRFS Teleinfra, we manufacture and supply premium-quality SMA Cable Assemblies engineered for accurate impedance matching, low VSWR, high shielding effectiveness, and long operational life. Our SMA cable assemblies are widely used in telecom systems, antenna connectivity, RF modules, wireless communication devices, laboratory testing, aerospace systems, and 4G/5G network infrastructure.
Our SMA assemblies are manufactured using high-grade RF coaxial cables such as RG58, RG174, RG316, LMR series cables, and precision SMA connectors to ensure stable signal transmission and durable mechanical performance. These assemblies are available in multiple connector configurations, cable types, and customized lengths according to project requirements.
What is an SMA Cable Assembly?
An SMA Cable Assembly is a coaxial RF cable fitted with SMA (SubMiniature Version A) connectors on one or both ends for high-frequency signal transmission. SMA connectors are widely known for their threaded locking mechanism, reliable RF performance, compact size, and ability to support microwave frequencies.
SMA cable assemblies are commonly used in RF communication systems where stable connectivity, low signal loss, and high-frequency operation are essential.
A typical RF cable consists of:
- Inner conductor (signal transmission)
- Dielectric insulation (maintains spacing and stability)
- Shielding layer (blocks interference)
- Outer jacket (provides protection)
Features of SMA Cable Assembly
- Excellent high-frequency RF performance
- Low insertion loss and stable signal transmission
- Secure threaded SMA connector interface
- High shielding effectiveness against EMI/RFI
- Durable and reliable construction
- Excellent impedance matching
- Compact and lightweight design
- Suitable for indoor and outdoor applications
- Available in custom cable lengths and configurations
- Compatible with RF, microwave, GPS, Wi-Fi, and telecom systems
Types of SMA Cable Assemblies

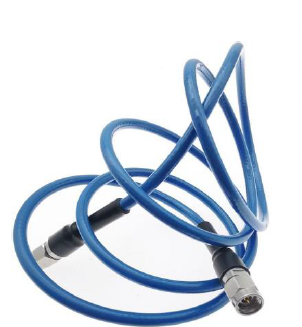

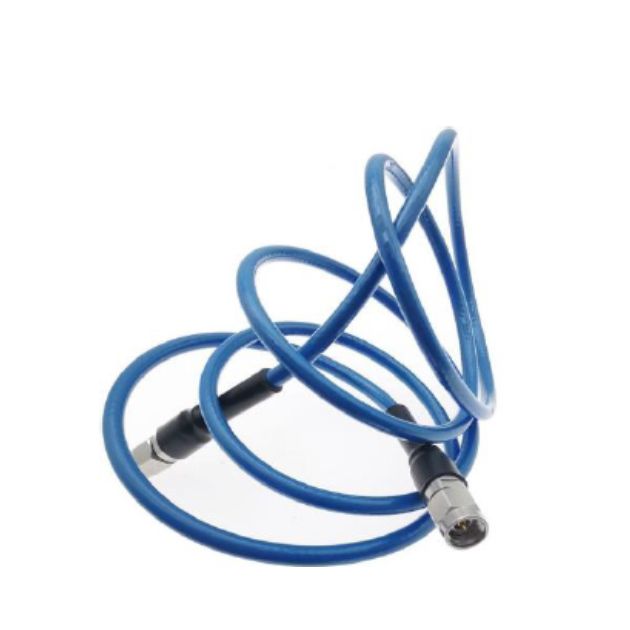

SMA Male to SMA Male Cable Assembly
Used for RF signal transmission and antenna connectivity applications.

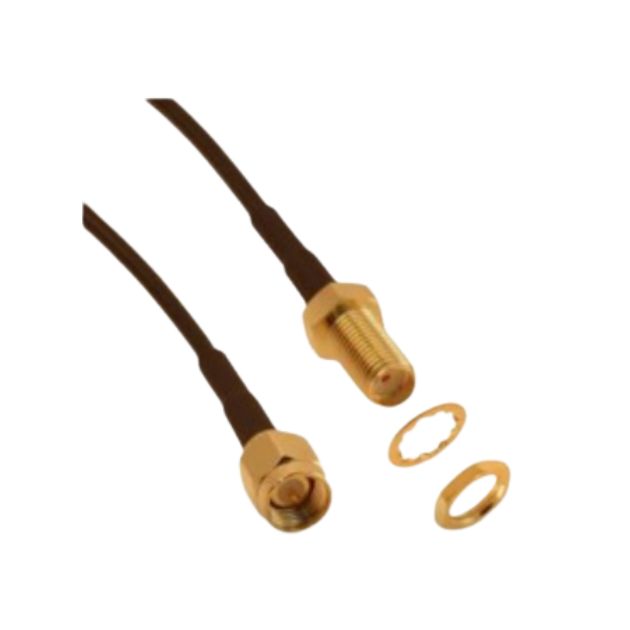

SMA Male to SMA Female Cable Assembly
Suitable for extending RF cable connections in telecom and wireless systems.
SMA to UFL Cable Assembly
Widely used in IoT devices, GPS modules, RF modules, and compact wireless systems.
SMA to N Type Cable Assembly
Designed for telecom infrastructure and high-power RF applications.
Low Loss SMA Cable Assembly
Manufactured using low attenuation coaxial cables for stable long-distance RF transmission.
Technical Specifications
| Parameter | Specification |
|---|---|
| Impedance | 50 Ohm |
| Frequency Range | DC – 18 GHz |
| VSWR | ≤ 1.30 |
| Connector Type | SMA Male / SMA Female |
| Cable Types | RG58, RG174, RG316, LMR Series |
| Insertion Loss | Low Loss Performance |
| Operating Temperature | -40°C to +85°C |
| Shielding | High EMI Protection |
| Cable Length | Customizable |
Applications of SMA Cable Assembly
SMA cable assemblies are widely used across RF and telecom industries including:
- RF & Microwave Communication Systems
- 4G / 5G Telecom Networks
- Wi-Fi & WLAN Applications
- GPS & Navigation Systems
- IoT & Embedded Devices
- RF Antenna Connectivity
- Telecom BTS Installations
- RF Testing & Measurement Equipment
- Aerospace & Defense Systems
- Wireless Communication Devices
Key Performance Factors
Choosing the right SMA Cable Assembly depends on several important RF performance parameters:
- Frequency handling capability
- Low insertion loss performance
- Stable impedance matching
- Connector durability and precision
- Cable flexibility and bend radius
- EMI shielding effectiveness
- VSWR characteristics
- Environmental durability
Proper SMA cable assembly selection ensures reliable RF connectivity, stable signal transmission, and long-term telecom network performance.
SMA Cable Assembly Product Specifications
| SMA Cable Assembly Type | Impedance | Cable Type | Application |
|---|---|---|---|

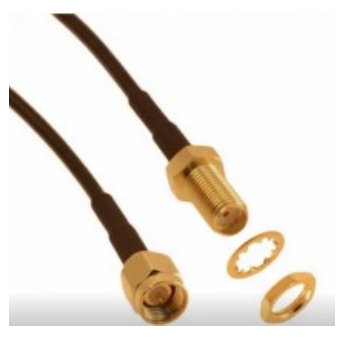

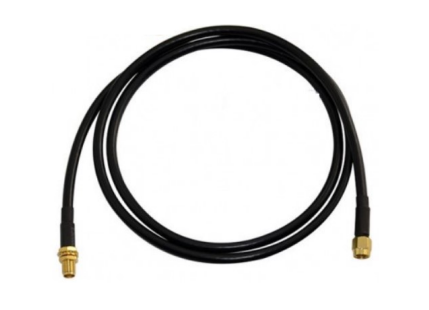

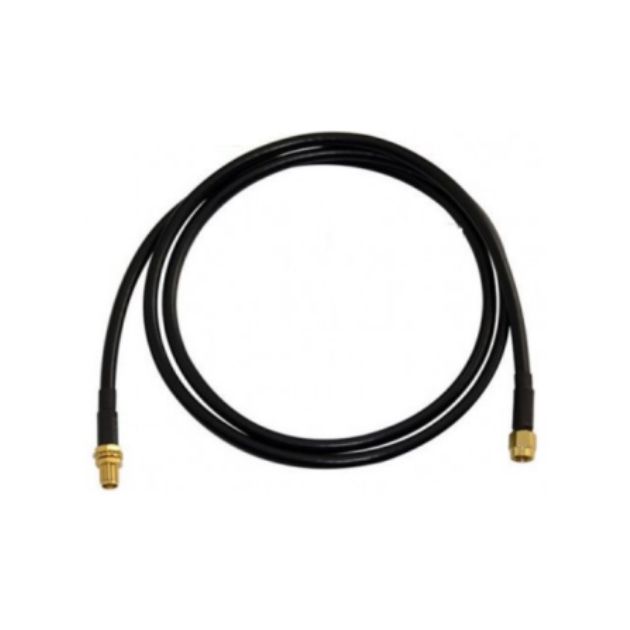

| SMA Male to SMA Female | 50 Ohm | RG58 Cable | RF & Wireless Communication |
| SMA Male to SMA Male | 50 Ohm | RG174 Cable | GPS & IoT Applications |

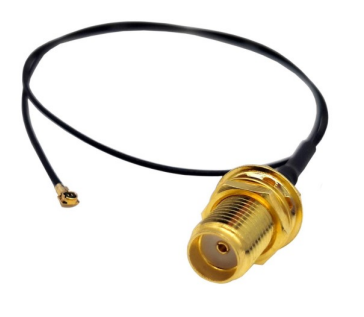

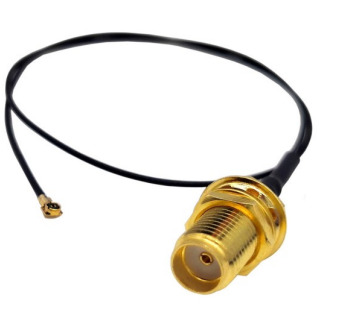

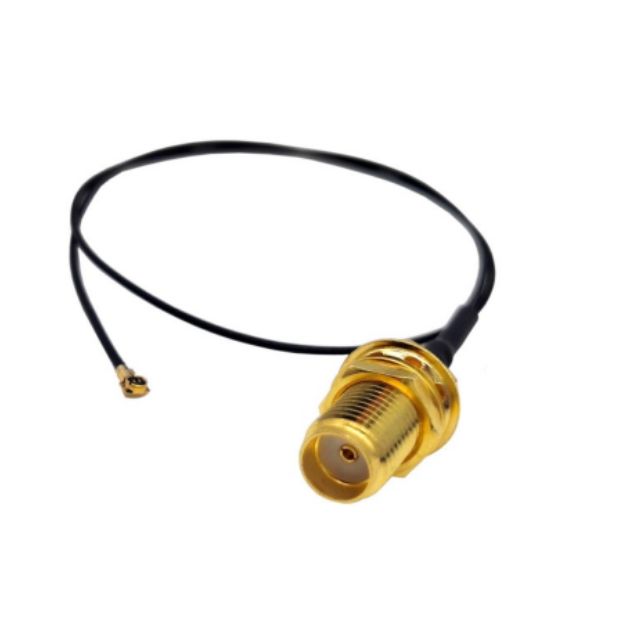

| SMA Female to UFL | 50 Ohm | 1.13mm Cable | Compact RF Modules |

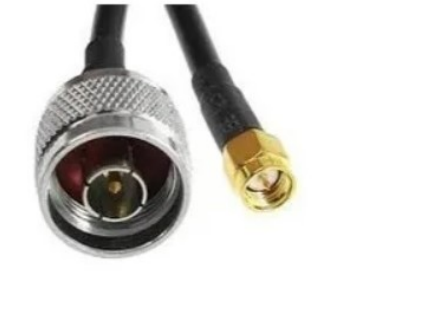

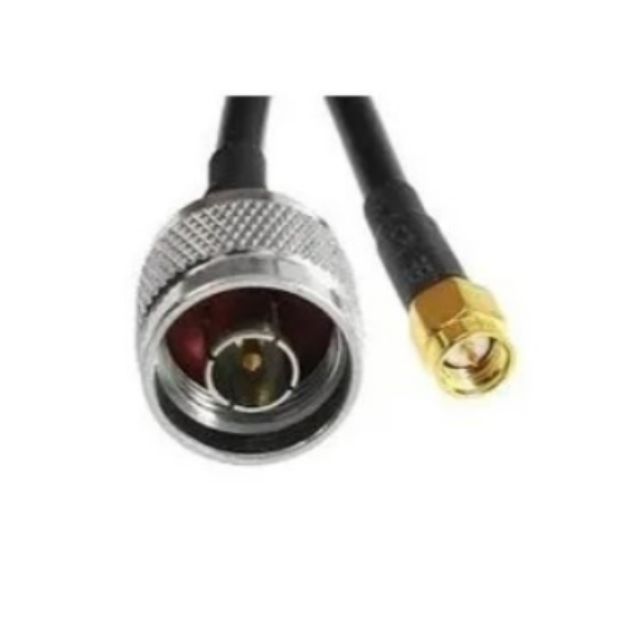

| SMA Male to N Male | 50 Ohm | LMR400 Cable | Telecom BTS Installations |
| Low Loss SMA Cable Assembly | 50 Ohm | RG316 / LL Series | Microwave RF Systems |
Why Choose us
High Signal Efficiency
Our SMA cable assemblies are engineered for stable signal transmission with low insertion loss and excellent microwave performance.
Reliable RF Connectivity
Manufactured using precision SMA connectors and premium coaxial cables for accurate impedance matching and long-term reliability.
Low Loss Signal Transmission
Designed for minimal attenuation and improved RF efficiency across telecom and wireless communication systems.
Durable & Flexible Construction
Built using high-quality materials for superior flexibility, durability, and reliable operation in demanding environments.
Frequently Asked Questions
An SMA cable assembly is an RF coaxial cable fitted with SMA connectors for high-frequency signal transmission applications.
Most SMA cable assemblies support frequencies up to 18 GHz, while precision versions can support higher frequencies.
They are widely used in RF communication, telecom systems, GPS devices, antennas, IoT systems, and RF testing equipment.
Standard SMA cable assemblies are generally designed with 50 Ohm impedance.
SMA connectors provide secure threaded locking, low signal loss, compact size, and reliable high-frequency RF performance.
Common cable types include RG58, RG174, RG316, LMR series, and low-loss coaxial RF cables.
Yes, SMA cable assemblies are widely used in RF, telecom, and selected 4G/5G communication systems.
Yes, they are available in custom cable lengths, connector combinations, and cable types according to project requirements.
Low insertion loss minimizes RF signal attenuation and improves overall transmission efficiency.
SRFS Teleinfra offers high-quality SMA cable assemblies with reliable RF performance, durable construction, custom solutions, and technical support.
