Phase Stable LP 150

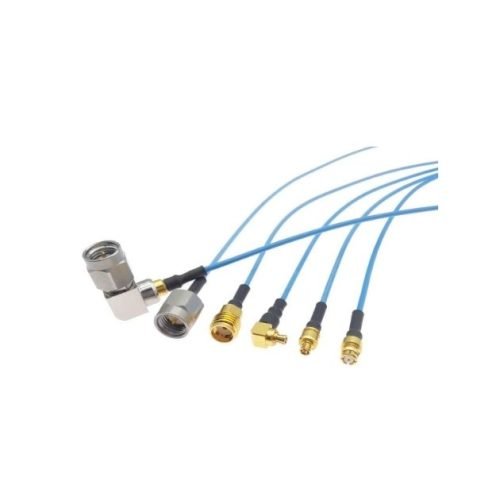

Phase Stable LP 150 is a precision RF cable designed to provide consistent phase performance and reliable signal transmission across demanding applications. Its specialized construction helps maintain stable electrical characteristics, excellent signal integrity, and repeatable performance during operation. The LP 150 is suitable for RF test and measurement equipment, telecommunications, aerospace, defense, wireless communication, laboratory systems, and electronic applications. Its flexible design supports convenient routing and installation in compact or complex equipment configurations. With dependable phase stability and consistent RF performance, LP 150 provides an effective solution for precision systems requiring accurate measurements and reliable signal transmission.
Construction
| Construction | Size (mm) | Materials |
|---|---|---|
| Center Conductor | 0.29 | Solid silver-plated copper |
| Dielectric | 0.86 | Low density PTFE wrapping |
| Outer Conductor | 1.02 | Silver-plated copper tape wrap |
| Outer Shield | 1.23 | Silver-plated copper wire braid |
| Jacket | 1.50 | FEP |
Electrical Specification
| Frequency | DC-40 GHz |
| Impedance | 50 Ω |
| Velocity of Propagation | 74% |
| Shielding Effectiveness | >90 dB |
| Withstanding Voltage | 400 V |
| *Mechanical Phase Stability | <±5° @18GHz, <±8° @40GHz |
| Amplitude Stability vs Shaking | <±0.1dB @18GHz, <±0.15dB @40GHz |
| * Wrapped 360° around a 15 mm radius mandrel. | |
Mechanical & Environmental
| Min. Bending Radius Static | 7 mm |
| Min. Bending Radius Repeated | 15 mm |
| Weight | 7.5 g/m |
| Temperature (Operation) | -50 ~ 150 °C |
| Temperature (Storage) | -60 ~ 160 °C |
