2.4mm Termination
2.4mm RF Terminations are precision microwave components designed to absorb RF signal power and eliminate unwanted reflections in high-frequency transmission lines. They are widely used in RF testing, calibration, laboratory measurements, aerospace, defense, telecommunications, and high-speed communication systems where accurate impedance matching is essential. At SRFS Teleinfra, we offer high-quality 2.4mm Terminations engineered for excellent electrical performance, low VSWR, and reliable operation across extended microwave frequency ranges.
Our 2.4mm RF Terminations are manufactured using premium materials and precision machining techniques to provide stable 50 Ohm impedance, superior return loss, and consistent performance under demanding operating conditions. They are suitable for use with vector network analyzers (VNAs), RF test equipment, microwave instruments, and high-frequency communication systems requiring precise signal termination.
All our 2.4mm RF Terminations are manufactured in India under strict quality control processes using thoroughly tested materials and advanced production standards. This ensures dependable performance, long service life, and cost-effective solutions for telecom, aerospace, defense, research laboratories, and RF testing applications across India.
What is a 2.4mm RF Termination?
A 2.4mm RF Termination is a precision microwave component designed to absorb RF energy and eliminate unwanted signal reflections at the end of a transmission line. It provides a highly accurate 50 Ohm impedance match, ensuring maximum power transfer and maintaining signal integrity in high-frequency RF and microwave systems.
These terminations are widely used in RF laboratories, aerospace, defense, satellite communication, telecommunications, and test & measurement applications where reliable performance at microwave frequencies is critical.
Types of 2.4mm RF Terminations

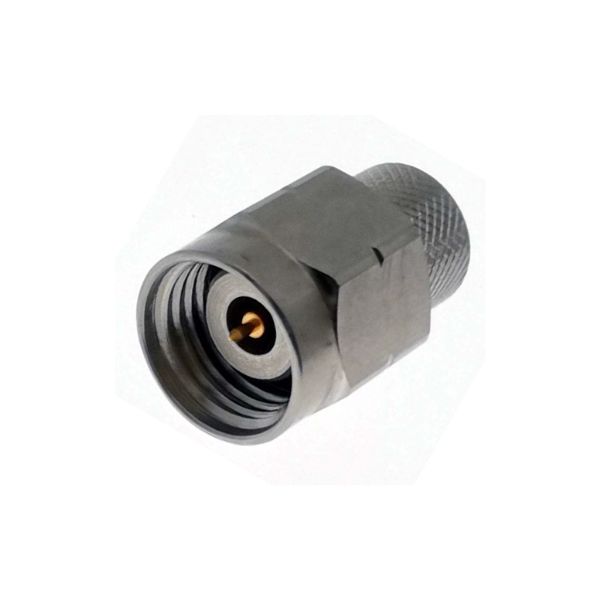

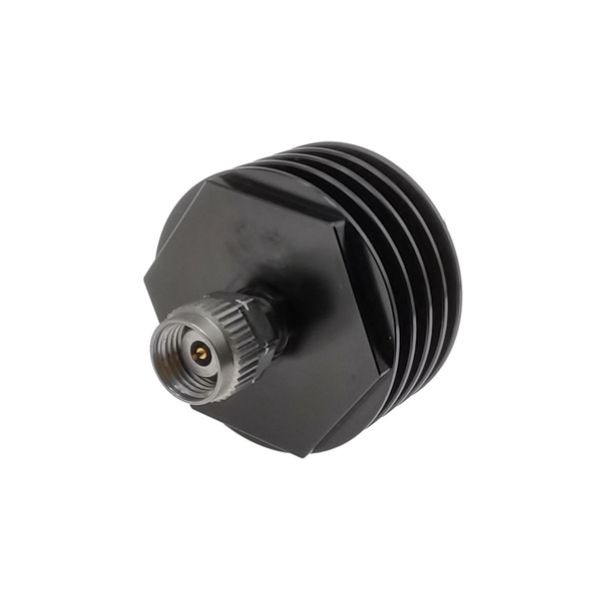

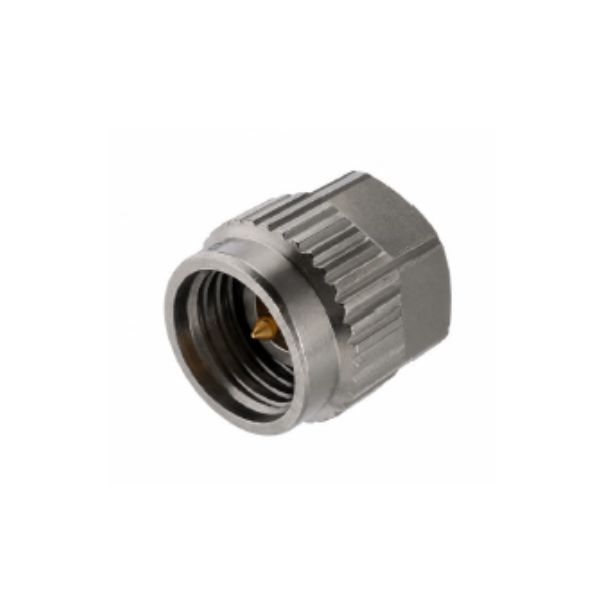

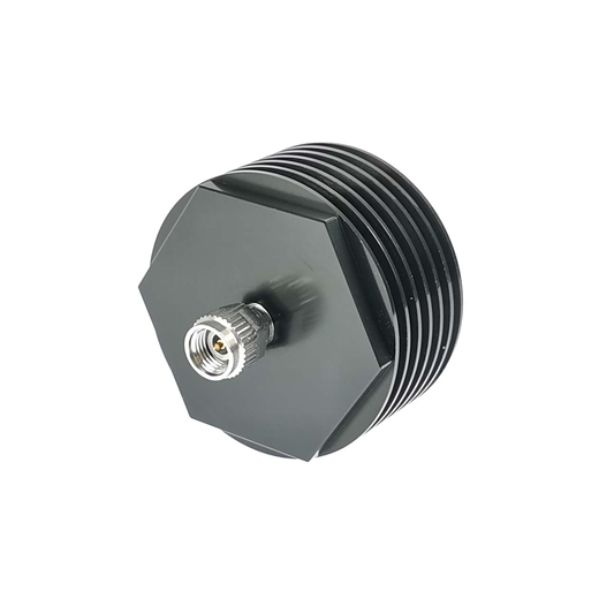

Male 2.4mm RF Termination
Designed with a male 2.4mm connector, these terminations are used to terminate female microwave ports in RF test setups and communication equipment.

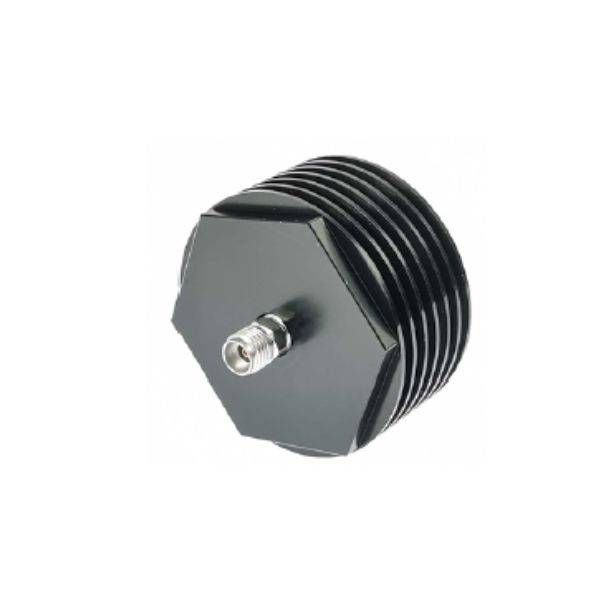

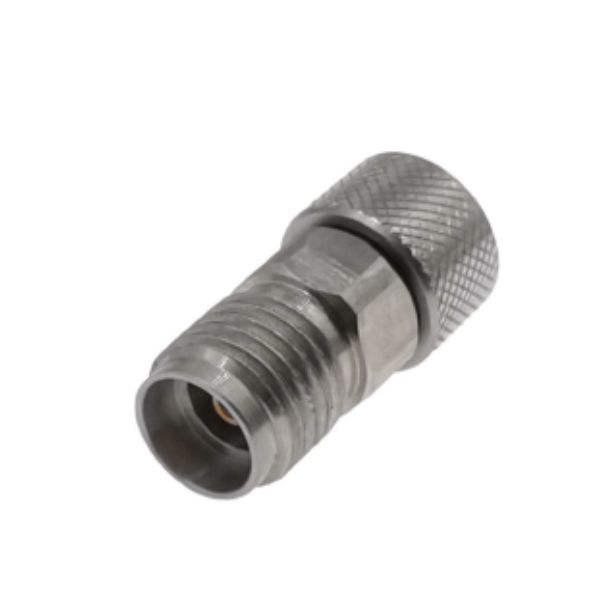

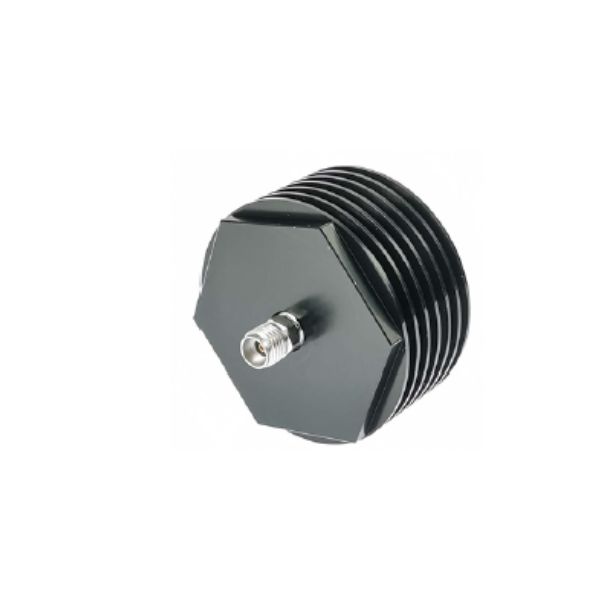

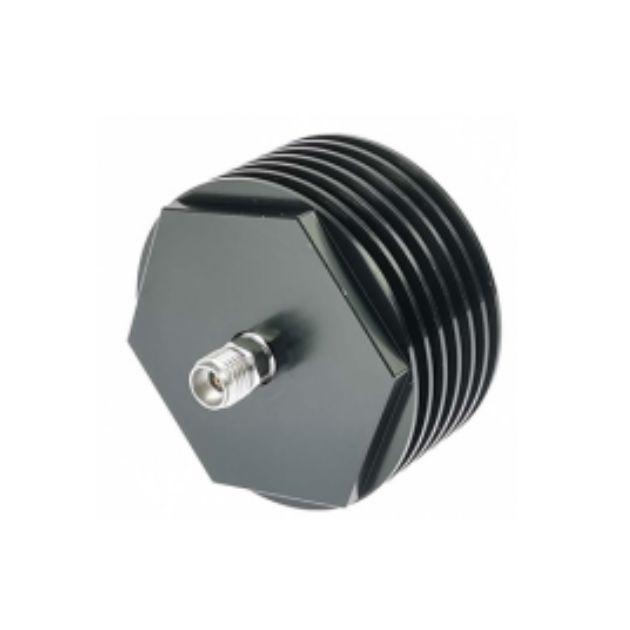

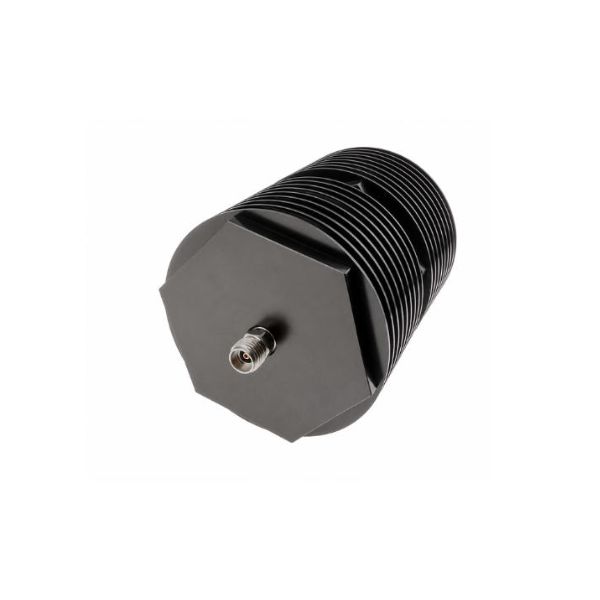

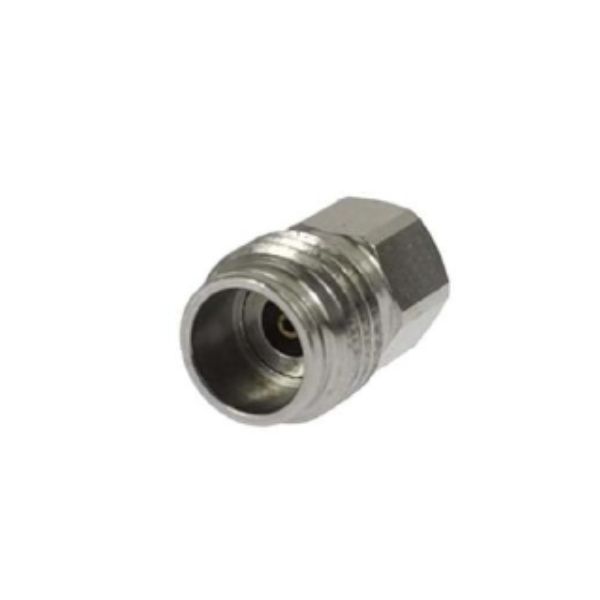

Female 2.4mm RF Termination
Features a female 2.4mm connector for terminating male RF connectors while maintaining excellent impedance matching and low signal reflection.
Precision Microwave Termination
Manufactured with tight mechanical tolerances to deliver outstanding return loss, low VSWR, and stable electrical performance for laboratory-grade measurements.
Low Power 2.4mm Termination
Suitable for signal testing, calibration, and measurement applications where lower RF power handling is required.

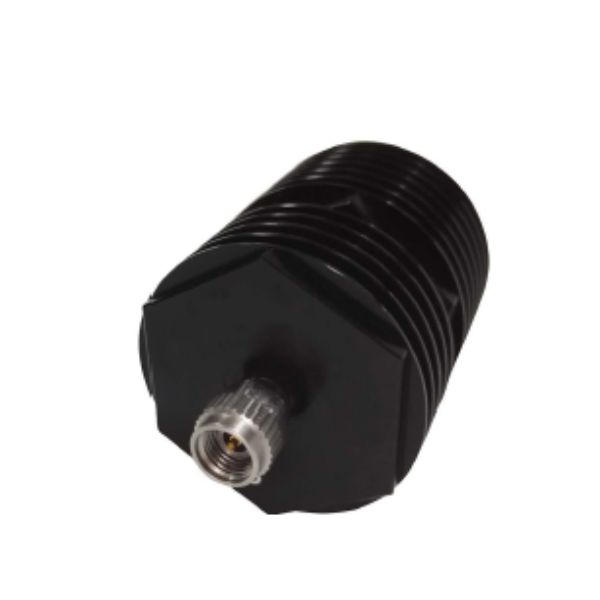

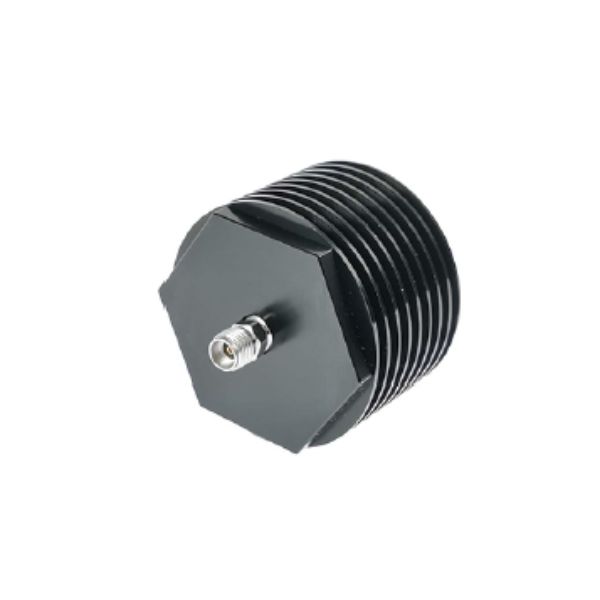

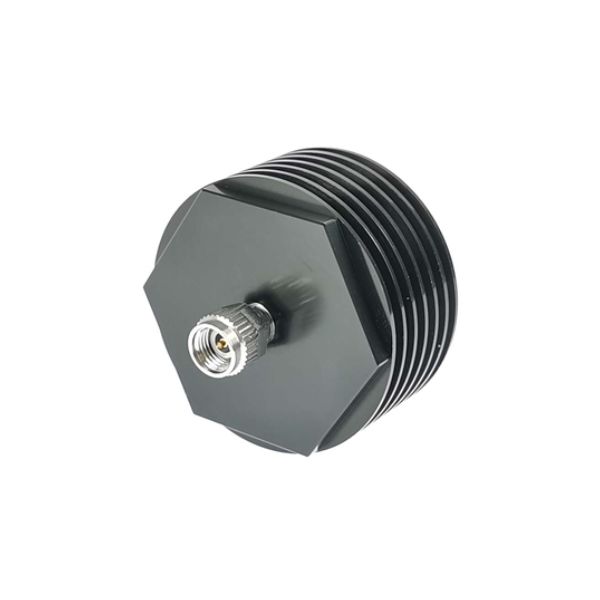

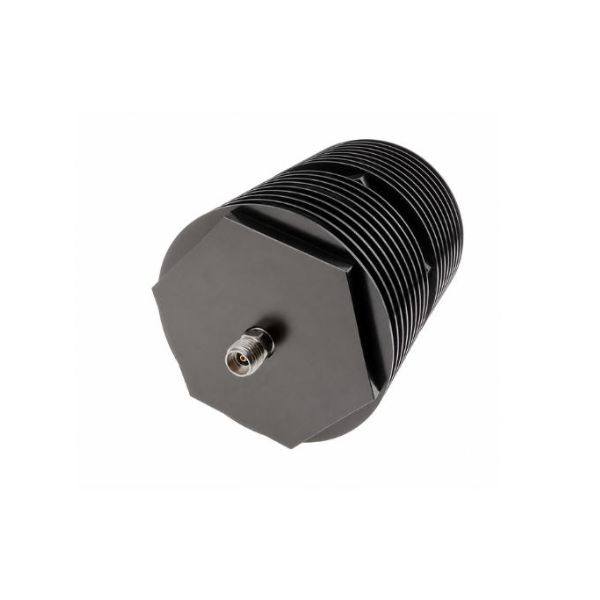

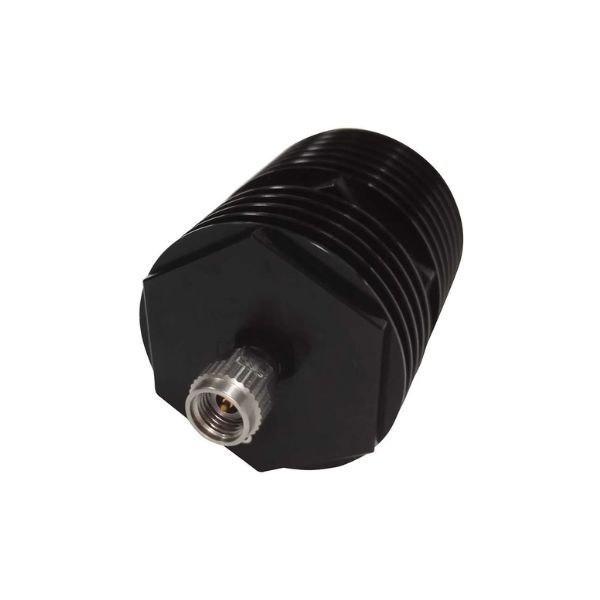

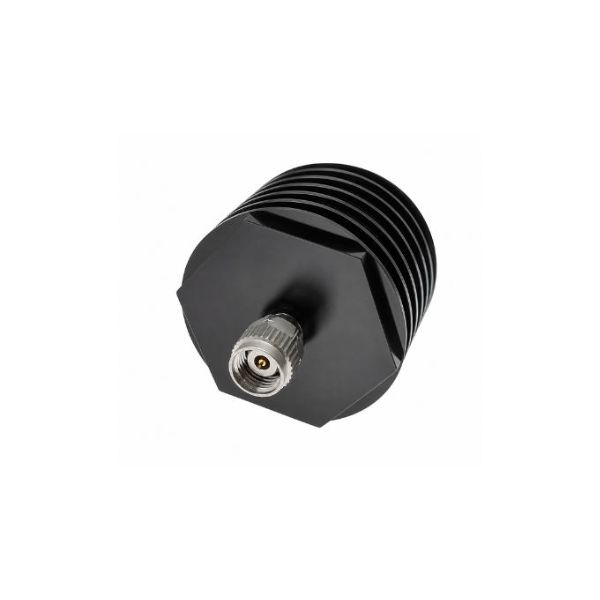

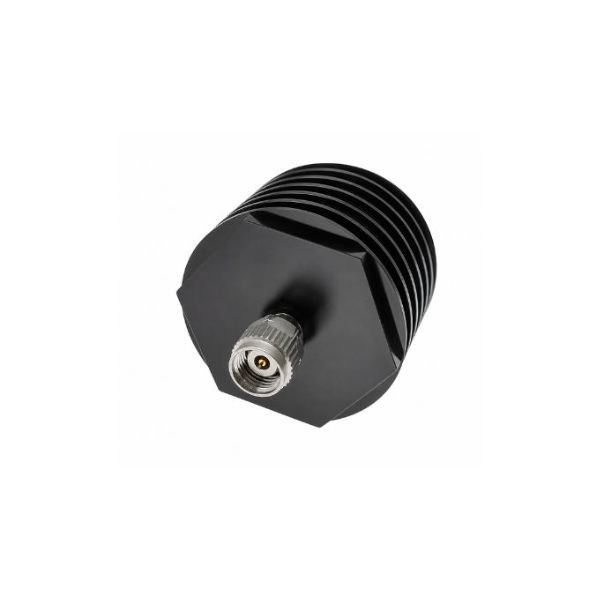

High Power 2.4mm RF Termination
Designed to dissipate higher RF power while maintaining stable electrical characteristics in demanding microwave applications.
Technical Specifications
Our 2.4mm RF Terminations are manufactured to meet industry standards and provide reliable performance across high-frequency applications.
Impedance
Standard 50 Ohm impedance for precise impedance matching and minimum signal reflection.
Frequency Range
Supports microwave frequencies up to 50 GHz, making it suitable for advanced RF and high-speed communication systems.
Power Rating
Available in multiple power ratings to meet different testing and operational requirements.
VSWR
Low VSWR ensures excellent return loss, reduced reflections, and accurate measurement performance.
Connector Interface
Precision 2.4mm coaxial connector manufactured to tight tolerances for repeatable and reliable connections.
Construction
Built using high-quality stainless steel, precision dielectric materials, and advanced manufacturing techniques for long service life and consistent performance.
Technical Specifications
Our 2.4mm RF Terminations are precision-engineered to deliver exceptional performance in high-frequency RF and microwave applications while meeting stringent industry standards.
Impedance
Available with a 50 Ohm impedance to provide accurate impedance matching, minimize signal reflections, and maintain excellent signal integrity.
Frequency Range
Supports operation up to 50 GHz, making it ideal for microwave, millimeter-wave, and high-frequency RF testing applications.
Power Rating
Offered in various power ratings to accommodate different RF testing, calibration, and communication requirements.
VSWR (Voltage Standing Wave Ratio)
Designed with low VSWR to ensure excellent return loss, reduced signal reflection, and highly accurate measurement results.
Connector Interface
Equipped with a precision 2.4mm connector interface, ensuring reliable mechanical fit, repeatable connections, and compatibility with high-frequency RF and microwave equipment.
Construction Material
Manufactured using high-grade stainless steel and precision dielectric materials for superior durability, corrosion resistance, and long-term electrical stability.
Operating Temperature
Designed to perform reliably across a wide operating temperature range, ensuring consistent electrical performance in laboratory and field environments.
Compliance
Manufactured in accordance with international RF and microwave quality standards, ensuring dependable performance for telecom, aerospace, defense, research, and test & measurement applications.
Applications of 2.4mm RF Terminations
Our 2.4mm RF Terminations are widely used in various microwave and RF applications, including:
- Vector Network Analyzer (VNA) calibration
- RF and microwave testing laboratories
- Aerospace and defense communication systems
- Satellite communication equipment
- High-frequency telecom infrastructure
- 5G and millimeter-wave research
- Microwave component testing
- RF production testing and quality control
- Research and development laboratories
- High-speed communication systems
Key Performance Factors
Selecting the right 2.4mm RF Termination is essential for achieving accurate measurements and reliable system performance. Important factors include:
Precision 50 Ohm impedance matching
Low VSWR and high return loss
Wide operating frequency up to 50 GHz
Appropriate power handling capability
High mechanical accuracy
Excellent durability and corrosion resistance
Stable electrical performance over temperature variations
Compatibility with precision microwave test equipment
Choosing a high-quality 2.4mm RF Termination helps ensure accurate RF measurements, minimizes signal reflections, protects sensitive microwave equipment, and delivers dependable performance in demanding telecom, aerospace, defense, and laboratory environments.
RF Dummy Load & Termination Specifications
| Parameter | Specification |
|---|---|
| Connector Type | 2.4mm Male / Female |
| Impedance | 50 Ohm |
| Frequency Range | DC to 50 GHz |
| VSWR | ≤ 1.20 (Typical) |
| Power Rating | 2W, 5W, 10W, 20W, 50W (Custom Options Available) |
| Operating Temperature | -55°C to +125°C |
| Body Material | Stainless Steel |
| Contact Material | Beryllium Copper, Gold Plated |
| Termination Type | Precision RF Dummy Load |
| RoHS Compliance | Yes |
| Applications | RF Testing, Microwave Systems, Test & Measurement, Aerospace, Defense, Satellite Communication, 5G Networks |
Why Choose us
Precision Microwave Performance
Our 2.4mm RF Terminations are engineered for exceptional accuracy, delivering reliable impedance matching and outstanding electrical performance in high-frequency microwave applications.
Excellent Return Loss & Low VSWR
Designed with low VSWR and high return loss, our terminations effectively minimize signal reflections, ensuring accurate measurements and improved system performance.
Wide Frequency Coverage
Supporting frequencies up to 50 GHz, our products are ideal for advanced RF, microwave, millimeter-wave, aerospace, defense, and telecom applications.
Precision Manufacturing
Each termination is manufactured using high-quality stainless steel and precision-engineered components to ensure mechanical accuracy, durability, and consistent long-term performance.
Frequently Asked Questions
A 2.4mm RF Termination is a precision microwave component used to absorb RF signals at the end of a transmission line, preventing signal reflections and maintaining a consistent 50 Ohm impedance in high-frequency applications.
Most 2.4mm RF Terminations are designed with a 50 Ohm impedance, which is the industry standard for RF and microwave communication systems.
A standard 2.4mm RF Termination supports frequencies up to 50 GHz, making it suitable for microwave, millimeter-wave, and high-speed RF applications.
They are widely used in vector network analyzers (VNAs), RF test laboratories, aerospace and defense systems, satellite communication, 5G research, microwave testing, and calibration applications.
Low VSWR minimizes signal reflections, improves return loss, increases measurement accuracy, and protects sensitive RF and microwave equipment.
2.4mm RF Terminations are available in various power ratings, allowing users to choose the appropriate termination based on their testing or operational requirements.
Yes. 2.4mm RF Terminations are commonly used with VNAs for calibration, port termination, and accurate RF and microwave measurements.
They are typically manufactured from precision-machined stainless steel, high-performance dielectric materials, and high-quality resistive elements to ensure durability and stable electrical performance.
Select a termination based on its frequency range, impedance, power rating, VSWR, return loss, connector gender (male or female), and compatibility with your RF test equipment.
A high-quality 2.4mm RF Termination provides accurate impedance matching, low signal reflection, excellent return loss, reliable high-frequency performance up to 50 GHz, longer service life, and consistent measurement accuracy for RF and microwave systems.
