Band Pass Filter
Band Pass Filters are high-performance RF passive components designed to allow specific frequency bands to pass while rejecting unwanted frequencies outside the desired range. These filters provide low insertion loss, excellent selectivity, stable impedance matching, and reliable RF performance in telecom, wireless communication, microwave, DAS, IBS, and RF signal processing systems.
At SRFS Teleinfra, we manufacture premium-quality Band Pass Filters engineered for telecom infrastructure, RF communication systems, 4G/5G networks, microwave communication, and signal filtering applications. Our RF band pass filters are designed using advanced RF technology to ensure excellent attenuation characteristics, low VSWR, and long operational durability.
Band Pass Filters are essential RF components used to eliminate unwanted frequencies, reduce signal interference, improve network efficiency, and maintain signal integrity in modern communication systems. These filters are widely used in repeaters, base stations, wireless communication networks, radar systems, and RF testing equipment.
What is a Band Pass Filter?
A Band Pass Filter is an RF passive device designed to pass signals within a specific frequency range while attenuating frequencies outside the selected passband. These filters help improve communication quality by allowing only desired signals to pass through the RF system while rejecting unwanted interference.
Band Pass Filters are commonly used in:
- Telecom infrastructure
- RF communication systems
- DAS & IBS networks
- 4G & 5G communication systems
- Microwave communication systems
- Radar systems
- Broadcasting networks
- RF testing equipment
These filters provide stable RF performance with low insertion loss, excellent return loss, high rejection performance, and reliable signal filtering efficiency.
Types of Band Pass Filter

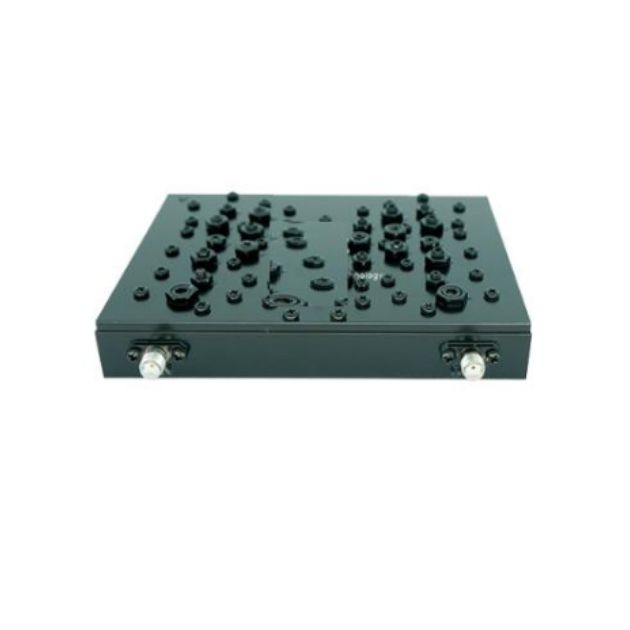

Cavity Band Pass Filter
Cavity band pass filters provide high selectivity and low insertion loss for telecom and microwave communication systems.
Low PIM Band Pass Filter
Low PIM filters reduce passive intermodulation interference and improve 4G LTE and 5G network performance.
Microwave Band Pass Filter
Microwave band pass filters are designed for high-frequency communication and radar applications.
RF Band Pass Filter
RF band pass filters are widely used in wireless communication systems for signal filtering and interference suppression.
Narrow Band Pass Filter
Narrow band filters allow a small frequency range to pass with high rejection of adjacent frequencies.
Broadband Band Pass Filter
Broadband filters support wide frequency ranges for telecom and RF communication networks.
SMA Band Pass Filter
SMA filters provide compact RF filtering solutions for testing equipment and microwave systems.

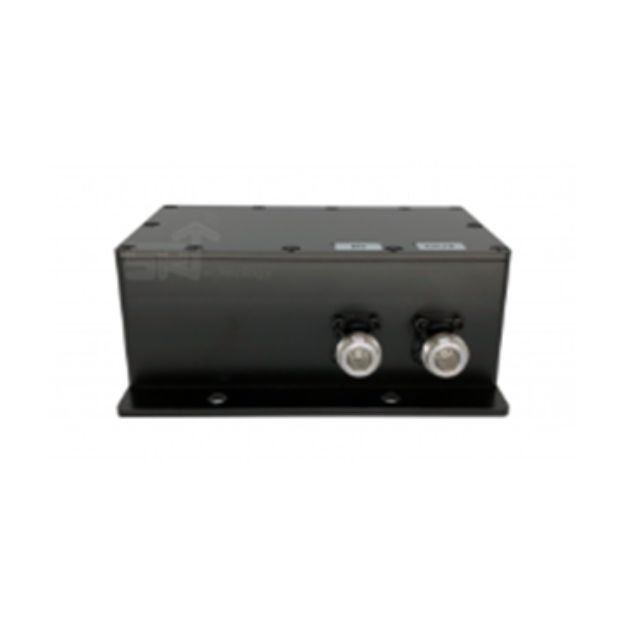

N Type Band Pass Filter
N Type filters offer secure RF connectivity for telecom infrastructure and outdoor RF installations.
Technical Specifications
Below are general specifications of Band Pass Filters (may vary depending on frequency range and application requirements):
Electrical Specifications
- Impedance: 50 Ohms
- Frequency Range: 902 MHz to 9255 MHz
- Insertion Loss: 0.3 dB to 2.8 dB
- Return Loss: ≥ 18 dB to 20 dB
- VSWR: ≤ 1.3 : 1
- Pass Band Ripple: 0.2 dB to 0.8 dB
- Rejection: Up to 80 dBc
- Power Handling: 10W to 100W
- PIM Performance: Up to -156 dBc
Mechanical Specifications
- Connector Type: N Female / SMA Female / DIN Connector
- Construction Type: RF Cavity Filter Design
- Body Material: Aluminum Alloy
- Connector Material: Brass
- Plating: Nickel Plated
- Finish: Black Epoxy Coating
- Mounting Type: Indoor & Outdoor Installation
- Protection Rating: IP67 Available for Outdoor Models
Environmental Specifications
- Operating Temperature: -40°C to +85°C
- Weather Resistance: Suitable for Indoor & Outdoor Applications
- Corrosion Resistance: High Durability Protective Coating
- Moisture Resistance: Reliable Performance in Humid Conditions
- Application Suitability: RF, Telecom, Microwave & Wireless Communication Systems
Applications of Band Pass Filter
Band Pass Filters are widely used in:
- Telecom infrastructure
- DAS & IBS systems
- 4G & 5G communication networks
- RF communication systems
- Microwave communication systems
- Radar systems
- Broadcasting networks
- RF testing laboratories
- Wireless communication equipment
- Base station and repeater systems
Features of Band Pass Filter
Excellent Frequency Selectivity
Allows only desired frequency bands to pass while rejecting unwanted signals.
Low Insertion Loss
Provides efficient signal transmission with minimal RF power loss.
Low VSWR Performance
Ensures minimal signal reflection and improved RF transmission efficiency.
High Rejection Performance
Effectively suppresses unwanted frequencies and signal interference.
Stable RF Performance
Designed for reliable signal filtering across telecom and wireless communication systems.
Durable RF Construction
Manufactured using precision RF-grade materials for long operational life.
Band Pass Filter Product Specifications
| Band Pass Filter Type | Frequency Range | Insertion Loss | Application |
|---|---|---|---|

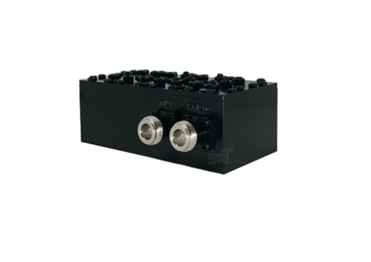

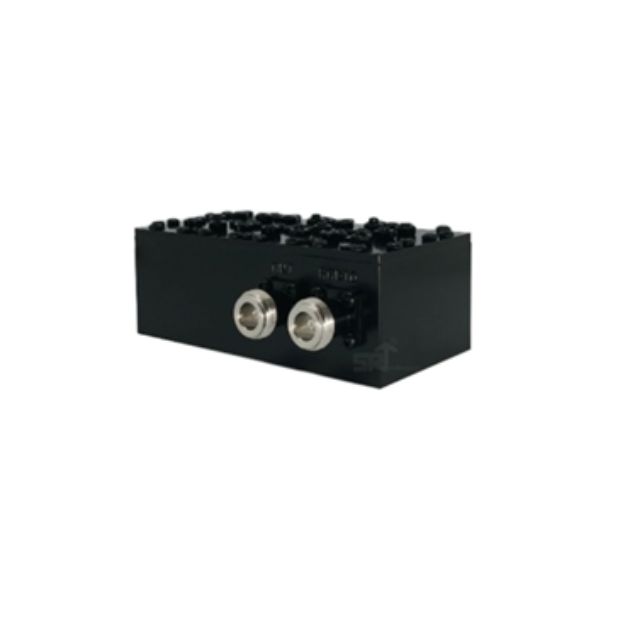

| RF Band Pass Filter | 902 – 908 MHz | ≤ 1.5 dB | Wireless RF Communication |

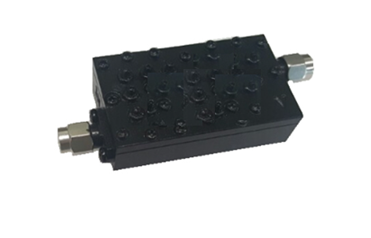

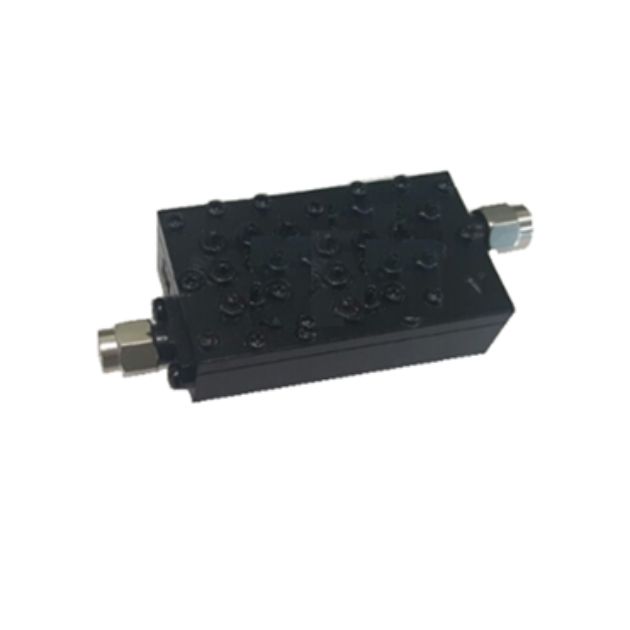

| Microwave Band Pass Filter | 9245 – 9255 MHz | ≤ 2.8 dB | Microwave Communication Systems |

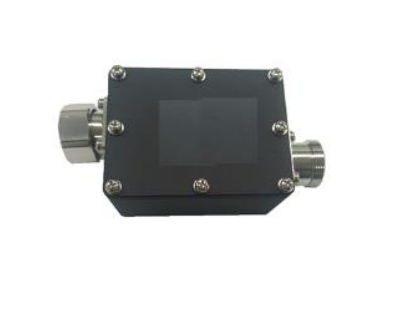

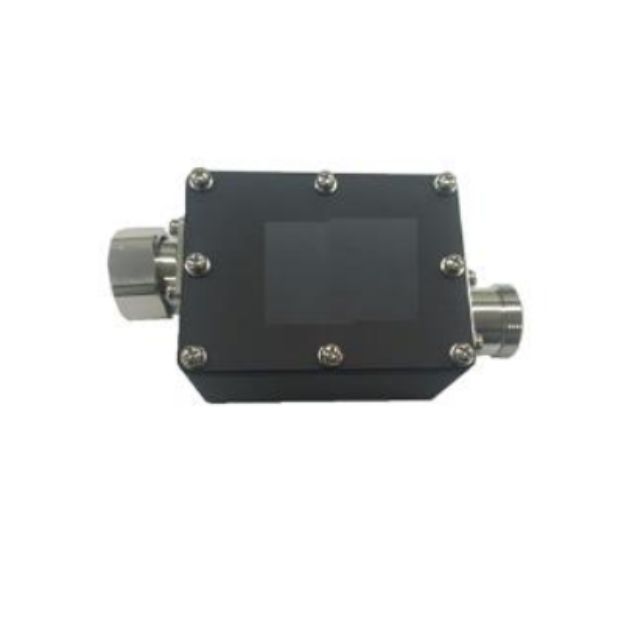

| Low PIM Band Pass Filter | 1705 – 1840 MHz | ≤ 1.0 dB | Telecom Infrastructure |

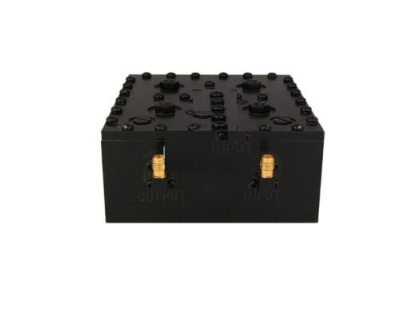

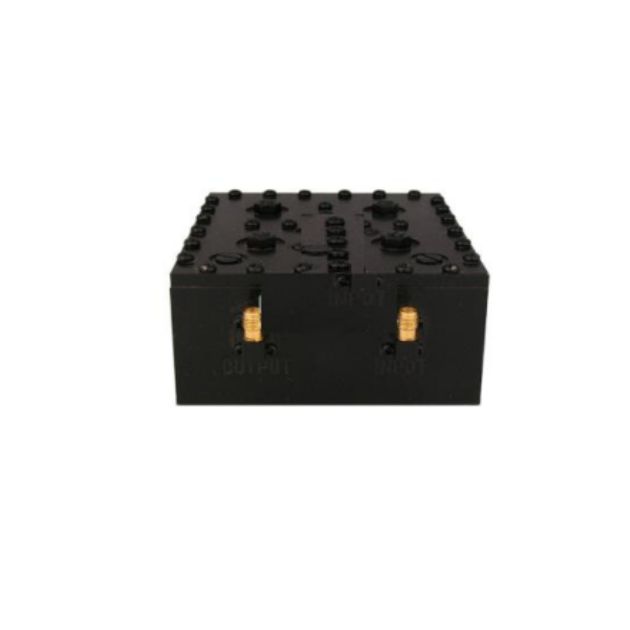

| Narrow Band Pass Filter | 1750 – 1754 MHz | ≤ 0.3 dB | Signal Filtering Systems |

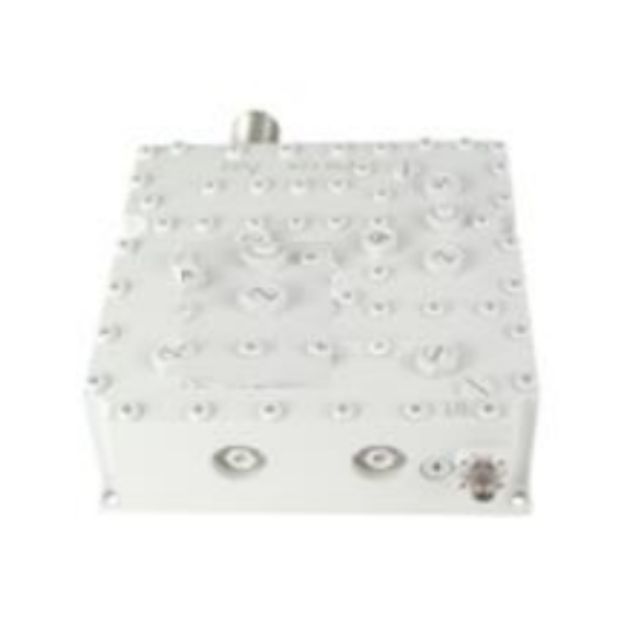

| Broadband Band Pass Filter | 2554 – 2574 MHz | ≤ 1.7 dB | 4G & 5G Networks |
| SMA Band Pass Filter | 2874 MHz | ≤ 2.0 dB | RF Testing Equipment |
| N Type Band Pass Filter | 1705 – 1840 MHz | ≤ 1.0 dB | DAS & IBS Systems |
Why Choose us
Precision RF Engineering
Our Band Pass Filters are manufactured using advanced RF technology for accurate signal filtering and reliable communication performance.
Low Insertion Loss Design
Designed for efficient signal transmission with minimal RF power loss.
Excellent Rejection Performance
Provides superior suppression of unwanted frequencies and signal interference.
Wide Frequency Support
Available for RF, microwave, telecom, and broadband communication applications.
Frequently Asked Questions
A Band Pass Filter is an RF device that allows specific frequency bands to pass while blocking unwanted frequencies.
They are used in telecom systems, RF communication networks, microwave systems, radar applications, and wireless communication equipment.
Most RF Band Pass Filters are designed with standard 50 Ohm impedance for RF communication systems.
Insertion loss represents the signal power loss that occurs when RF signals pass through the filter. Lower insertion loss improves communication efficiency.
Return loss indicates how effectively the filter minimizes signal reflection and maintains impedance matching.
Yes, Band Pass Filters are widely used in modern 4G LTE and 5G communication systems for signal filtering and interference reduction.
Band Pass Filters are commonly available with SMA Female, N Female, and DIN RF connectors.
Yes, SRFS Teleinfra manufactures premium-quality RF Band Pass Filters and telecom connectivity solutions.
