SMP Adapters
SMP Coaxial Adapters are compact, high-frequency RF interconnect components designed to provide reliable electrical connections in space-constrained electronic systems. Featuring a small form factor and push-on or snap-on mating mechanism, SMP adapters are suitable for applications requiring high-density packaging, dependable signal transmission, and efficient installation.
SRFS Teleinfra offers SMP Coaxial Adapters for RF and microwave applications, including communication equipment, aerospace electronics, defense systems, test instruments, and high-density interconnect assemblies. These adapters can be used to connect compatible SMP interfaces and integrate RF components into compact system architectures.
Their compact construction makes SMP adapters particularly useful in applications where conventional threaded RF connectors may require too much installation space or assembly time. Depending on the selected configuration, SMP adapters can support board-to-board connections, cable-to-equipment interfaces, and transitions between compatible RF connector types.
For the best performance, the adapter configuration should be selected according to connector gender, interface compatibility, impedance, operating frequency, power requirements, and environmental conditions.
What Are SMP Coaxial Adapters?
SMP Coaxial Adapters are miniature RF components that connect compatible SMP interfaces or provide transitions between SMP and other coaxial connector types. SMP stands for SubMiniature Push-on, referring to its compact interface and push-on mating mechanism.
These adapters are designed to maintain the continuity of the coaxial signal path while helping minimize reflections and transmission losses when used within their specified operating limits. Their small dimensions make them suitable for densely packed RF modules, microwave assemblies, and electronic systems with limited installation space.
SMP adapters are available in different configurations, including male-to-male, female-to-female, male-to-female, and connector-series transition types. The exact electrical performance depends on the adapter design, interface configuration, materials, and manufacturing tolerances.
Technical Specifications
The following specifications are general selection guidelines. Confirm the exact ratings against the datasheet for the selected adapter.
Parameter | Typical specification or option |
|---|---|
Product Type | SMP Coaxial RF Adapter |
Connector Interface | SMP |
Impedance | Typically 50 Ohms |
Frequency Range | Configuration-dependent; selected designs support up to 40 GHz |
Coupling Mechanism | Push-on, snap-on, or slide-on, depending on design |
Adapter Configuration | Straight, bullet, or between-series |
Mating Options | Male, female, and mixed configurations |
Applications | RF, microwave, aerospace, defense, telecom, and test systems |
Mounting Style | Inline, board-to-board, or module-to-module, depending on design |
Materials and Plating | Product-specific |
Operating Temperature | Product-specific |
Power Handling | Depends on design and operating frequency |
The SMP interface is commonly designed for 50-ohm RF systems. Frequency capability, return loss, insertion loss, power handling, and mechanical performance vary by adapter design; extended-range models can support operation up to 40 GHz.
Types of SMP Coaxial Adapters
SMP Male-to-Male Adapters: Connect compatible SMP interfaces with male contacts where the mating configuration permits.
SMP Female-to-Female Adapters: Provide a connection between compatible SMP female interfaces, commonly using a bullet-style adapter in blind-mate designs.
SMP Male-to-Female Adapters: Support connections between compatible SMP interfaces with different contact genders.
SMP-to-SMP Adapters: Maintain connectivity between SMP components in compact RF assemblies.
SMP-to-SMPM Adapters: Provide a transition between SMP and SMPM interfaces when compatible configurations are selected.

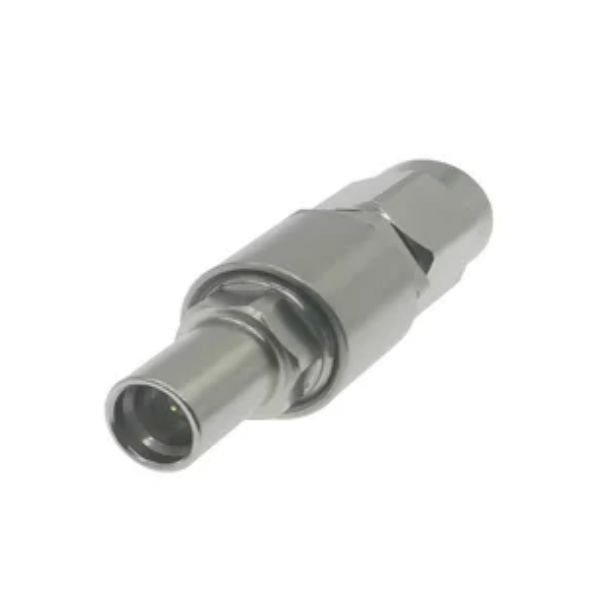

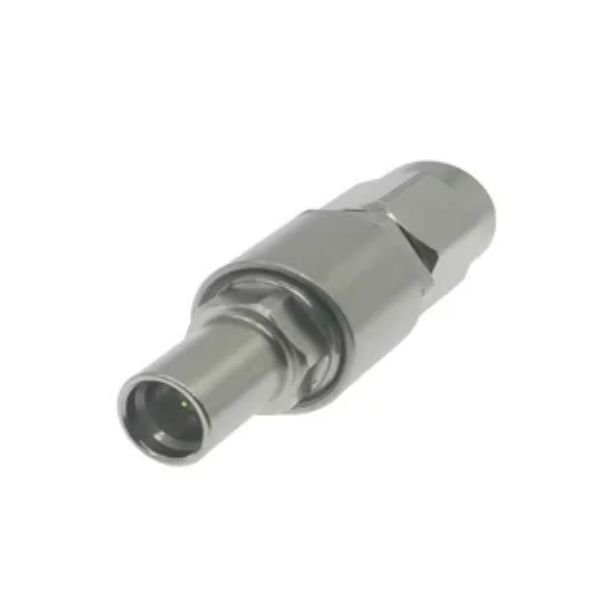

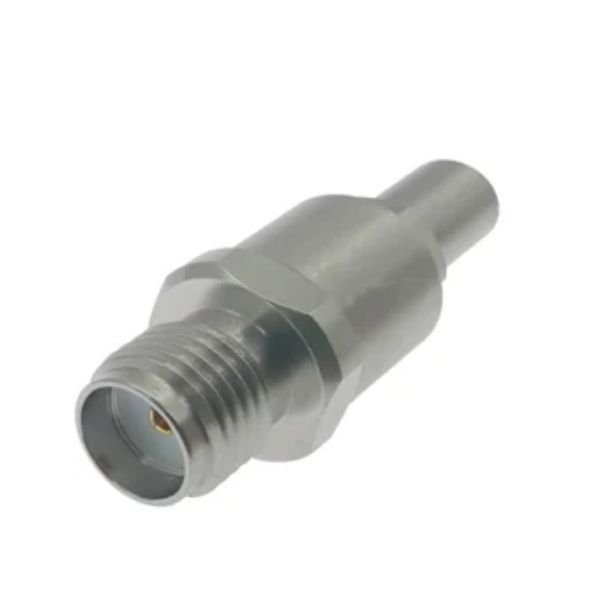

SMP-to-SMA Adapters: Connect SMP interfaces to compatible SMA equipment or components.
SMP-to-2.92mm Adapters: Enable integration between SMP and 2.92mm microwave interfaces, subject to the specified frequency and interface ratings.
Blind-Mate SMP Adapters: Support connections in compact assemblies where direct visual access and precise alignment are limited.
SMP Bullet Adapters: Provide an interconnect between compatible SMP receptacles, particularly in board-to-board or module-to-module systems.
Applications of 2.92mm Coaxial Adapters
SMP adapters are used across industries where compact dimensions and dependable high-frequency connectivity are important.
Aerospace and Defense: RF modules, radar systems, avionics, and compact electronic assemblies.
Telecommunications: High-frequency communication modules, RF subsystems, and wireless infrastructure.
Microwave Engineering: Signal-routing assemblies, microwave modules, and high-frequency interconnections.
Test and Measurement: RF test fixtures, laboratory equipment, and modular test systems.
Board-to-Board Interconnections: Compact PCB assemblies requiring reliable RF signal paths.
Satellite Communication: Space-constrained RF modules and communication equipment.
Phased-Array Systems: Dense RF interconnects used in antenna arrays and radar electronics.
Research and Development: Prototype RF circuits, experimental microwave systems, and electronic testing.
Key Features of SMP Coaxial Adapters
Compact design for high-density RF assemblies.
Push-on or snap-on mating for quick connection and disconnection.
Suitable for compatible blind-mate interconnect applications.
Multiple configurations for same-series and between-series connections.
Designed for high-frequency RF and microwave signal transmission.
Available in designs that accommodate limited alignment variation.
Useful for modular equipment, PCB interconnections, and test fixtures.
Helps simplify assembly in applications where space and accessibility are restricted.
The specific performance of each adapter depends on its interface geometry, manufacturing tolerances, materials, and rated operating conditions
SMP Coaxial Adapters Specification
| Product Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| SMP Male-to-Male Adapter | 50 Ohm | As per model | RF Interconnection |
| SMP Female-to-Female Adapter | 50 Ohm | As per model | RF Module Connectivity |
| SMP Male-to-Female Adapter | 50 Ohm | As per model | RF Signal Routing |
| SMP-to-SMP Adapter | 50 Ohm | As per model | Board-to-Board Systems |
| SMP-to-SMPM Adapter | 50 Ohm | As per model | High-Density RF Modules |
| SMP-to-SMA Adapter | 50 Ohm | As per model | RF Equipment Connectivity |
| SMP-to-2.92mm Adapter | 50 Ohm | As per model | Microwave Testing |
| SMP Bullet Adapter | 50 Ohm | As per model | Blind-Mate Interconnections |
| Precision SMP Adapter | 50 Ohm | As per model | Precision RF Testing |
| High-Frequency SMP Adapter | 50 Ohm | Up to 40 GHz on selected designs | Microwave and Defense Systems |
Why Choose us
Precision RF Connectivity
Select suitable connector configurations for applications requiring controlled impedance, secure mating, and reliable signal transmission.
High-Frequency Applications
SMP adapters are suitable for RF and microwave systems operating up to 50 GHz when the selected model is rated for the required frequency.
Multiple Configurations
Choose from same-series connector genders and compatible between-series adapters according to your equipment requirements.
Application-Based Product Selection
Specify the connector interface, frequency range, impedance, and mechanical requirements to identify an appropriate solution for your RF system.
Frequently Asked Questions
An SMP Coaxial Adapter is a compact RF component used to connect compatible SMP interfaces or transition between SMP and other RF connector series. It is commonly used in high-density, high-frequency electronic assemblies.
SMP stands for SubMiniature Push-on. The connector series uses a compact push-on mating interface designed for applications where space and quick assembly are important.
SMP RF adapters are commonly designed for 50-ohm systems. Always verify the impedance of the selected part before integrating it into an RF circuit.
The maximum frequency depends on the particular adapter. Selected SMP designs support frequencies up to 40 GHz, while other models have lower specified limits.
SMP bullet adapters are used to connect compatible SMP receptacles, particularly in blind-mate and board-to-board applications where the connected components may have limited alignment tolerance.
Yes. Suitable SMP adapter designs are used in radar, avionics, aerospace, defense, and other compact RF systems. Selection should account for environmental, mechanical, and electrical requirements.
Yes. SMP-to-SMA adapters are available in compatible configurations, allowing systems with SMP interfaces to connect to equipment using SMA interfaces. Frequency and performance ratings depend on the selected model.
SMPM is a smaller RF connector interface intended for very high-density packaging. SMP and SMPM are distinct interfaces, so an SMP-to-SMPM adapter must be specifically designed for the required transition.
Check the connector interface, gender, mating style, impedance, frequency range, return loss, insertion loss, power handling, mechanical dimensions, and environmental requirements. Confirm compatibility with the equipment or assembly.
You can contact SRFS Teleinfra through its SMP Coaxial Adapters product page to enquire about suitable configurations, availability, and technical specifications.
