Low Pim Termination
Low PIM Terminations are high-performance RF dummy loads designed to minimize Passive Intermodulation (PIM) interference while providing reliable RF power absorption in telecom, DAS, IBS, 4G LTE, 5G, microwave, and wireless communication systems. These RF terminations ensure stable impedance matching, low VSWR, excellent return loss, and superior signal integrity in modern telecom infrastructure.
At SRFS Teleinfra, we manufacture premium-quality Low PIM Terminations engineered for high-power RF applications, telecom base stations, antenna systems, distributed antenna systems, and RF testing environments. Our low PIM RF loads are designed using precision RF technology and high-grade materials to deliver reliable performance with ultra-low intermodulation distortion.
Low PIM terminations are widely used to terminate unused RF ports, absorb RF energy safely, and prevent unwanted signal reflections in communication systems. These terminations help improve network efficiency, reduce interference, and maintain stable RF performance in multi-band telecom networks.
What is a Low PIM Termination?
A Low PIM Termination is an RF dummy load designed to terminate unused RF ports while minimizing passive intermodulation distortion generated within telecom and RF communication systems. These RF loads absorb RF power and prevent signal reflections by providing proper impedance matching to the system.
Low PIM Terminations are commonly used in:
- DAS (Distributed Antenna Systems)
- IBS (In-Building Solutions)
- 4G LTE & 5G Networks
- Telecom Base Stations
- RF Signal Distribution Systems
- Antenna Systems
- RF Testing Equipment
- Microwave Communication Networks
- Wireless Communication Systems
- Telecom Infrastructure
These RF loads provide reliable RF performance with low VSWR, stable impedance matching, high power handling capability, and ultra-low PIM characteristics.
Types of Low PIM Termination

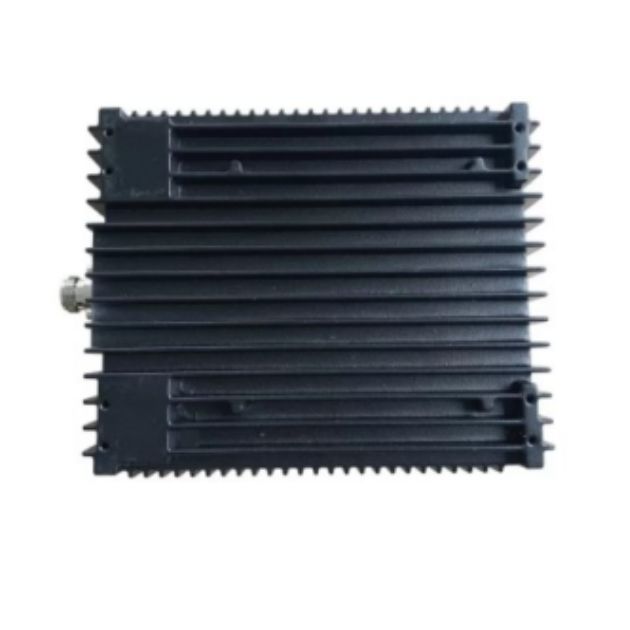

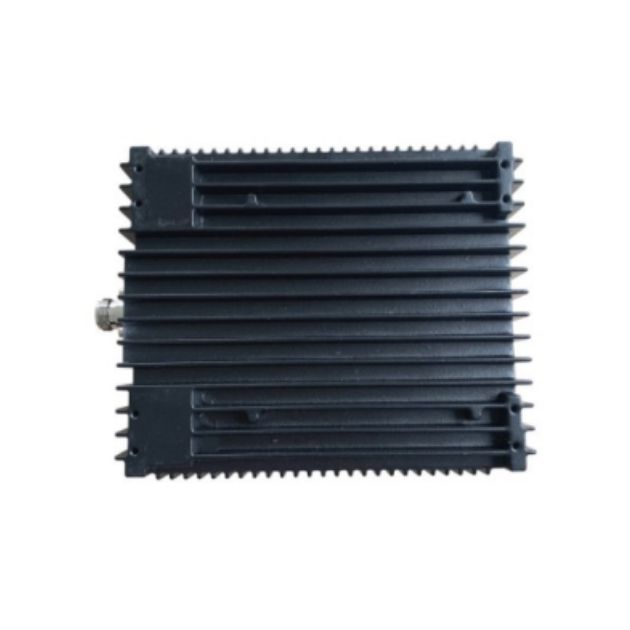

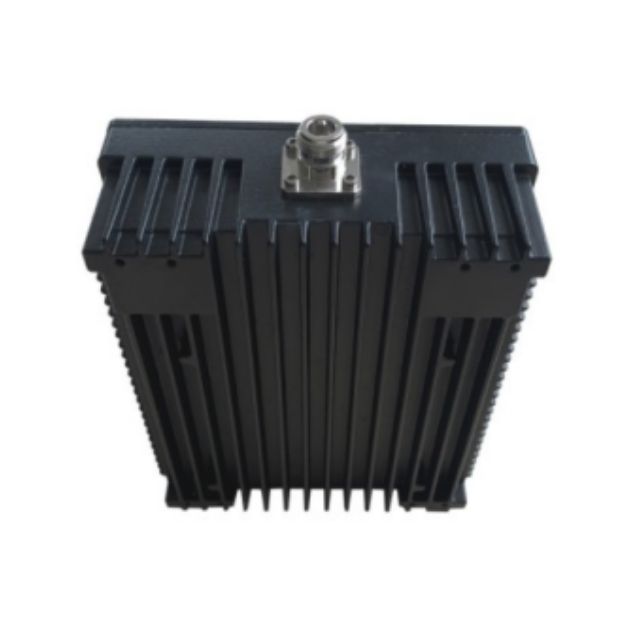

N Female Low PIM Termination
N Female low PIM terminations provide stable RF power absorption and reliable telecom connectivity for outdoor RF systems.

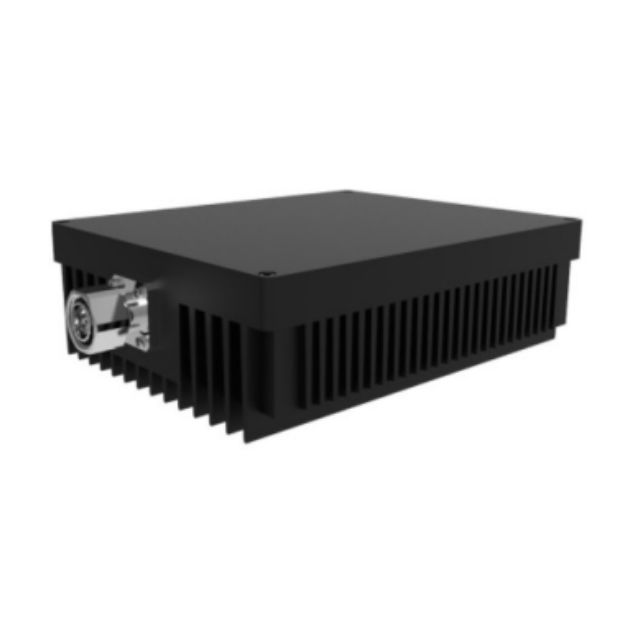

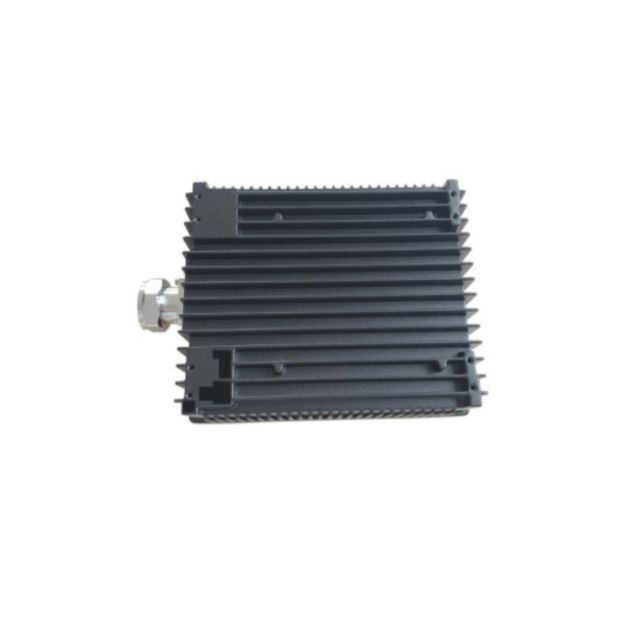

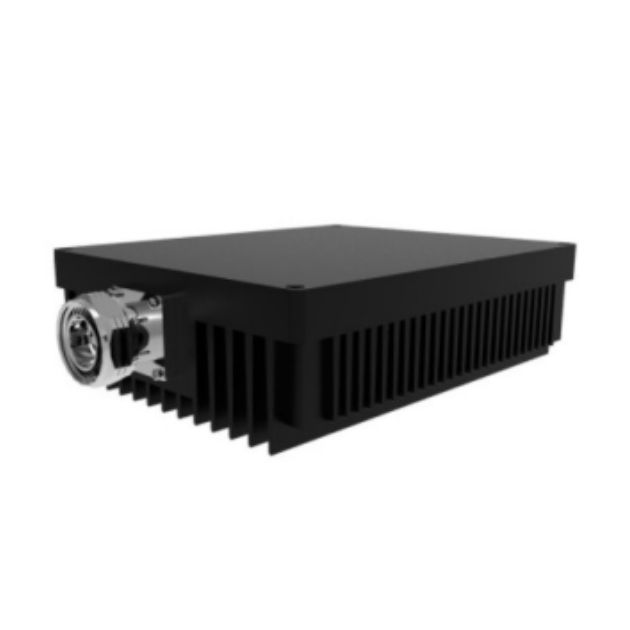

DIN Male Low PIM Termination
DIN Male terminations are widely used in DAS, IBS, and telecom infrastructure requiring ultra-low PIM performance.

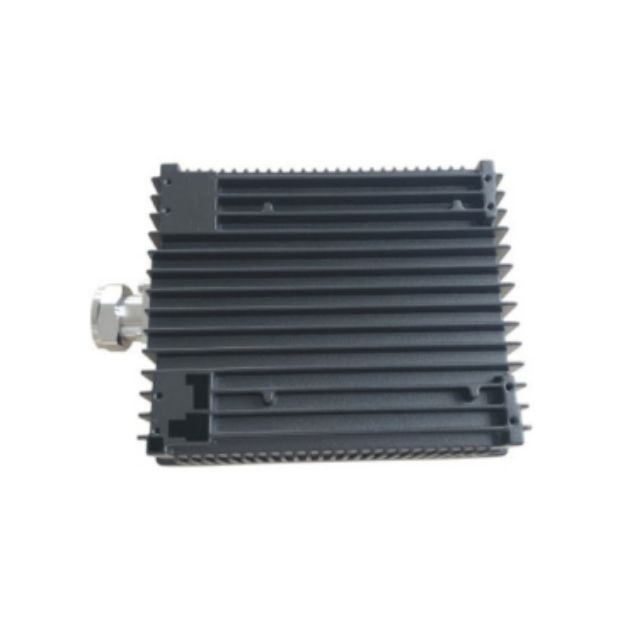

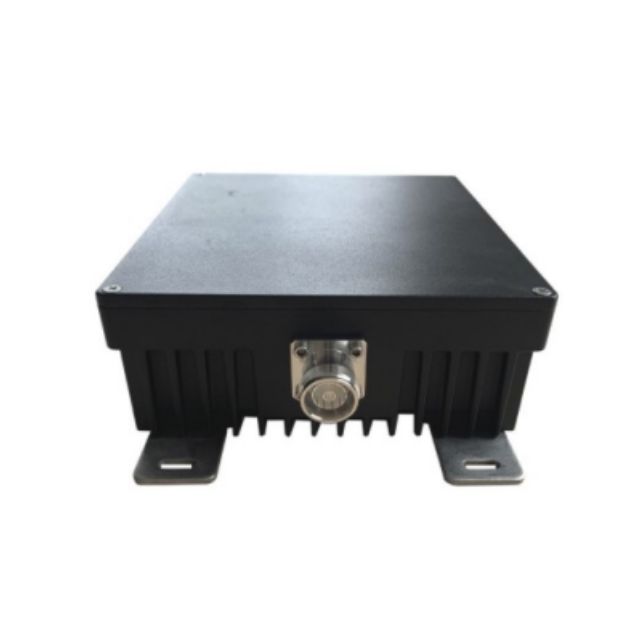

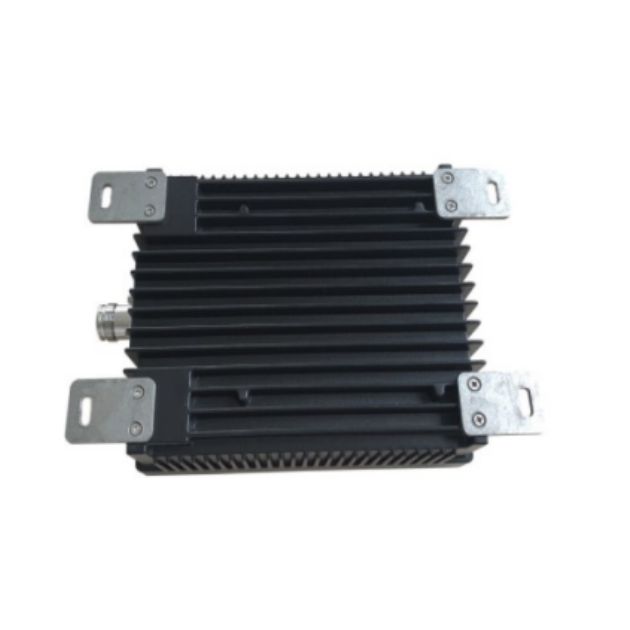

4.3-10 Male Low PIM Termination
4.3-10 terminations are designed for modern 4G LTE and 5G telecom networks with excellent RF performance.

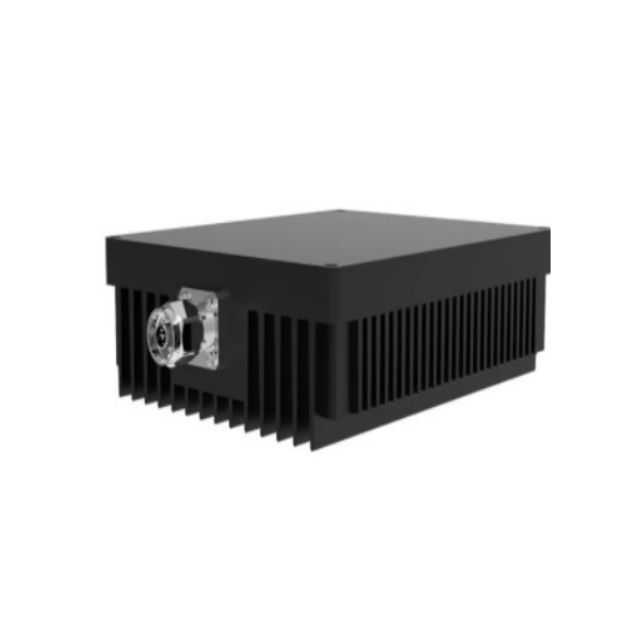

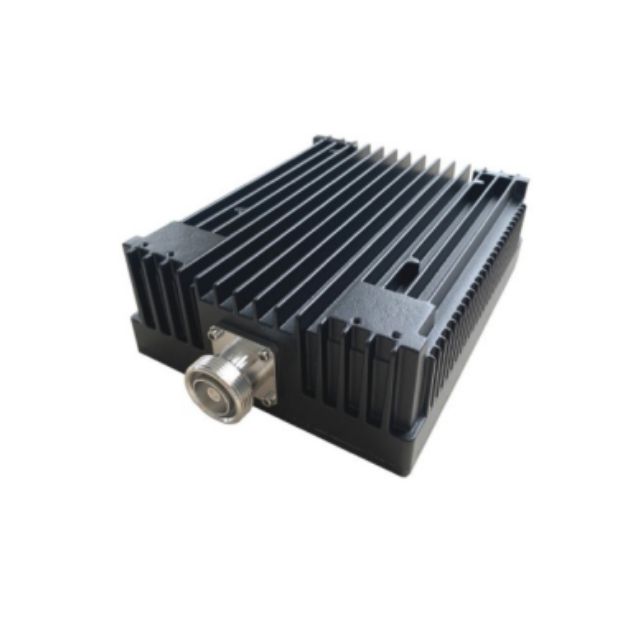

High Power Low PIM Termination
High power RF loads are engineered for telecom systems requiring high RF power handling capability.

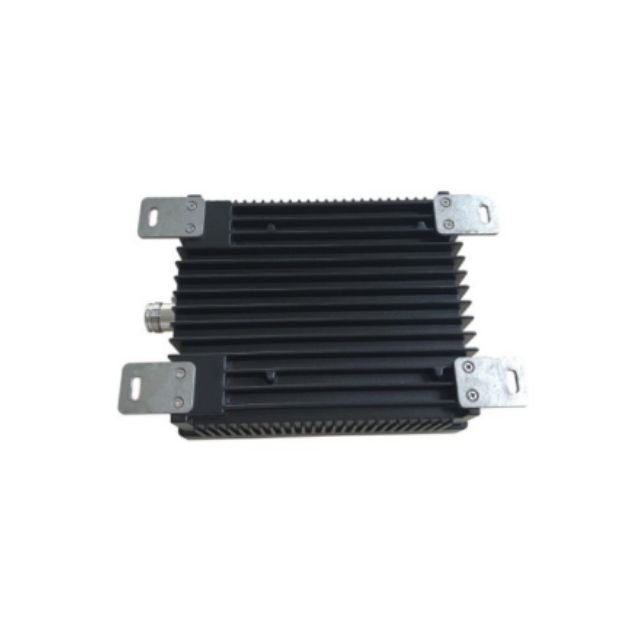

Outdoor Low PIM Termination
Outdoor RF terminations are designed with weather-resistant housing for telecom tower and antenna installations.

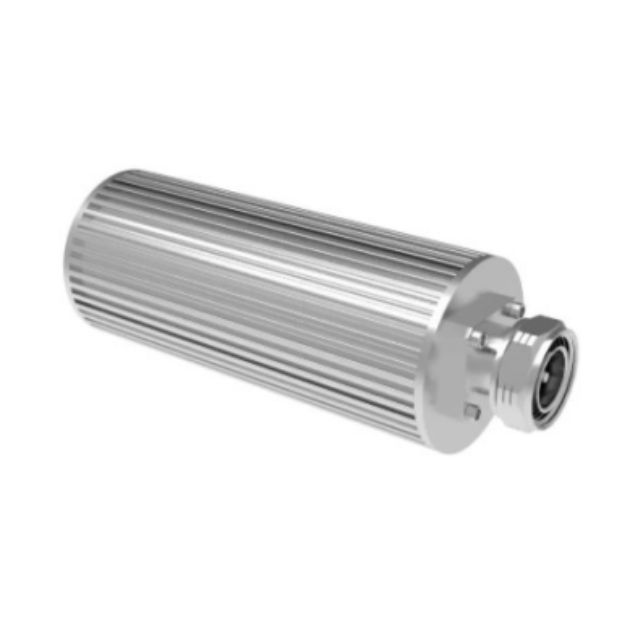

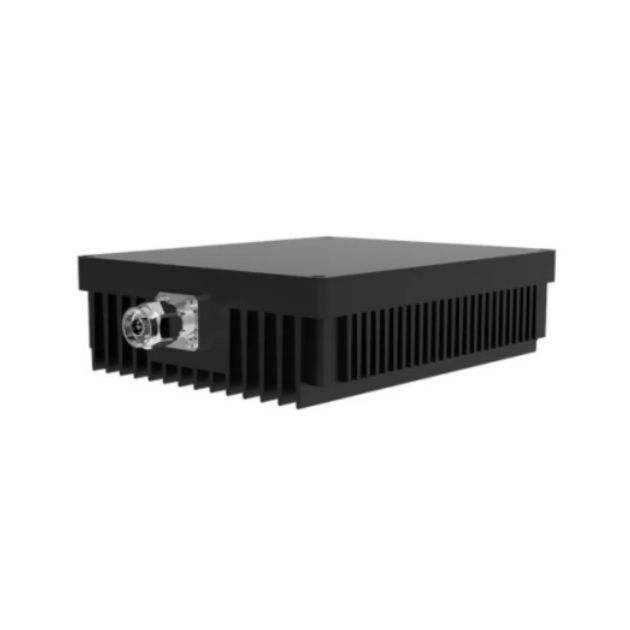

Indoor Low PIM Dummy Load
Indoor RF loads provide stable RF termination and signal absorption for DAS and RF testing applications.
50 Ohm RF Load Termination
50 Ohm terminations provide accurate impedance matching and stable RF signal performance.
Low PIM RF Dummy Load
RF dummy loads absorb RF power efficiently while minimizing passive intermodulation distortion.
Technical Specifications
Below are general specifications of Low PIM Terminations (may vary depending on connector type and power rating):
Electrical Specifications
- Impedance: 50 Ohms
- Frequency Range: DC to 18 GHz
- VSWR: ≤ 1.18 to 1.30
- Return Loss: Excellent RF Performance
- PIM Rating: ≤ -160 dBc / -165 dBc
- RF Power Handling: 2W to 200W
- Peak Power Handling: Up to 0.1 KW
- RF Signal Absorption: High Efficiency RF Load Performance
Mechanical Specifications
- Connector Type: N Female / DIN Male / 4.3-10 Male
- Construction Type: RF Dummy Load / RF Termination
- Body Material: Brass / Aluminum Alloy
- Contact Material: Beryllium Copper
- Plating: Gold / Nickel / Ternary Plating
- Insulator Material: PTFE
- Housing Protection: IP65 Rated Outdoor Models
- Mounting Type: Indoor & Outdoor Installation
Environmental Specifications
- Operating Temperature: -65°C to +85°C
- Weather Resistance: Suitable for Indoor & Outdoor Applications
- Corrosion Resistance: High Durability Protective Coating
- Moisture Resistance: Reliable Performance in Humid Conditions
- RoHS Compliance: Yes
- Application Suitability: Telecom, DAS, IBS, RF & Wireless Communication Systems
Applications of Low PIM Termination
Low PIM Terminations are widely used in:
- Telecom Base Stations
- DAS Systems
- IBS Networks
- 4G LTE Communication Systems
- 5G Telecom Infrastructure
- RF Signal Distribution Networks
- Antenna Systems
- RF Testing Laboratories
- Microwave Communication Systems
- Wireless Communication Equipment
Features of Low PIM Termination
Ultra Low PIM Performance
Designed to minimize passive intermodulation distortion for improved telecom network quality.
Low VSWR Characteristics
Ensures minimal signal reflection and stable RF communication efficiency.
High Power Handling Capability
Suitable for telecom and RF systems operating with high RF power levels.
Excellent Impedance Matching
Provides stable 50 Ohm impedance matching for reliable RF performance.
Durable Outdoor Construction
Manufactured using corrosion-resistant materials for long-term telecom installations.
Reliable RF Power Absorption
Safely absorbs RF energy and prevents signal reflections in communication systems.
Low PIM Termination Product Specifications
| Low PIM Termination Type | Frequency Range | Power Rating | Application |
|---|---|---|---|
| N Female Low PIM Termination | DC – 4 GHz | 200 Watt | Outdoor Telecom Systems |
| DIN Male Low PIM Termination | DC – 4 GHz | 50 Watt | DAS & IBS Networks |

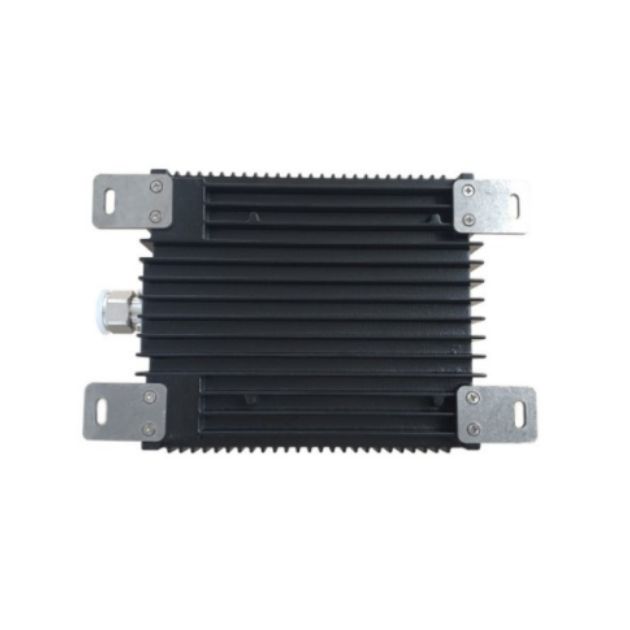

| 4.3-10 Male Low PIM Termination | DC – 4 GHz | 100 Watt | 4G LTE & 5G Systems |
| Indoor RF Dummy Load | DC – 4 GHz | 25 Watt | RF Testing Equipment |

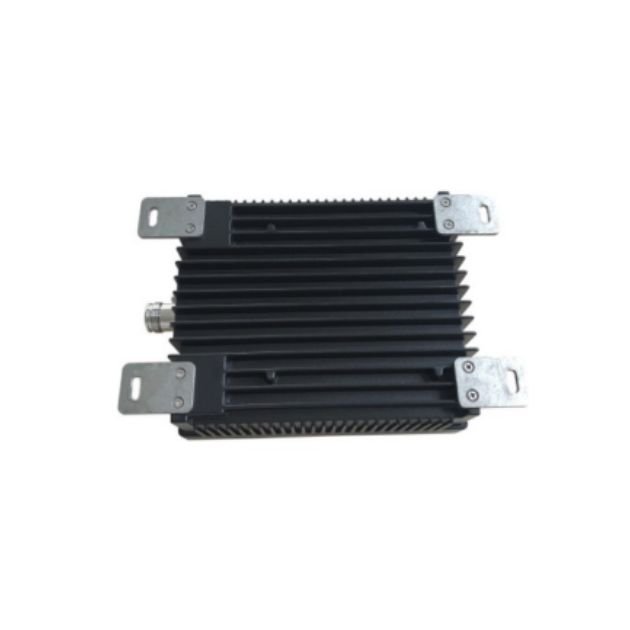

| Outdoor RF Load Termination | DC – 6 GHz | 200 Watt | Telecom Infrastructure |
| High Power RF Termination | DC – 6 GHz | 100 Watt – 200 Watt | Base Station Systems |
| 50 Ohm Low PIM Load | DC – 18 GHz | 2 Watt – 200 Watt | RF Communication Systems |
Why Choose us
Ultra Low PIM Performance
Our low PIM terminations are engineered to minimize RF interference and improve telecom network quality.
High Power RF Capability
Designed for reliable RF power absorption in high-power telecom and antenna systems.
Stable RF Signal Performance
Provides excellent impedance matching with low VSWR and high return loss characteristics.
Durable Outdoor Design
Manufactured with weather-resistant housing for long-lasting telecom infrastructure installations.
Frequently Asked Questions
A Low PIM Termination is an RF dummy load designed to terminate unused RF ports while minimizing passive intermodulation distortion.
Low PIM reduces RF interference, improves signal quality, and enhances network performance in 4G LTE and 5G communication systems.
Most low PIM terminations are designed with standard 50 Ohm impedance for RF communication systems.
Low PIM terminations generally support frequencies from DC up to 6 GHz, while some models support up to 18 GHz.
High-quality low PIM terminations typically provide PIM ratings of -160 dBc to -165 dBc.
High-quality low PIM terminations typically provide PIM ratings of -160 dBc to -165 dBc.
Common connector types include N Female, DIN Male, and 4.3-10 Male RF connectors.
Yes, low PIM terminations are widely used in modern 4G LTE and 5G telecom infrastructure systems.
