High Gain Yagi Antenna
High Gain Yagi Antennas are highly directional RF antennas designed for long-range wireless communication, telecom infrastructure, RF transmission, signal boosting, and point-to-point communication systems. These antennas provide strong directional gain, low signal loss, high front-to-back ratio, and stable RF performance for telecom and wireless communication networks.
At SRFS Teleinfra, we manufacture premium-quality High Gain Yagi Antennas engineered for reliable long-distance RF communication, low VSWR performance, and durable outdoor operation. Our high gain Yagi antennas are widely used in telecom towers, GSM signal boosters, wireless communication systems, RF surveillance systems, and industrial communication networks.
High Gain Yagi antennas are specially designed with driven elements, reflectors, and multiple directors that focus RF signals in a specific direction to improve communication range and signal strength. These antennas are ideal for 4G, 5G, VHF, UHF, LTE, and microwave communication applications.
What is a High Gain Yagi Antenna?
A High Gain Yagi Antenna is a directional RF antenna designed to transmit and receive radio signals over long distances with focused signal coverage and minimal interference. These antennas use multiple parasitic elements to improve antenna gain and directional performance.
High Gain Yagi antennas are commonly used in:
- Telecom communication systems
- 4G & 5G networks
- RF surveillance systems
- Point-to-point communication
- GSM signal boosters
- Wireless networking systems
- Broadcasting systems
- Industrial RF communication
These antennas provide excellent RF performance with strong directional signal transmission, low VSWR, and reliable communication efficiency.
Types of High Gain Yagi Antenna

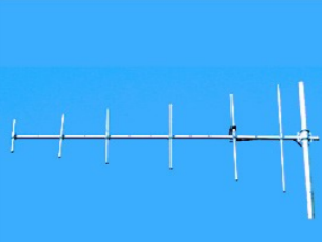

VHF High Gain Yagi Antenna
VHF Yagi antennas are designed for long-range communication in VHF frequency band applications.
UHF High Gain Yagi Antenna
UHF Yagi antennas provide stable RF communication and high directional gain in UHF systems.
LTE High Gain Yagi Antenna
LTE Yagi antennas are engineered for 4G LTE signal boosting and wireless broadband communication.
GSM High Gain Yagi Antenna
GSM Yagi antennas are used for mobile signal enhancement and telecom communication systems.
Directional Yagi Antenna
Directional Yagi antennas focus RF signals in one direction for long-distance communication and reduced interference.
Multi-Band Yagi Antenna
Multi-band Yagi antennas support multiple RF frequency bands for telecom and wireless applications.
Long Boom Yagi Antenna
Long boom Yagi antennas provide higher gain and extended communication range for RF systems.
Dual Polarized Yagi Antenna
Dual polarized Yagi antennas improve communication reliability and signal efficiency in wireless networks.
High Gain Yagi Antenna Product Specifications
| High Gain Yagi Antenna Type | Frequency Range | Gain | Application |
|---|---|---|---|
| VHF High Gain Yagi Antenna | 66 – 174 MHz | 10 – 13 dBi | VHF Communication Systems |
| UHF High Gain Yagi Antenna | 300 – 1000 MHz | 13 – 16 dBi | UHF RF Communication |
| LTE High Gain Yagi Antenna | 698 – 2700 MHz | 12 – 18 dBi | 4G LTE Signal Boosting |
| Directional Yagi Antenna | 698 – 4000 MHz | 12 – 21 dBi | Long Distance RF Links |
| Long Boom Yagi Antenna | 700 – 2700 MHz | 18 – 24 dBi | Point-to-Point Communication |
| Dual Polarized Yagi Antenna | 698 – 3800 MHz | 10 – 18 dBi | Wireless Communication Systems |
| Multi-Band Yagi Antenna | 698 – 6000 MHz | 9 – 20 dBi | Multi-Band RF Systems |
Technical Specifications
Below are general specifications of High Gain Yagi Antennas (may vary depending on antenna type and frequency range):
Electrical Specifications
- Frequency Range: 66 MHz to 6000 MHz
- Impedance: 50 Ohms
- Gain: 10 dBi to 24 dBi
- VSWR: ≤ 1.5
- Polarization: Vertical / Horizontal
- Front-to-Back Ratio: 16 dB to 20 dB
- Radiation Pattern: Directional
- RF Power Handling: Up to 250 Watts
Mechanical Specifications
- Antenna Type: Directional Yagi Antenna
- Connector Type: N Female Connector
- Antenna Material: Aluminum Alloy
- Mounting Hardware: Stainless Steel
- Boom Material: Aluminum Square Tube
- Mounting Type: Pole Mount
- Wind Rating: Up to 200 Km/Hr
Environmental Specifications
- Operating Temperature: -30°C to +70°C
- Storage Temperature: -40°C to +80°C
- Weather Resistance: Suitable for Outdoor Applications
- Corrosion Resistance: High Durability Outdoor Construction
- Humidity Resistance: 0 to 95% RH
- Application Suitability: Telecom, RF, LTE & Wireless Communication System
Applications of High Gain Yagi Antenna
High Gain Yagi antennas are widely used in:
- Telecom towers
- 4G & 5G communication systems
- GSM signal boosters
- RF surveillance systems
- Wireless networking systems
- Point-to-point communication
- Broadcasting systems
- Industrial RF applications
- Defense communication systems
- Long-range RF communication networks
Features of High Gain Yagi Antenna
High Directional Gain
Designed for strong long-distance RF signal transmission and reception.
Low VSWR Performance
Ensures minimal signal reflection and improved RF communication efficiency.
Excellent Front-to-Back Ratio
Reduces unwanted signal interference from rear directions.
Long Range Communication
Ideal for point-to-point wireless communication and signal booster systems.
Durable Outdoor Construction
Manufactured using weather-resistant aluminum and stainless steel materials.
Stable RF Performance
Provides reliable signal transmission in telecom and industrial RF systems.
Why Choose us
High Directional Gain
Our High Gain Yagi antennas are engineered for strong long-range RF communication and stable signal transmission.
Excellent RF Performance
Designed with low VSWR and high front-to-back ratio for reliable wireless communication efficiency.
Durable Outdoor Design
Manufactured using weather-resistant aluminum and stainless steel materials for long-lasting outdoor performance.
Wide Frequency Support
Supports VHF, UHF, LTE, GSM, and multi-band RF communication systems.
Frequently Asked Questions
A High Gain Yagi antenna is a directional RF antenna designed for long-distance wireless communication and strong signal transmission.
These antennas are used in telecom systems, GSM signal boosters, wireless communication, RF surveillance, and point-to-point communication systems.
High Gain Yagi antennas generally support frequencies from 66 MHz to 6000 MHz depending on antenna type and application.
Yagi antennas typically provide gain ranging from 10 dBi to 24 dBi depending on antenna design and number of elements.
Directional Yagi antennas focus RF signals in one direction, improving communication range and reducing interference.
Yes, High Gain Yagi antennas are widely used in 4G LTE, 5G, GSM, and wireless broadband communication systems.
Most Yagi antennas use N Female RF connectors for stable telecom connectivity.
Yes, SRFS Teleinfra manufactures premium-quality RF antennas and telecom connectivity solutions.
