Same Series Adaptor
Same Series Adaptors are precision RF connectivity components designed to connect identical RF connector interfaces while maintaining stable impedance matching, low insertion loss, and reliable signal transmission in telecom, microwave, wireless communication, and RF systems. These adaptors provide secure RF connectivity between same-series connector types such as SMA to SMA, N Type to N Type, BNC to BNC, TNC to TNC, and other RF interfaces.
At SRFS Teleinfra, we manufacture premium-quality Same Series Adaptors using precision-machined RF components and high-grade conductive materials to ensure low VSWR, excellent shielding effectiveness, and stable high-frequency performance. Our RF adaptors are widely used in telecom infrastructure, RF laboratories, antenna systems, wireless communication networks, microwave systems, and RF testing applications.
Same Series Adaptors are specially engineered for applications requiring secure RF interconnection between identical connector series without affecting electrical performance. These adaptors are ideal for cable extension, gender conversion, RF instrumentation, and telecom communication systems.
What is a Same Series Adaptor?
A Same Series Adaptor is an RF adaptor designed to connect two RF connectors of the same series while maintaining proper impedance continuity and stable signal transmission. These adaptors help extend RF connections, convert connector gender, and provide flexible RF interconnection solutions in communication systems.
Same Series Adaptors are commonly used in:
- Telecom infrastructure
- RF communication systems
- Microwave communication systems
- Antenna connectivity
- RF testing & measurement systems
- Wireless communication networks
- DAS & IBS systems
- Laboratory RF applications
These RF adaptors provide low insertion loss, stable impedance matching, and reliable RF performance for high-frequency communication systems.
Types of Same Series Adaptor

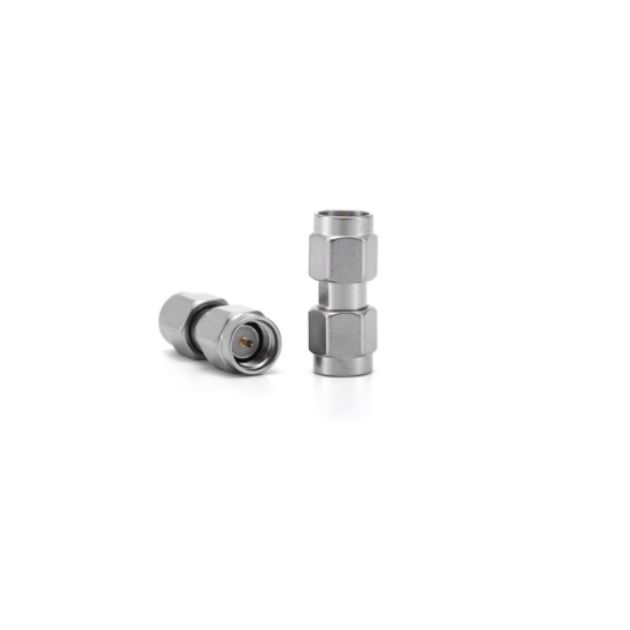

SMA Same Series Adaptor
SMA adaptors are designed for stable microwave and RF signal transmission in telecom and wireless systems.

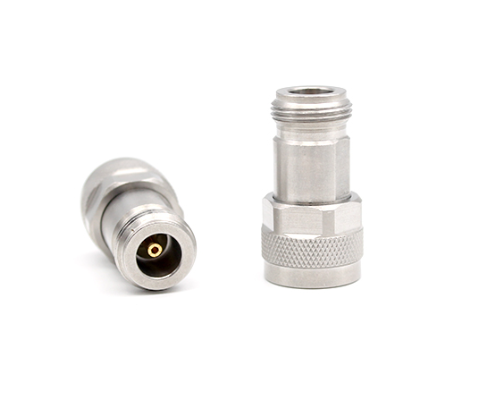

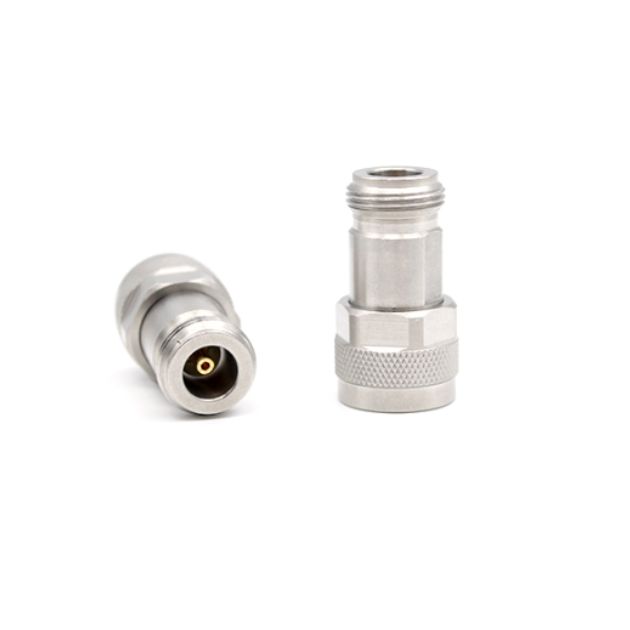

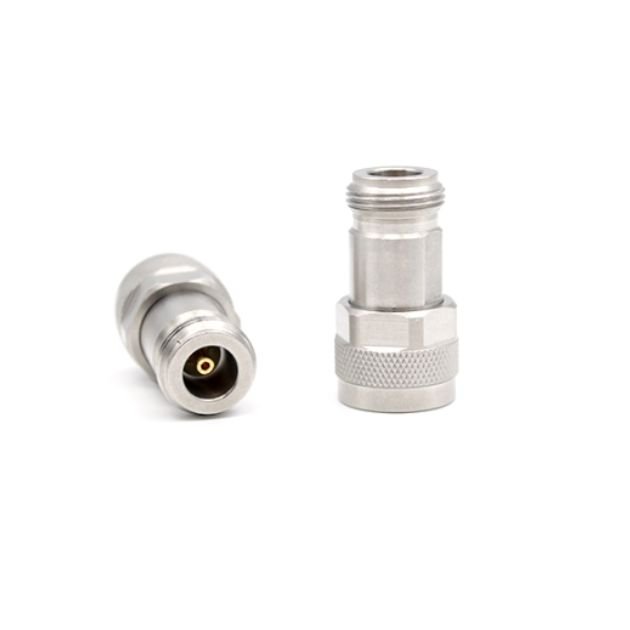

N Type Same Series Adaptor
N Type adaptors provide reliable RF connectivity for telecom towers, antenna systems, and broadband communication networks.

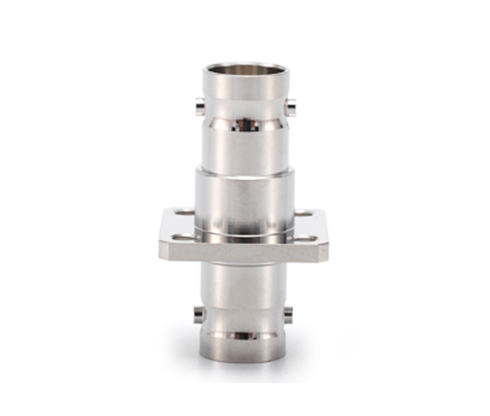

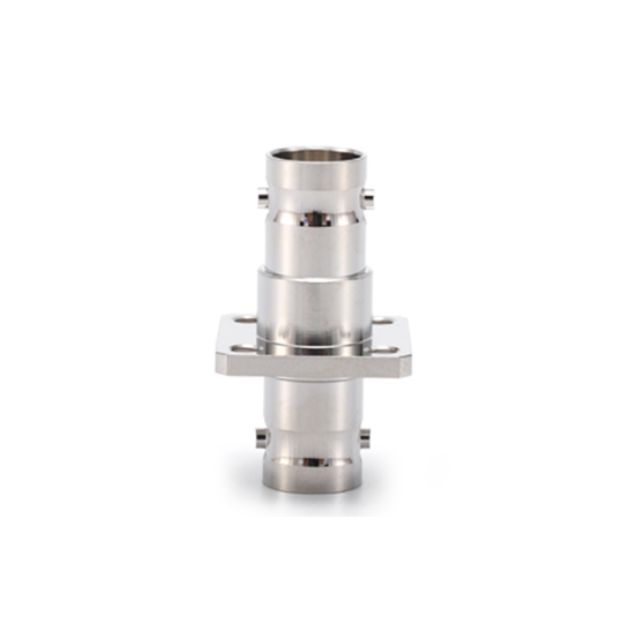

BNC Same Series Adaptor
BNC adaptors are widely used in RF testing equipment, CCTV systems, and communication devices.
TNC Same Series Adaptor
TNC adaptors provide threaded RF connectivity and stable signal transmission in wireless communication systems.
SMA Female to SMA Female Adaptor
Female-to-female adaptors are used for extending RF cable assemblies and instrumentation connections.

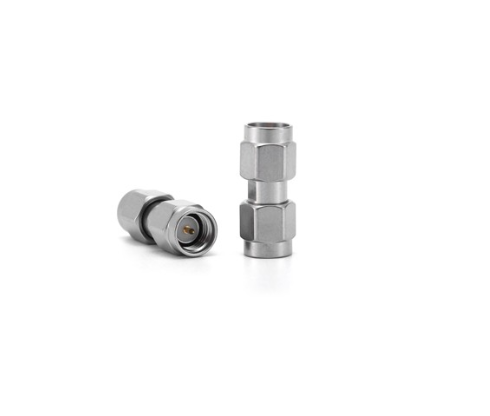

SMA Male to SMA Male Adaptor
Male-to-male adaptors provide reliable RF interface conversion in telecom and microwave applications.
N Female to N Female Adaptor
N Female adaptors are ideal for outdoor RF communication systems and antenna connectivity.
Right Angle Same Series Adaptor
Right angle RF adaptors are designed for compact installations requiring space-saving cable routing.
Technical Specifications of RF Cables
Below are general specifications of Same Series Adaptors (may vary depending on adaptor type and connector configuration):
Electrical Specifications
- Impedance: 50 Ohms / 75 Ohms
- Frequency Range: DC to 18 GHz
- VSWR: ≤ 1.20
- Insertion Loss: ≤ 0.2 dB
- Return Loss: Excellent RF Performance
- Shielding Effectiveness: High EMI Protection
Mechanical Specifications
- Connector Type: SMA, N Type, BNC, TNC
- Coupling Mechanism: Threaded / Bayonet Coupling
- Contact Material: Beryllium Copper / Brass
- Body Material: Brass / Stainless Steel
- Plating: Gold / Nickel Plated
- Insulator Material: PTFE / Teflon
- Durability: ≥ 500 Mating Cycles
Environmental Specifications
- Operating Temperature: -55°C to +165°C
- Weather Resistance: Suitable for Indoor & Outdoor Applications
- Corrosion Resistance: High Durability Protective Plating
- Moisture Resistance: Reliable Performance in Humid Conditions
- Application Suitability: Telecom, RF & Microwave Systems
Applications of Same Series Adaptor
Same Series Adaptors are widely used in:
- Telecom infrastructure
- RF communication systems
- Microwave communication systems
- Antenna connectivity
- DAS & IBS systems
- RF testing & laboratory equipment
- Wireless communication devices
- Broadcasting systems
- Aerospace RF systems
- Industrial RF applications
Features of Same Series Adaptor
Accurate Impedance Matching
Designed for stable 50 Ohm impedance continuity and minimal signal reflection.
Low Insertion Loss
Provides efficient RF signal transmission with minimal attenuation.
Excellent Shielding Effectiveness
Reduces EMI interference and maintains signal integrity.
High Frequency Support
Suitable for RF, microwave, telecom, and wireless communication systems.
Precision RF Construction
Manufactured using precision-machined components for stable electrical performance.
Durable Mechanical Design
Provides secure RF connectivity and long operational durability.
Same Series Adaptor Product Specifications
| Same Series Adaptor Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| SMA Same Series Adaptor | 50 Ohm | DC – 18 GHz | RF & Microwave Communication |
| N Type Same Series Adaptor | 50 Ohm | Up to 11 GHz | Telecom Infrastructure |
| BNC Same Series Adaptor | 50 / 75 Ohm | RF Frequency Range | Testing & CCTV Systems |
| TNC Same Series Adaptor | 50 Ohm | Microwave Frequency Range | Wireless Communication Systems |
| SMA Female to Female Adaptor | 50 Ohm | High Frequency RF Range | RF Cable Extensions |
| SMA Male to Male Adaptor | 50 Ohm | GHz Frequency Applications | RF Instrumentation |
| N Female to Female Adaptor | 50 Ohm | Broadband RF Range | Antenna Connectivity |
Why Choose us
Precision RF Engineering
Our Same Series Adaptors are manufactured using advanced RF technology for stable high-frequency performance.
Reliable RF Connectivity
Designed for secure RF connections with low insertion loss and accurate impedance matching.
Wide Connector Compatibility
Available in SMA, N Type, BNC, TNC, and multiple RF connector configurations.
Excellent Shielding Protection
Provides high EMI shielding effectiveness for uninterrupted RF communication performance.
Frequently Asked Questions
A Same Series Adaptor is an RF adaptor used to connect two RF connectors of the same series while maintaining stable signal transmission.
These adaptors are used in telecom systems, RF communication, antenna installations, microwave systems, and RF testing applications.
Most Same Series RF adaptors are designed with standard 50 Ohm impedance, while some BNC versions are available in 75 Ohm.
Same Series Adaptors provide low insertion loss, stable RF performance, accurate impedance matching, and reliable signal transmission.
Common connector types include SMA, N Type, BNC, TNC, and other RF connector series.
These RF adaptors generally support frequencies from DC to 18 GHz depending on connector type and application.
Yes, Same Series Adaptors are widely used in microwave communication systems and RF testing applications.
Yes, SRFS Teleinfra manufactures premium-quality RF adaptors and telecom connectivity solutions.
