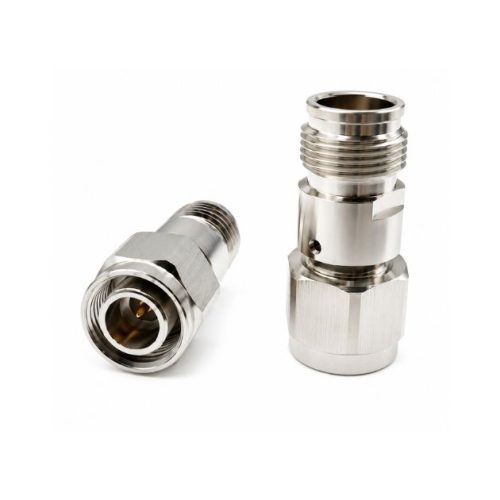

The SRFS-06XXZC2 is a high-performance bidirectional RF attenuator designed for applications operating from DC to 6 GHz. It provides adjustable attenuation from 1 to 60 dB with a power handling capability of up to 2 Watts. Featuring a 2.2-5 interface, this attenuator delivers reliable signal control, excellent impedance matching, and stable RF performance. Its bidirectional design allows signals to pass effectively in either direction, making it suitable for RF testing, telecommunications, wireless systems, laboratory measurements, signal conditioning, and communication equipment requiring precise and dependable attenuation.
| Impedance | 50 ohm | ||||
| Frequency Range | DC-6 GHz | ||||
| VSWR | 1.25 max | ||||
| Input Avg Power | 2W @ 25°C ambient, derating linearly to 0.2W at 100°C | ||||
| Peak Power | 200W (5 micro-sec pulse width, 0.5% duty cycle) | ||||
| Direction | Bidirectional, 2.2-5 female to 2.2-5 male (other configurations available) | ||||
| Attenuation (dB) | 1-6 | 7-10 | 11-20 | 21-30 | 40-60 |
| Accuracy (dB) | ±0.5 | ±0.5 | ±0.6 | ±0.8 | ±0.9 |
| Connector Body | Ternary alloy plated brass |
| Heat Sink | N/A |
| Center Contact | Gold plated beryllium copper/brass |
| Net Weight | Approx 35 g |
| Operating Temperature | -55°C to 100°C |
| Storage Temperature | -55°C to 125°C |
| RoHS | Compliant |
| Temperature Coefficient | <0.0004 dB/dB/°C |
