1.0mm Coaxial Adapters
1.0mm Coaxial Adapters are precision-engineered RF and microwave components designed for ultra-high-frequency and millimeter-wave applications. They provide interconnection between compatible 1.0mm coaxial interfaces or between selected connector series while maintaining signal integrity and accurate impedance matching.
SRFS Teleinfra offers 1.0mm Coaxial Adapters for advanced RF testing, microwave laboratories, aerospace, defense electronics, satellite communication, radar systems, and high-frequency measurement equipment. Suitable precision designs can support operation up to 110 GHz, depending on the adapter configuration and specified performance.
These adapters are designed for applications where connector precision, mechanical alignment, and electrical repeatability are critical. Properly selected 1.0mm adapters help reduce impedance discontinuities and support accurate measurements in millimeter-wave test environments.

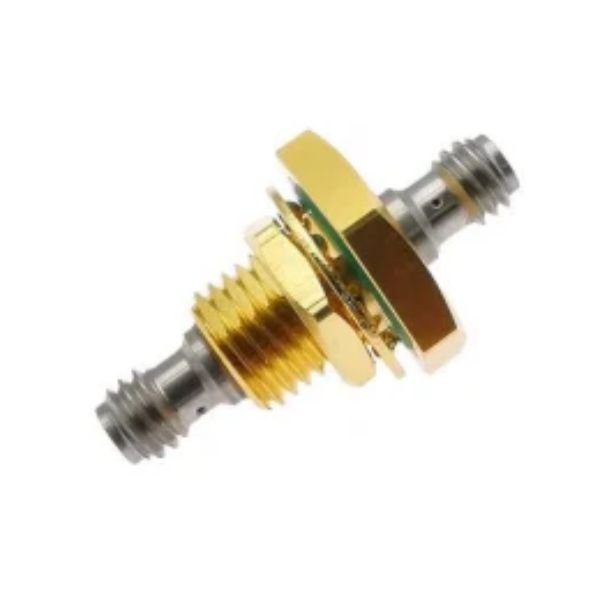

Hermetically Sealed1.0mm Female to1.0mm Female Adapter, Bulkhead ADPHS-1F1F-1
What Are 1.0mm Coaxial Adapters?
A 1.0mm Coaxial Adapter is an ultra-high-frequency coaxial component used to connect 1.0mm RF interfaces or convert between compatible precision connector types. The 1.0mm interface is designed for very high-frequency operation, including millimeter-wave testing and measurement.
These adapters are used in specialized laboratory instruments, calibration assemblies, high-frequency probes, and precision RF test setups. Because performance becomes increasingly sensitive to connector geometry and alignment at these frequencies, the adapter must be compatible with the intended connector interface and operating range.
Technical Specifications
Parameter
Specification
Product Type
1.0mm Coaxial Adapter
Impedance
50 Ohm
Frequency Range
Up to 110 GHz for suitable models
Connector Interface
1.0mm Male / 1.0mm Female
Adapter Configurations
Straight and selected between-series designs
Application Frequency
RF, microwave and millimeter-wave
Body Material
Precision-machined material as per model
Contact Material
As specified in the product datasheet
Primary Applications
Millimeter-wave testing, calibration and high-frequency measurement
Types of 1.0mm Coaxial Adapters

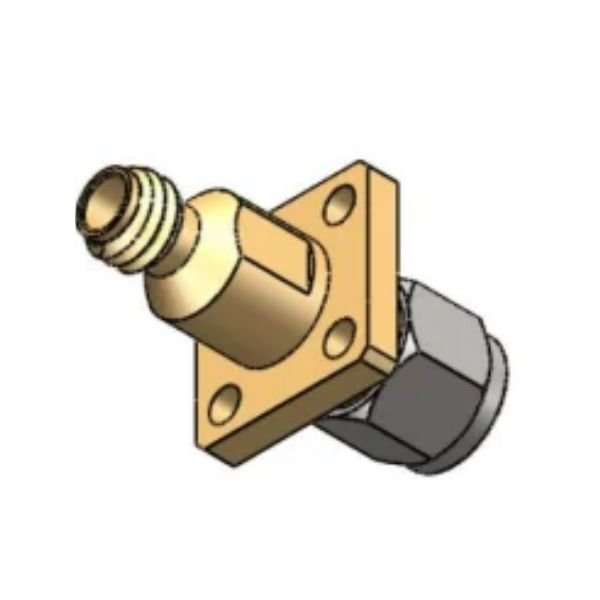

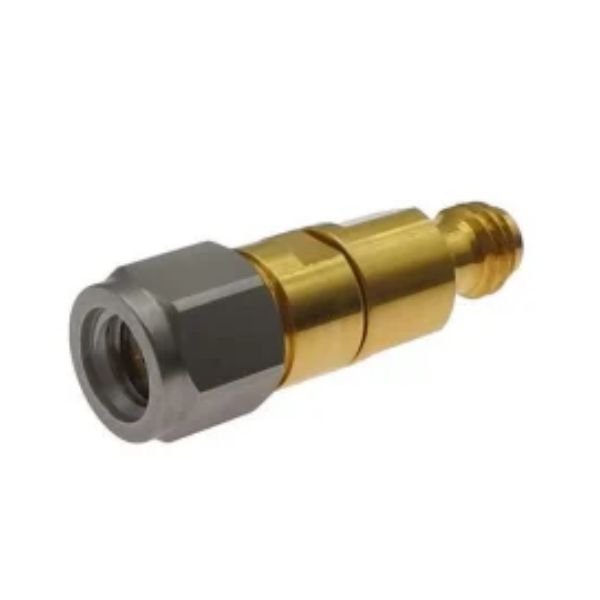

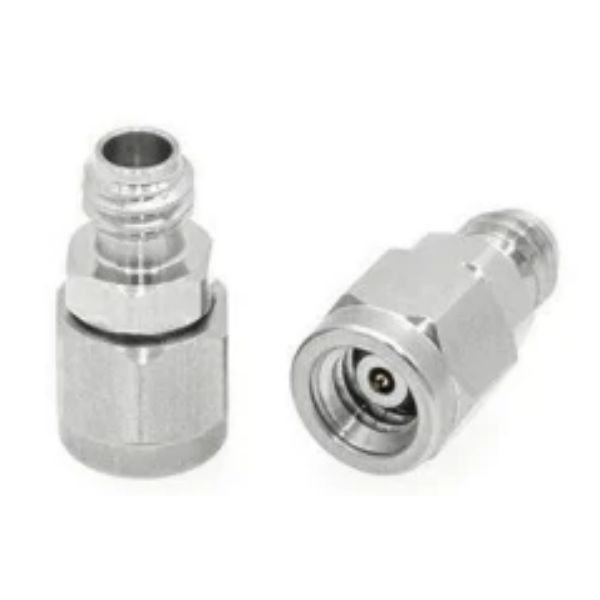

1.0mm Male to 1.0mm Female Adapter
Connects a compatible male interface to a female interface for precision RF interconnection and test equipment setups.

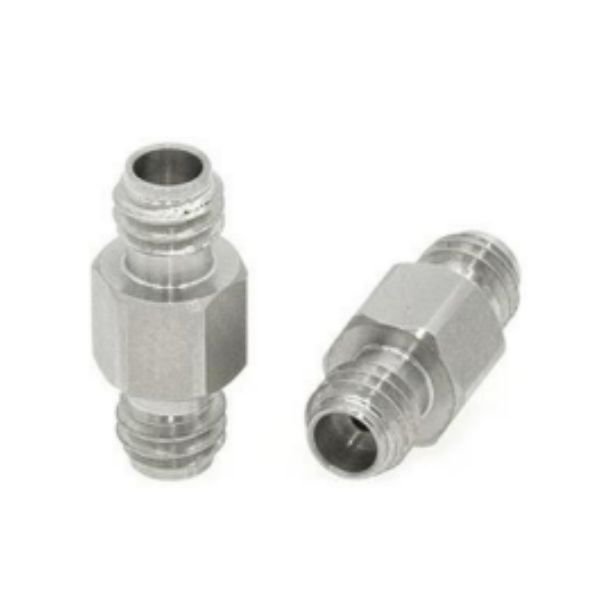

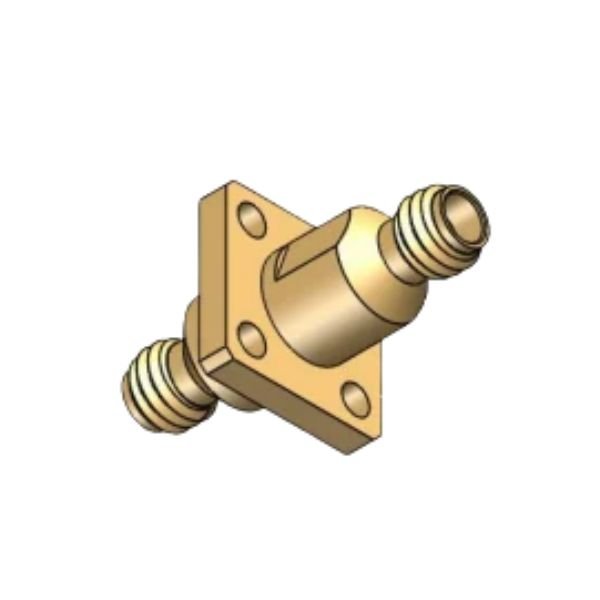

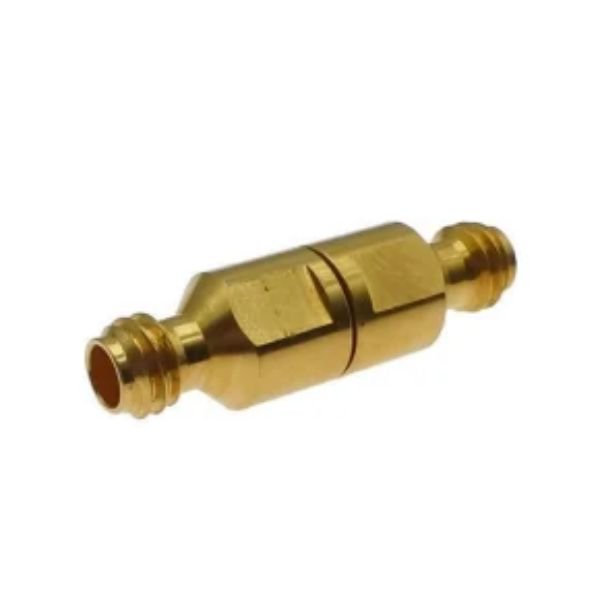

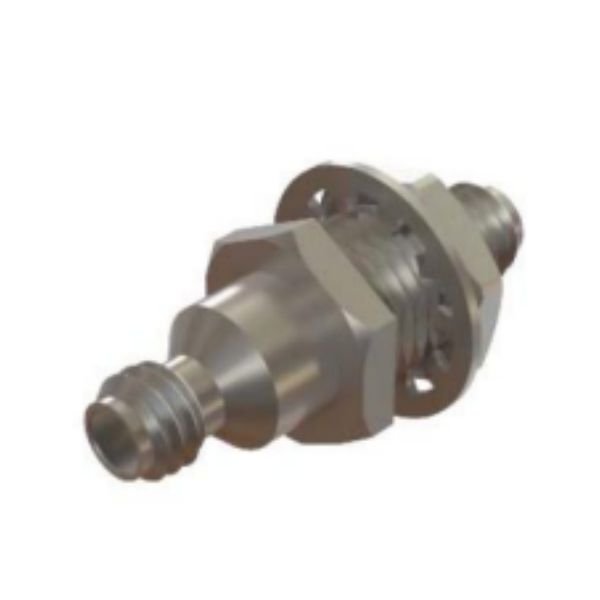

1.0mm Female to 1.0mm Female Adapter
Joins two compatible male interfaces and is used in selected laboratory and millimeter-wave measurement configurations.

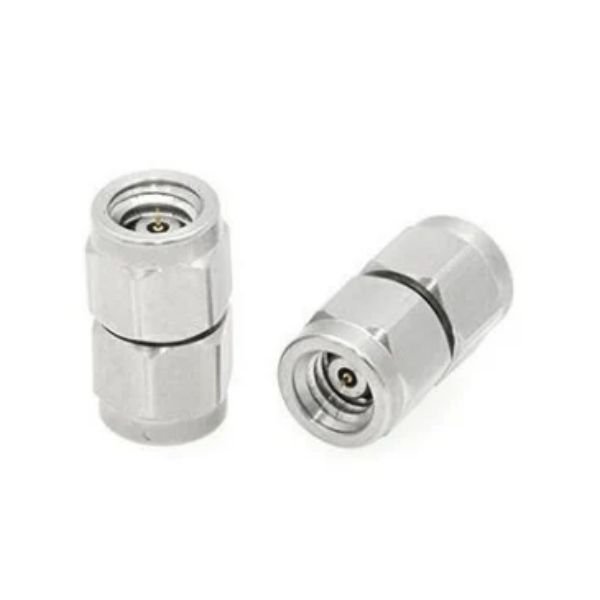

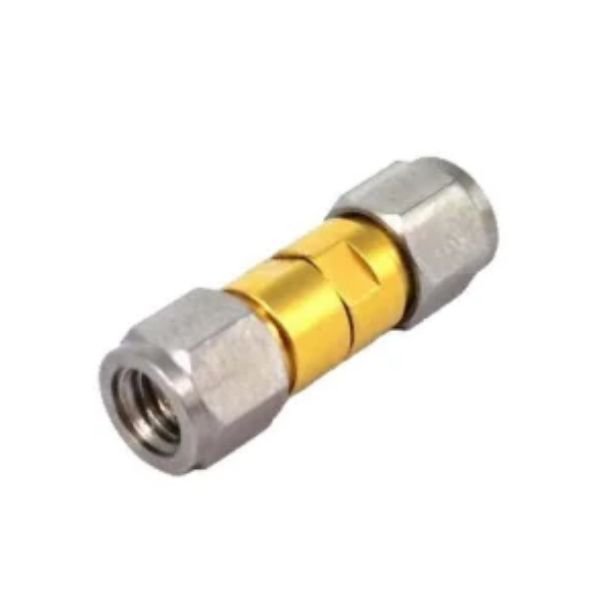

1.0mm Male to 1.0mm Male Adapter
Provides a connection between two compatible female interfaces in specialized RF test assemblies.

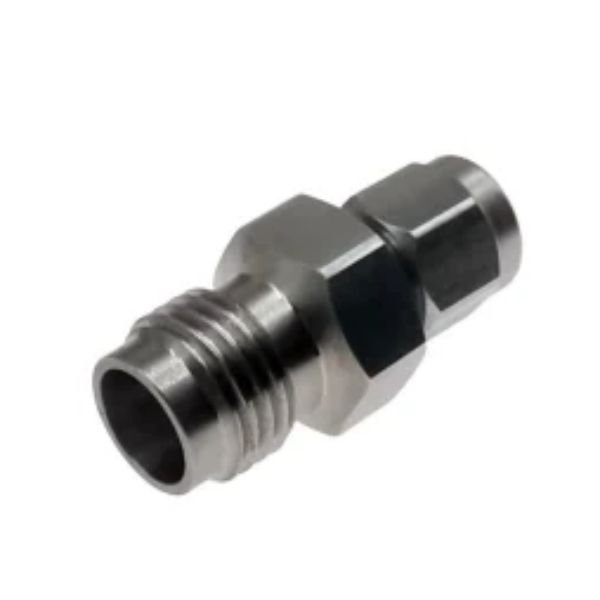

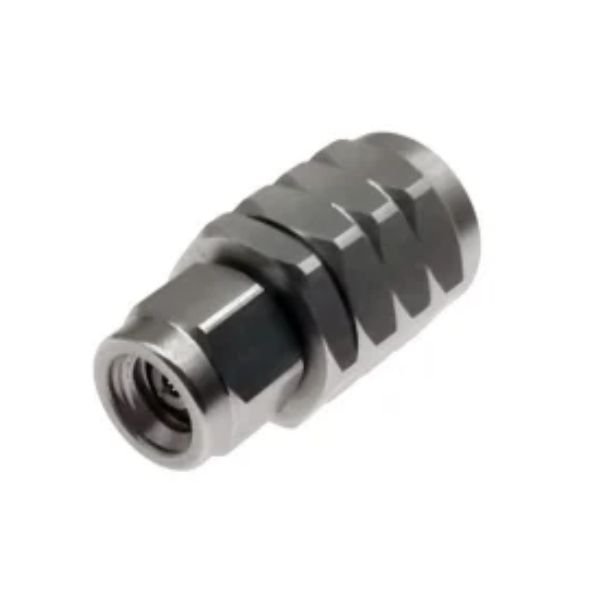

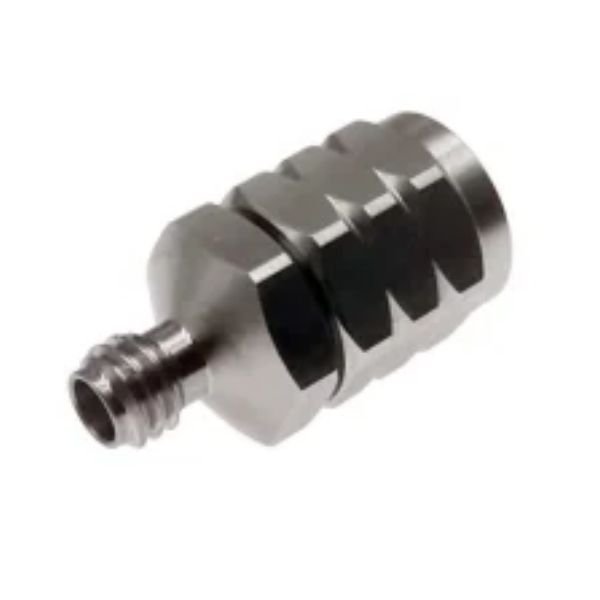

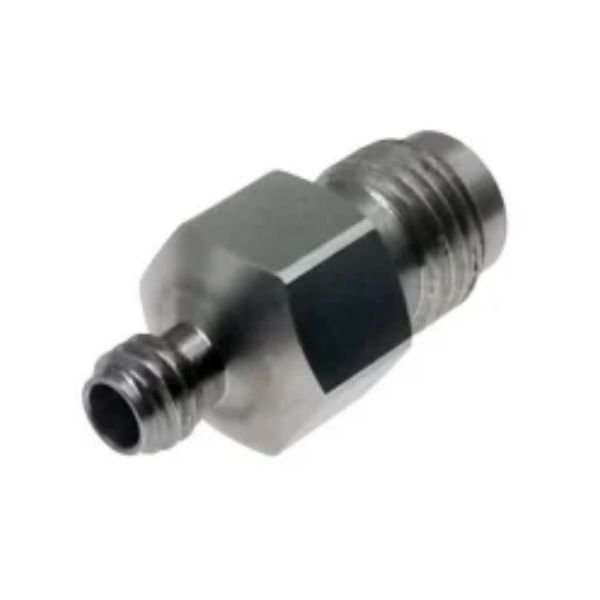

1.0mm to 1.85mm Adapter
Connects selected 1.0mm and 1.85mm interfaces. The frequency range of the complete assembly depends on the adapter’s design and the limitations of both interfaces.

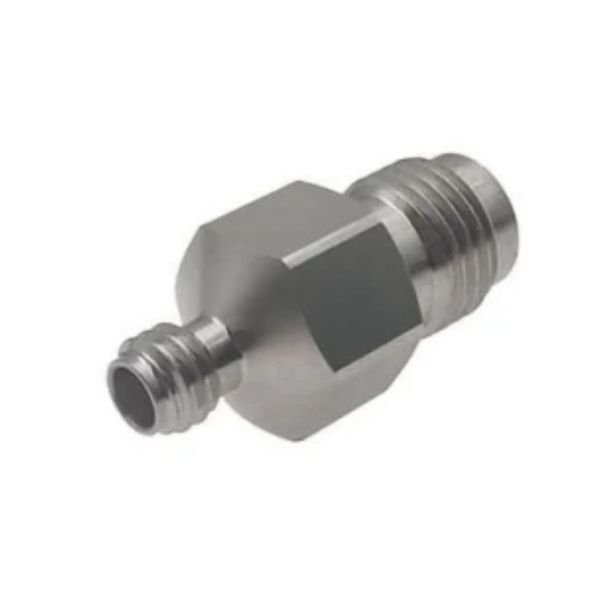

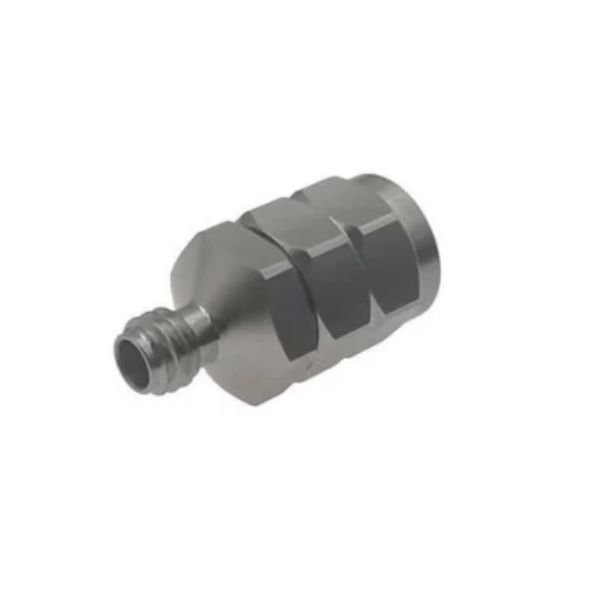

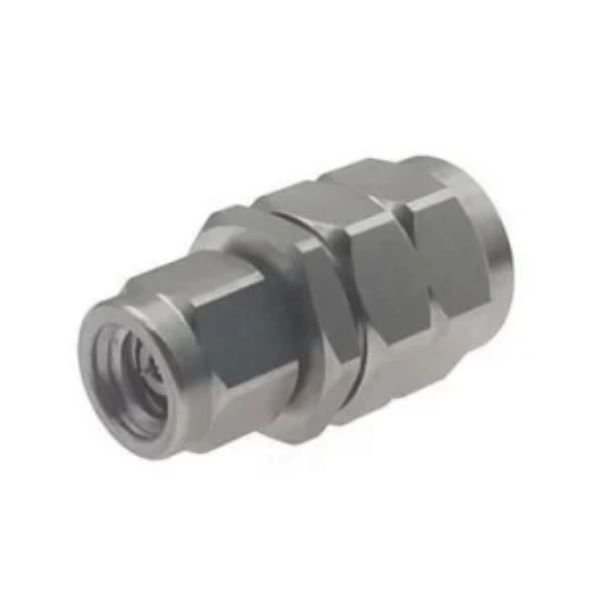

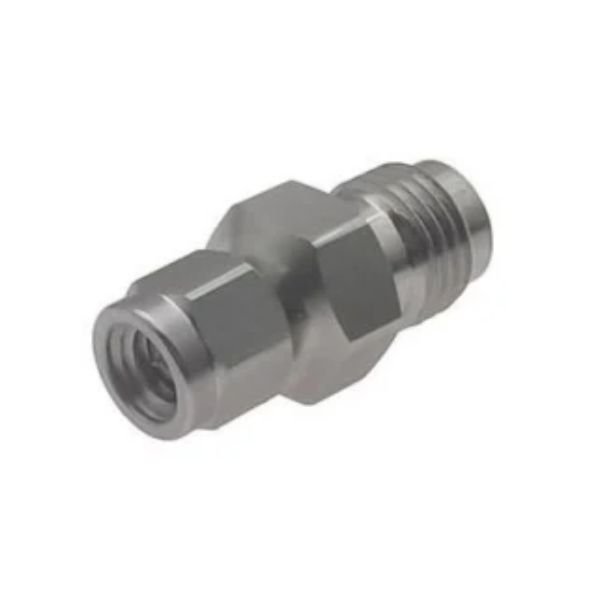

1.0mm to 2.4mm Adapter
Designed for selected precision measurement systems that require a transition between 1.0mm and 2.4mm connector interfaces.

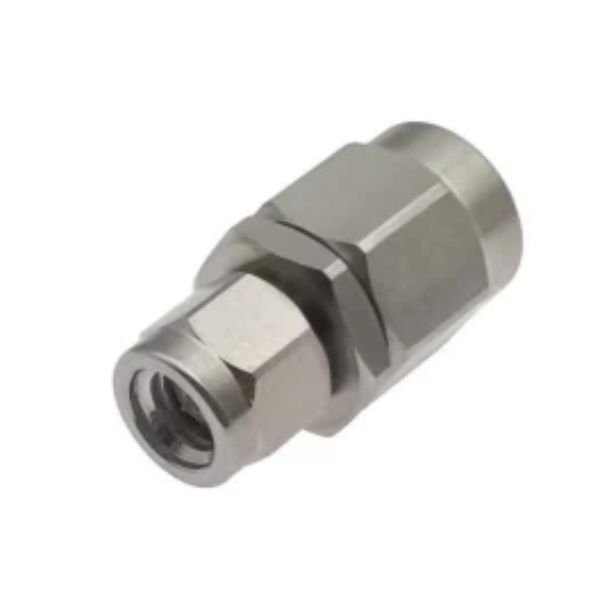

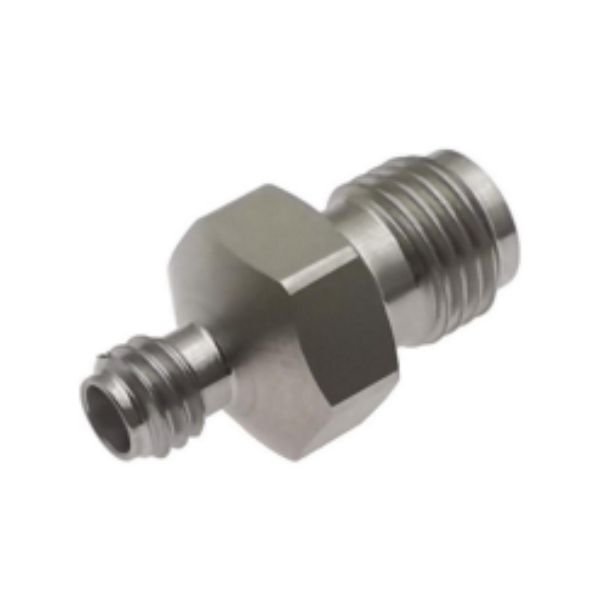

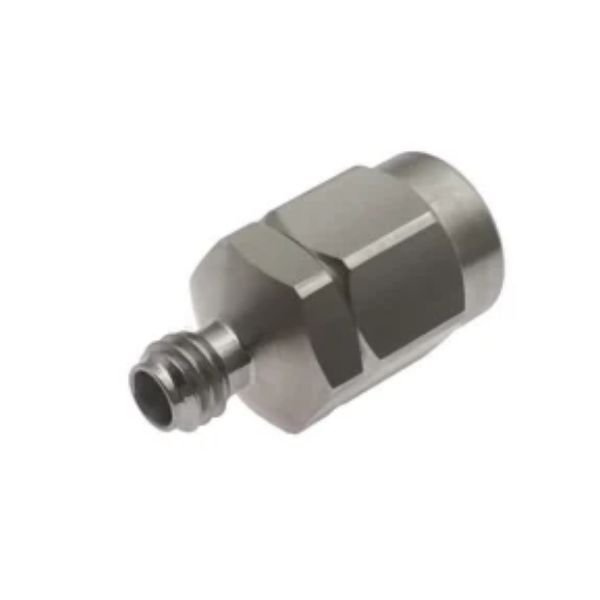

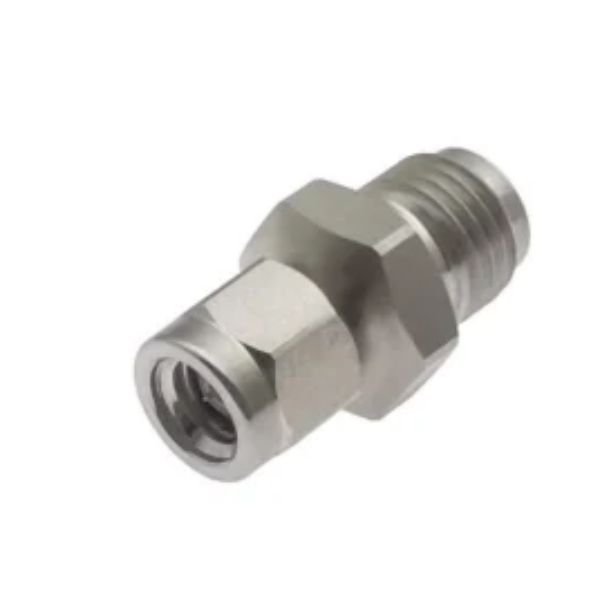

1.0mm to 2.92mm Adapter
Provides an interface transition for compatible RF test setups. Confirm the rated frequency of the complete adapter before use.
Precision Millimeter-Wave Adapter
Designed for applications that demand precise mechanical tolerances and stable electrical performance at millimeter-wave frequencies.
Custom High-Frequency Adapter
A specialized configuration can be selected according to the required connector interface, operating frequency, mechanical design, and test application.
Applications of 1.0mm Coaxial Adapters
1.0mm Coaxial Adapters are used in specialized high-frequency applications, including:
Millimeter-wave test and measurement systems
RF and microwave research laboratories
Vector Network Analyzer (VNA) test setups
Aerospace and defense electronics
Radar and high-frequency communication systems
Satellite communication research
Precision RF calibration systems
High-frequency probe and measurement assemblies
Semiconductor and electronic device testing
Advanced microwave component characterization
Research and development laboratories
High-frequency signal analysis
Key Features of 1.0mm Coaxial Adapters
Designed for ultra-high-frequency applications
Supports millimeter-wave testing with suitable models
50 Ohm impedance for compatible RF systems
Precision connector interfaces
Reliable electrical contact and mechanical alignment
Designed to minimize impedance discontinuities
Suitable for laboratory testing and calibration setups
Available in selected connector configurations
Supports high-frequency measurement applications
Requires careful handling to maintain interface integrity
1.0mm Coaxial Adapter Coaxial Adapter Product Specifications
| Product Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| 1.0mm Male to 1.0mm Female Adapter | 50 Ohm | As per datasheet, up to 110 GHz | Precision RF Testing |
| 1.0mm Female to 1.0mm Female Adapter | 50 Ohm | As per datasheet | Millimeter-Wave Test Setups |
| 1.0mm Male to 1.0mm Male Adapter | 50 Ohm | As per datasheet | High-Frequency Interconnection |
| 1.0mm to 1.85mm Adapter | 50 Ohm | As per datasheet | Microwave Measurement |
| 1.0mm to 2.4mm Adapter | 50 Ohm | As per datasheet | Precision RF Instrumentation |
| 1.0mm to 2.92mm Adapter | 50 Ohm | As per datasheet | RF Test Equipment |
| Precision Millimeter-Wave Adapter | 50 Ohm | Model Dependent | Millimeter-Wave Testing |
| Custom 1.0mm Coaxial Adapter | As Required | As Required | Specialized RF Applications |
Why Choose us
Ultra High Frequency RF Performance
Our 1mm coaxial adapters are engineered for stable microwave and millimeter-wave signal transmission with excellent electrical performance.
Precision Microwave Connectivity
Manufactured with precision engineering for accurate impedance matching and reliable RF measurement accuracy.
Low VSWR & Insertion Loss
Designed for minimal signal reflection and improved microwave communication efficiency.
Durable High Precision Construction
Built using premium stainless steel materials for reliable long-term operation in demanding RF environments.
Frequently Asked Questions
A 1.0mm Coaxial Adapter is a precision RF component designed to connect compatible 1.0mm coaxial interfaces or transition between selected connector types.
Suitable precision models can support frequencies up to 110 GHz. The actual rating depends on the adapter design and its specified performance.
These adapters are generally designed for 50 Ohm RF systems.
They are used in millimeter-wave testing, RF laboratories, calibration systems, aerospace, defense, radar, and high-frequency measurement applications.
Selected between-series adapters can provide these transitions. Compatibility and the maximum operating frequency must be checked for the specific model.
At very high frequencies, small geometric variations and poor connector alignment can affect impedance matching, reflections, and measurement accuracy.
Yes, these adapters are commonly used in Vector Network Analyzer (VNA) testing and RF calibration systems.
Verify connector gender, interface compatibility, impedance, frequency range, VSWR, insertion loss, and the intended measurement application.
Use the manufacturer’s recommended mating procedure, keep connector interfaces clean, avoid cross-threading, and use the specified torque where applicable.
Contact SRFS Teleinfra with the required connector configuration, frequency range, quantity, and application details to request suitable product options and a quotation.
