N Type Cable Assembly
N Type Cable Assemblies are high-performance RF cable assemblies designed for stable signal transmission in telecom, wireless communication, RF systems, microwave applications, DAS networks, and 4G/5G communication infrastructure. These cable assemblies provide low insertion loss, excellent shielding effectiveness, stable impedance matching, and reliable RF connectivity for high-frequency communication systems.
At SRFS Teleinfra, we manufacture premium-quality N Type Cable Assemblies using precision RF connectors and low-loss coaxial cables to ensure excellent electrical performance, low VSWR, and long operational durability. Our N Type RF cable assemblies are widely used in telecom infrastructure, antenna systems, RF testing equipment, wireless communication networks, and industrial RF applications.
N Type cable assemblies are specially designed for outdoor and high-power RF applications where secure threaded connectivity, low signal attenuation, and reliable RF performance are critical. These assemblies are ideal for telecom towers, DAS systems, RF modules, microwave systems, and broadband communication networks.
What is an N Type Cable Assembly?
An N Type Cable Assembly is an RF coaxial cable assembly equipped with N Type RF connectors at one or both ends for transmitting high-frequency radio signals with low signal loss and stable impedance performance. These assemblies are widely used in telecom and microwave communication systems because of their excellent RF shielding and weather-resistant threaded coupling design.
N Type cable assemblies are commonly used in:
- Telecom infrastructure
- RF communication systems
- DAS & IBS networks
- 4G & 5G communication systems
- Antenna connectivity
- Wireless communication equipment
- RF testing applications
- Microwave communication systems
These assemblies provide reliable RF signal transmission with low VSWR, high power handling capability, and excellent shielding effectiveness.
Types of N Type Cable Assembly

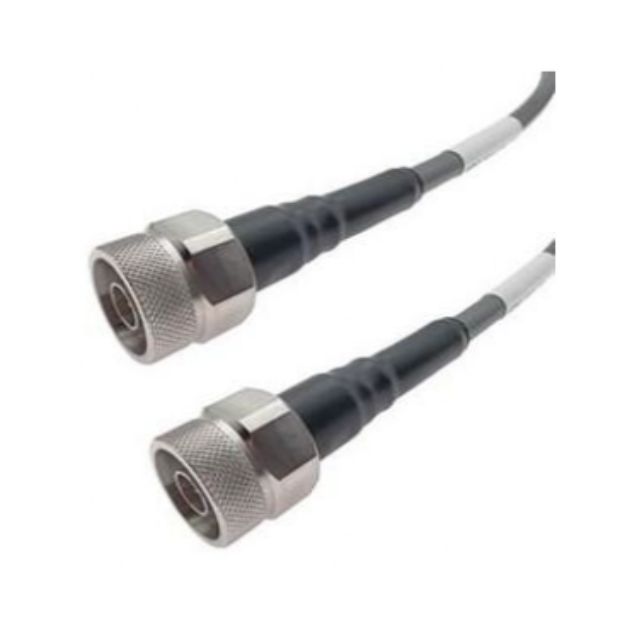

N Male to N Male Cable Assembly
N Male to N Male cable assemblies are designed for stable RF signal transmission between telecom and RF equipment.
N Male to N Female Cable Assembly
These assemblies provide reliable RF interconnection between antenna systems and communication devices.
N Type to SMA Cable Assembly
N Type to SMA cable assemblies are widely used for RF adapter connectivity and telecom applications.
N Type to BNC Cable Assembly
These cable assemblies are used for RF communication systems and testing applications.

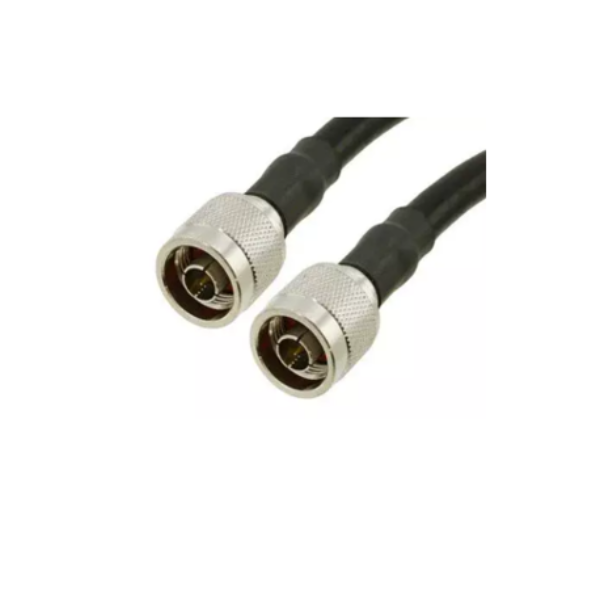

Low Loss N Type Cable Assembly
Low loss N Type assemblies minimize RF attenuation and improve communication efficiency.
Flexible N Type Cable Assembly
Flexible N Type assemblies are ideal for compact RF installations requiring easy cable routing.
Outdoor N Type Cable Assembly
Outdoor RF cable assemblies are designed for weather-resistant telecom and antenna installations.
Custom N Type Cable Assembly
Custom N Type assemblies are available for specialized RF communication and industrial applications.
N Type Cable Assembly Product Specifications
| N Type Cable Assembly Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| N Male to N Male Assembly | 50 Ohm | DC – 11 GHz | RF Communication Systems |
| N Male to N Female Assembly | 50 Ohm | High Frequency RF Range | Telecom Infrastructure |
| N Type to SMA Assembly | 50 Ohm | Microwave Frequency Range | RF Adapter Connectivity |
| N Type to BNC Assembly | 50 Ohm | RF Communication Range | RF Testing Equipment |
| Low Loss N Type Assembly | 50 Ohm | GHz Frequency Applications | 4G & 5G Networks |
| Flexible N Type Assembly | 50 Ohm | RF Signal Transmission | Compact RF Installations |
| Outdoor N Type Assembly | 50 Ohm | Broadband RF Range | Outdoor Antenna Systems |
Technical Specifications
Below are general specifications of N Type Cable Assemblies (may vary depending on connector type and cable configuration):
Electrical Specifications
- Impedance: 50 Ohms
- Frequency Range: DC to 11 GHz
- VSWR: ≤ 1.20
- Insertion Loss: Low Signal Loss
- Return Loss: Excellent RF Performance
- Shielding Effectiveness: High EMI Protection
- RF Power Handling: High Power RF Transmission Capability
Mechanical Specifications
- Connector Type: N Male / N Female
- Coupling Mechanism: Threaded Coupling
- Contact Material: Brass / Beryllium Copper
- Body Material: Brass / Stainless Steel
- Plating: Nickel / Silver / Gold Plated
- Insulator Material: PTFE / Teflon
- Cable Compatibility: RG58, RG142, RG213, LMR Series & RF Coaxial Cables
Environmental Specifications
- Operating Temperature: -40°C to +85°C
- Weather Resistance: Suitable for Indoor & Outdoor Applications
- Corrosion Resistance: High Durability Protective Plating
- Moisture Resistance: Reliable Performance in Humid Conditions
- Application Suitability: Telecom, RF, Microwave & DAS Systems
Applications of N Type Cable Assembly
N Type cable assemblies are widely used in:
- Telecom infrastructure
- 4G & 5G communication systems
- RF communication systems
- DAS & IBS systems
- Antenna installations
- Wireless networking equipment
- Microwave communication systems
- RF testing & laboratory equipment
- Industrial RF applications
- Outdoor communication systems
Features of N Type Cable Assembly
Low Signal Loss
Designed for efficient RF signal transmission with minimal attenuation.
Threaded RF Connectivity
Provides secure mechanical locking and stable RF performance.
Excellent Shielding Effectiveness
Reduces EMI interference and maintains signal integrity.
High Frequency Support
Suitable for RF, microwave, telecom, and broadband communication systems.
Durable Outdoor Construction
Manufactured using weather-resistant materials for long operational life.
Reliable RF Performance
Ensures stable impedance matching and low VSWR communication efficiency.
Why Choose us
Precision RF Engineering
Our N Type cable assemblies are manufactured using precision RF components for reliable impedance matching and stable RF performance.
Low Signal Attenuation
Designed for efficient RF signal transmission with minimal insertion loss and improved communication reliability.
Secure Threaded Connectivity
The threaded N Type connector design ensures stable mechanical locking and vibration resistance.
Durable Outdoor Design
Manufactured using weather-resistant materials for long-lasting telecom and outdoor RF applications.
Frequently Asked Questions
An N Type cable assembly is an RF coaxial cable assembly equipped with N Type connectors for high-frequency RF communication systems.
Most N Type cable assemblies are designed with standard 50 Ohm impedance for RF communication applications.
These assemblies are used in telecom systems, antenna installations, DAS systems, RF communication networks, and microwave applications.
N Type cable assemblies generally support frequencies up to 11 GHz depending on cable type and connector design.
N Type cable assemblies provide low VSWR, low insertion loss, excellent shielding effectiveness, and secure threaded RF connectivity.
Yes, N Type cable assemblies are widely used in outdoor telecom and antenna installations because of their weather-resistant construction.
N Type connectors are commonly compatible with RG58, RG142, RG213, and LMR series RF coaxial cables.
Yes, SRFS Teleinfra manufactures premium-quality RF cable assemblies and telecom connectivity solutions.
