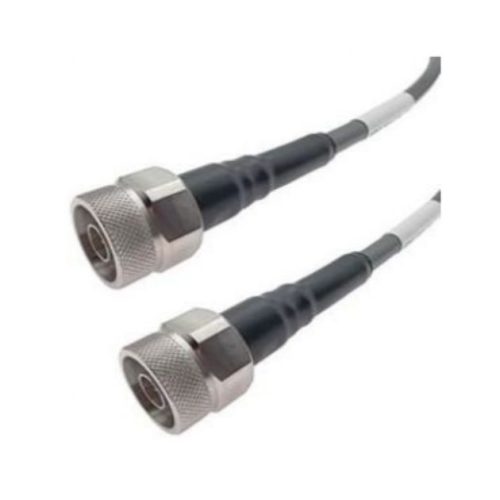

N MALE TO N MALE CABLE ASSEMBLY 1 MTR
N Male to N Male Cable Assembly 1 Mtr is a reliable RF cable assembly designed for secure and efficient signal transmission in wireless communication and RF systems. Featuring N Male connectors on both ends, it provides convenient connectivity between compatible equipment, antennas, and RF devices. The 1-meter length offers practical installation and flexible system integration. This cable assembly is suitable for antennas, base stations, wireless networks, telecom infrastructure, RF testing equipment, and communication systems. Its durable construction supports dependable performance, stable connectivity, and signal integrity for professional indoor and outdoor RF applications and installations.
Construction
| No. | Construction | Size (mm) | Materials |
|---|---|---|---|
| 1 | Center Conductor | 2.30 | Solid silver-plated copper |
| 2 | Dielectric | 6.30 | Ultra-low density PTFE |
| 3 | Outer Conductor | 6.50 | Silver-plated copper tape wrap |
| 4 | Outer Shield | 7.10 | Silver-plated copper wire braid |
| 5 | Jacket | 7.85 | FEP |
Electrical Specifications
| Frequency | DC-18 GHz |
| Impedance | 50 Ω |
| VSWR Max | 1.3 |
| IL Max (1 meter assembly) | 1.5 dB/m @ 18 GHz |
| Mechanical Phase Stability | <±5° |
| Amplitude Stability vs Shaking | <±0.1 dB |
| * Wrapped 360° around a 80mm radius mandrel. | |
Mechanical Specifications
| Min. Bending Radius Static | 40 mm |
| Min. Bending Radius Repeated | 80 mm |
| Velocity of Propagation | 83% |
| Temperature (Operation) | -50 ~ 85 °C |
| Temperature (Storage) | -60 ~ 85 °C |
Configuration
| Connector 1 | N male | Connector 2 | N male |
| Body | Passivated stainless steel | Body | Passivated stainless steel |
| Center Contact | Gold plated brass | Center Contact | Gold plated brass |
| Cable Type | LP800 | ||
