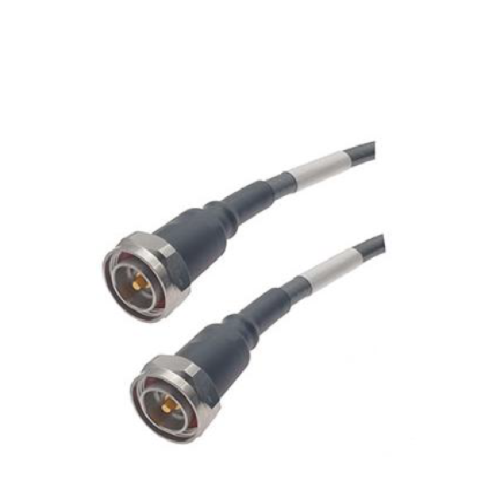

Phase Stable LP 1200 is a precision RF cable designed to deliver consistent phase performance and reliable signal transmission in demanding high-frequency applications. Its specialized construction helps maintain stable electrical characteristics, excellent signal integrity, and repeatable performance during operation and flexing. The LP 1200 is suitable for RF test and measurement equipment, telecommunications, aerospace, defense, wireless communication, laboratory systems, and electronic applications. Its flexible design supports convenient routing and installation in compact or complex equipment configurations. With dependable phase stability and consistent RF performance, LP 1200 provides a reliable solution for precision systems requiring accurate measurements and stable signal transmission.
| Construction | Size (mm) | Materials |
|---|---|---|
| Center Conductor | 3.80 | Solid silver-plated copper |
| Dielectric | 10.40 | Ultra-low density PTFE |
| Outer Conductor | 10.78 | Silver-plated copper tape wrap |
| Outer Shield | 11.35 | Silver-plated copper wire braid |
| Jacket | 12.00 | FEP |
| Frequency | DC-26.5 GHz |
| Impedance | 50 Ω |
| Velocity of Propagation | 82% |
| Shielding Effectiveness | >90 dB |
| Withstanding Voltage | 1500 V |
| Mechanical Phase Stability | <±5° |
| Amplitude Stability vs Shaking | <±0.1 dB |
| Temp Phase Stability | <550 ppm (-40°C to +85°C) |
| * Wrapped 360° around a 54 mm radius mandrel. | |
| Min. Bending Radius Static | 60 mm |
| Min. Bending Radius Repeated | 120 mm |
| Weight | 280 g/m |
| Temperature (Operation) | -55 ~ 150 °C |
| Temperature (Storage) | -60 ~ 160 °C |
