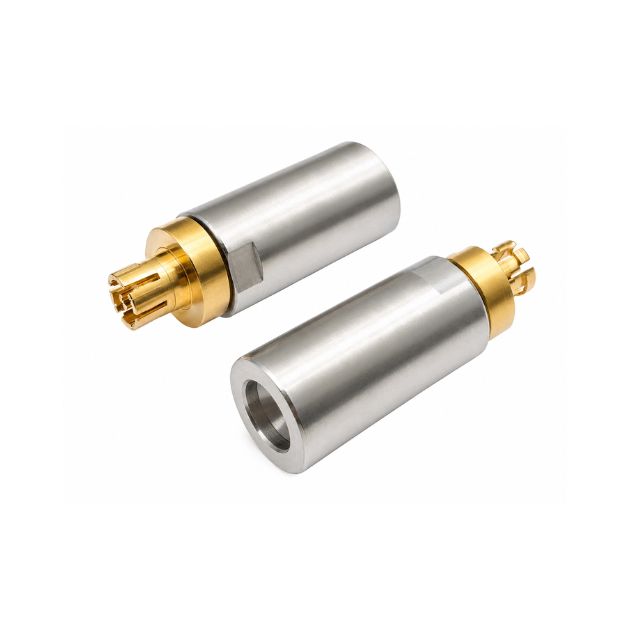

SMP Attenuator
SMP Attenuators are compact, high-performance RF and microwave components designed to reduce signal power while maintaining excellent impedance matching and signal integrity. Featuring a push-on (blind-mate) SMP interface, these attenuators are ideal for high-density RF assemblies where space is limited and fast, reliable connections are required. Supporting frequencies up to 40 GHz, SMP Attenuators are widely used in aerospace, defense, satellite communication, radar systems, electronic warfare, RF test equipment, and high-speed communication systems.
At SRFS Teleinfra, we manufacture precision SMP Attenuators using premium RF resistor technology, high-quality SMP connectors, and advanced CNC machining processes. Our attenuators deliver low VSWR, excellent return loss, accurate attenuation values, and superior electrical performance for demanding microwave applications.
Every SMP Attenuator is manufactured in India under strict quality control procedures and undergoes comprehensive electrical and mechanical testing to ensure dependable RF performance, long service life, and consistent attenuation accuracy.
What are SMP Attenuators?
An SMP Attenuator is a passive RF component that reduces the amplitude of an RF or microwave signal by a fixed attenuation value while maintaining a constant 50 Ohm impedance. It protects sensitive RF equipment from excessive signal power, minimizes reflections, and improves measurement accuracy.
The SMP (SubMiniature Push-on) connector features a compact blind-mate interface capable of broadband operation up to 40 GHz, making it ideal for densely packed electronic assemblies and modular microwave systems.
Technical Specifications
Our SMP Attenuators are engineered to deliver superior microwave performance for demanding RF applications.
Impedance
Standard 50 Ohm impedance for accurate RF impedance matching.
Frequency Range
Supports frequencies from DC to 40 GHz depending on the model.
Attenuation Values
Available in:
- 1 dB
- 2 dB
- 3 dB
- 4 dB
- 5 dB
- 6 dB
- 10 dB
- 20 dB
- 30 dB
- Custom attenuation values
Power Rating
Available in multiple power ratings to meet aerospace, defense, RF testing, and satellite communication requirements.
VSWR
Low VSWR for excellent return loss and minimal signal reflections.
Connector Interface
Precision SMP Push-On Male and Female connectors for blind-mate applications.
Materials
Manufactured using stainless steel, gold-plated beryllium copper contacts, PTFE dielectric, and precision thin-film resistor technology.
Compliance
Manufactured according to international RF and microwave quality standards.
Applications of SMP Attenuators
Our SMP Attenuators are widely used in:
- Aerospace systems
- Defense electronics
- Electronic warfare
- Radar systems
- Satellite communication
- Space payloads
- RF and microwave laboratories
- Vector Network Analyzer (VNA) calibration
- RF production testing
- Test & measurement equipment
- High-density RF modules
- Military communication systems
- Avionics
- Microwave communication
- Research & Development laboratories
Types of SMP Attenuators
Fixed SMP Attenuator
Provides a constant attenuation value for reliable RF signal level control.
Precision SMP Attenuator
Designed for laboratory-grade RF measurements with tight attenuation tolerances.
Low Power SMP Attenuator
Suitable for RF testing, calibration, and microwave laboratory applications.
High Power SMP Attenuator
Designed for higher power RF systems while maintaining stable attenuation characteristics.
SMP Male to Female Attenuator
The most common inline configuration for compact RF assemblies.
Custom SMP Attenuator
Available with customized attenuation values, connector styles, power ratings, and mechanical configurations.
Key Performance Features
Choosing the right SMP Attenuator ensures reliable RF performance and precise signal level control.
- Precision 50 Ohm impedance
- Frequency support up to 40 GHz
- Compact blind-mate design
- Push-on SMP interface
- Accurate attenuation values
- Low VSWR
- Excellent return loss
- Superior mechanical durability
- High-density packaging compatibility
- Precision CNC machining
- Stable electrical performance
- Long operational life
High-quality SMP Attenuators improve RF system reliability, protect sensitive microwave equipment, reduce signal reflections, and provide accurate attenuation for aerospace, defense, satellite, radar, and RF testing applications.
Product Specifications
| Product Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| SMP Fixed Attenuator | 50 Ohm | DC to 40 GHz | RF Signal Attenuation |
| SMP Precision Attenuator | 50 Ohm | DC to 40 GHz | Vector Network Analyzer (VNA) |
| SMP Low Power Attenuator | 50 Ohm | DC to 40 GHz | Laboratory RF Measurements |
| SMP High Power Attenuator | 50 Ohm | DC to 40 GHz | High Frequency RF Systems |
| SMP Male to Female Attenuator | 50 Ohm | DC to 40 GHz | RF Test Equipment |
| SMP 3 dB Attenuator | 50 Ohm | DC to 40 GHz | Signal Level Control |
| SMP 6 dB Attenuator | 50 Ohm | DC to 40 GHz | Microwave Communication |
| SMP 10 dB Attenuator | 50 Ohm | DC to 40 GHz | RF Calibration |
| SMP 20 dB Attenuator | 50 Ohm | DC to 40 GHz | Satellite Communication |
| SMP Precision RF Attenuator | 50 Ohm | DC to 40 GHz | Aerospace & Defense Systems |
Why Choose us
Precision RF Engineering
Our SMP Attenuators are manufactured using advanced RF engineering techniques to deliver highly accurate attenuation and dependable microwave performance.
Excellent Electrical Performance
Designed with low VSWR and excellent return loss to maximize RF system efficiency and measurement accuracy.
Compact High-Frequency Design
The SMP blind-mate interface provides reliable, high-density RF connectivity while supporting operation up to 40 GHz.
Manufactured in India
All our SMP Attenuators are manufactured in India using premium materials, advanced CNC machining, and stringent quality control procedures to ensure exceptional reliability and long service life.
Frequently Asked Questions
An SMP Attenuator is a passive RF device that reduces RF signal power by a fixed attenuation value while maintaining a constant 50 Ohm impedance.
Most precision SMP Attenuators support frequencies from DC to 40 GHz.
Standard 50 Ohm impedance for accurate RF and microwave applications.
Standard values include 1 dB, 2 dB, 3 dB, 4 dB, 5 dB, 6 dB, 10 dB, 20 dB, 30 dB, and custom attenuation values.
They are widely used in aerospace, defense, radar, satellite communication, RF testing, microwave laboratories, avionics, and electronic warfare systems.
The SMP connector offers a compact blind-mate push-on interface, making it ideal for high-density RF modules and applications requiring frequent mating cycles.
Yes. SRFS Teleinfra manufactures customized SMP Attenuators with various attenuation values, connector configurations, and power ratings.
Yes. All our SMP Attenuators are manufactured in India using premium materials, precision machining, and comprehensive quality testing.
Yes. They are extensively used with Vector Network Analyzers, RF calibration systems, spectrum analyzers, and microwave test equipment.
SRFS Teleinfra offers precision-engineered SMP Attenuators with outstanding RF performance, customized manufacturing, stringent quality control, competitive pricing, fast delivery, and expert technical support.
