N Type Connector
N Connectors are high-performance threaded RF coaxial connectors widely used in telecom, wireless communication, RF transmission, microwave systems, DAS, IBS, antenna installations, and 4G/5G telecom infrastructure. These connectors are specially designed for stable RF signal transmission, low insertion loss, excellent impedance matching, and reliable outdoor connectivity in demanding RF environments.
At SRFS Teleinfra, we manufacture and supply premium-quality N Connectors engineered for low VSWR, high power handling, durable mechanical stability, and long operational life. Our N connectors are manufactured using precision machining and premium-grade materials to ensure reliable RF performance across telecom and microwave communication systems.
N connectors are widely used in antenna feeder systems, RF cable assemblies, wireless communication networks, RF testing equipment, broadcasting systems, telecom towers, and microwave communication applications where secure threaded connectivity and stable RF performance are essential. These connectors support frequencies up to 11 GHz or higher depending on design and application requirements.
What is an N Connector?
An N Connector is a threaded RF coaxial connector designed for medium to high-power RF signal transmission in telecom and microwave communication systems. It is known for its rugged construction, weather-resistant performance, and reliable impedance matching, making it ideal for indoor and outdoor RF applications.
N connectors are commonly available in 50 Ohm and 75 Ohm impedance configurations and are widely used in telecom infrastructure, antenna systems, RF communication equipment, and microwave applications requiring low signal loss and stable electrical performance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Impedance | 50 Ohm / 75 Ohm |
| Frequency Range | DC – 11 GHz |
| VSWR | ≤ 1.20 |
| Connector Type | N Male / N Female |
| Insertion Loss | Low Loss Performance |
| Material | Brass / Stainless Steel |
| Plating | Nickel / Silver Plated |
| Operating Temperature | -40°C to +85°C |
| Durability | ≥ 500 Mating Cycles |
| Application | RF & Telecom Systems |
Types of N Connectors

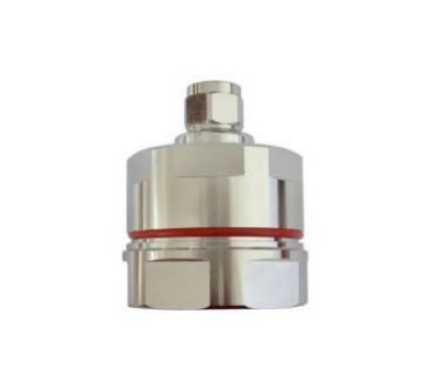

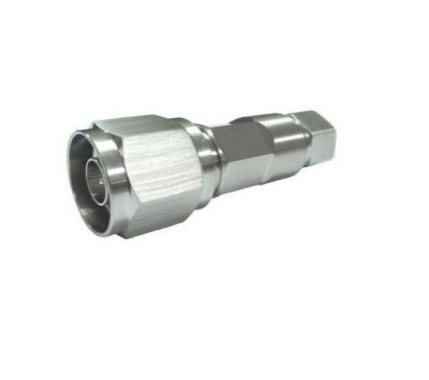

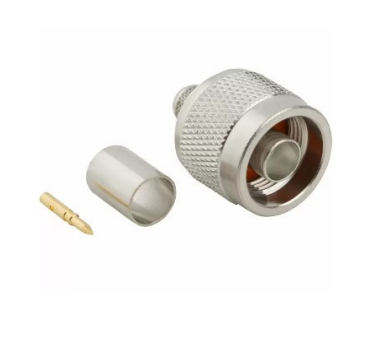

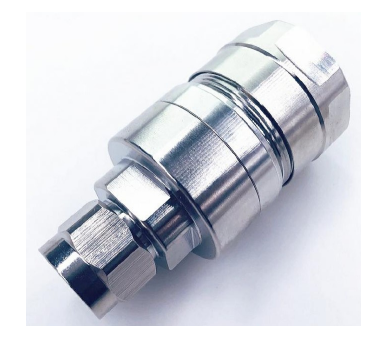

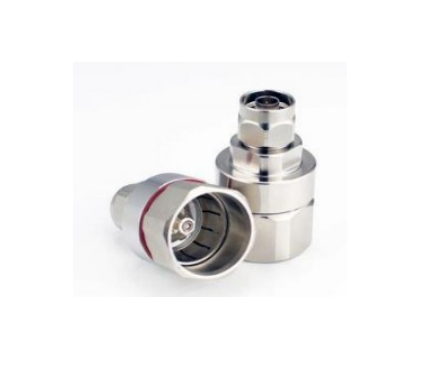

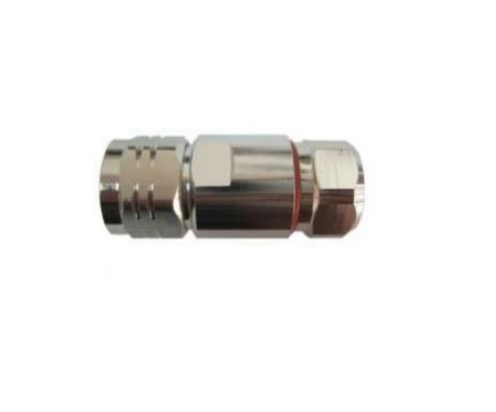

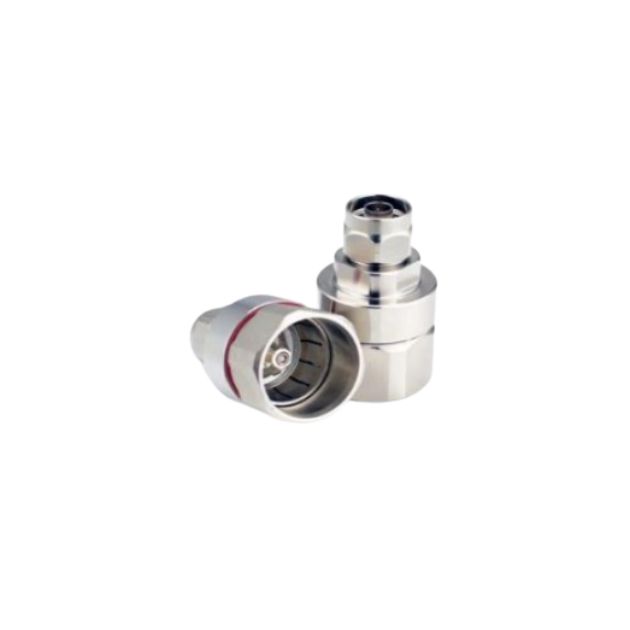

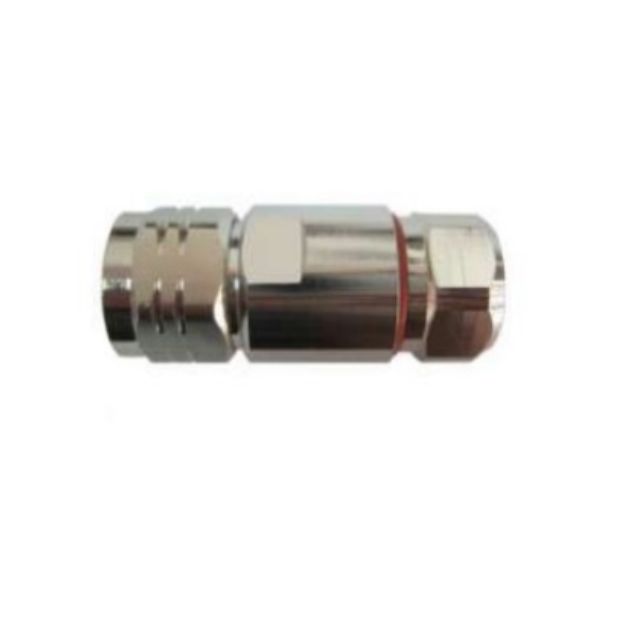

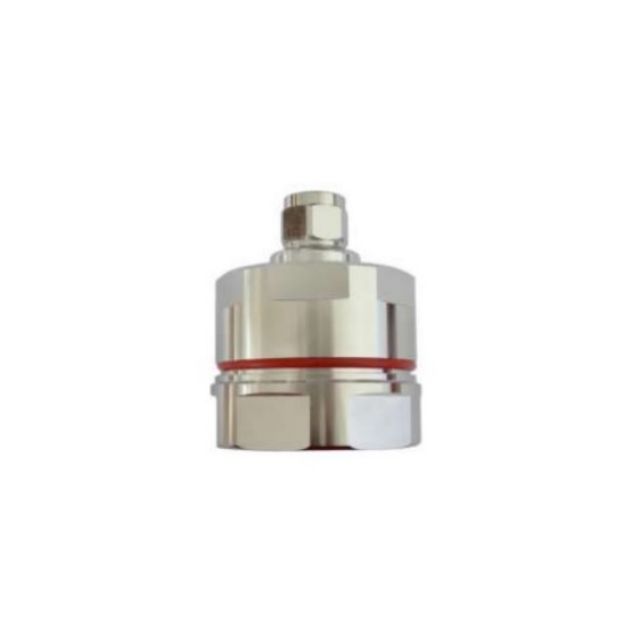

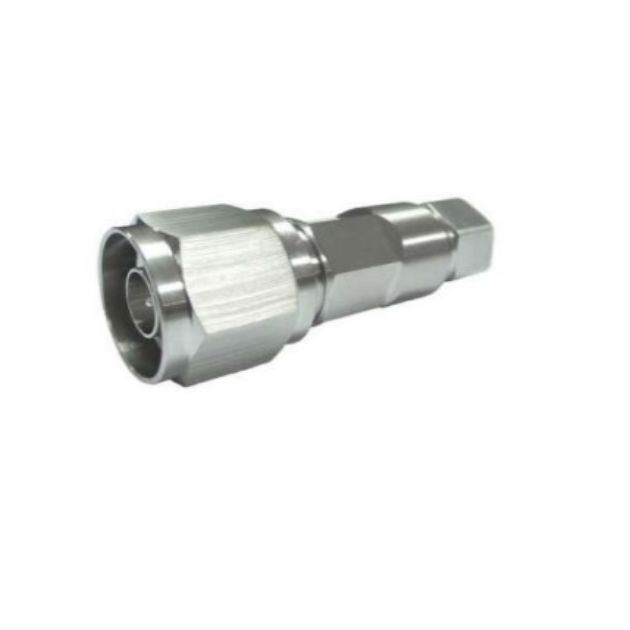

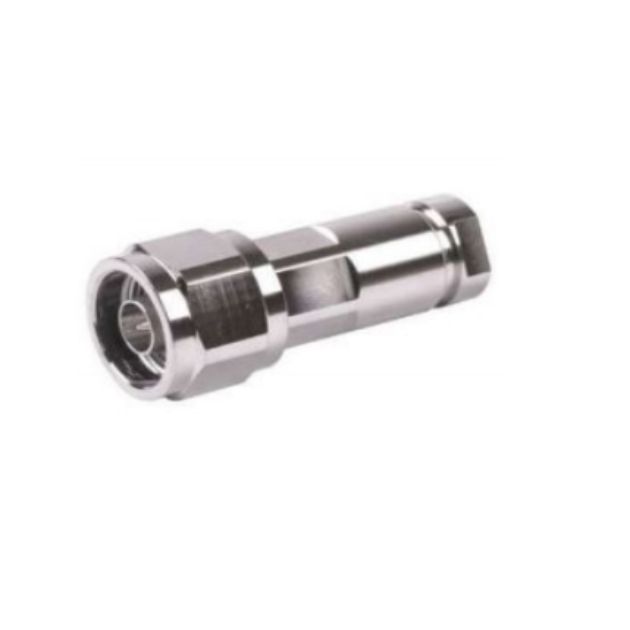

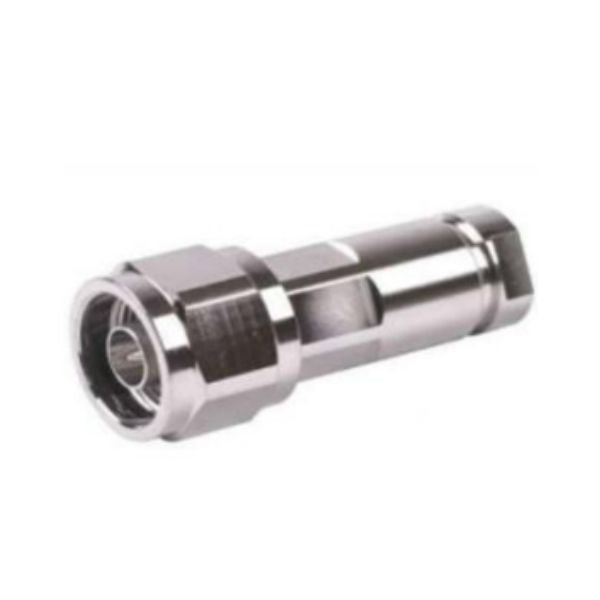

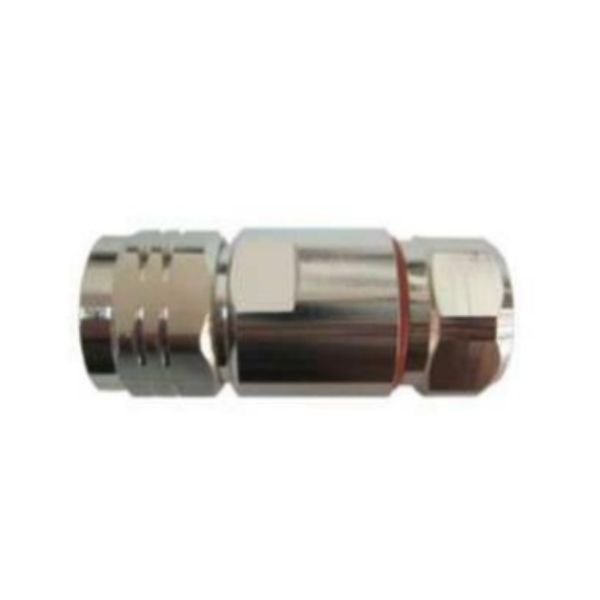

N Male Connector
Used for RF cable assemblies, telecom systems, antenna feeder connectivity, and microwave communication applications.

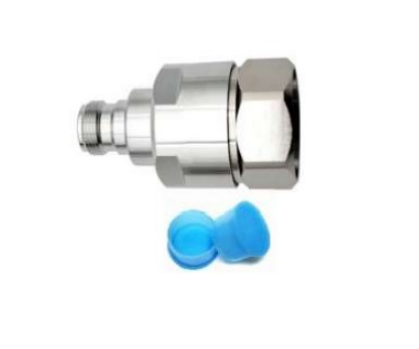

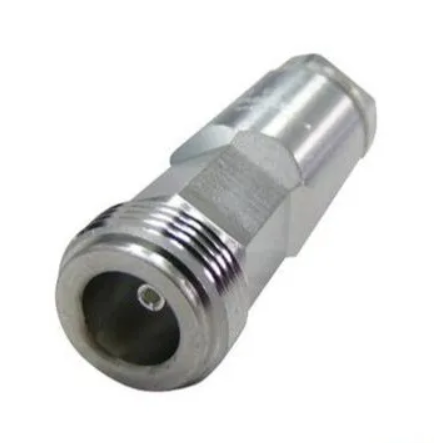

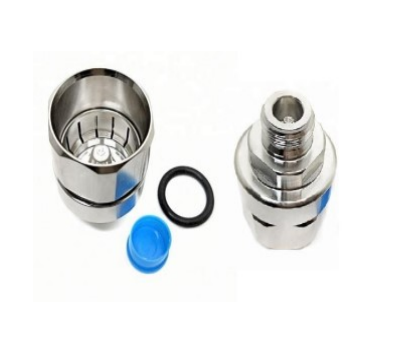

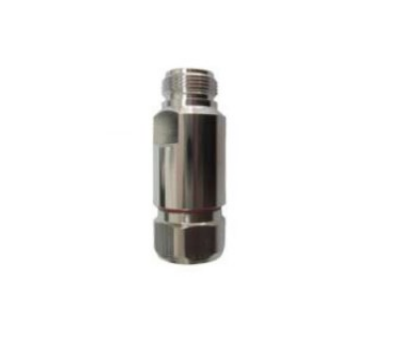

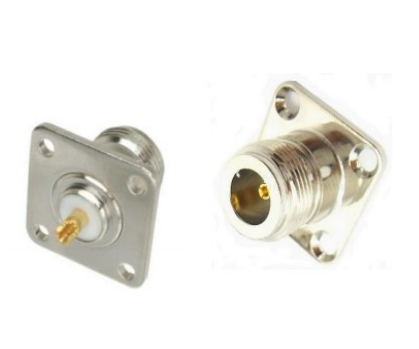

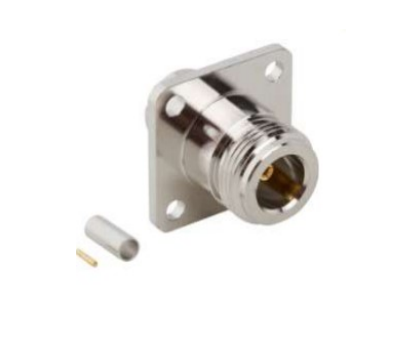

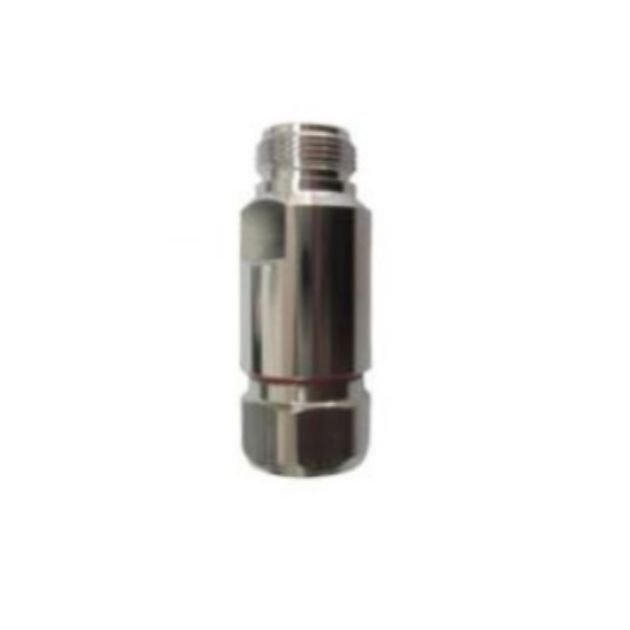

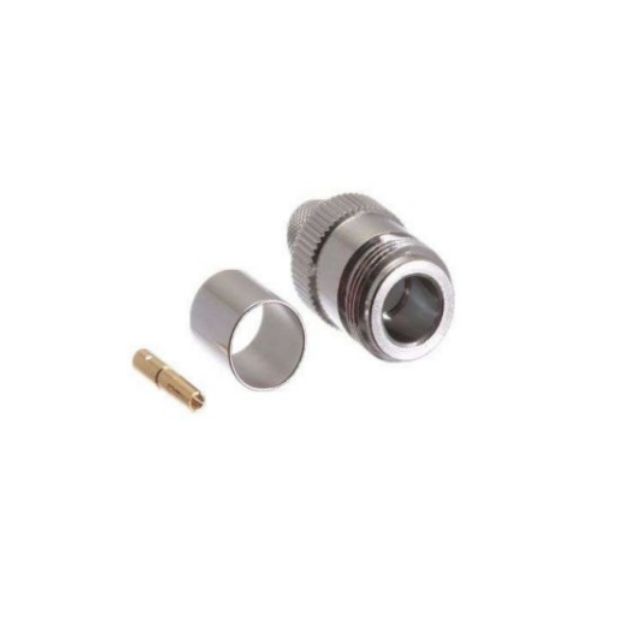

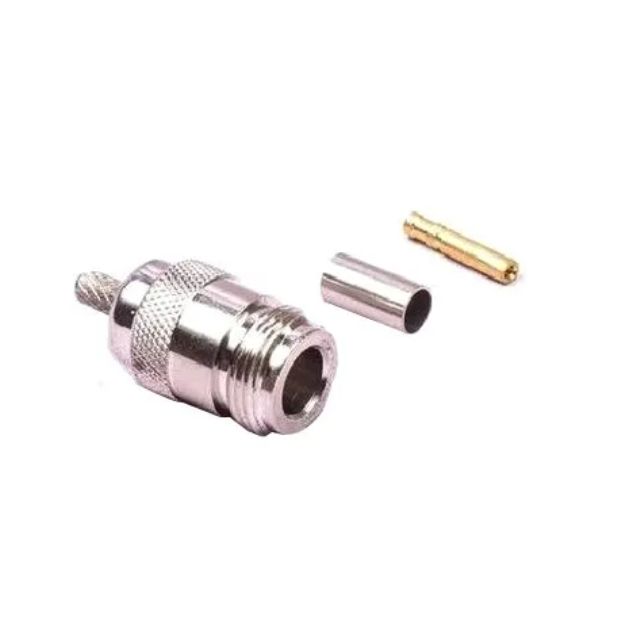

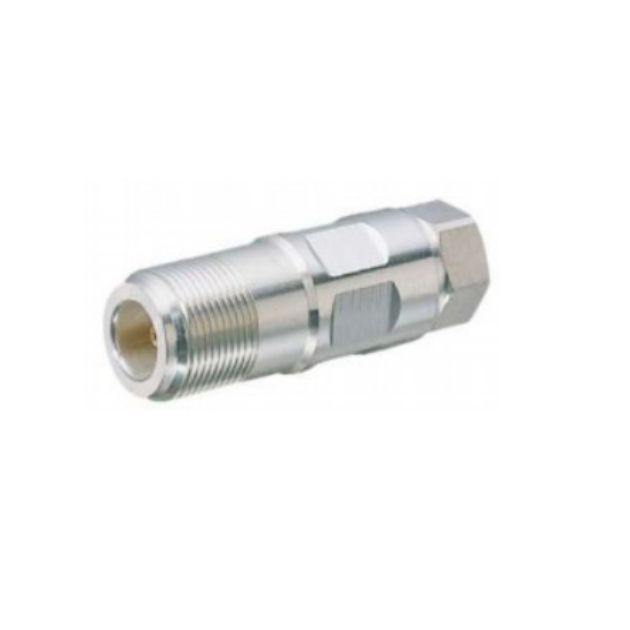

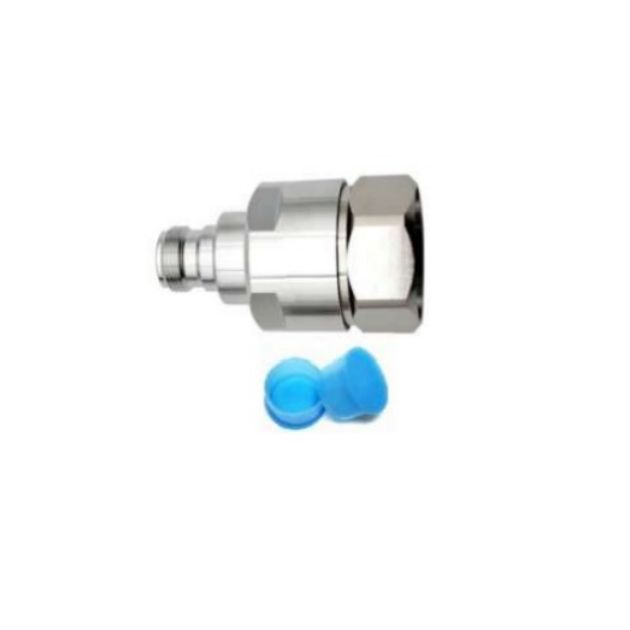

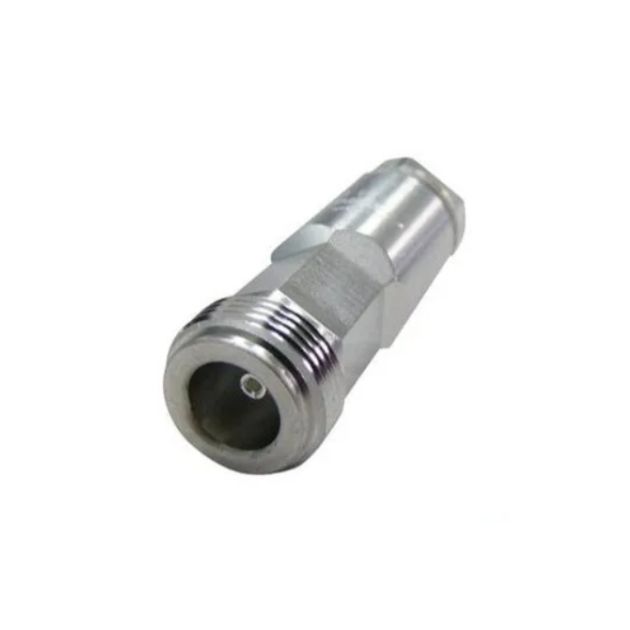

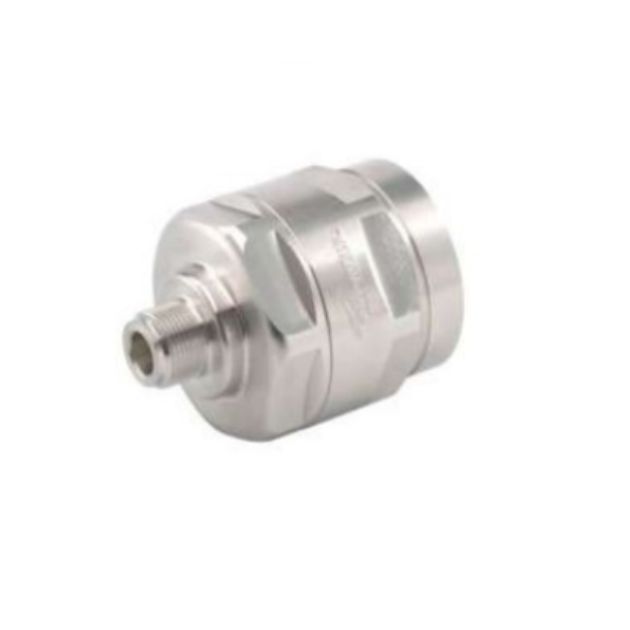

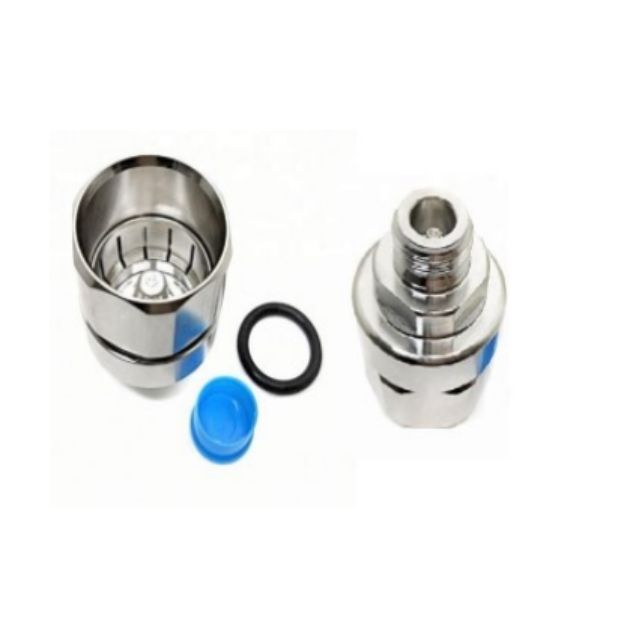

N Female Connector
Designed for panel mounting and RF equipment connectivity in telecom infrastructure.

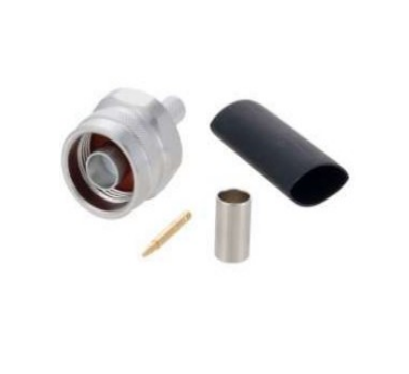

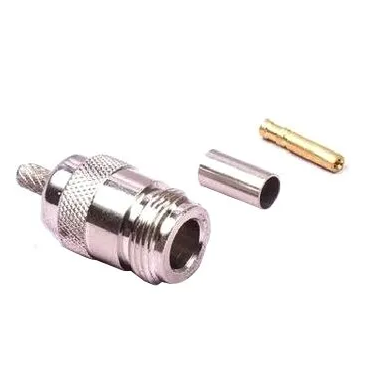

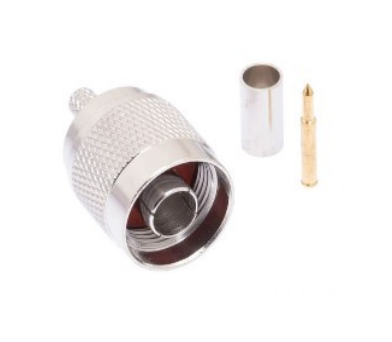

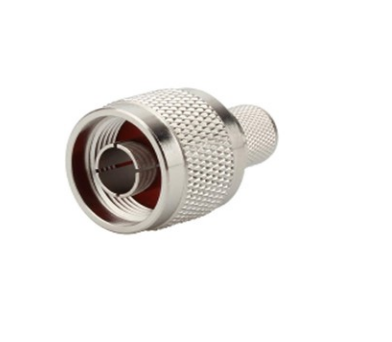

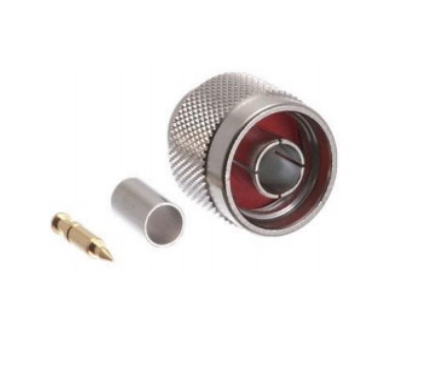

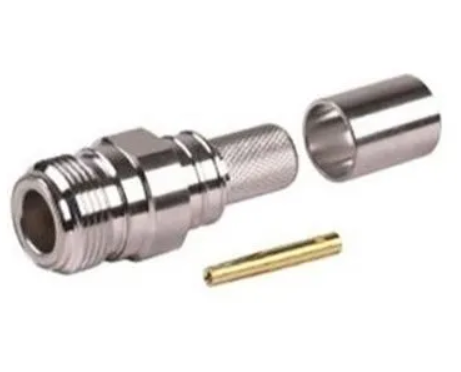

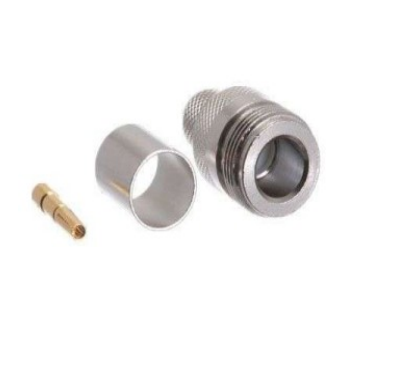

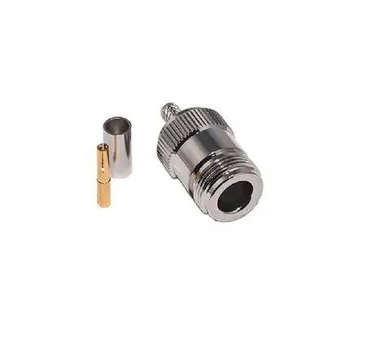

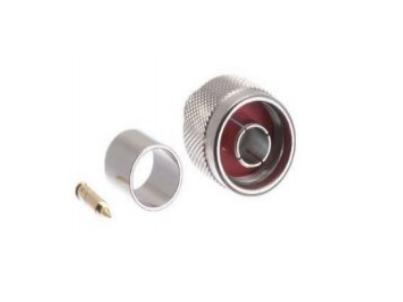

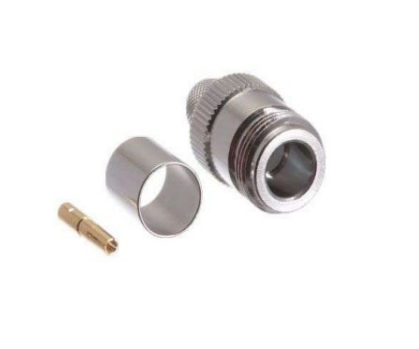

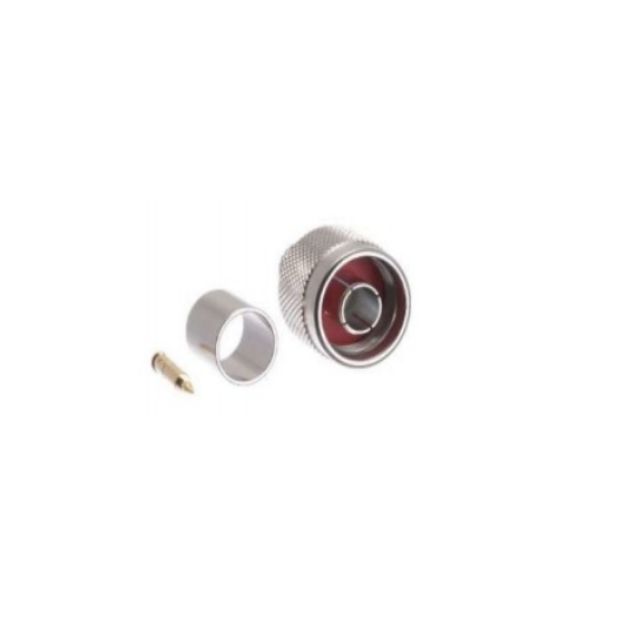

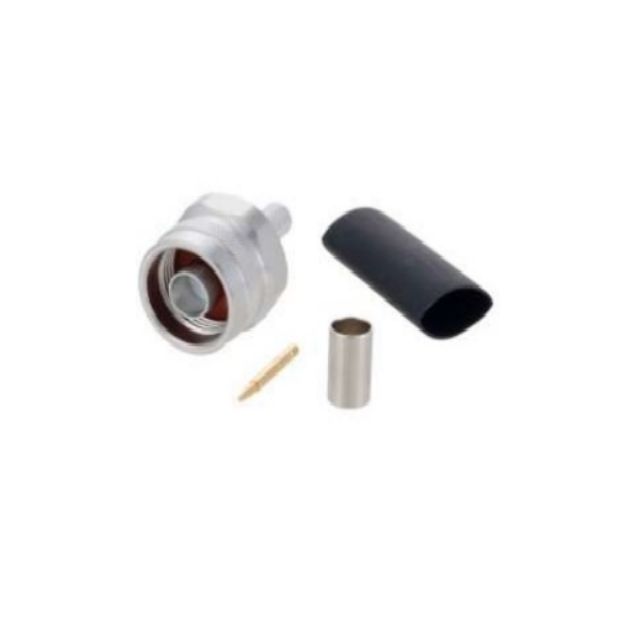

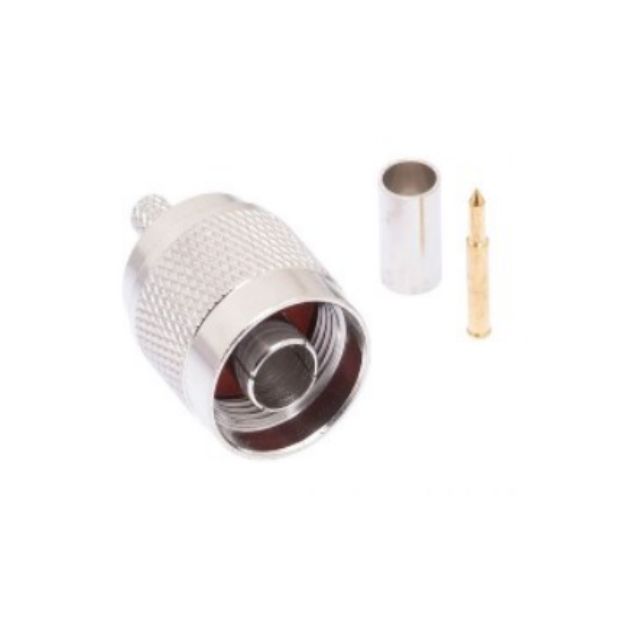

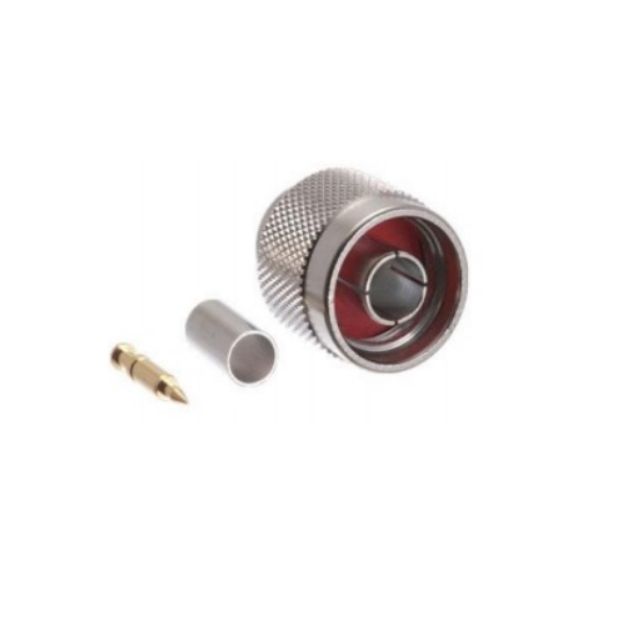

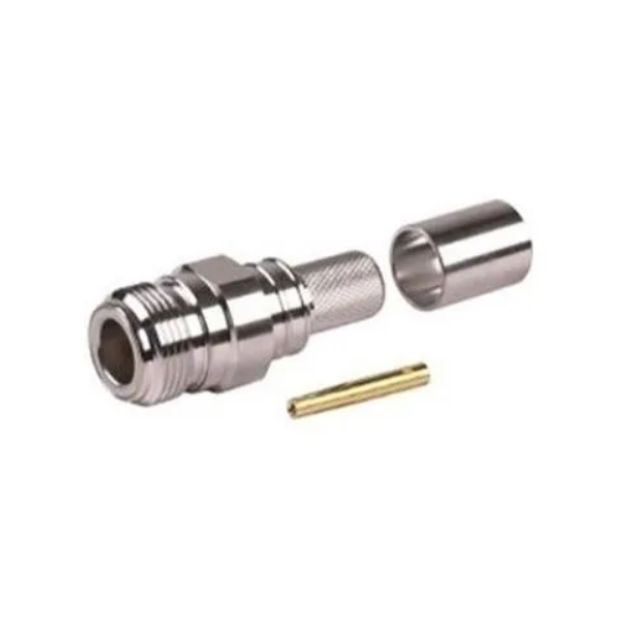

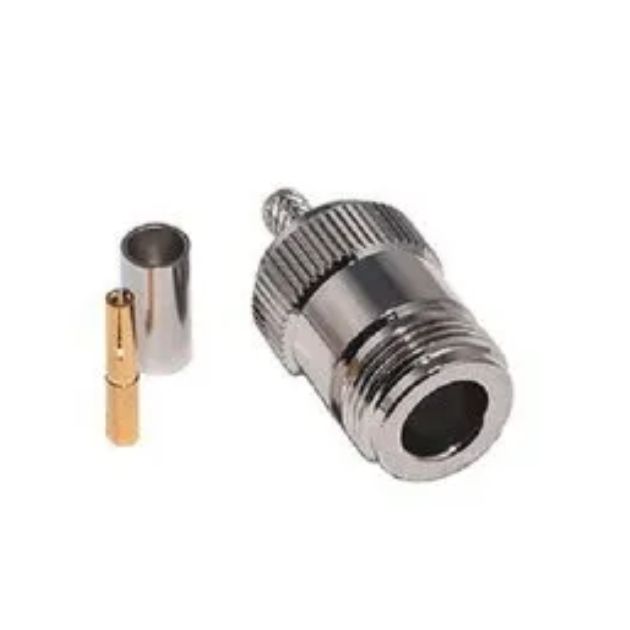

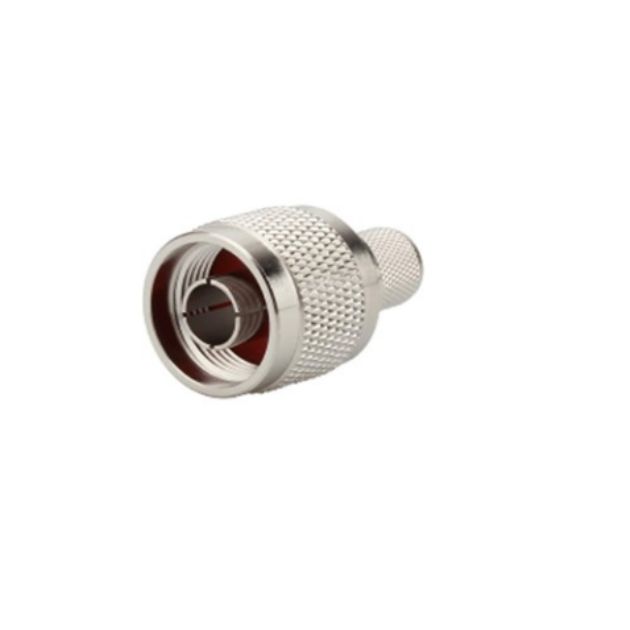

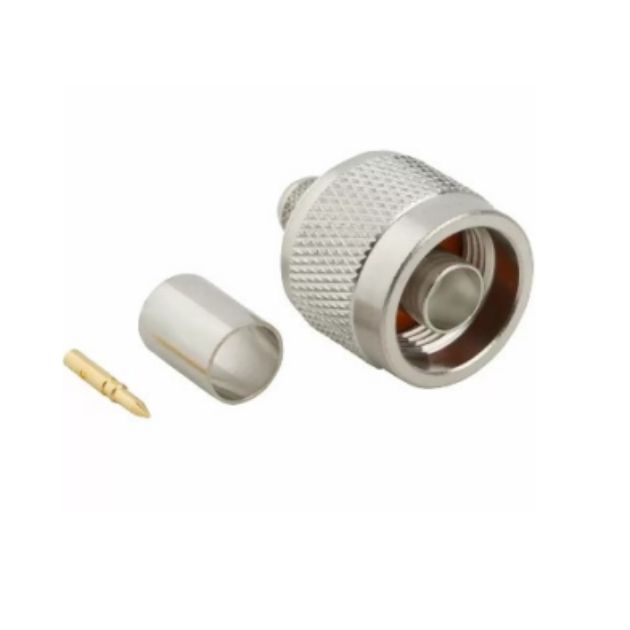

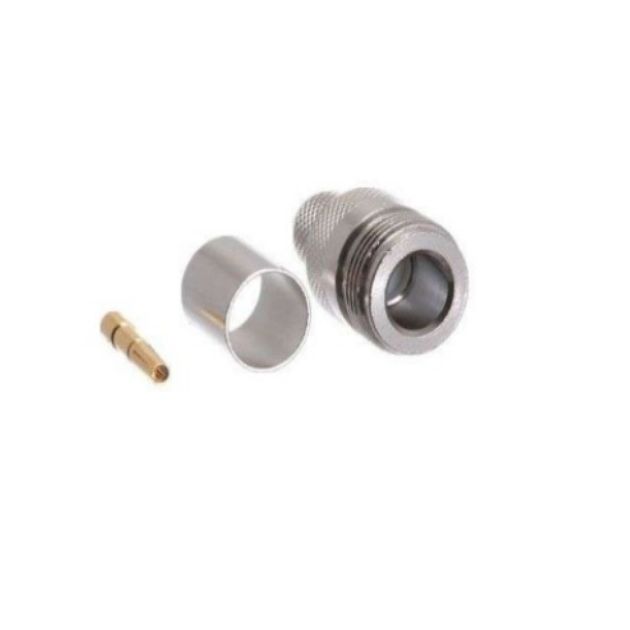

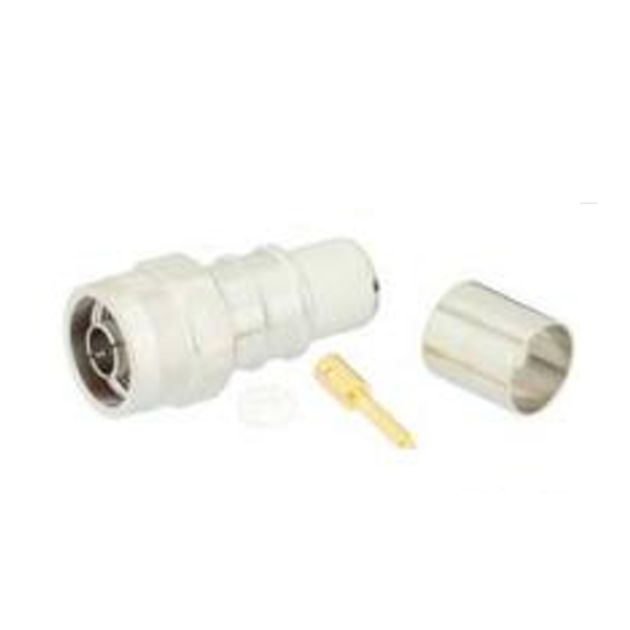

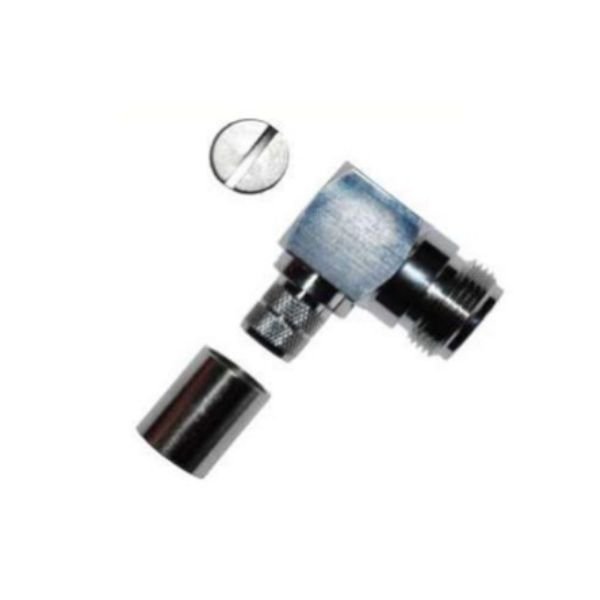

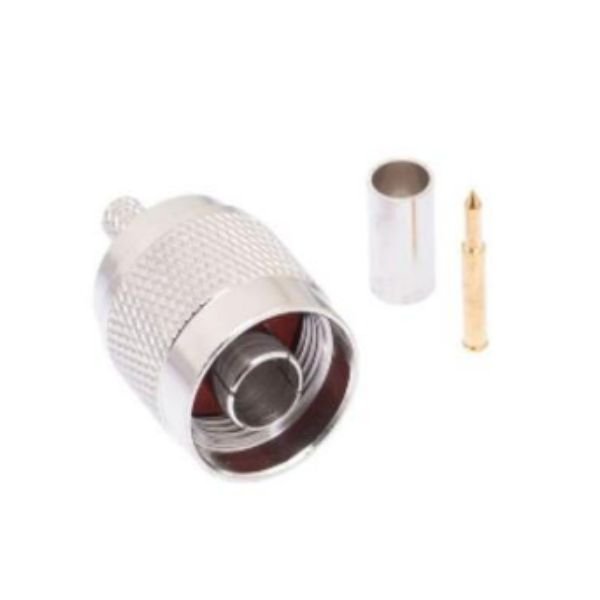

N Crimp Connector
Provides secure RF cable termination with stable signal transmission performance.

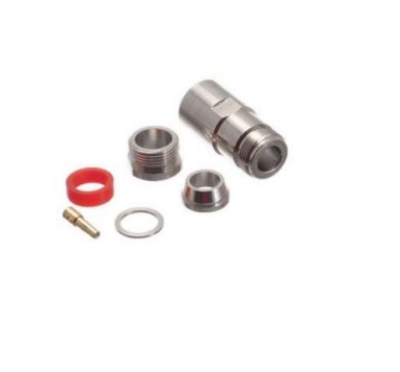

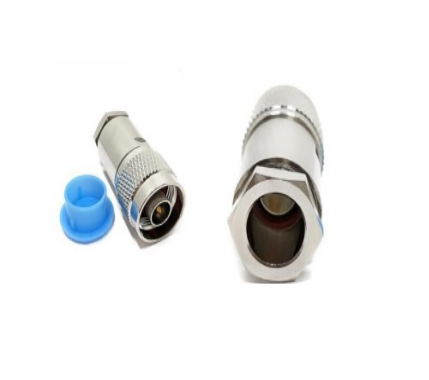

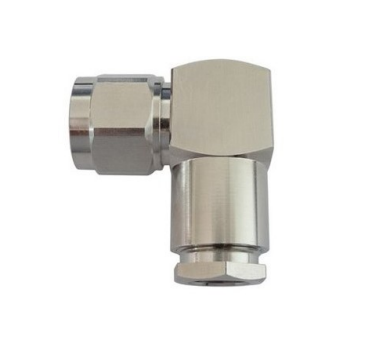

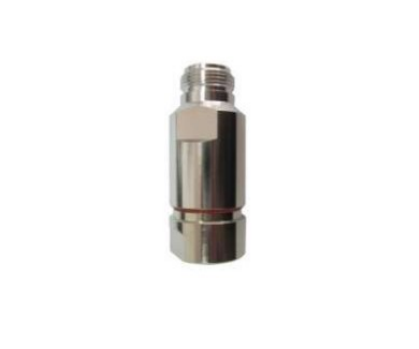

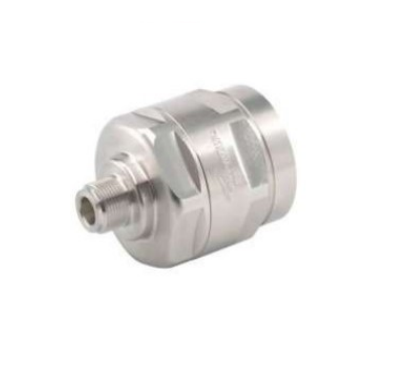

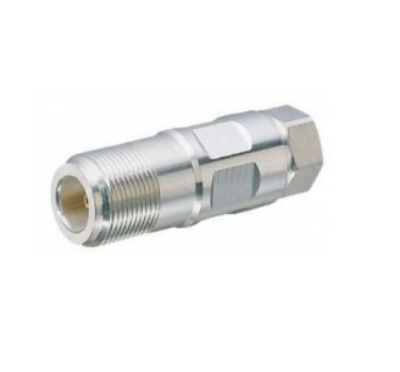

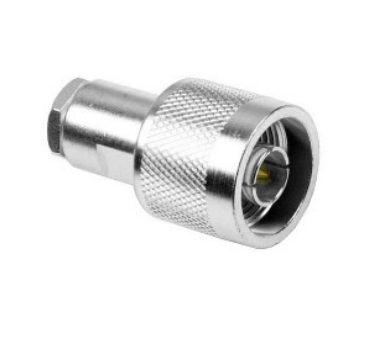

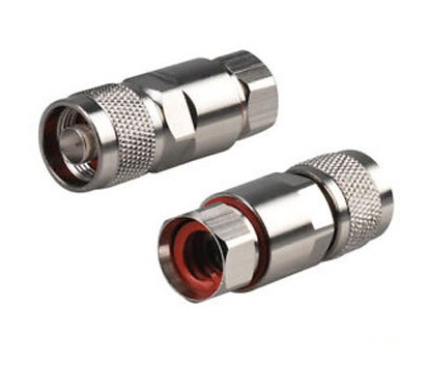

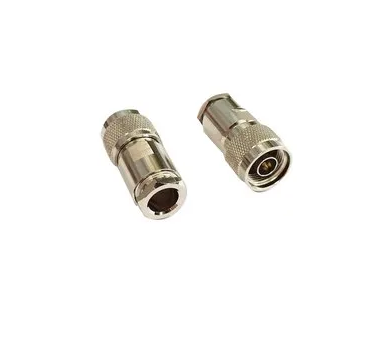

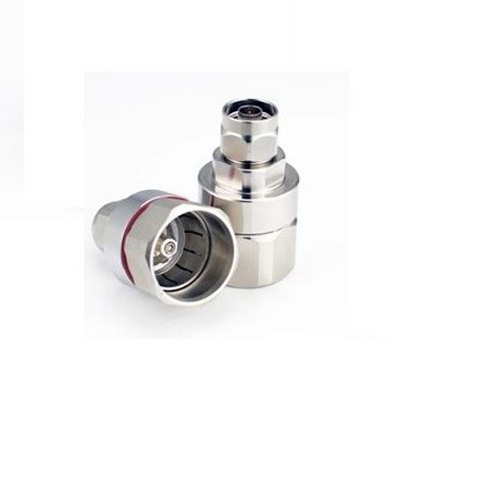

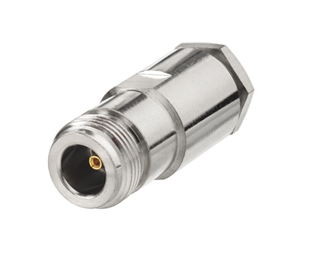

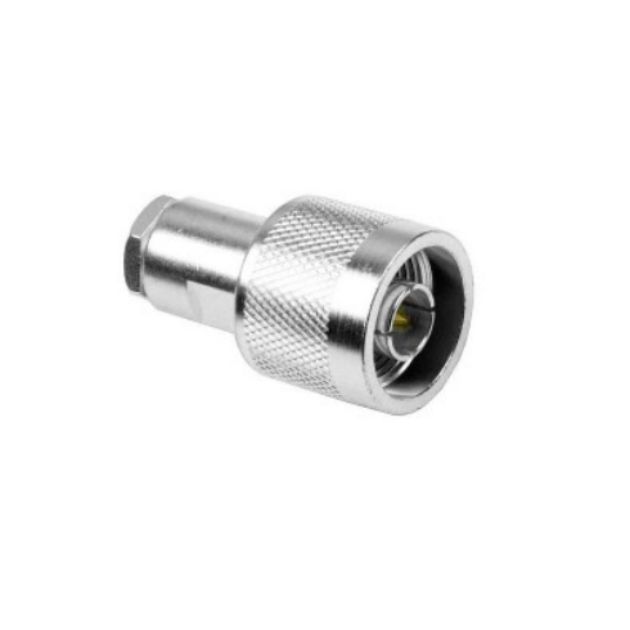

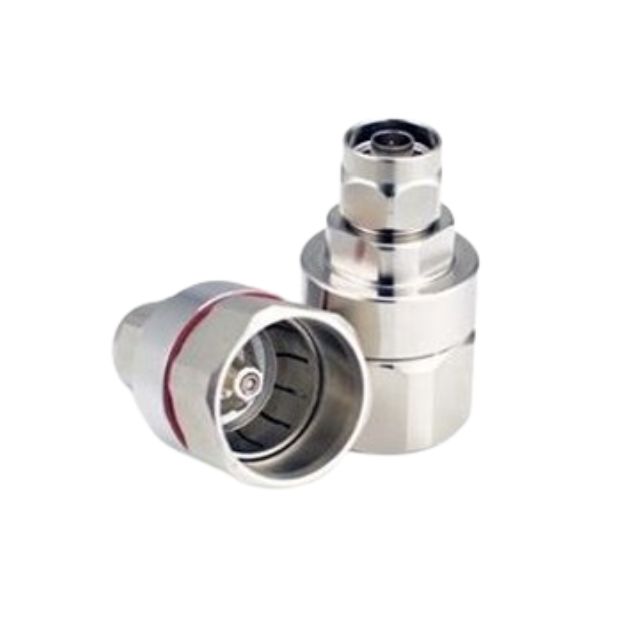

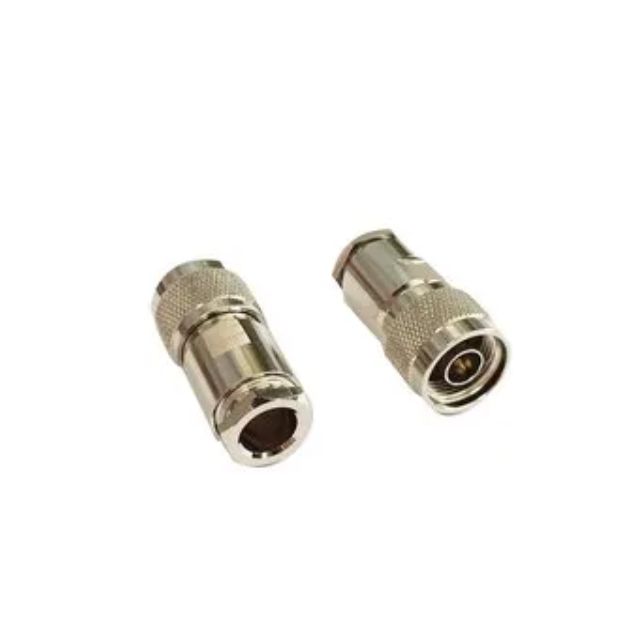

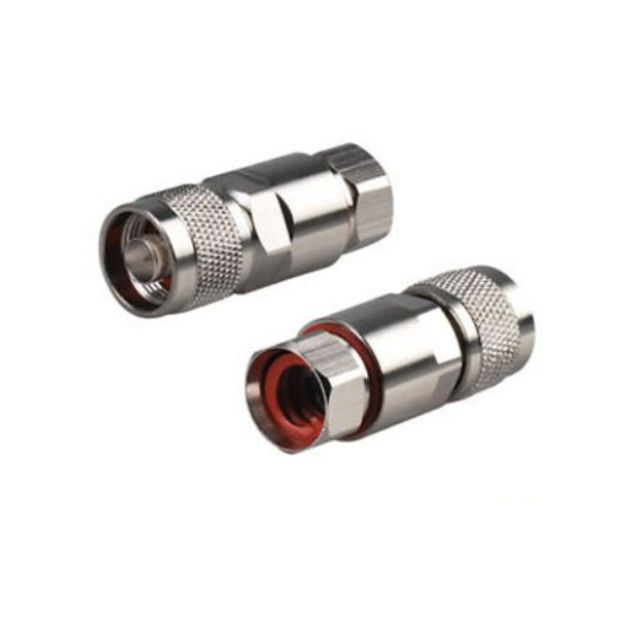

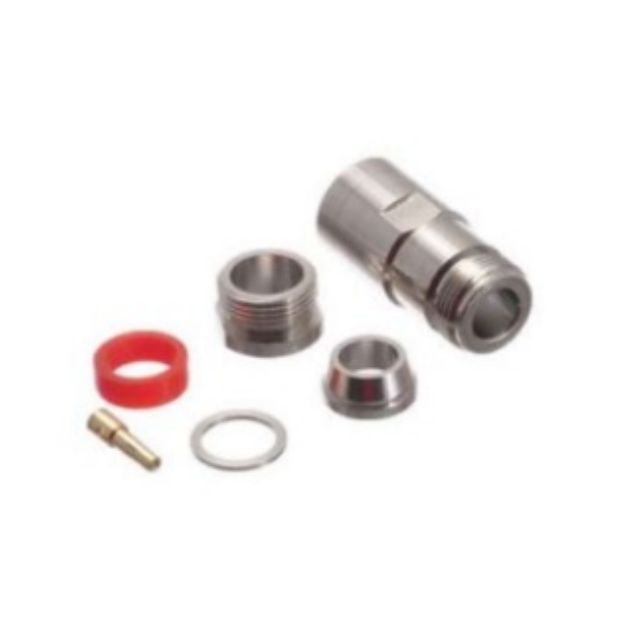

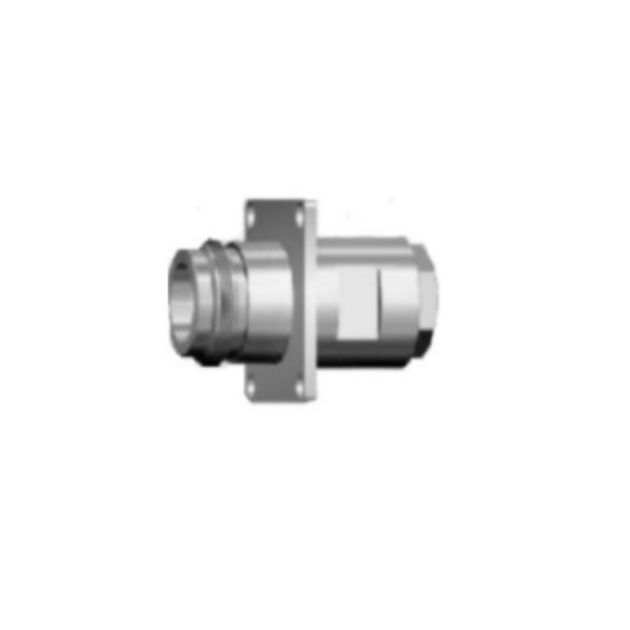

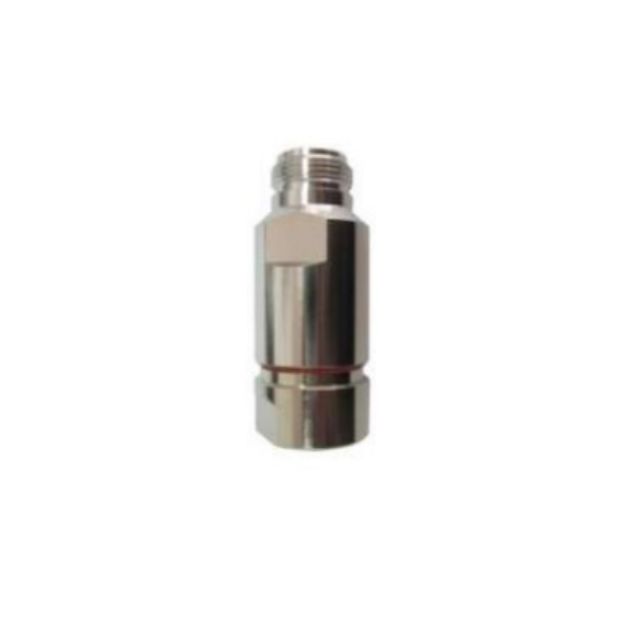

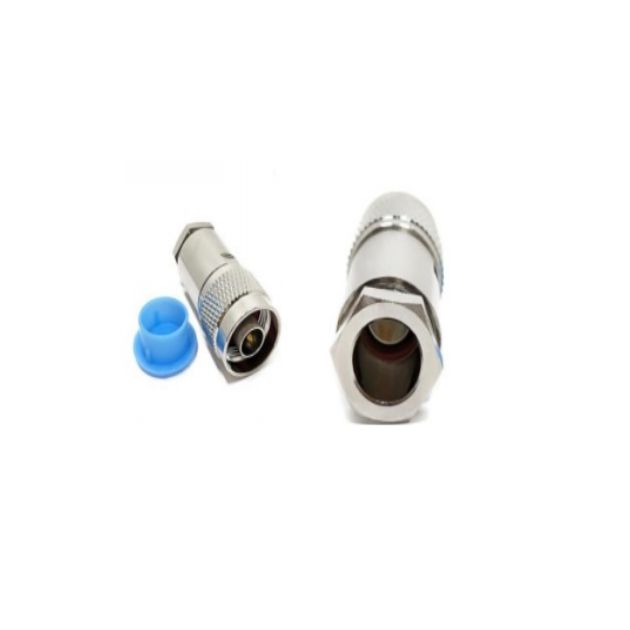

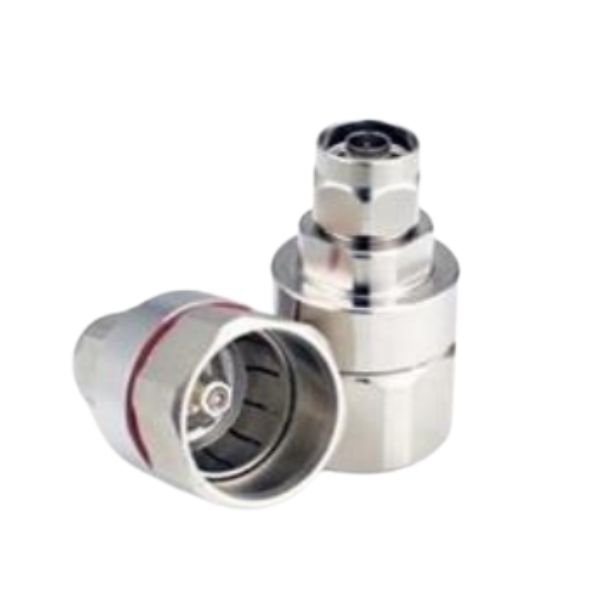

N Clamp Connector
Suitable for feeder cable and coaxial cable installations in telecom systems.

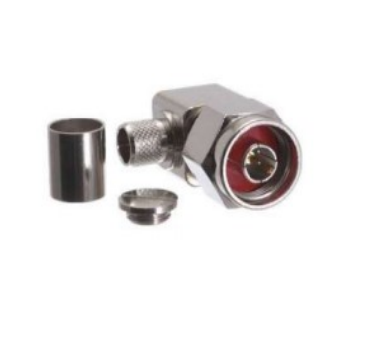

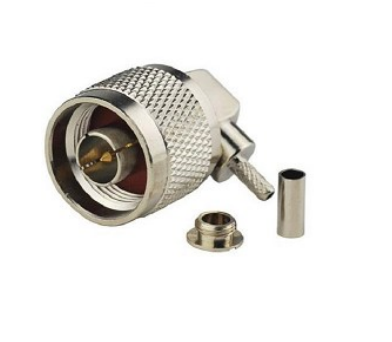

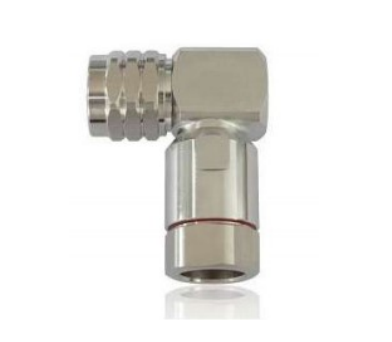

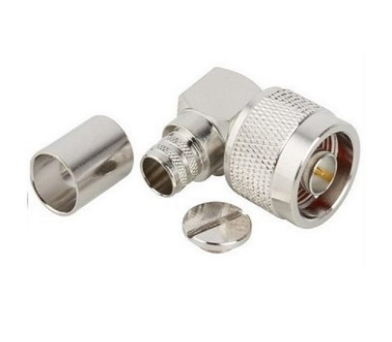

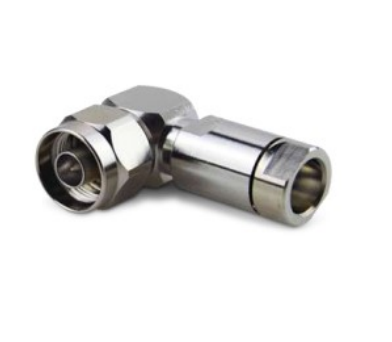

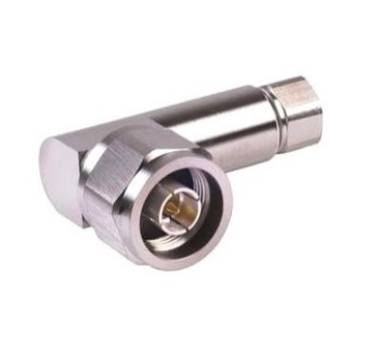

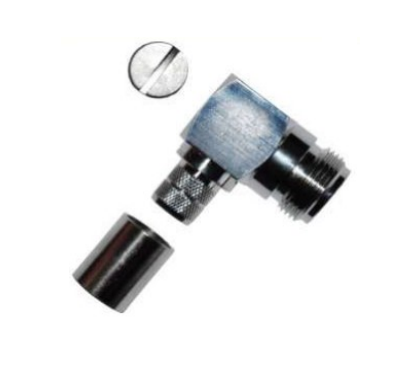

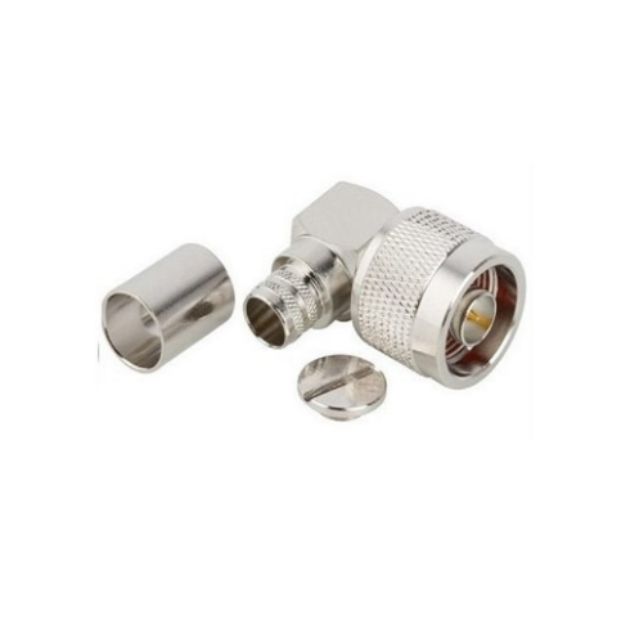

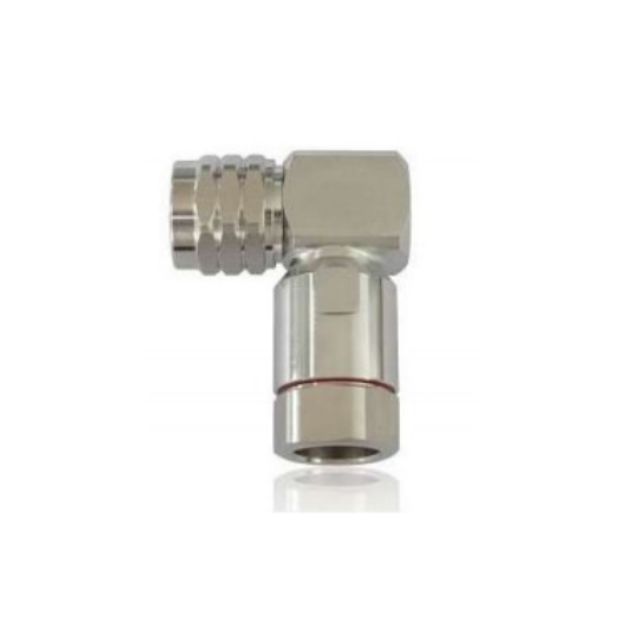

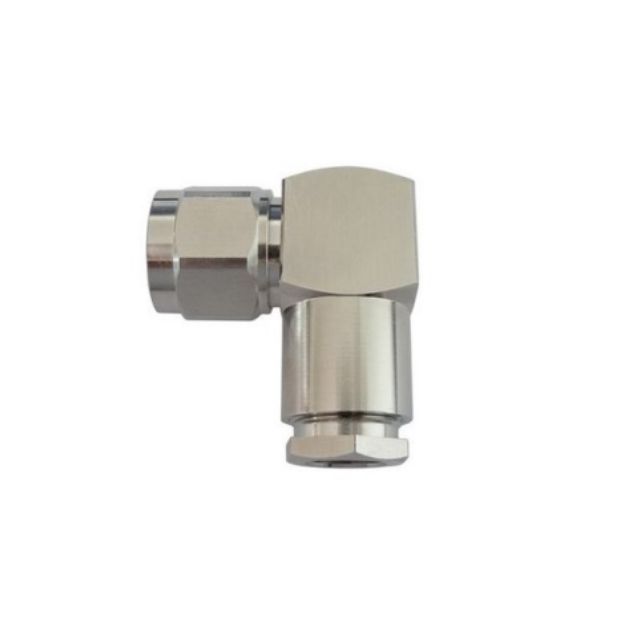

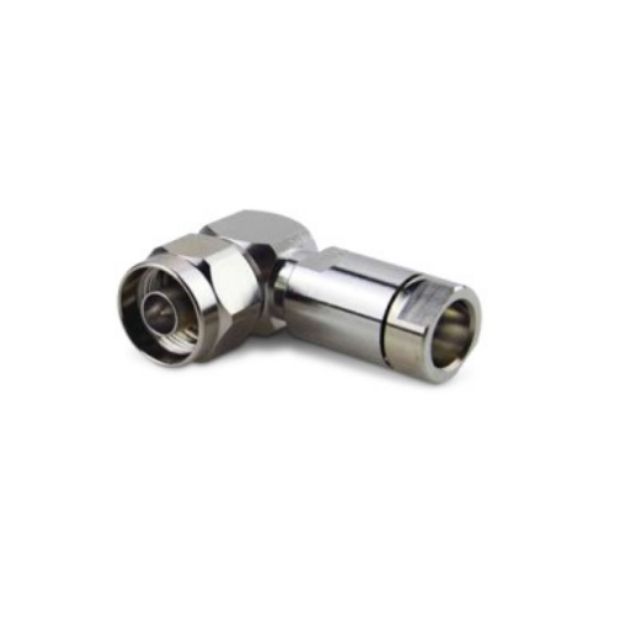

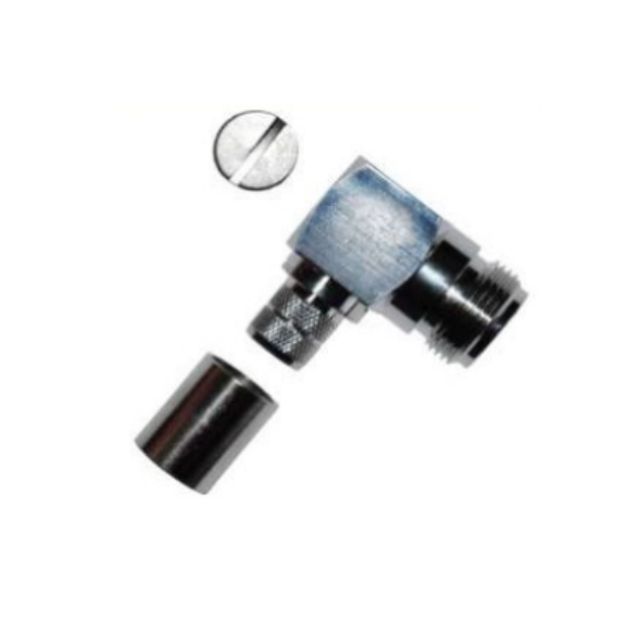

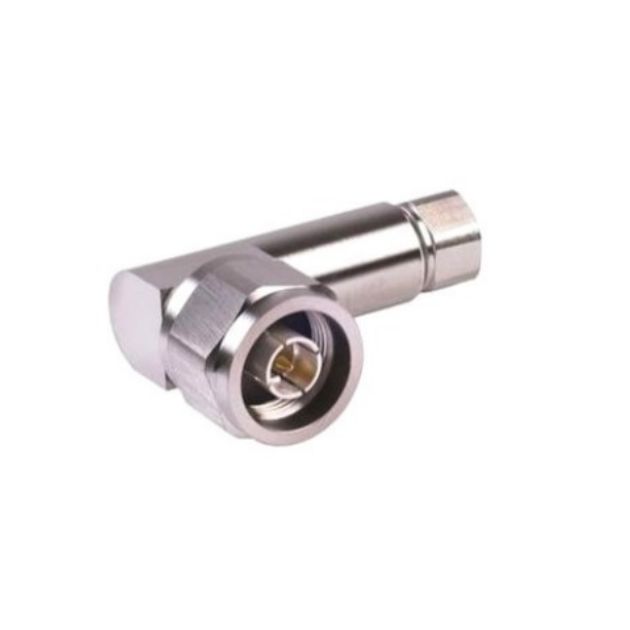

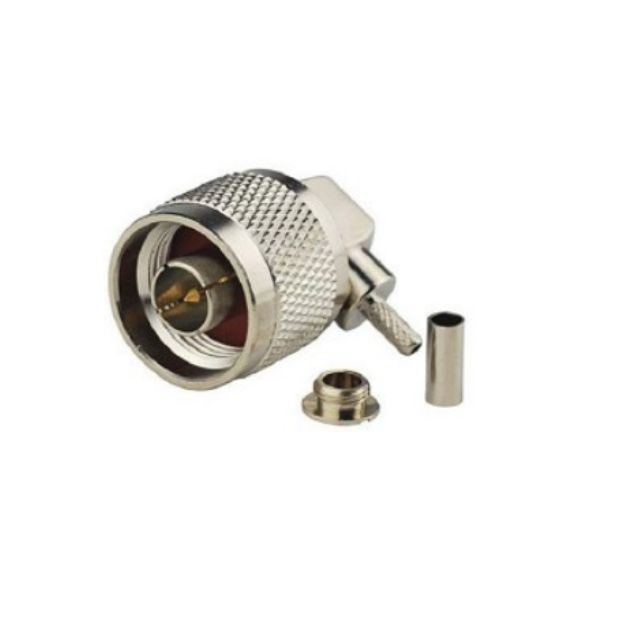

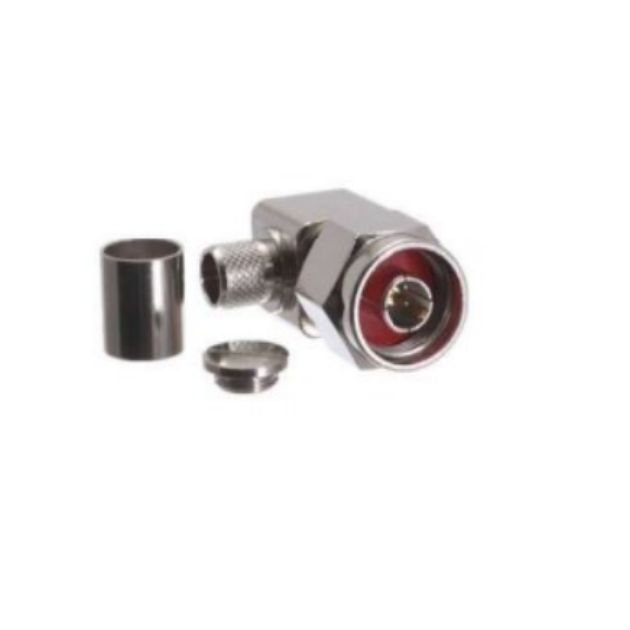

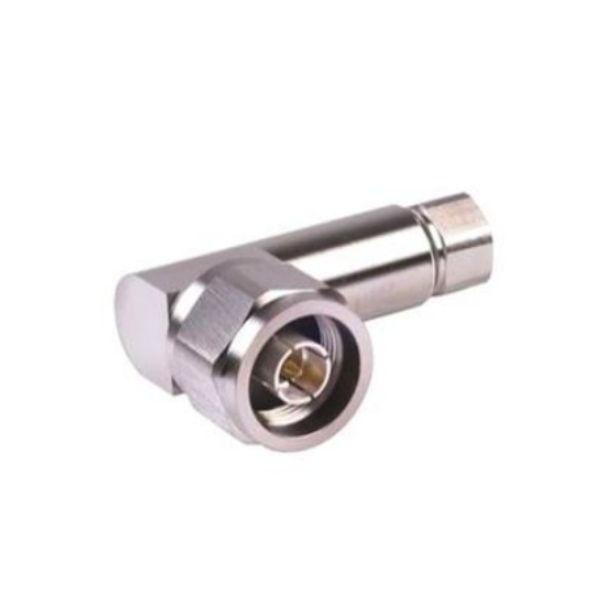

N Right Angle Connector
Designed for compact RF systems requiring flexible cable routing and space-saving installation.

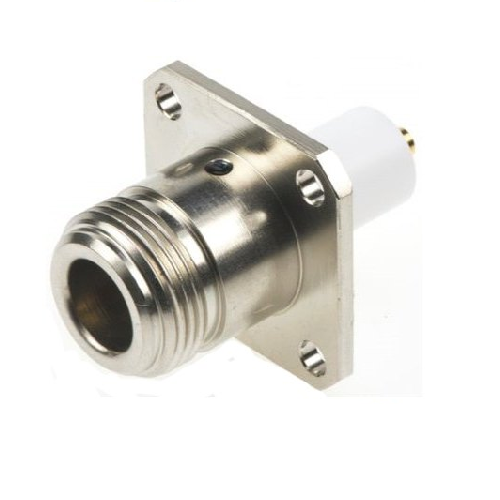

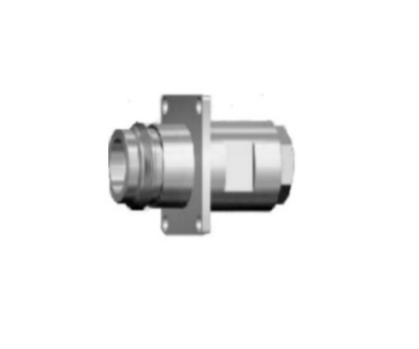

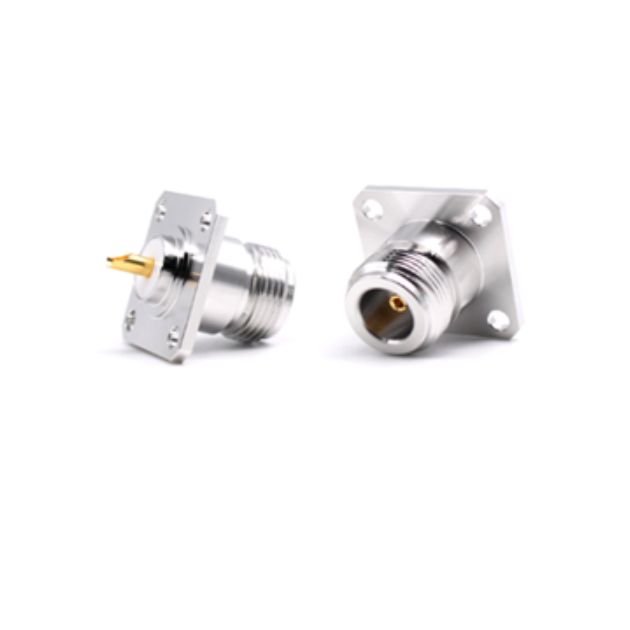

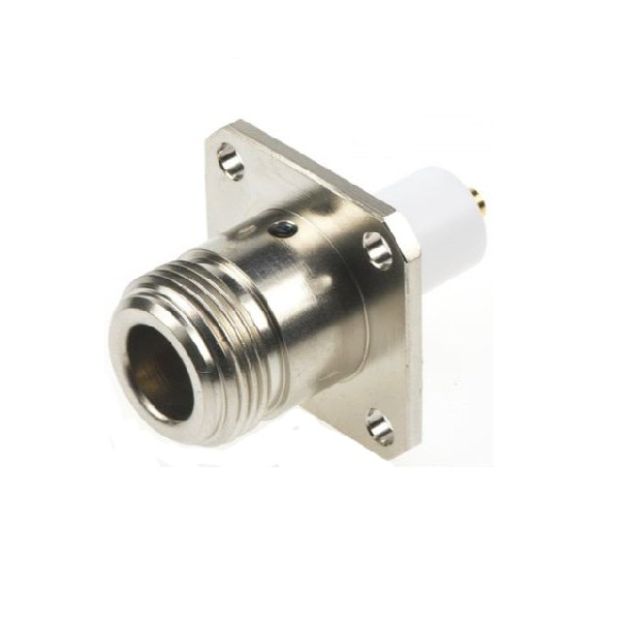

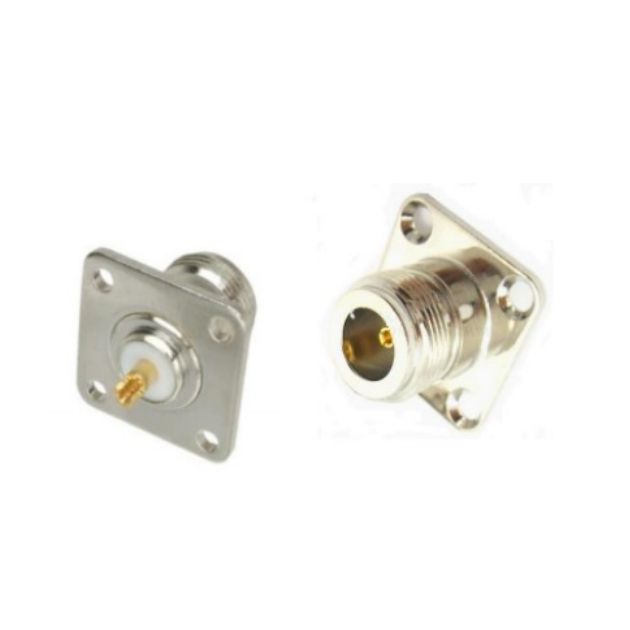

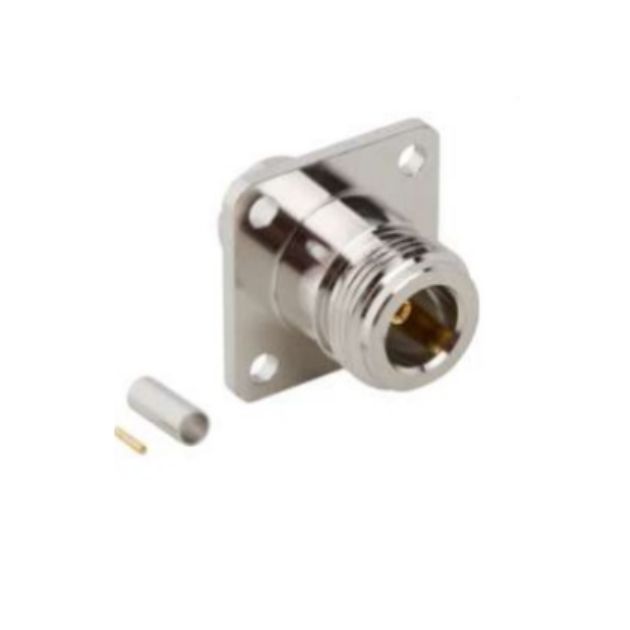

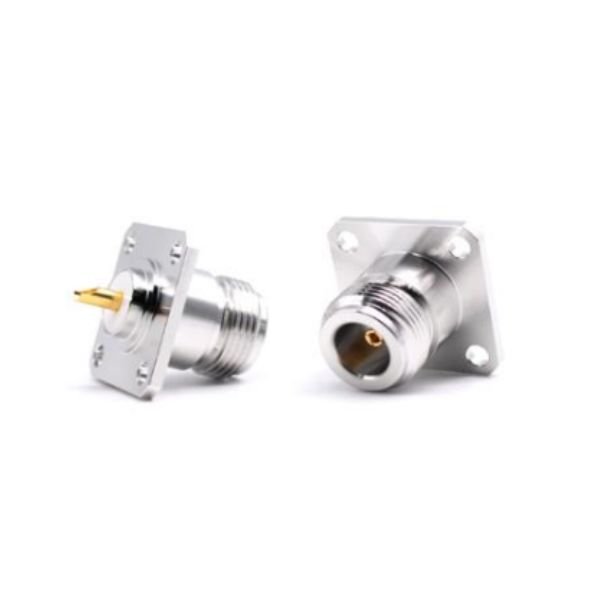

N Type Bulkhead Connector
Used for panel-mounted RF communication systems and antenna connectivity applications.
Applications of N Connector
N connectors are widely used across telecom and RF industries including:
- 4G LTE & 5G Telecom Networks
- Antenna Feeder Systems
- RF Cable Assemblies
- DAS (Distributed Antenna Systems)
- IBS (In-Building Solutions)
- Wireless Communication Systems
- Microwave Communication Equipment
- RF Testing & Measurement Equipment
- Broadcasting & RF Transmission Systems
- Telecom BTS Installations
Key Performance Factors
Choosing the right N Connector depends on several important RF performance parameters:
- Frequency handling capability
- Low insertion loss performance
- VSWR characteristics
- Connector durability
- Cable compatibility
- Shielding effectiveness
- Power handling capability
- Environmental resistance and outdoor protection
Proper N connector selection ensures stable RF connectivity, reduced signal loss, improved network efficiency, and reliable telecom communication performance.
N Connector Product Specifications
| N Connector Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| N Male Connector | 50 Ohm | DC – 11 GHz | RF Cable Assemblies |
| N Female Connector | 50 Ohm | RF Frequency Range | Telecom Infrastructure Systems |
| N Crimp Connector | 50 Ohm | High Frequency RF Range | Wireless Communication Systems |
| N Clamp Connector | 50 Ohm | Microwave Frequency Range | Feeder Cable Connectivity |
| N Right Angle Connector | 50 Ohm | DC – 6 GHz | Compact RF Applications |
Why Choose us
Reliable RF Signal Transmission
Our N connectors are engineered for stable RF connectivity with low insertion loss and excellent impedance matching.
Durable Threaded Locking Design
Designed for strong mechanical stability and secure RF connectivity in telecom and wireless communication systems.
Excellent Shielding & Low VSWR
Manufactured for reduced signal reflection, improved RF efficiency, and reliable communication performance.
Wide Telecom & RF Compatibility
Suitable for telecom towers, DAS systems, antenna feeder systems, microwave equipment, and RF cable assemblies.
Frequently Asked Questions
An N connector is a threaded RF coaxial connector used for medium to high-power RF signal transmission in telecom and wireless communication systems.
They are widely used in telecom towers, antenna systems, RF cable assemblies, DAS networks, microwave communication equipment, and wireless communication systems.
N connectors are commonly available in 50 Ohm
and 75 Ohm impedance versions.
Most N connectors support frequencies up to 11 GHz depending on connector type and design.
N connectors provide low insertion loss, stable impedance matching, high power handling, and durable outdoor RF connectivity.
Yes, N connectors are manufactured with weather-resistant and corrosion-resistant construction for outdoor telecom environments.
Yes, these adapters are commonly used in Vector Network Analyzer (VNA) testing and RF calibration systems.
Low VSWR minimizes signal reflection and improves RF transmission efficiency in telecom systems.
Yes, N connectors are widely used in microwave communication and RF transmission systems.
Are N connectors suitable for microwave applications?
