Mini SMP Terminations
Mini SMP RF Terminations, also known as SMPM Terminations, are ultra-miniature precision microwave components designed to absorb RF signal power and eliminate unwanted reflections in high-frequency transmission lines. Supporting frequencies up to 65 GHz, these terminations are ideal for high-density RF modules, aerospace, defense, satellite communication, phased-array radar, electronic warfare, quantum computing, and advanced microwave testing applications where compact size and exceptional signal integrity are critical. Mini-SMP (SMPM) connectors are approximately 70% smaller than standard SMP connectors while supporting operation up to 65 GHz.
At SRFS Teleinfra, we manufacture premium-quality Mini SMP RF Terminations using precision machining, high-grade stainless steel, gold-plated beryllium copper contacts, and advanced dielectric materials to provide outstanding electrical performance, low VSWR, excellent return loss, and reliable impedance matching. Our SMPM Terminations are designed to deliver dependable performance in demanding RF and microwave environments.
All our Mini SMP RF Terminations are manufactured in India under stringent quality control procedures using premium raw materials and advanced manufacturing technologies. Every termination undergoes comprehensive electrical and mechanical testing to ensure long service life, reliable operation, and exceptional RF performance for aerospace, defense, satellite communication, radar systems, telecom infrastructure, and laboratory applications.
What is a Mini SMP RF Termination?
A Mini SMP RF Termination (SMPM Termination) is a precision microwave load designed to terminate unused RF ports by absorbing RF energy while maintaining an accurate 50 Ohm impedance. It minimizes signal reflections, improves return loss, and protects sensitive RF equipment from impedance mismatches.
Mini SMP connectors feature a push-on interface with blind-mate capability, making them ideal for compact electronic assemblies, high-density PCB layouts, and high-frequency communication systems. They are widely used in military electronics, phased-array antennas, aerospace communication, satellite payloads, and RF test equipment.
Technical Specifications
Our Mini SMP RF Terminations are engineered to meet demanding RF and microwave performance requirements.
Impedance
Standard 50 Ohm impedance for accurate impedance matching.
Frequency Range
Supports frequencies from DC to 65 GHz depending on the model.
Power Rating
Available in multiple power ratings to suit laboratory, aerospace, defense, and communication applications.
VSWR
Low VSWR for excellent return loss and minimal signal reflections.
Connector Interface
Precision Mini SMP (SMPM) push-on connector with blind-mate capability.
Materials
Manufactured using stainless steel, gold-plated beryllium copper contacts, PTFE dielectric, and premium RF materials.
Operating Temperature
Designed for reliable operation across a wide operating temperature range.
Compliance
Manufactured according to international RF, microwave, aerospace, and military standards.
Applications of Mini SMP RF Terminations
Our Mini SMP RF Terminations are widely used in:
- Aerospace communication systems
- Defense electronics
- Satellite communication
- Phased-array radar
- Electronic warfare systems
- Quantum computing
- RF and microwave laboratories
- Vector Network Analyzer (VNA) calibration
- RF production testing
- High-density RF modules
- Microwave communication
- Test & measurement equipment
- Research & Development laboratories
- 5G and 6G infrastructure
- High-speed communication systems
Key Performance Features
Choosing the right Mini SMP RF Termination ensures accurate RF measurements and dependable microwave performance.
- Precision 50 Ohm impedance
- Frequency support up to 65 GHz
- Ultra-miniature connector design
- Blind-mate capability
- Low VSWR
- Excellent return loss
- Superior mechanical durability
- Low insertion loss
- High-frequency stability
- Precision CNC machining
- Compact lightweight construction
- Long operational life
High-quality Mini SMP RF Terminations reduce signal reflections, improve measurement accuracy, protect sensitive RF equipment, and ensure reliable performance in aerospace, defense, satellite communication, phased-array radar, and advanced microwave applications.
Types of Mini SMP RF Terminations

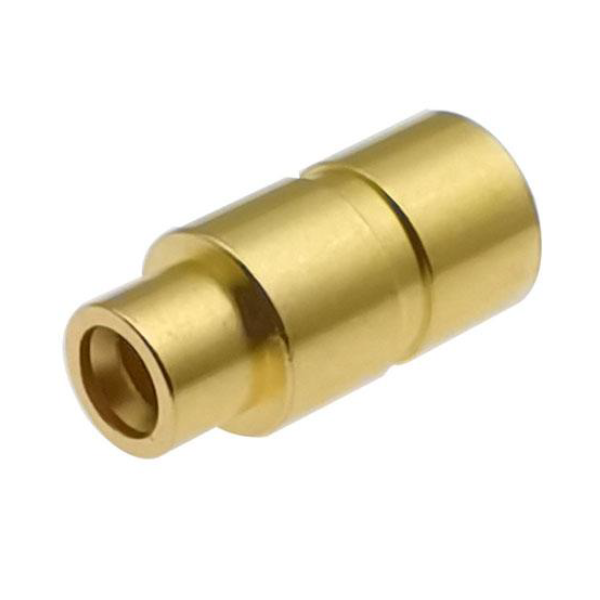

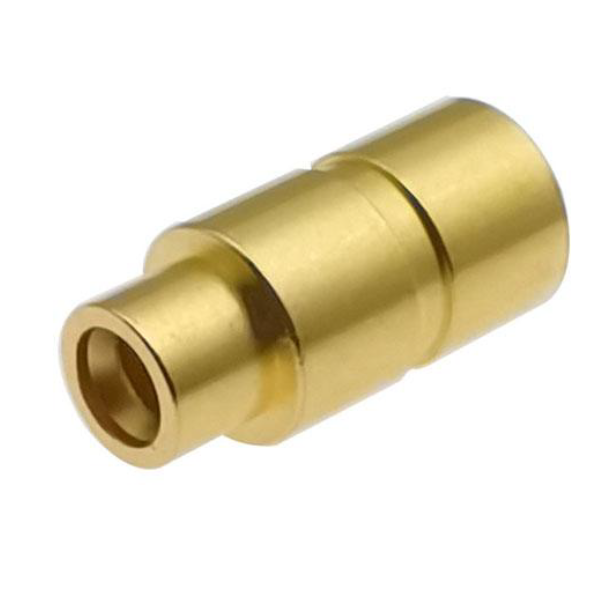

Mini SMP Male RF Termination
Designed with a Mini SMP male connector for terminating female RF ports while providing accurate impedance matching.

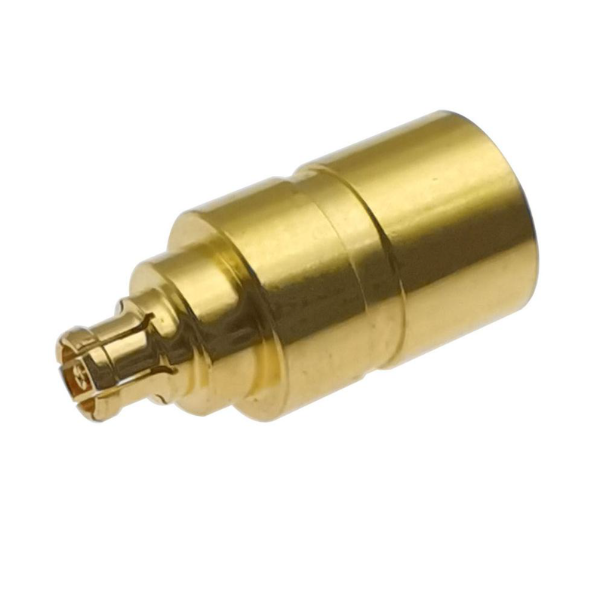

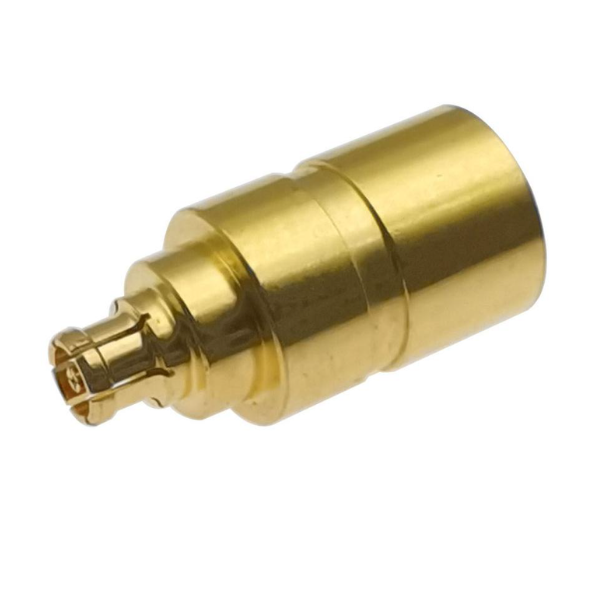

Mini SMP Female RF Termination
Features a Mini SMP female connector to terminate male RF interfaces with excellent microwave performance.
Precision SMPM Termination
Manufactured with extremely tight mechanical tolerances to provide laboratory-grade RF measurements and low VSWR.
Low Power Mini SMP Termination
Ideal for RF testing, calibration, laboratory measurements, and signal conditioning.
High Power Mini SMP Termination
Designed for higher RF power applications while maintaining stable attenuation and impedance characteristics.
Product Specifications
| Product Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| Mini SMP Male RF Termination | 50 Ohm | DC to 65 GHz | Terminate Female RF Ports |
| Mini SMP Female RF Termination | 50 Ohm | DC to 65 GHz | Terminate Male RF Ports |
| Mini SMP Male Dummy Load | 50 Ohm | DC to 65 GHz | RF Testing & Calibration |
| Mini SMP Female Dummy Load | 50 Ohm | DC to 65 GHz | Microwave Test Equipment |
| Mini SMP Precision Termination | 50 Ohm | DC to 65 GHz | Vector Network Analyzer (VNA) |
| Mini SMP Low Power Termination | 50 Ohm | DC to 65 GHz | Laboratory RF Measurements |
| Mini SMP High Power Termination | 50 Ohm | DC to 65 GHz | High Frequency RF Systems |
| Mini SMP Coaxial Termination | 50 Ohm | DC to 65 GHz | Satellite Communication |
| Mini SMP Precision Dummy Load | 50 Ohm | DC to 65 GHz | Signal Reflection Control |
| Mini SMP Test Port Termination | 50 Ohm | DC to 65 GHz | RF Production Testing |
Why Choose us
Precision Microwave Engineering
Our Mini SMP RF Terminations are manufactured with precision engineering to provide outstanding microwave performance and reliable RF signal termination.
Excellent Signal Integrity
Designed with low VSWR and excellent return loss to ensure accurate RF measurements and stable signal transmission.
Compact High-Density Design
Mini SMP Terminations feature an ultra-small footprint with blind-mate capability, making them ideal for space-constrained RF and microwave systems.
Manufactured in India
All our Mini SMP RF Terminations are manufactured in India using premium materials, advanced machining, and strict quality control procedures to ensure reliable performance and long service life.
Frequently Asked Questions
A Mini SMP RF Termination is a precision microwave load designed to absorb RF energy, terminate unused RF ports, and maintain accurate 50 Ohm impedance.
Most Mini SMP (SMPM) RF Terminations support frequencies from DC to 65 GHz.
Standard 50 Ohm impedance for precise RF and microwave applications.
They are widely used in aerospace, defense, satellite communication, phased-array radar, RF testing, microwave communication, and laboratory measurement systems.
Their compact size, blind-mate capability, low VSWR, and support for frequencies up to 65 GHz make them ideal for high-density RF applications.
Yes. They are commonly used with Vector Network Analyzers, spectrum analyzers, signal generators, and RF calibration equipment.
Yes. SRFS Teleinfra manufactures customized Mini SMP RF Terminations with various power ratings and configurations.
Yes. All our Mini SMP RF Terminations are manufactured in India using premium materials, precision engineering, and comprehensive qualitytesting.
Industries include aerospace, defense, satellite communication, telecom, radar, medical electronics, and scientific research.
SRFS Teleinfra offers precision-engineered Mini SMP RF Terminations with excellent RF performance, customized manufacturing, stringent quality testing, competitive pricing, fast delivery, and expert technical support.
