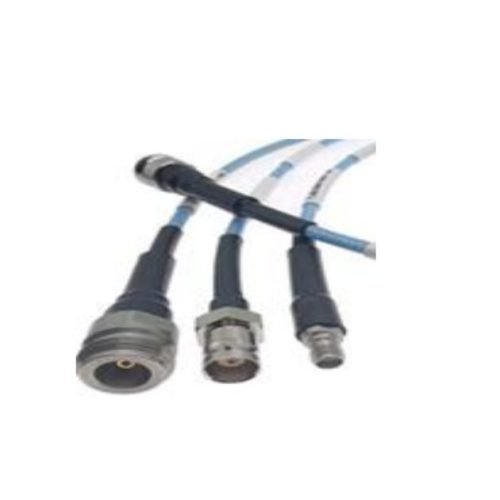

High Flex Life LF 460
High Flex Life LF 460 is a high-performance RF coaxial cable designed for applications requiring excellent flexibility, reliable signal transmission, and extended flexing performance. Engineered for demanding wireless communication, RF, telecom, test and measurement, and electronic systems, it provides consistent electrical performance while supporting repeated bending and movement. Its robust construction helps deliver durability in challenging operating environments. High Flex Life LF 460 is suitable for equipment interconnections, antenna systems, mobile RF installations, and other applications where dependable connectivity and long service life are essential.
Cable Construction
| No. | Construction | Size (mm) | Materials |
|---|---|---|---|
| 1 | Center Conductor | 1.02 | Solid silver-plated copper |
| 2 | Dielectric | 3.05 | Low density PTFE |
| 3 | Outer Conductor | 3.25 | Silver-plated flat copper ribbon braid |
| 4 | Interlayer | 3.49 | Aluminum foil wrap |
| 5 | Outer Shield | 4.00 | Silver-plated copper wire braid |
| 6 | Jacket | 4.60 | FEP |
Electrical
| Frequency | DC-26.5 GHz |
| Impedance | 50 Ω |
| Velocity of Propagation | 76% |
| Shielding Effectiveness | >100 dB |
| Withstanding Voltage | 1000 V |
| Mechanical Phase Stability* | <±6° @ DC-18GHz |
| Amplitude Stability vs Shaking | <±0.2 dB |
| * Wrapped 360° around a 46mm radius mandrel. | |
Mechanical & Environmental
| Min. Bending Radius Static | 20mm |
| Min. Bending Radius Repeated | 46mm |
| Weight | 50g/m |
| Temperature (Operation) | -50~150 °C |
| Temperature (Storage) | -60~160 °C |
Bulk Cable Attenuation
| Frequency MHz | 300 | 500 | 1500 | 2400 | 3000 | 6000 | 8000 | 10000 | 12400 | 16000 | 18000 | 26500 |
| dB/100 Meter | 17.8 | 23.0 | 40.1 | 51.0 | 57.2 | 81.7 | 94.9 | 106.6 | 119.3 | 136.4 | 145.2 | 178.4 |
| Avg. Power kW | 1.285 | 0.993 | 0.569 | 0.448 | 0.399 | 0.279 | 0.241 | 0.214 | 0.191 | 0.167 | 0.157 | 0.128 |
