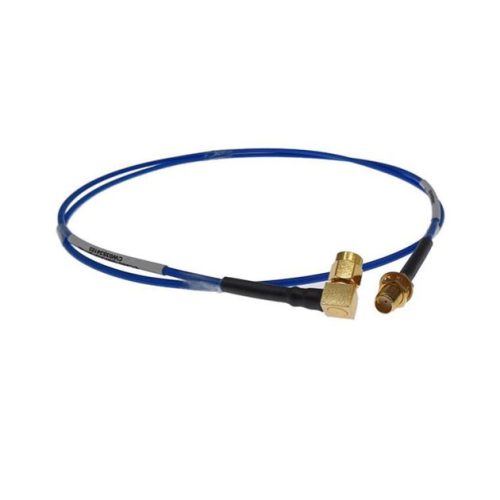

Economical Low Loss Flexible Cable LE 280 is a reliable RF cable designed for efficient signal transmission in wireless communication, telecommunications, and electronic systems. Its low-loss construction helps minimize signal attenuation and maintain signal integrity across demanding RF applications. The flexible design allows easy routing, installation, and integration into compact or complex equipment layouts. LE 280 cable is suitable for antenna systems, base stations, wireless networks, RF equipment, test and measurement systems, and telecom infrastructure. Combining dependable electrical performance, flexibility, and cost efficiency, the LE 280 provides a practical solution for professional RF connectivity and communication applications.
| Construction | Size (mm) | Materials |
|---|---|---|
| Center conductor | 0.56 | Solid silver plated copper |
| Dielectric | 1.67 | Low density PTFE |
| Outer conductor | 1.83 | Aluminum foil wrap |
| Outer shield | 2.20 | Silver-plated copper wire braid |
| Jacket | 2.80 | FEP |
| Min. Bending Radius Static | 12 mm |
| Min. Bending Radius Repeated | 28 mm |
| Weight | 18 g/m |
| Temperature (Operation) | -55 ~ 150 °C |
| Temperature (Storage) | -60 ~ 160 °C |
| Frequency | DC-26.5 GHz |
| Impedance | 50 Ω |
| Velocity of Propagation | 76% |
| Shielding Effectiveness | >90 dB |
| Withstanding Voltage | 500 V |
| Mechanical Phase Stability* | <±10° |
| Amplitude Stability vs Shaking | <±0.1 dB |
