F Connector
F Connectors are RF coaxial connectors widely used in television systems, satellite communication, broadband networks, CCTV installations, cable TV systems, and RF signal transmission applications. These connectors are designed for reliable signal transfer, stable impedance matching, low signal loss, and secure coaxial cable connectivity.
At SRFS Teleinfra, we manufacture high-quality F Connectors engineered for stable RF performance, excellent shielding effectiveness, and long operational durability. Our F connectors are manufactured using precision-machined components and premium-grade materials to ensure reliable connectivity for telecom and communication systems.
F Connectors are commonly used with 75 Ohm coaxial cables such as RG6, RG59, and RG11 cables for video, broadband, CATV, and antenna applications. These connectors provide low insertion loss and reliable RF signal transmission across communication networks.
What is an F Connector?
An F Connector is a coaxial RF connector specially designed for television, broadband, satellite, and video communication systems. It uses the coaxial cable’s center conductor as the signal pin, which helps reduce signal loss and improves transmission efficiency.
F connectors are widely used in:
- Cable TV systems
- Satellite communication
- Broadband internet connections
- CCTV installations
- RF signal transmission systems
- Video communication networks
- Antenna systems
- Set-top box installations
These connectors are known for easy installation, stable signal transmission, and cost-effective RF connectivity solutions.
Types of F Connector

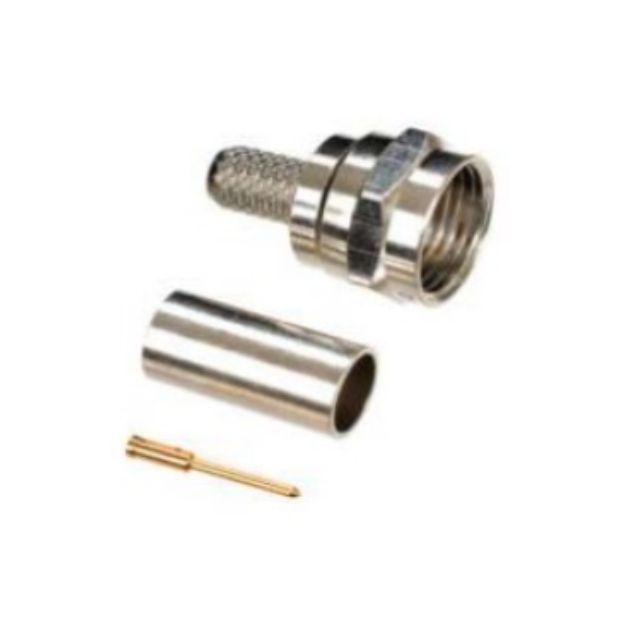

F Male Connector
F Male Connectors are designed for secure RF cable connectivity in television and broadband systems.

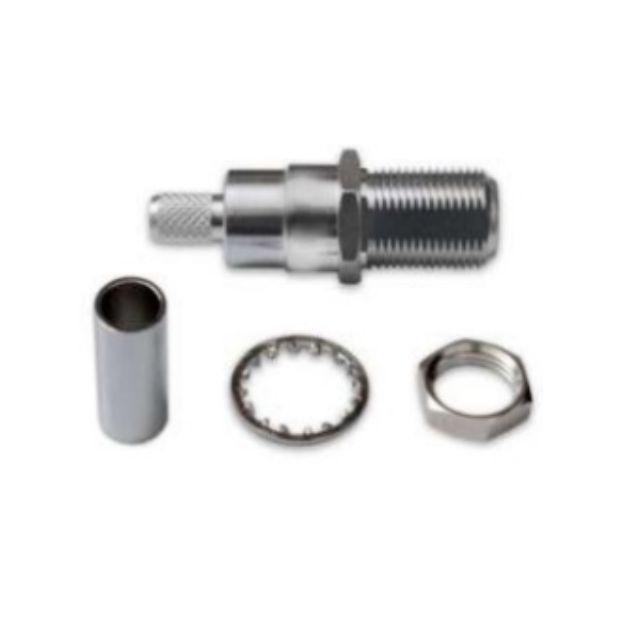

F Female Connector
F Female Connectors provide reliable coaxial cable termination and stable signal transmission.
F Type Crimp Connector
Crimp-type F connectors are widely used for secure coaxial cable installations in RF systems.
F Compression Connector
Compression F Connectors provide improved shielding effectiveness and strong cable retention.
F Twist-On Connector
Twist-on F connectors are easy-to-install connectors commonly used in TV and CCTV systems.
Right Angle F Connector
Right Angle F Connectors are designed for compact cable routing and space-saving RF installations.
F Bulkhead Connector
Bulkhead F connectors are used for panel mounting and enclosure RF connectivity applications.
F Adapter Connector
F Adapters are designed for RF signal interconnection between different coaxial cable systems.
HLF LMR Cable Product Specifications
| F Connector Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| F Male Connector | 75 Ohm | DC – 3 GHz | TV & Broadband Systems |
| F Female Connector | 75 Ohm | RF Signal Transmission | Coaxial Cable Connectivity |
| F Compression Connector | 75 Ohm | High Frequency RF Range | Satellite & CATV Systems |
| F Crimp Connector | 75 Ohm | Broadband Frequency Range | CCTV & Video Systems |
| Right Angle F Connector | 75 Ohm | RF Communication Range | Compact RF Installations |
| F Bulkhead Connector | 75 Ohm | Video Frequency Applications | Panel Mount RF Systems |
| F Adapter Connector | 75 Ohm | TV & RF Frequency Range | RF Interconnection Systems |
Technical Specifications
Applications of F Connector
F connectors are widely used in:
- Cable TV systems
- Satellite communication systems
- Broadband internet networks
- CCTV installations
- RF video transmission systems
- Set-top box connectivity
- Antenna systems
- CATV distribution systems
- Residential RF installations
- Digital communication networks
Features of F Connector
Reliable RF Signal Transmission
Designed for stable signal transfer with minimal RF signal loss.
Excellent Shielding Effectiveness
Provides EMI protection and reduces external signal interference.
Secure Cable Connectivity
Ensures stable coaxial cable connection for television and broadband systems.
Easy Installation
Simple connector structure allows quick installation and cable termination.
Durable Construction
Manufactured using corrosion-resistant materials for long service life.
Broadband & TV Compatibility
Compatible with cable TV, satellite systems, CCTV, and broadband communication networks.
Why Choose us
Reliable RF Connectivity
Our F connectors are engineered for stable RF signal transmission with low insertion loss and excellent shielding.
Precision Manufacturing
Manufactured using premium materials and precision engineering for reliable communication performance.
Durable Construction
Designed with corrosion-resistant materials for long-lasting indoor and outdoor RF installations.
Easy Installation Design
Provides secure coaxial cable connectivity with quick and simple installation.
Frequently Asked Questions
An F connector is a coaxial RF connector used for television, broadband, satellite, and video communication systems.
Most F connectors are designed with standard 75 Ohm impedance for video and broadband applications.
F connectors are widely used in cable TV systems, satellite communication, CCTV systems, broadband internet, and antenna installations.
F connectors are commonly compatible with RG6, RG59, and RG11 coaxial cables.
Compression connectors provide stronger cable retention, better shielding, and improved RF performance.
Yes, high-quality F connectors with corrosion-resistant plating are suitable for outdoor telecom and antenna installations.
Threaded coupling provides secure mechanical locking and stable RF connectivity.
Yes, SRFS Teleinfra manufactures premium-quality RF connectors and telecom connectivity solutions.
