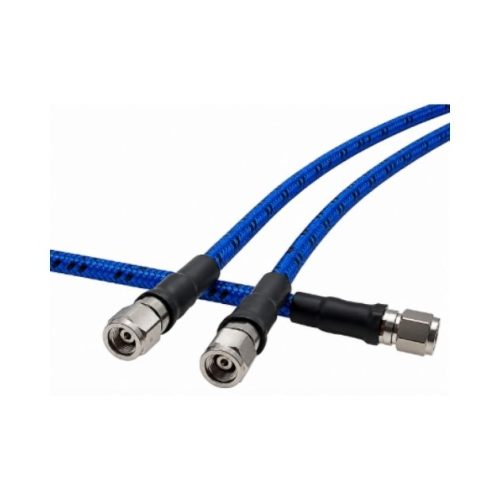

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable
Ultra-Low Loss Phase and Amplitude Stable Flexible Cable is a precision RF cable designed for applications requiring excellent signal integrity and consistent electrical performance. Its ultra-low loss construction helps minimize signal attenuation, while phase and amplitude stability support reliable performance during operation and repeated flexing. The flexible design enables easy routing and integration into demanding RF systems. It is suitable for RF test and measurement equipment, telecommunications, aerospace, defense, wireless communication, laboratory systems, and high-frequency applications. This cable provides dependable signal transmission, repeatable measurements, and stable performance for advanced professional RF applications.
Construction
| Construction | Size (mm) | Materials |
|---|---|---|
| Center conductor | 1.45 | Silver Plated Copper |
| Dielectric | 4.00 | LD PTFE |
| Outer conductor | 4.20 | Silver Plated Copper Wrap |
| Interlayer | 4.45 | PTFE |
| Outer shield | 4.90 | Silver Plated Copper Braid |
| Jacket | 5.40 | Grey FEP |
Electrical & Mechanical Specification
| Frequency range | DC-26.5 GHz |
| Impedance | 50 Ω |
| Min. Bending Radius Static | 26 mm |
| Min. Bending Radius Repeated | 52 mm |
| Velocity of Propagation | 82% |
| Weight | 63 g/m |
| Shielding Effectiveness | >90 dB |
| Temperature (Operation) | -55 ~ 150 °C |
| Withstanding Voltage | 1500 V |
| Temperature (Storage) | -60 ~ 160 °C |
| *Mechanical Phase Stability | <±5° |
| Amplitude Stability vs Shaking | <±0.1 dB |
| Temp Phase Stability | <550 ppm (-40°C to +85°C) |
