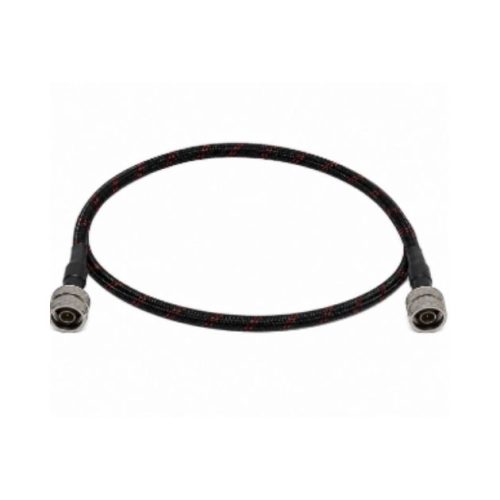

Armored Bench Test Cable Assembly Using SRFS 520P
The Armored Bench Test Cable Assembly Using SRFS-520P is a high-performance RF cable assembly designed for demanding laboratory, testing, and measurement environments. Built with armored protection, it provides enhanced mechanical durability and reliable performance during frequent handling and equipment connections. The SRFS-520P cable supports excellent signal integrity, low loss, and stable electrical performance for precision RF applications. It is suitable for test benches, RF measurement systems, telecommunications, aerospace, defense, wireless communication, and laboratory equipment. This assembly offers dependable connectivity and robust protection for applications requiring repeatable measurements, flexibility, and long-term operational reliability.
Construction
| Construction | Size (mm) | Materials |
|---|---|---|
| Center Conductor | 1.45 | Solid silver-plated copper |
| Dielectric | 4.00 | Low density PTFE |
| Outer Conductor | 4.20 | Silver-plated copper tape wraps |
| Interlayer | 4.45 | Low density PTFE |
| Outer Shield | 4.90 | Silver-plated copper wire braid |
| Inner Jacket | 5.40 | FEP |
| Crush Resistance Layer | 6.40 | Stainless steel spirals |
| Strengthening Layer | 7.00 | Silver plated copper braid |
| Waterproof Layer | 7.05 | PTFE Binder |
| Armor Jacket | 7.80 | Braiding PTFE |
Electrical & Mechanical Specification
| Frequency | DC-18 GHz |
| Impedance | 50 Ω |
| Min. Bending Radius Static | 39 mm |
| Min. Bending Radius Repeated | 78 mm |
| VSWR | 1.25 |
| Velocity of Propagation | 82% |
| IL Max (1 meter assembly) | 1.5 dB |
| Flex Life Min | 20000 cycles |
| *Mechanical Phase Stability | <±5° |
| Amplitude Stability vs Shaking | <±0.1 dB |
| Temperature (Operation) | -50 ~ 85 °C |
| Temperature (Storage) | -60 ~ 85 °C |
