Impedance Matching Pads
Impedance Matching Pads are precision RF passive components designed to match different transmission line impedances while minimizing signal reflections and maintaining optimum power transfer. These pads are widely used in RF communication systems, telecom infrastructure, broadcasting networks, cable television systems, satellite communication, RF testing laboratories, microwave systems, and measurement equipment where impedance compatibility is essential for reliable signal transmission.
At SRFS Teleinfra, we manufacture premium-quality Impedance Matching Pads engineered to provide accurate impedance transformation, excellent return loss, low VSWR, and stable RF performance across a wide frequency range. Our impedance matching pads are manufactured using high-precision resistive networks and premium-grade RF components to ensure reliable operation in demanding communication environments.
Impedance Matching Pads are commonly used for matching 50 Ohm and 75 Ohm systems, reducing mismatch losses, improving measurement accuracy, protecting RF equipment, and enhancing overall system efficiency in RF and microwave applications.
What is an Impedance Matching Pad?
An Impedance Matching Pad is a passive RF device that uses a carefully designed resistive network to match two circuits with different characteristic impedances. These pads help minimize signal reflections, improve return loss, reduce standing waves, and ensure maximum power transfer between RF components.
Impedance Matching Pads are commonly used in:
- RF communication systems
- Telecom infrastructure
- Microwave communication systems
- Satellite communication
- Cable TV systems
- Broadcasting networks
- RF testing laboratories
- Vector Network Analyzers (VNA)
- Signal generators
- Spectrum analyzers
- Aerospace & defense electronics
- Wireless communication equipment
These pads provide reliable impedance transformation with excellent RF performance and stable signal transmission.
Types of Impedance Matching Pads

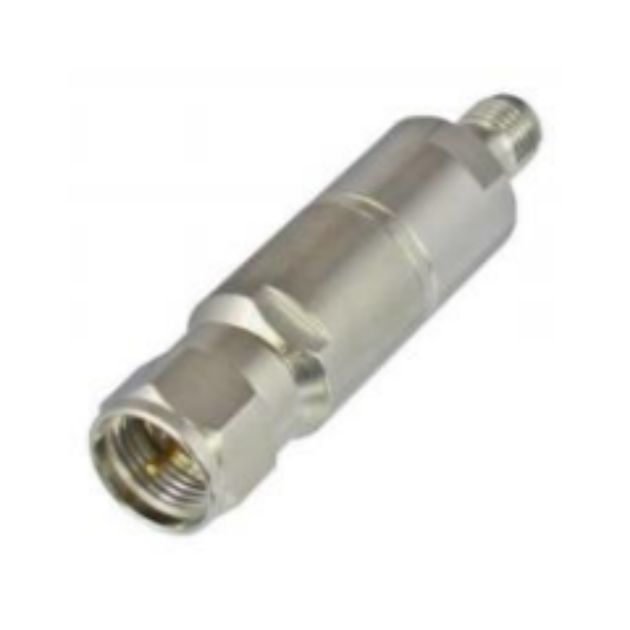

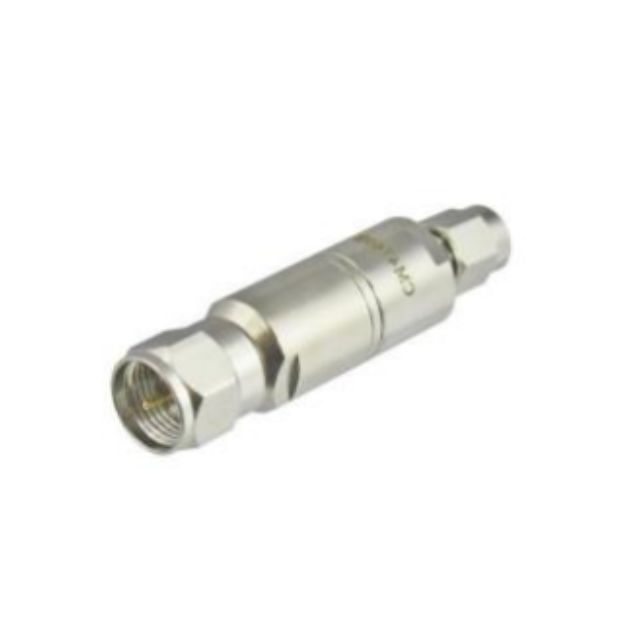

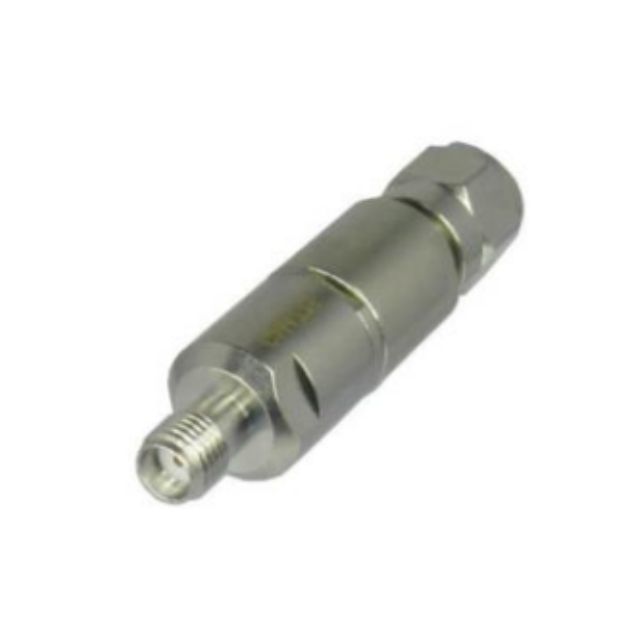

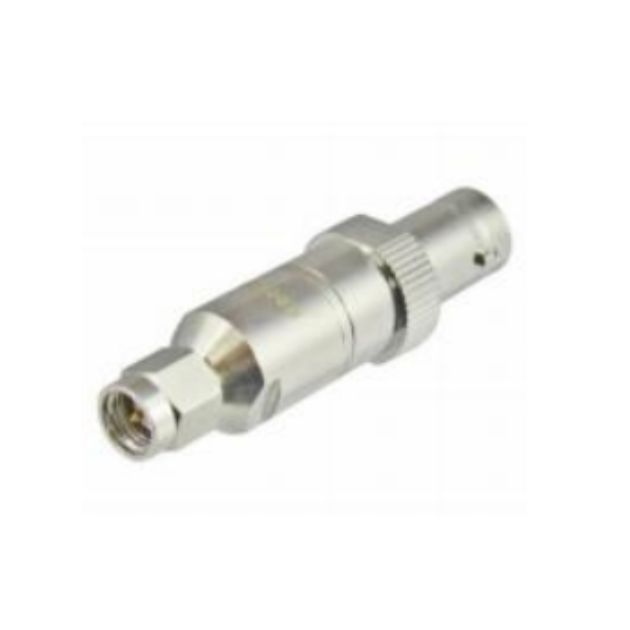

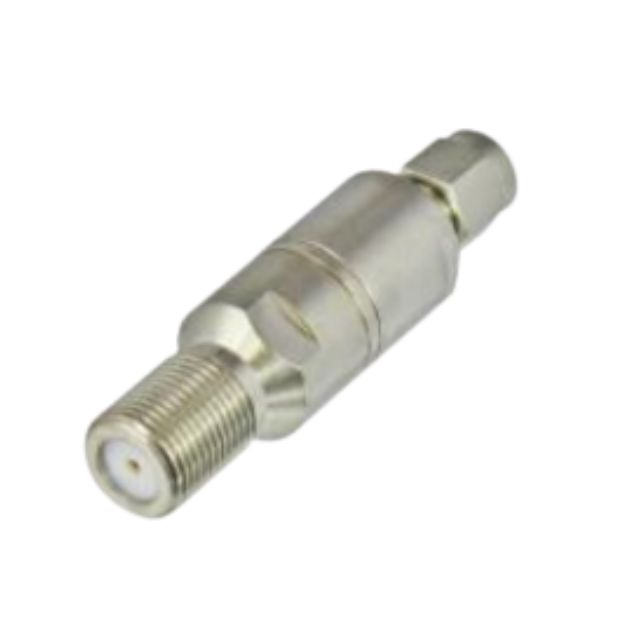

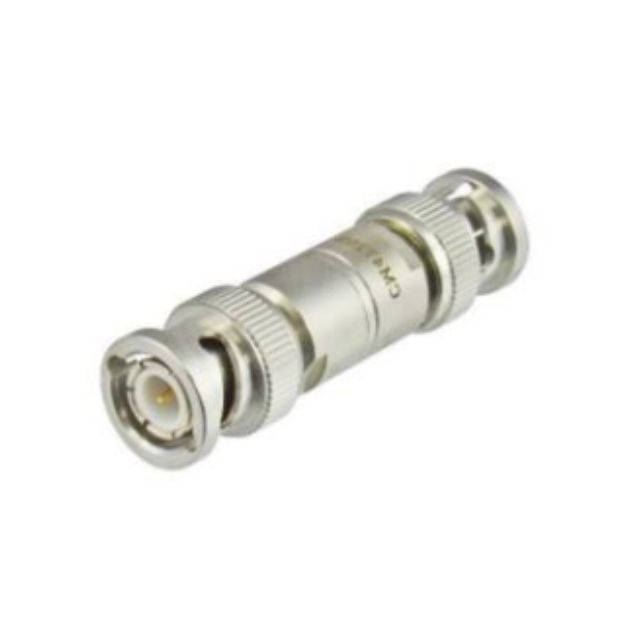

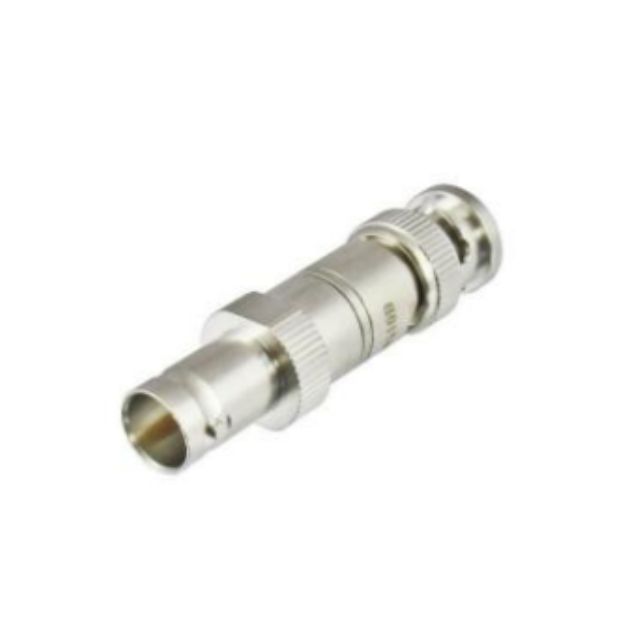

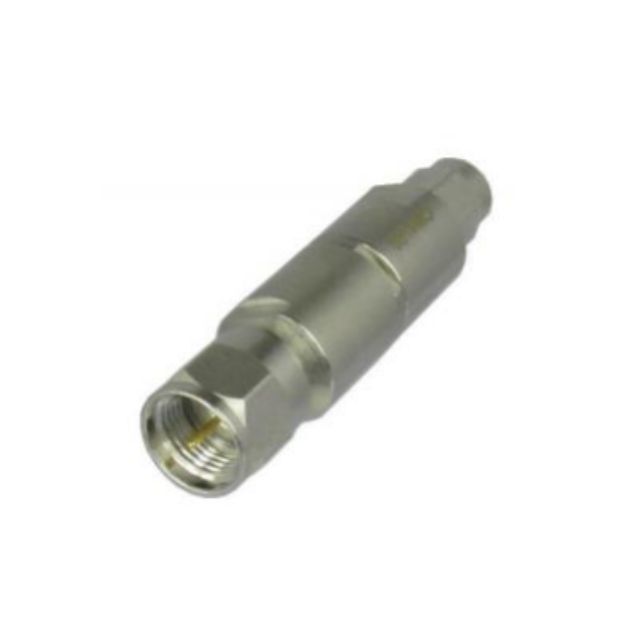

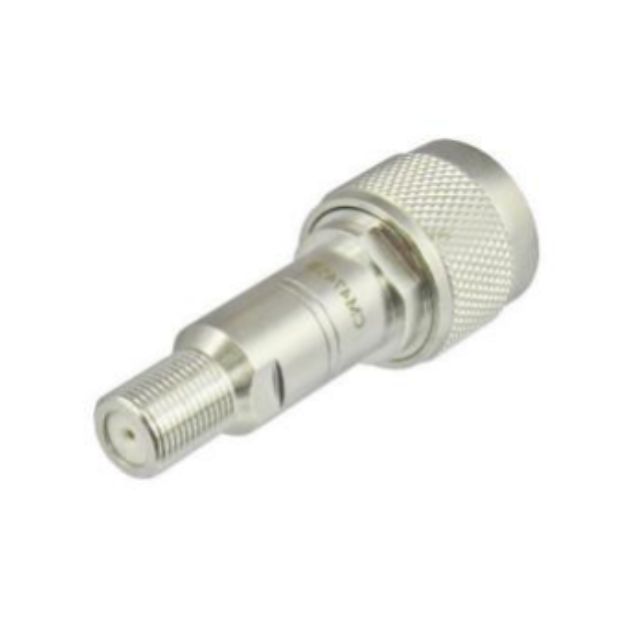

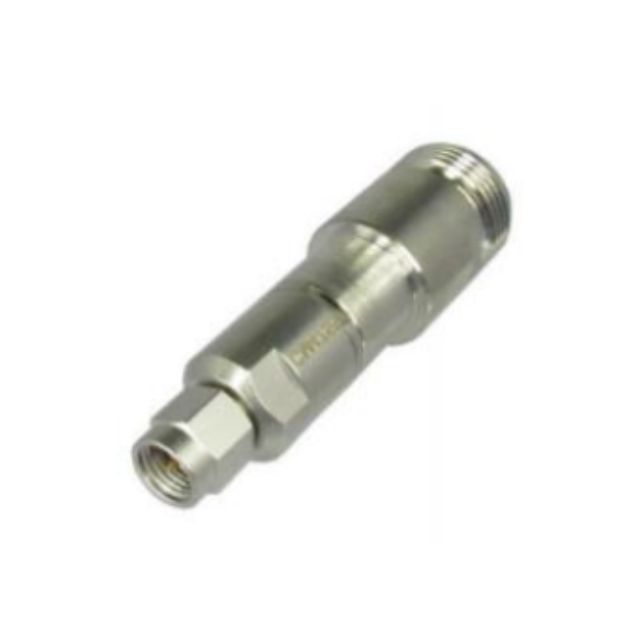

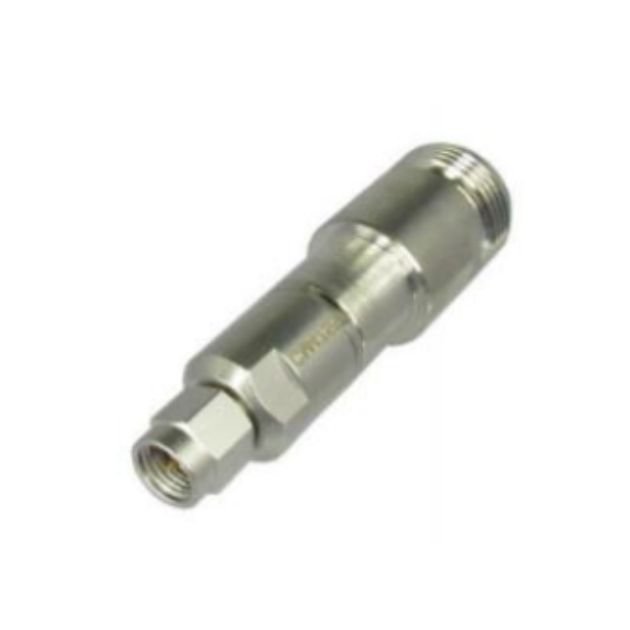

50 Ohm to 75 Ohm Matching Pad
Designed to connect 50 Ohm RF equipment with 75 Ohm transmission systems while minimizing signal reflections.

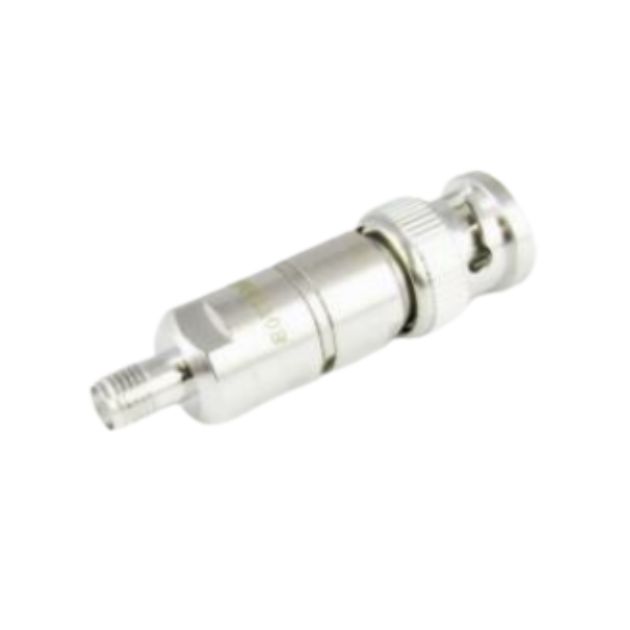

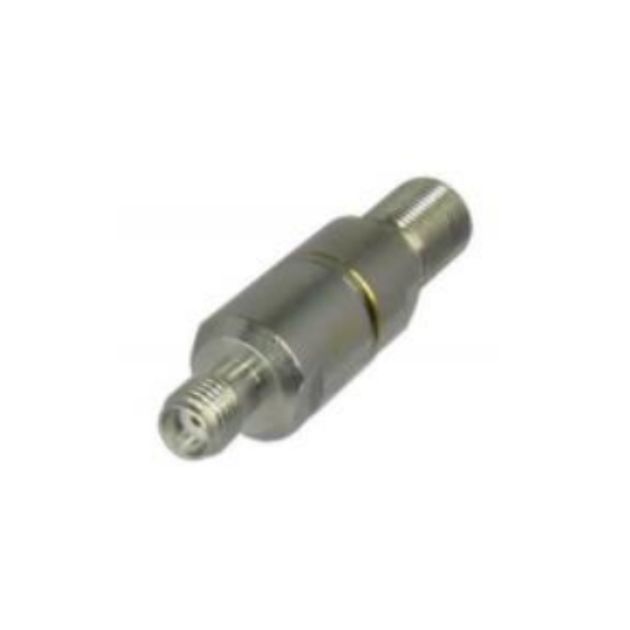

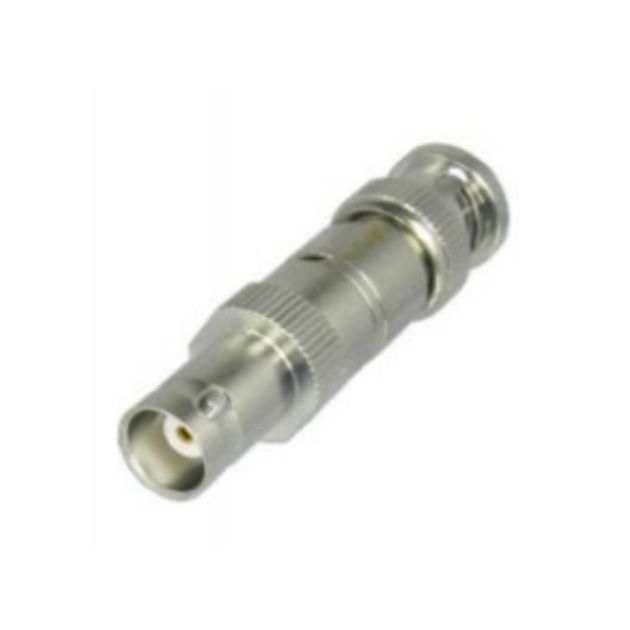

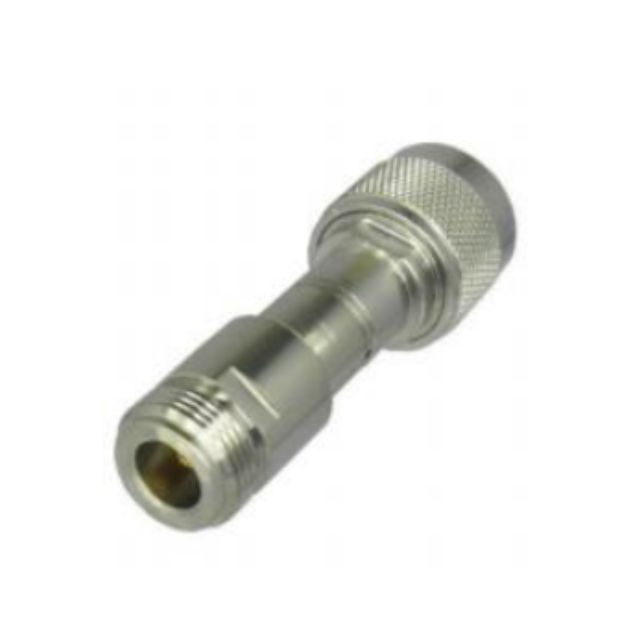

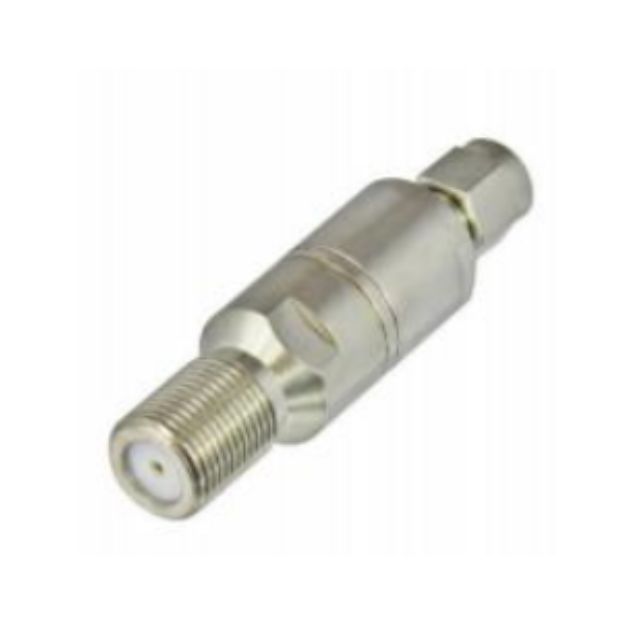

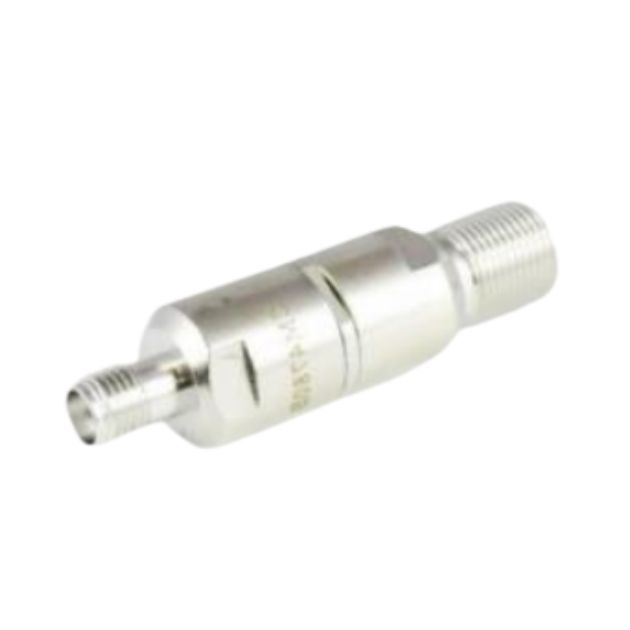

75 Ohm to 50 Ohm Matching Pad
Provides efficient impedance transformation between 75 Ohm and 50 Ohm communication systems.
Fixed Impedance Matching Pad
Offers a predefined impedance transformation ratio for specific RF applications.
Broadband Matching Pad
Designed to provide impedance matching over a wide frequency range.
Precision RF Matching Pad
Manufactured for laboratory and measurement applications requiring high accuracy and low VSWR.

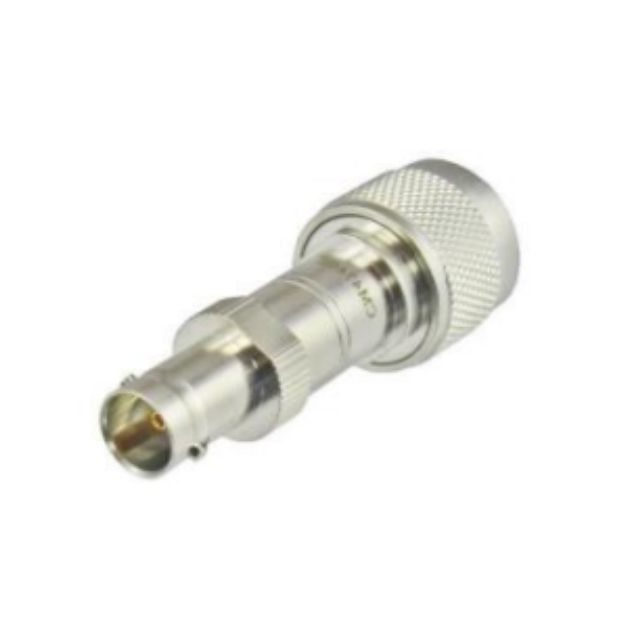

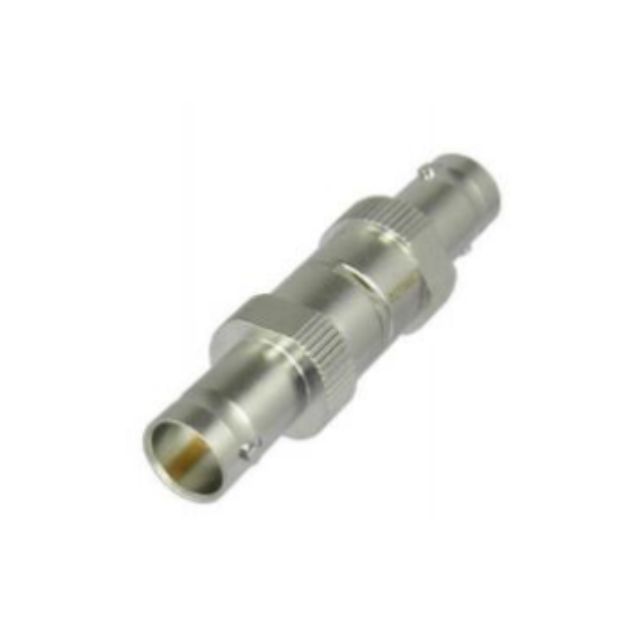

Coaxial Impedance Matching Pad
Available with RF connector interfaces such as SMA, N Type, BNC, TNC, and other coaxial connectors.
Custom Impedance Matching Pad
Custom impedance transformation solutions available based on frequency, connector type, and system requirements.
Technical Specifications
Below are general specifications of Impedance Matching Pads (may vary depending on impedance ratio and configuration):
Electrical Specifications
- Impedance Conversion: 50 Ohm ↔ 75 Ohm
- Frequency Range: DC to 6 GHz
- Extended Frequency Models: Up to 18 GHz
- VSWR: ≤ 1.20
- Return Loss: Excellent
- Insertion Loss: Minimum Theoretical Loss
- Power Handling: Application Specific
- Signal Transmission: Broadband RF Performance
- Attenuation Accuracy: High Precision
Mechanical Specifications
- Connector Types: SMA, N Type, BNC, TNC, 7/16 DIN
- Body Material: Brass / Stainless Steel
- Contact Material: Beryllium Copper
- Plating: Gold / Nickel Plated
- Configuration: Male-Female / Female-Female
- Mounting Type: Inline RF Connection
- Construction: Precision RF Machined Design
Environmental Specifications
- Operating Temperature: -55°C to +125°C
- Weather Resistance: Suitable for Indoor & Outdoor Applications
- Corrosion Resistance: High-Durability Protective Plating
- Moisture Resistance: Excellent
- RoHS Compliance: Yes
- Application Suitability: RF, Telecom, Broadcast & Microwave Systems
Applications of Impedance Matching Pads
Impedance Matching Pads are widely used in:
- RF communication systems
- Telecom infrastructure
- Cable television networks
- Broadcasting stations
- Satellite communication systems
- RF testing equipment
- Microwave communication systems
- Aerospace & defense electronics
- Wireless communication devices
- Antenna systems
- Laboratory measurement systems
- Signal distribution networks
Features of Impedance Matching Pads
Accurate Impedance Transformation
Provides reliable matching between different impedance systems for optimum RF performance.
Low VSWR Performance
Minimizes signal reflections and improves overall communication efficiency.
Broadband Frequency Support
Suitable for wideband RF and microwave applications.
Excellent Return Loss
Improves signal quality and reduces mismatch-related transmission losses.
Precision RF Engineering
Manufactured using high-accuracy resistive networks for consistent electrical performance.
Compact and Reliable Design
Easy to integrate into existing RF systems and communication networks.
Durable Construction
Built using premium-quality materials for long operational life.
Impedance Matching Pad Product Specifications
| Matching Pad Type | Impedance Conversion | Frequency Range | Application |
|---|---|---|---|
| 50 Ohm to 75 Ohm Matching Pad | 50Ω ↔ 75Ω | DC – 6 GHz | CATV & Broadcast Systems |
| 75 Ohm to 50 Ohm Matching Pad | 75Ω ↔ 50Ω | DC – 6 GHz | RF Equipment Integration |
| Broadband Matching Pad | Custom Impedance | Wide Frequency Range | Microwave Applications |
| Precision RF Matching Pad | Application Specific | Up to 18 GHz | RF Testing Laboratories |
| SMA Matching Pad | 50Ω / 75Ω | RF Frequency Range | Telecom Infrastructure |
| N Type Matching Pad | 50Ω / 75Ω | Broadband Range | Wireless Communication |
| Custom Matching Pad | Custom Design | Application Specific | Specialized RF Systems |
Why Choose us
Precision RF Engineering
Our Impedance Matching Pads are manufactured using precision resistive networks to ensure accurate impedance transformation and superior RF performance.
Excellent Signal Integrity
Designed to minimize reflections, improve return loss, and maintain stable signal transmission.
Wide Frequency Support
Suitable for RF, telecom, broadcasting, satellite, and microwave applications.
Premium Quality Materials
Manufactured using high-grade RF components and durable connector systems.
Frequently Asked Questions
An Impedance Matching Pad is a passive RF device used to match two systems with different characteristic impedances.
Impedance matching reduces signal reflections, improves power transfer, and enhances communication system efficiency.
The most common application is matching 50 Ohm systems with 75 Ohm systems.
They are used in telecom, broadcasting, CATV, satellite communication, RF testing, and microwave systems.
Yes, a small amount of insertion loss is inherent in the impedance matching process.
Low VSWR minimizes reflected power and improves RF system performance.
Yes, broadband matching pads are widely used in microwave communication systems.
Common connector options include SMA, N Type, BNC, TNC, and other RF interfaces.
