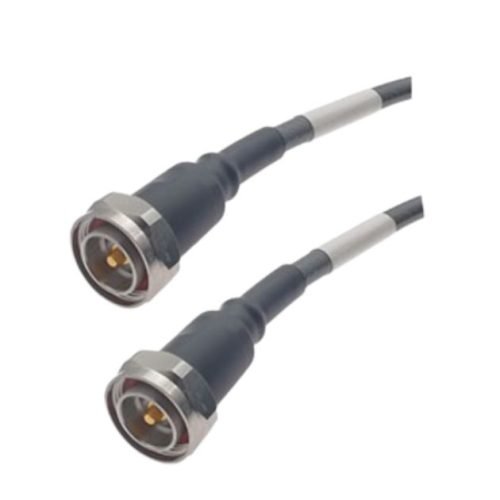

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable SRFS360P

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable SRFS360P

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable SRFS-360P is a precision-engineered RF cable designed for applications requiring exceptional signal integrity and consistent electrical performance. Its ultra-low loss construction minimizes signal attenuation, while excellent phase and amplitude stability helps maintain reliable performance during operation and cable movement. The SRFS-360P is suitable for RF test and measurement systems, telecommunications, aerospace, defense, wireless communication, laboratory equipment, and high-frequency applications. Combining flexibility, low loss, and stable RF characteristics, this cable provides dependable signal transmission for demanding systems requiring accurate phase performance and repeatable measurement results.

Construction

Construction Size (mm) Materials
Center conductor 0.72 Solid Silver Plated Copper
Dielectric 2.15 LD PTFE
Outer conductor 2.30 Silver Plated Copper Tape Wrap
Interlayer 2.60 LD PTFE
Outer shield 3.05 Silver Plated Copper Braid
Jacket 3.60 FEP

Electrical & Mechanical Specification

Frequency range DC-50 GHz
Impedance 50 Ω
Min. Bending Radius Static 18 mm
Min. Bending Radius Repeated 36 mm
Velocity of Propagation 76%
Weight 34 g/m
Shielding Effectiveness >90 dB
Temperature (Operation) -50 ~ 150 °C
Withstanding Voltage 1000 V
Temperature (Storage) -60 ~ 160 °C
*Mechanical Phase Stability <±5°
Amplitude Stability vs Shaking <±0.1 dB
Temp Phase Stability <1300 ppm (-40°C to +85°C)
