CRC9 & TS9 Connector
CRC9 and TS9 Connectors are miniature RF coaxial connectors designed for reliable signal transmission in 3G, 4G LTE, 5G, wireless communication, modem, router, and antenna applications. These connectors provide stable RF connectivity, low insertion loss, compact design, and efficient impedance matching for high-frequency communication systems.
At SRFS Teleinfra, we manufacture high-quality CRC9 & TS9 RF connectors using precision-engineered components and premium-grade materials to ensure excellent shielding effectiveness, low VSWR, and long operational life. Our CRC9 and TS9 connectors are widely used in LTE routers, USB dongles, RF antennas, modem systems, and telecom communication networks.
CRC9 and TS9 connectors are compact push-on RF connectors specially designed for space-constrained communication devices. These connectors are commonly used in Huawei modems, LTE devices, wireless broadband equipment, and external antenna connectivity solutions.
What is CRC9 & TS9 Connector?
CRC9 and TS9 Connectors are miniature RF coaxial connectors used for high-frequency RF signal transmission in wireless communication devices. These connectors are primarily designed for external antenna connectivity in LTE routers, 3G/4G modems, and broadband communication equipment.
CRC9 and TS9 connectors are commonly used in:
- 3G & 4G LTE Modems
- Wireless Routers
- RF Antenna Systems
- USB Dongles
- Broadband Communication Devices
- RF Cable Assemblies
- Signal Booster Systems
- Wireless Networking Equipment
TS9 connectors are commonly used in LTE routers and wireless broadband devices, while CRC9 connectors are mainly used in Huawei LTE and 3G modem applications.
Types of CRC9 & TS9 Connector
CRC9 Male Connector
CRC9 Male Connectors are designed for compact RF signal transmission in Huawei modems and wireless communication systems.
TS9 Male Connector
TS9 Male Connectors provide reliable RF connectivity for LTE routers, USB dongles, and wireless networking equipment.
CRC9 Right Angle Connector
CRC9 Right Angle Connectors are ideal for compact RF installations requiring flexible cable routing.

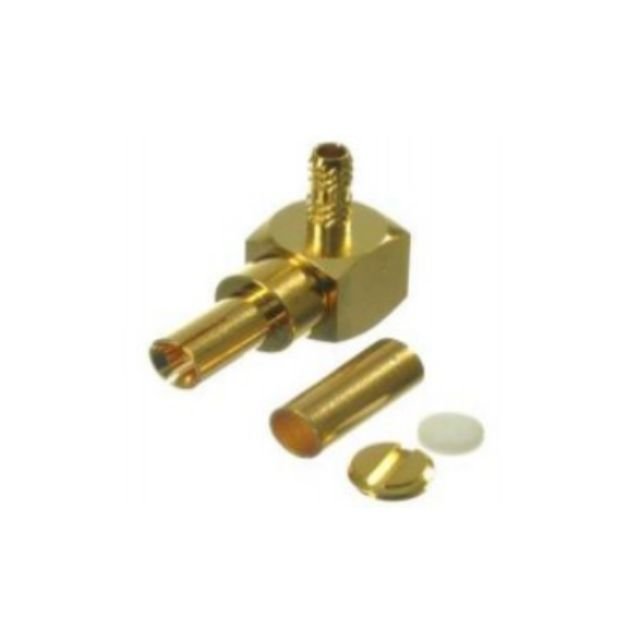

TS9 Right Angle Connector
TS9 Right Angle Connectors are used in wireless communication devices for space-saving RF connectivity.
CRC9 Cable Mount Connector
CRC9 Cable Mount Connectors are designed for RF cable assembly and external antenna applications.
TS9 Cable Mount Connector
TS9 Cable Mount Connectors provide stable RF signal transmission in broadband and modem systems.
CRC9 to SMA Connector
CRC9 to SMA connectors are widely used for external antenna connectivity and RF adapter applications.
TS9 to SMA Connector
TS9 to SMA connectors are designed for RF antenna extension and wireless communication systems.
CRC9 & TS9 Connector Product Specifications
| CRC9 & TS9 Connector Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| CRC9 Male Connector | 50 Ohm | DC – 3 GHz | Huawei LTE Modems |
| TS9 Male Connector | 50 Ohm | High Frequency RF Range | 4G LTE Routers |
| CRC9 Right Angle Connector | 50 Ohm | RF Communication Range | Compact RF Installations |
| TS9 Right Angle Connector | 50 Ohm | Broadband Frequency Range | Wireless Networking Systems |
| CRC9 Cable Mount Connector | 50 Ohm | GHz Frequency Applications | RF Cable Assemblies |
| TS9 Cable Mount Connector | 50 Ohm | RF Signal Transmission | External Antenna Systems |
| CRC9 / TS9 RF Adapter | 50 Ohm | Wireless RF Range | RF Adapter Connectivity |
Technical Specifications
Below are general specifications of CRC9 & TS9 Connectors (may vary depending on connector type and cable compatibility):
Electrical Specifications
- Impedance: 50 Ohms
- Frequency Range: DC to 3 GHz
- VSWR: Low VSWR Performance
- Insertion Loss: Low Signal Loss
- Return Loss: Excellent RF Performance
- Shielding Effectiveness: High EMI Protection
Mechanical Specifications
- Connector Type: CRC9 Male / TS9 Male
- Coupling Mechanism: Push-On Coupling
- Contact Material: Brass / Beryllium Copper
- Body Material: Brass / Stainless Steel
- Plating: Gold / Nickel Plated
- Insulator Material: PTFE / Teflon
- Cable Compatibility: RG174, RG316 & LMR Series Cables
Applications of CRC9 & TS9 Connector
CRC9 and TS9 connectors are widely used in:
- 3G & 4G LTE Modems
- LTE Routers
- USB Dongles
- RF Antenna Systems
- Wireless Communication Devices
- Signal Booster Systems
- RF Cable Assemblies
- Broadband Internet Devices
- Telecom Communication Systems
- Wireless Networking Equipment
Features of CRC9 & TS9 Connector
Compact RF Design
Miniature connector structure suitable for compact wireless communication devices.
Low Insertion Loss
Provides efficient RF signal transmission with minimal attenuation.
Reliable RF Connectivity
Ensures stable impedance matching and uninterrupted signal transfer.
Excellent Shielding Effectiveness
Reduces EMI interference and maintains signal integrity.
Easy Push-On Installation
Compact push-fit connector design allows quick installation and removal.
High Frequency Performance
Designed for reliable RF communication and broadband signal transmission.
Why Choose us
Precision RF Engineering
Our CRC9 & TS9 connectors are manufactured using precision machining for reliable RF signal transmission and stable impedance matching.
Compact Connector Design
Designed for compact wireless communication devices requiring space-saving RF connectivity.
Low Signal Loss
Provides efficient RF signal transfer with low insertion loss and stable communication performance.
High Quality Materials
Manufactured using premium-grade materials for long-lasting durability and reliable RF operation.
Frequently Asked Questions
CRC9 is a miniature RF coaxial connector commonly used in Huawei 3G and LTE modem applications.
TS9 is a compact RF connector widely used in LTE routers, USB dongles, and wireless broadband devices.
Most CRC9 and TS9 connectors are designed with standard 50 Ohm impedance for RF communication applications.
These connectors are used in LTE modems, wireless routers, external antennas, signal boosters, and RF communication systems.
No, CRC9 and TS9 connectors have slightly different dimensions and are not fully interchangeable.
These connectors are commonly compatible with RG174, RG316, and LMR series RF coaxial cables.
Yes, SRFS Teleinfra manufactures premium-quality RF connectors and telecom connectivity solutions.
