3.5mm Terminations
3.5mm RF Terminations are precision microwave components designed to absorb RF signal power and eliminate unwanted reflections in high-frequency transmission lines. These precision terminations maintain a stable 50 Ohm impedance, ensuring excellent signal integrity, low VSWR, and outstanding return loss across a wide frequency range. Supporting frequencies from DC to 26.5 GHz, 3.5mm RF Terminations are widely used in RF testing, microwave communication, aerospace, defense, satellite systems, radar, semiconductor testing, and calibration laboratories.
At SRFS Teleinfra, we manufacture premium-quality 3.5mm RF Terminations using precision stainless steel bodies, high-performance resistive elements, gold-plated contacts, and advanced CNC machining technology. Our RF terminations provide accurate impedance matching, excellent thermal stability, and dependable microwave performance for demanding RF applications.
Every 3.5mm RF Termination is manufactured in India under strict quality control procedures and undergoes comprehensive electrical and mechanical testing to ensure consistent performance, long service life, and reliable operation in telecom, aerospace, defense, and research applications.
What is a 3.5mm RF Termination?
A 3.5mm RF Termination is a passive RF load that absorbs incident RF energy and terminates unused RF ports without reflecting signals back into the system. It provides an accurate 50 Ohm impedance match, protecting sensitive RF equipment and ensuring accurate microwave measurements.
The 3.5mm precision connector interface supports operation up to 26.5 GHz, making it ideal for laboratory-grade measurements, Vector Network Analyzer (VNA) calibration, production testing, and high-frequency communication systems.
Types of 3.5mm RF Terminations

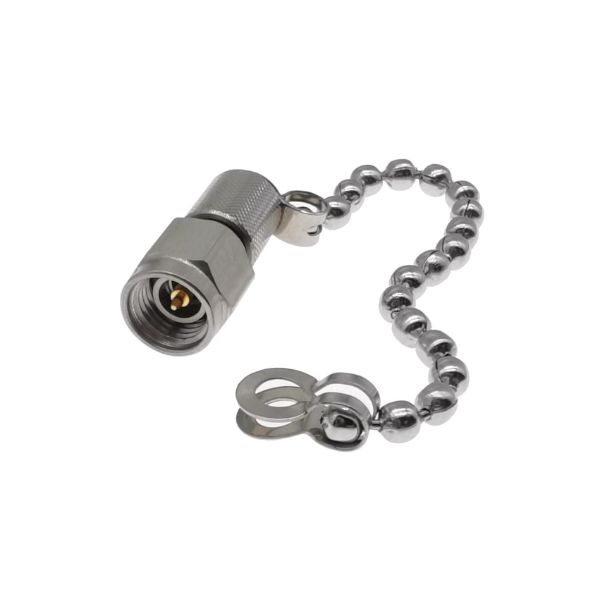

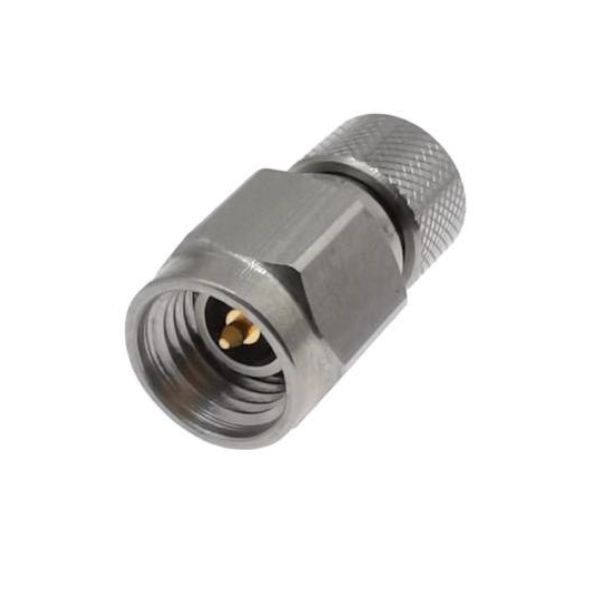

3.5mm Male RF Termination
Designed to terminate female 3.5mm RF ports while maintaining excellent microwave performance.

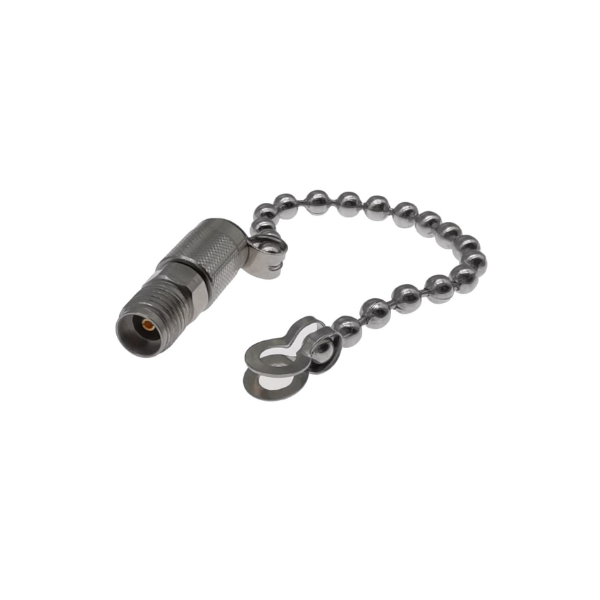

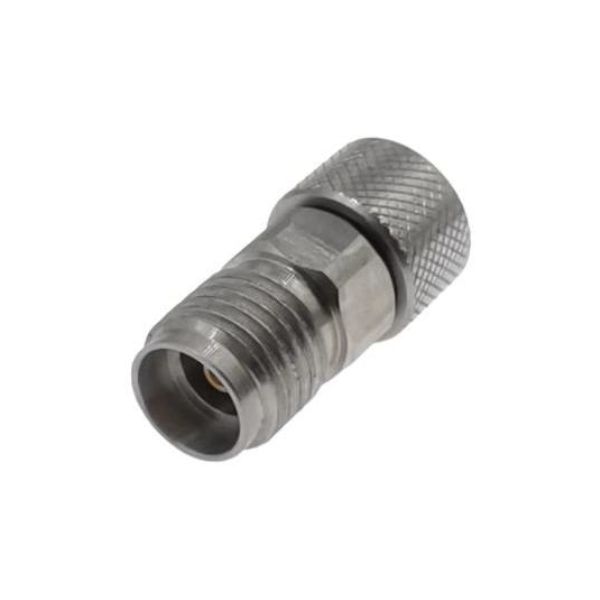

3.5mm Female RF Termination
Used to terminate male RF interfaces with accurate impedance matching.
Precision Microwave Termination
Designed for laboratory calibration and high-accuracy RF measurements.
Low Power RF Termination
Ideal for RF laboratories, calibration, and test equipment.

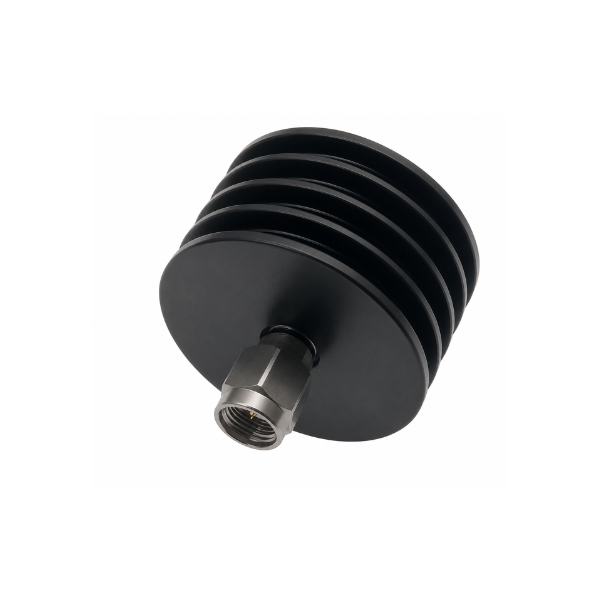

High Power RF Termination
Designed for higher RF power applications while maintaining excellent thermal stability.
Technical Specifications
Our 3.5mm RF Terminations are engineered for reliable RF and microwave performance.
Impedance
Standard 50 Ohm impedance for precise RF matching.
Frequency Range
Supports frequencies from DC to 26.5 GHz.
Power Rating
Available in multiple power ratings from laboratory-grade low-power models to high-power RF loads.
VSWR
Low VSWR for excellent return loss and highly accurate RF measurements.
Connector Interface
Precision 3.5mm Male and 3.5mm Female connector options.
Materials
Manufactured using stainless steel bodies, gold-plated beryllium copper contacts, PTFE dielectric, and precision RF resistor technology.
Operating Temperature
Designed for stable performance over a wide operating temperature range.
Compliance
Manufactured according to international RF and microwave quality standards.
Applications of 3.5mm RF Terminations
Our 3.5mm RF Terminations are widely used in:
- Vector Network Analyzer (VNA) calibration
- RF laboratories
- Microwave communication
- Test & measurement equipment
- Aerospace communication
- Defense electronics
- Satellite communication
- Radar systems
- Semiconductor testing
- RF production testing
- Signal generators
- Spectrum analyzers
- Research & Development laboratories
- Calibration laboratories
- High-frequency microwave systems
Key Performance Factors
Selecting the right 3.5mm RF Termination ensures dependable microwave performance and accurate RF measurements.
- Precision 50 Ohm impedance
- Frequency support up to 26.5 GHz
- Low VSWR
- Excellent return loss
- Multiple power ratings
- Precision connector interface
- Superior thermal stability
- Corrosion-resistant construction
- Precision CNC machining
- High mechanical durability
- Laboratory-grade accuracy
- Long operational life
High-quality 3.5mm RF Terminations minimize signal reflections, protect valuable RF equipment, improve calibration accuracy, and ensure reliable performance in telecom, aerospace, defense, radar, satellite communication, and microwave testing systems.
3.5mm RF Termination Specifications
| Product Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| 3.5mm Male RF Termination | 50 Ohm | DC to 26.5 GHz | Terminate Female RF Ports |
| 3.5mm Female RF Termination | 50 Ohm | DC to 26.5 GHz | Terminate Male RF Ports |
| 3.5mm Precision RF Load | 50 Ohm | DC to 26.5 GHz | RF Testing & Calibration |
| 3.5mm Dummy Load | 50 Ohm | DC to 26.5 GHz | Microwave Test Equipment |
| 3.5mm Precision Termination | 50 Ohm | DC to 26.5 GHz | Vector Network Analyzer (VNA) |
| 3.5mm Low Power Termination | 50 Ohm | DC to 26.5 GHz | Laboratory RF Measurements |
| 3.5mm High Power Termination | 50 Ohm | DC to 26.5 GHz | High Power RF Systems |
| 3.5mm Coaxial Termination | 50 Ohm | DC to 26.5 GHz | Microwave Communication |
| 3.5mm Precision Dummy Load | 50 Ohm | DC to 26.5 GHz | Signal Reflection Control |
| 3.5mm Test Port Termination | 50 Ohm | DC to 26.5 GHz | RF Production Testing |
Why Choose us
Precision RF Engineering
Our 3.5mm RF Terminations are manufactured with advanced precision machining to deliver outstanding microwave performance and accurate impedance matching.
Low VSWR & Excellent Return Loss
Designed to minimize signal reflections and maximize RF measurement accuracy across the operating frequency range.
Reliable Performance up to 26.5 GHz
Supporting frequencies up to 26.5 GHz, our RF terminations are ideal for laboratory testing, telecom infrastructure, aerospace, defense, and microwave communication systems.
Manufactured in India
All our 3.5mm RF Terminations are manufactured in India using premium materials, advanced CNC machining, and stringent quality control procedures to ensure dependable RF performance and long service life.
Frequently Asked Questions
A 3.5mm RF Termination is a precision microwave load used to terminate unused RF ports and absorb RF energy while maintaining a 50 Ohm impedance.
Most precision 3.5mm RF Terminations support frequencies from DC to 26.5 GHz.
They provide a standard 50 Ohm impedance.
They are widely used in RF testing, VNA calibration, microwave communication, aerospace, defense, radar systems, satellite communication, and laboratory measurements.
Yes. They are extensively used with VNAs, signal generators, spectrum analyzers, and RF calibration systems.
We offer multiple power ratings to suit laboratory, telecom, industrial, aerospace, and defense applications.
Yes. We manufacture customized RF Terminations with different connector interfaces, power ratings, and mechanical configurations.
Yes. All our RF Terminations are manufactured in India using premium materials, precision engineering, and comprehensive quality testing.
Yes. They are designed for long-term reliability and consistent electrical performance through multiple cryogenic temperature cycles.
SRFS Teleinfra provides high-quality 3.5mm RF Terminations with precision manufacturing, competitive pricing, customized solutions, fast delivery, and expert technical support.
