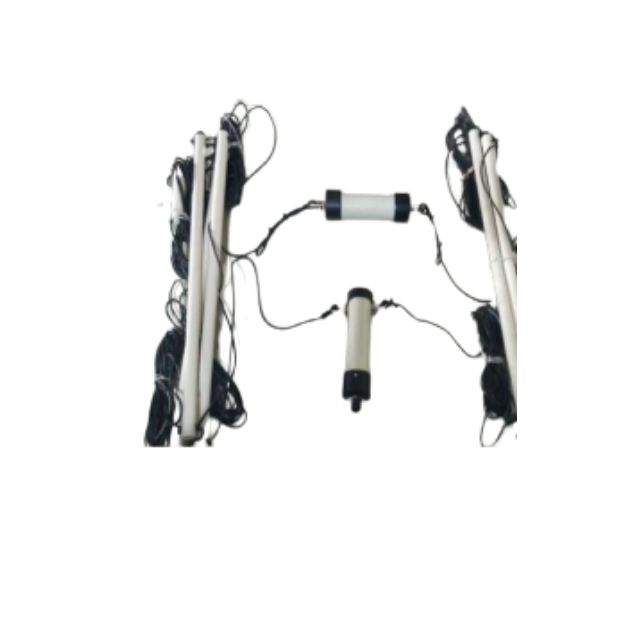

High Frequency Antenna
HF Antennas are high-frequency RF antennas designed for long-range wireless communication, military communication, broadcasting, amateur radio, marine communication, and industrial RF systems. These antennas provide stable signal transmission, wide frequency coverage, low VSWR, and reliable RF performance for HF communication networks.
At SRFS Teleinfra, we manufacture premium-quality HF Antennas engineered for efficient long-distance communication, high radiation efficiency, and durable outdoor operation. Our HF antennas are widely used in telecom infrastructure, defense communication systems, broadcasting networks, maritime communication, and industrial RF applications.
HF antennas are specially designed for reliable communication in the High Frequency (HF) band where stable skywave propagation and long-range signal transmission are essential. These antennas are ideal for communication systems operating in challenging environmental conditions with dependable RF coverage.
What is an HF Antenna?
An HF (High Frequency) Antenna is an RF antenna designed to transmit and receive radio signals in the HF frequency band, typically ranging from 3 MHz to 30 MHz. These antennas are widely used for long-distance communication because HF signals can propagate through the ionosphere and travel across large geographical areas.
HF antennas are commonly used in:
- Military communication systems
- Amateur radio communication
- Marine communication systems
- Aviation communication networks
- Broadcasting systems
- Emergency communication systems
- Industrial RF communication
- Long-range wireless communication
HF antennas provide reliable RF performance with strong signal propagation, stable communication efficiency, and wide-area signal coverage.
Types of HF Antenna
Dipole HF Antenna
Dipole HF antennas are widely used for stable long-range RF communication and amateur radio applications.
Vertical HF Antenna
Vertical HF antennas provide omni-directional coverage for marine, mobile, and wireless communication systems.
Yagi HF Antenna
Yagi HF antennas are directional antennas designed for focused long-distance communication and high gain RF performance.
Log Periodic HF Antenna
Log periodic HF antennas support wide frequency coverage and multi-band communication systems.
Folded Dipole HF Antenna
Folded dipole HF antennas provide balanced RF performance and improved impedance characteristics.
Wire HF Antenna
Wire HF antennas are lightweight and suitable for field communication and portable RF applications.
Broadband HF Antenna
Broadband HF antennas support multiple HF frequency ranges for versatile communication systems.
Military HF Antenna
Military HF antennas are engineered for rugged outdoor operation and reliable tactical communication.
HF Antenna Product Specifications
| HF Antenna Type | Frequency Range | Gain | Application |
|---|---|---|---|
| Dipole HF Antenna | 3 – 30 MHz | 2 – 8 dBi | Long Range RF Communication |
| Vertical HF Antenna | 3 – 30 MHz | 3 – 10 dBi | Marine Communication Systems |
| Yagi HF Antenna | 3 – 30 MHz | 8 – 15 dBi | Directional RF Communication |
| Log Periodic HF Antenna | 5 – 30 MHz | 6 – 12 dBi | Wideband Communication Systems |
| Folded Dipole HF Antenna | 3 – 30 MHz | 2 – 7 dBi | Broadcasting Systems |
| Broadband HF Antenna | 2 – 30 MHz | 5 – 12 dBi | Multi-Band RF Systems |
| Military HF Antenna | 2 – 30 MHz | 6 – 14 dBi | Defense Communication Systems |
Technical Specifications
Below are general specifications of HF Antennas (may vary depending on antenna type and frequency range):
Electrical Specifications
- Frequency Range: 2 MHz to 30 MHz
- Impedance: 50 Ohms
- Gain: 2 dBi to 15 dBi
- VSWR: ≤ 1.5
- Polarization: Vertical / Horizontal
- Radiation Pattern: Omni / Directional
- RF Power Handling: Up to 1 KW
Mechanical Specifications
- Antenna Type: Dipole / Vertical / Yagi / Log Periodic
- Connector Type: N Female / UHF Connector
- Antenna Material: Aluminum Alloy / Copper Wire
- Mounting Hardware: Stainless Steel
- Mounting Type: Pole Mount / Wire Suspension
- Cable Compatibility: RG Series & RF Coaxial Cables
Environmental Specifications
- Operating Temperature: -40°C to +85°C
- Weather Resistance: Suitable for Outdoor Applications
- Corrosion Resistance: High Durability Outdoor Construction
- Moisture Resistance: Reliable Performance in Humid Conditions
- Application Suitability: HF, Military, Broadcasting & Wireless Communication Systems
Applications of HF Antenna
HF antennas are widely used in:
- Military communication systems
- Amateur radio communication
- Broadcasting stations
- Marine communication systems
- Aviation communication networks
- Emergency communication systems
- Industrial RF systems
- Long-range wireless communication
- Defense communication infrastructure
- Remote communication networks
Features of HF Antenna
Long Range Communication
Designed for reliable long-distance RF communication across wide geographical areas.
Wide Frequency Coverage
Supports HF frequency bands for broadcasting, military, and industrial communication systems.
Low VSWR Performance
Ensures minimal signal reflection and improved RF transmission efficiency.
High Radiation Efficiency
Provides stable signal propagation and strong communication performance.
Durable Outdoor Construction
Manufactured using weather-resistant materials for long operational life in outdoor environments.
Reliable RF Performance
Engineered for stable signal transmission in demanding communication applications.
Why Choose us
Long Range RF Performance
Our HF antennas are engineered for stable long-distance communication with reliable signal propagation.
Wide Frequency Support
Supports multiple HF communication bands for military, industrial, and broadcasting systems.
Durable Outdoor Design
Manufactured using weather-resistant materials for long-lasting outdoor RF performance.
Low Signal Loss
Designed with low VSWR and high radiation efficiency for improved communication reliability.
Frequently Asked Questions
An HF antenna is a high-frequency RF antenna designed for long-range wireless communication systems.
HF antennas generally support frequencies from 2 MHz to 30 MHz depending on antenna design and application requirements.
HF antennas are used in military communication, amateur radio, broadcasting, marine communication, and long-range RF systems.
HF antennas provide long-range communication, stable signal propagation, wide-area coverage, and reliable RF performance.
Yes, HF antennas are designed for reliable outdoor communication with weather-resistant construction.
Most HF antennas are designed with standard 50 Ohm impedance for RF communication systems.
HF antennas commonly use N Female and UHF RF connectors depending on antenna type.
Yes, SRFS Teleinfra manufactures premium-quality RF antennas and telecom connectivity solutions.
