GPS Antenna
GPS Antennas are high-performance RF antennas designed to receive satellite signals for accurate positioning, navigation, timing, and tracking applications. These antennas are widely used in GPS navigation systems, vehicle tracking, telecom infrastructure, IoT devices, automotive communication, wireless monitoring, and industrial positioning systems.
GPS Antennas are high-performance RF antennas designed to receive satellite signals for accurate positioning, navigation, timing, and tracking applications. These antennas are widely used in GPS navigation systems, vehicle tracking, telecom infrastructure, IoT devices, automotive communication, wireless monitoring, and industrial positioning systems.
Our GPS antennas support multiple satellite navigation systems including GPS, GLONASS, Galileo, and BeiDou for enhanced positioning accuracy and stable signal reception. These antennas are available in active and passive configurations suitable for telecom, automotive, wireless communication, and tracking systems.
What is a GPS Antenna?
A GPS Antenna is an RF antenna used to receive signals transmitted by Global Positioning System (GPS) satellites for location tracking, navigation, and timing applications. It acts as the receiving element in GPS systems and helps determine accurate geographical positioning by communicating with navigation satellites.
GPS antennas are widely used in navigation systems, vehicle tracking, wireless communication equipment, industrial automation, and IoT devices requiring precise location and timing information.
Features of GPS Antenna
- Stable GPS satellite signal reception
- High gain and low noise performance
- Accurate positioning and navigation support
- Compact and lightweight antenna design
- Excellent RF signal stability
- Weather-resistant outdoor construction
- Low VSWR and low signal loss
- Multi-band GNSS compatibility
- Easy mounting and installation
- Suitable for indoor and outdoor applications
Types of GPS Antenna
Active GPS Antenna
Designed with built-in low noise amplifier (LNA) for enhanced satellite signal reception and long cable run applications.

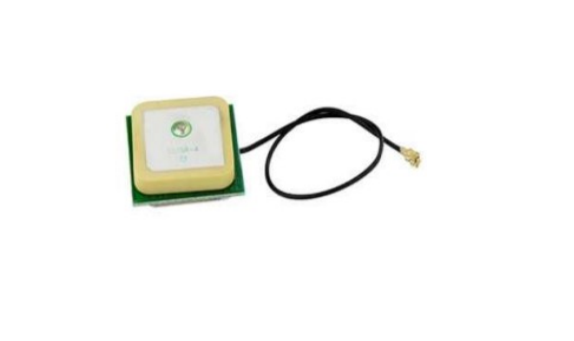

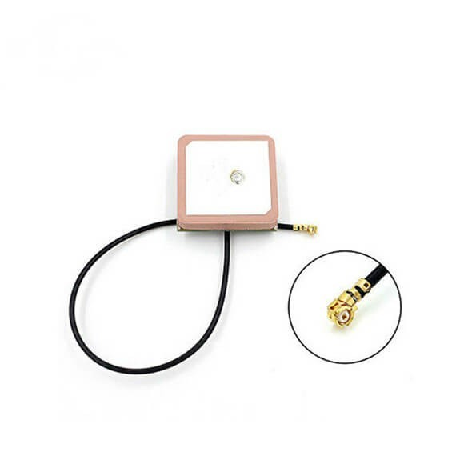

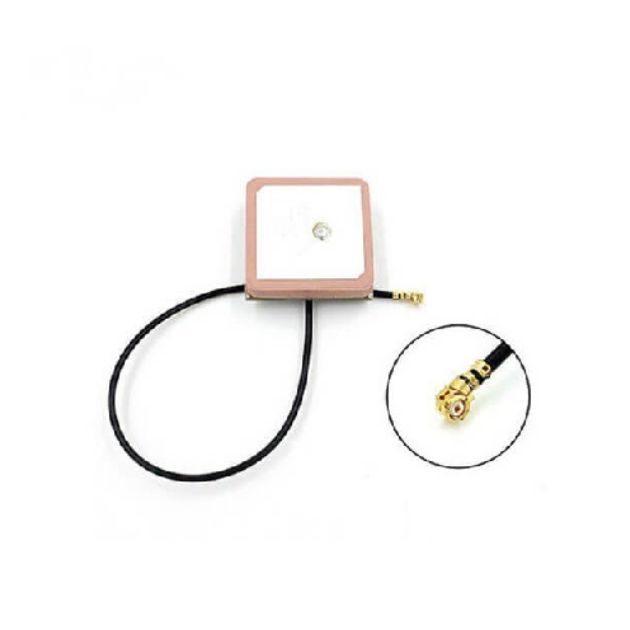

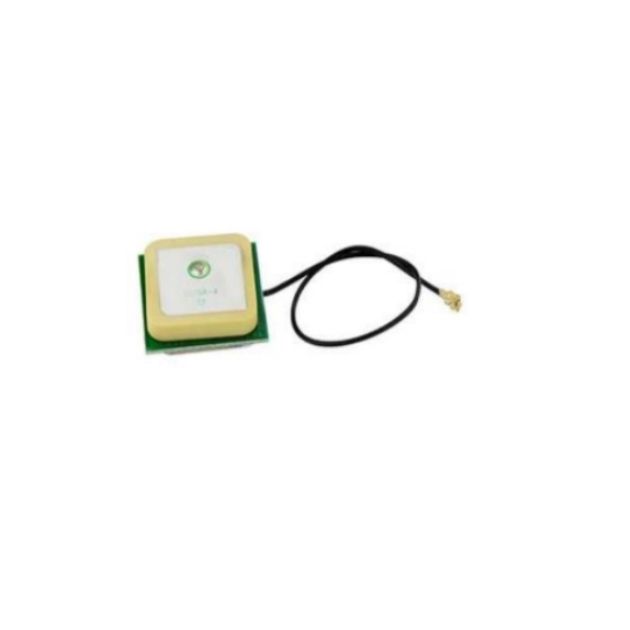

Passive GPS Antenna
Provides reliable GPS signal reception without internal amplification for compact communication systems.

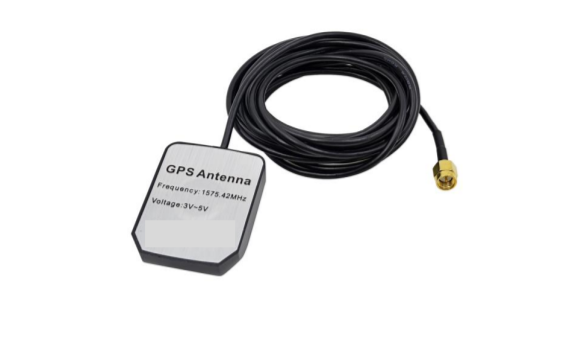

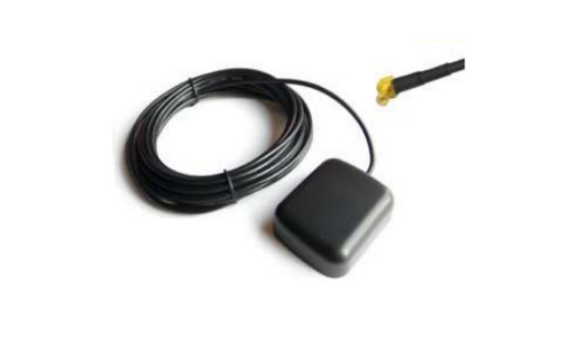

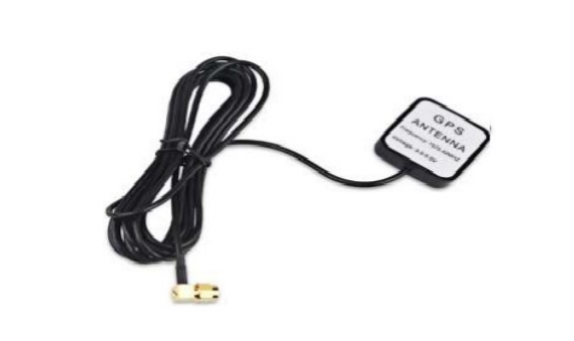

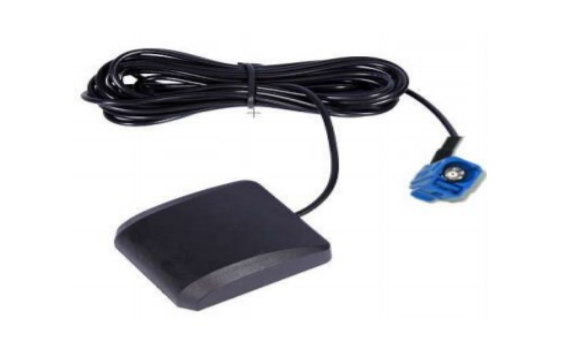

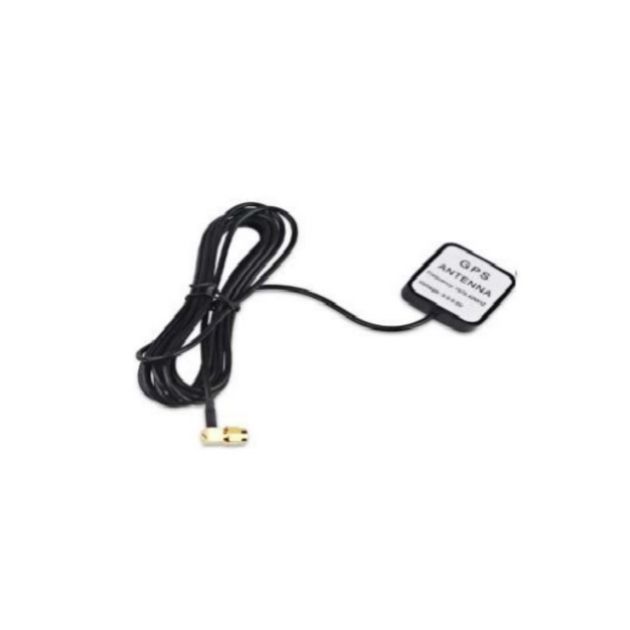

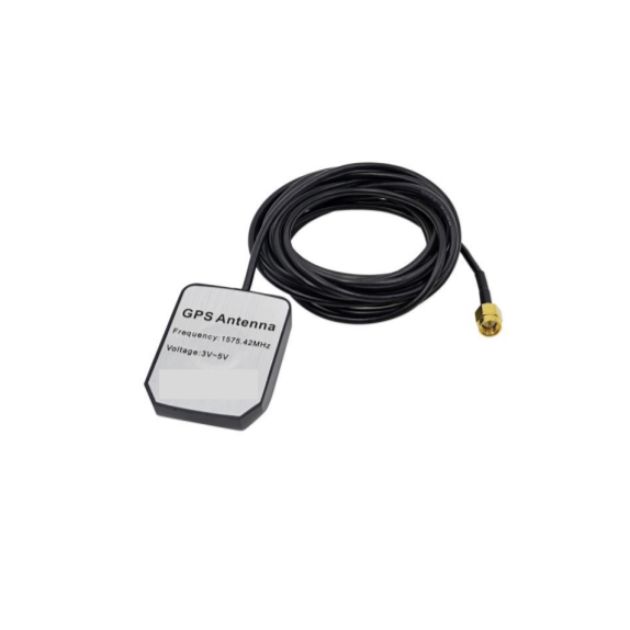

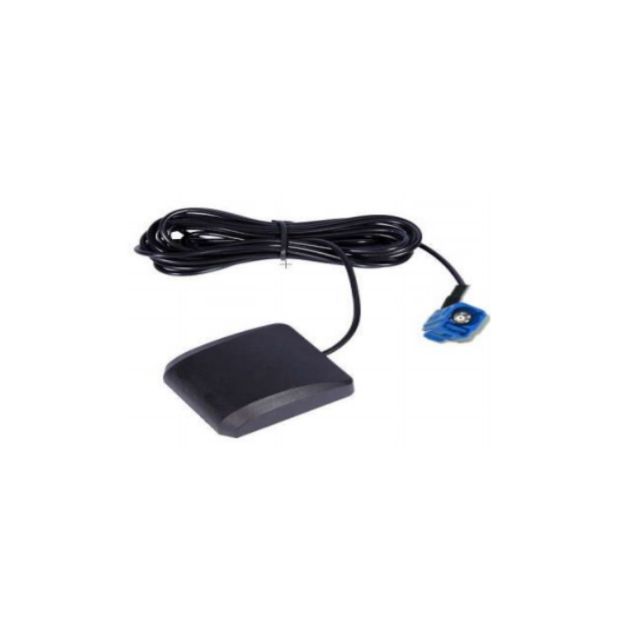

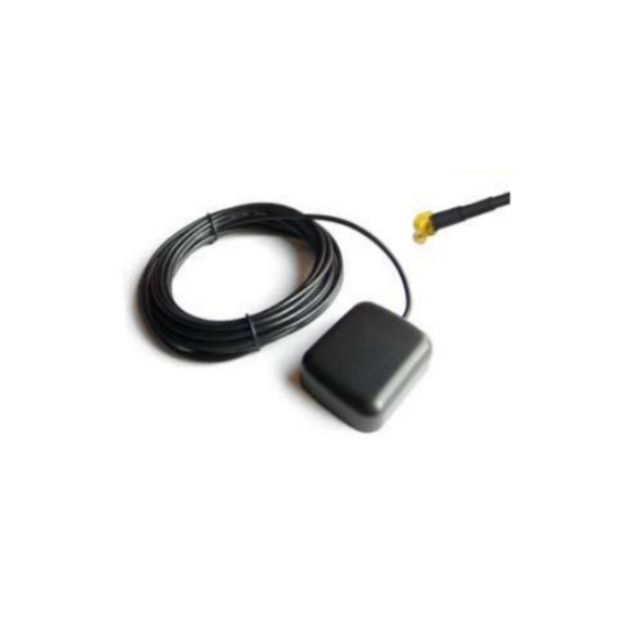

Magnetic Mount GPS Antenna
Suitable for vehicle tracking and automotive communication systems with easy magnetic installation.
Waterproof GPS Antenna
Weatherproof antenna designed for outdoor GPS and telecom installations.
GPS GSM Combo Antenna
Supports both GPS positioning and GSM communication within a single antenna solution.
Technical Specifications
| Parameter | Specification |
|---|---|
| Frequency Range | 1575.42 MHz |
| Impedance | 50 Ohm |
| Gain | 2 dBi to 28 dBi |
| VSWR | ≤ 2.0 |
| Polarization | RHCP |
| Connector Type | SMA Male / N Type |
| Cable Type | RG174 / Low Loss RF Cable |
| Mounting Type | Magnetic / Adhesive / Pole Mount |
| Operating Temperature | -40°C to +85°C |
Applications of GPS Antenna
GPS antennas are widely used across telecom and wireless industries including:
- Vehicle Tracking Systems
- GPS Navigation Devices
- Fleet Management Solutions
- Telecom Infrastructure
- IoT & Smart Devices
- Automotive Communication Systems
- Wireless Monitoring Equipment
- Industrial Automation Systems

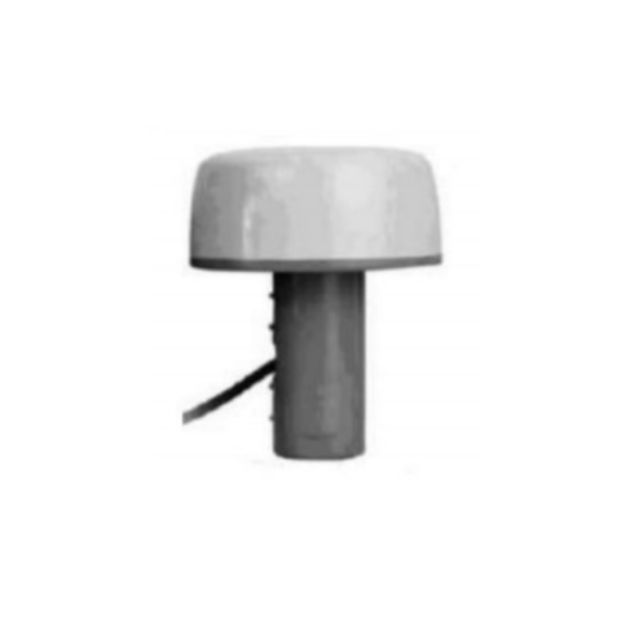

- Marine Navigation Systems
- Timing & Synchronization Applications
Key Performance Factors
Choosing the right GPS Antenna depends on several important RF performance parameters:
- Frequency compatibility
- Antenna gain and sensitivity
- Low noise performance
- VSWR characteristics
- Polarization type
- Connector compatibility
- Environmental durability
- Indoor or outdoor installation requirements
Proper GPS antenna selection ensures accurate positioning, stable signal reception, improved navigation performance, and reliable communication system operation.
GPS Antenna Product Specifications
| GPS Antenna Type | Frequency Range | Gain | Application |
|---|---|---|---|
| Active GPS Antenna | 1575.42 MHz | 28 dBi | GPS Navigation Systems |
| Passive GPS Antenna | 1575.42 MHz | 5 dBi | Wireless Communication Devices |
| Magnetic Mount GPS Antenna | 1575.42 MHz | High Gain | Vehicle Tracking Systems |
| Waterproof GPS Antenna | GPS Frequency Band | Stable Signal Gain | Outdoor Telecom Installations |
| GPS GSM Combo Antenna | GPS + GSM Bands | Multi-Band Gain | Fleet & IoT Communication |
Why Choose us
Accurate GPS Signal Reception
Our GPS antennas are engineered for reliable satellite signal reception and precise positioning performance.
High Gain & Low Noise Design
Designed for enhanced GPS sensitivity, stable communication, and improved navigation accuracy.
Durable Outdoor Construction
Manufactured using weather-resistant materials for reliable indoor and outdoor GPS applications.
Wide Application Support
Suitable for telecom, automotive, IoT, navigation, fleet management, and industrial communication systems.
Frequently Asked Questions
A GPS antenna is an RF antenna used to receive satellite signals for positioning, navigation, and tracking applications.
They are widely used in vehicle tracking systems, navigation devices, telecom systems, IoT devices, and industrial automation applications.
Most GPS antennas operate at 1575.42 MHz for GPS L1 signal reception
Active GPS antennas include an internal amplifier for stronger signal reception, while passive antennas operate without amplification.
Antenna gain measures the ability to receive satellite signals efficiently and improve positioning performance.
Most GPS antennas are designed with standard 50 Ohm impedance.
Yes, many GPS antennas are manufactured with weather-resistant construction for outdoor telecom and tracking applications.
Common connector types include SMA Male, SMA Female, and N Type RF connectors.
