2.92mm Male to SMP Female Cable Assembly for BM260L

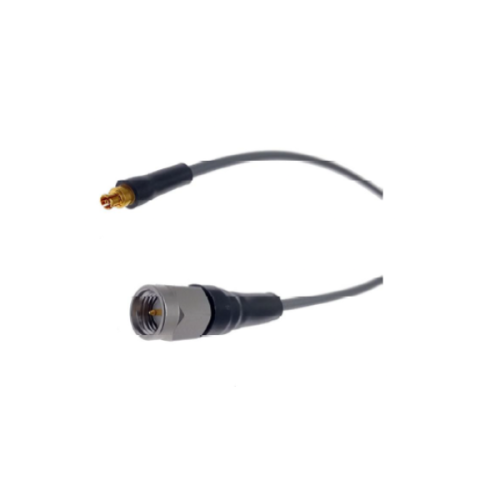

The Direct Solder 2.4mm Male to SSMP Female Cable Assembly for LP220 is a precision RF interconnect designed for reliable high-frequency signal transmission. Its direct-solder construction provides a secure connection while supporting excellent signal integrity and stable electrical performance. The assembly combines a 2.4mm male connector with an SSMP female interface for convenient integration into compatible RF systems. It is suitable for test and measurement equipment, telecommunications, aerospace, defense, microwave systems, and laboratory applications. Designed for dependable performance, this cable assembly offers low-loss connectivity, robust construction, and reliable signal transmission in demanding RF environments.
Configuration
| Connector 1 | Direct solder 2.4mm male | Connector 2 | SSMP(Mini-SMP) female |
| Body | Gold plated brass | Body | Gold plated BeCu |
| Nut | Passivated stainless steel | Center Contact | Gold plated BeCu |
| Center Contact | Gold plated BeCu | Cable Type | LP220 |
Construction
| No. | Construction | Size (mm) | Materials |
|---|---|---|---|
| 1 | Center Conductor | 0.51 | Solid silver-plated copper |
| 2 | Dielectric | 1.43 | Ultra-low density PTFE |
| 3 | Outer Conductor | 1.55 | Silver-plated copper tape wrap |
| 4 | Outer Shield | 1.85 | Silver-plated copper wire braid |
| 5 | Jacket | 2.20 | FEP |
Electrical
| Electrical Specifications | |
|---|---|
| Frequency | DC-50 GHz |
| Impedance | 50 Ω |
| *VSWR Max | 1.55-1.6 |
| *IL Max (0.1 meter assembly) | 1.19dB |
| **Mechanical Phase Stability | <±7° |
| Amplitude Stability vs Shaking | <±0.2dB |
Mechanical & Environmental
| Min. Bending Radius Static | 11mm |
| Min. Bending Radius Repeated | 22mm |
| Velocity of Propagation | 81% |
| Temperature (Operation) | -50~105 °C |
| Temperature (Storage) | -60~105 °C |
Bulk Cable Attenuation
| Frequency MHz | 300 | 1000 | 2000 | 3000 | 6000 | 12000 | 18000 | 26500 | 30000 | 40000 | 50000 | 67000 |
| dB/100 Meter | 34.3 | 63.3 | 90.3 | 111.3 | 159.8 | 230.7 | 286.9 | 354.3 | 379.4 | 445.2 | 504.8 | 596.4 |
| Avg. Power kW | 0.510 | 0.277 | 0.194 | 0.157 | 0.110 | 0.076 | 0.061 | 0.049 | 0.046 | 0.039 | 0.035 | 0.029 |
| Attenuation at any frequency = [1.96000 × SQRT(FMHz)] + [0.001330 × FMHz] | ||||||||||||
