WG to Coaxial Adaptor (End Launch)
Waveguide to Coaxial Adaptors (End Launch) are precision microwave components designed to provide efficient signal transition between rectangular waveguides and coaxial transmission lines. These adaptors enable RF and microwave signals to be transferred from waveguide systems to coaxial connectors while maintaining excellent impedance matching, low insertion loss, and superior signal integrity. They are widely used in radar systems, satellite communication, aerospace applications, defense electronics, microwave testing laboratories, RF measurement systems, and high-frequency communication networks.
At SRFS Teleinfra, we manufacture premium-quality WG to Coaxial Adaptors (End Launch) engineered for high-frequency microwave applications. Our adaptors are manufactured using precision-machined waveguide structures and high-performance coaxial interfaces to ensure low VSWR, excellent return loss, and reliable RF performance across demanding communication environments. Available with SMA, K (2.92mm), 2.4mm, 1.85mm, and 1.0mm connector interfaces, these adaptors support a wide range of waveguide bands and microwave frequencies.
WG to Coaxial End Launch Adaptors are commonly used in microwave transmitters, radar systems, satellite ground stations, EMC testing facilities, antenna measurement systems, RF calibration setups, and laboratory instrumentation where accurate signal transition is critical.
What is a WG to Coaxial Adaptor (End Launch)?
A WG to Coaxial Adaptor (End Launch) is a microwave transition component that converts electromagnetic energy from a rectangular waveguide into a coaxial transmission line through an end-launch configuration. This design provides excellent electrical performance and efficient signal coupling while minimizing reflections and transmission losses.
WG to Coaxial End Launch Adaptors are commonly used in:
- Radar systems
- Satellite communication
- Aerospace applications
- Defense electronics
- Microwave communication systems
- RF testing laboratories
- Antenna measurement systems
- EMC/EMI testing
- Microwave instrumentation
- Signal generators
- Vector Network Analyzers (VNA)
- Research & development facilities
These adaptors provide reliable microwave-to-coaxial transitions with low insertion loss, low VSWR, and high signal accuracy.
Types of WG to Coaxial Adaptor (End Launch)

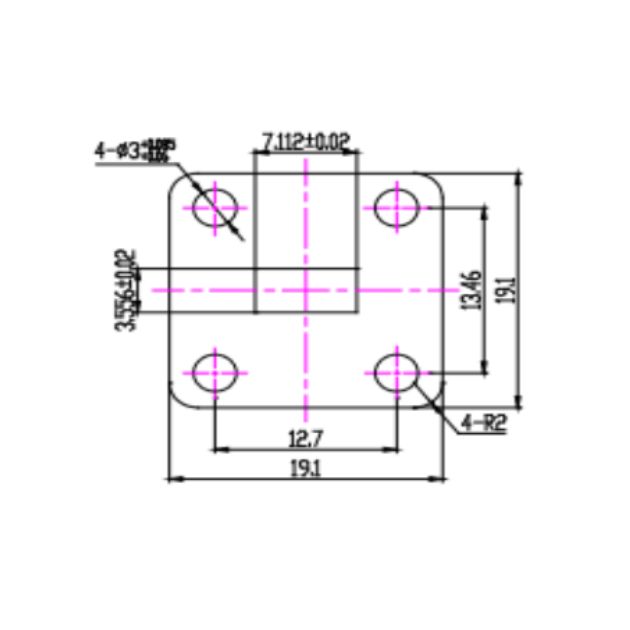

WR320 to 2.4mm End Launch Adaptor
Designed for high-frequency microwave systems requiring precision RF transitions.

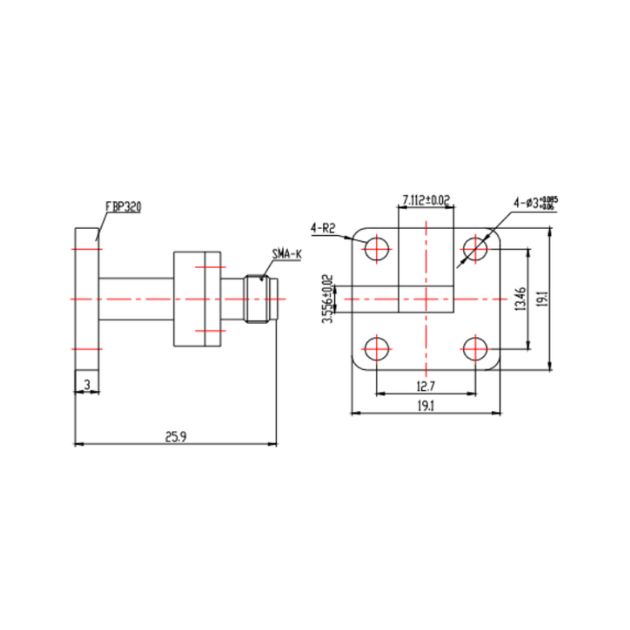

WR320 to SMA End Launch Adaptor
Provides reliable microwave-to-coaxial connectivity for communication and testing applications.

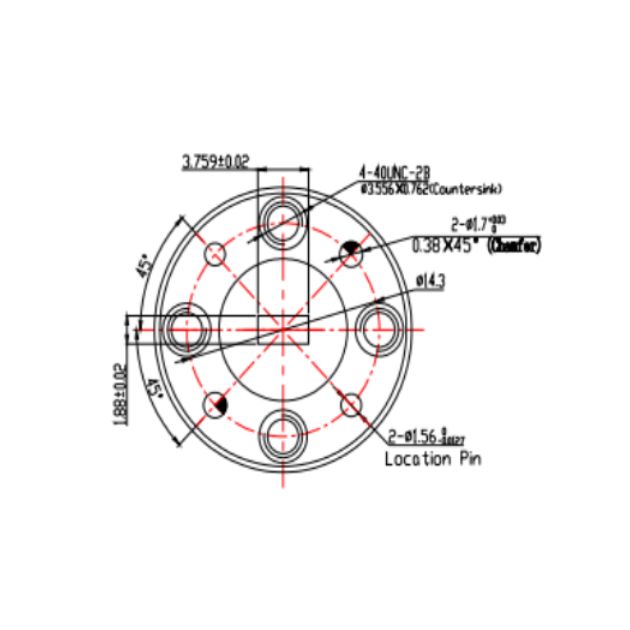

WR620 to 1.85mm End Launch Adaptor
Suitable for advanced microwave measurement and laboratory systems.

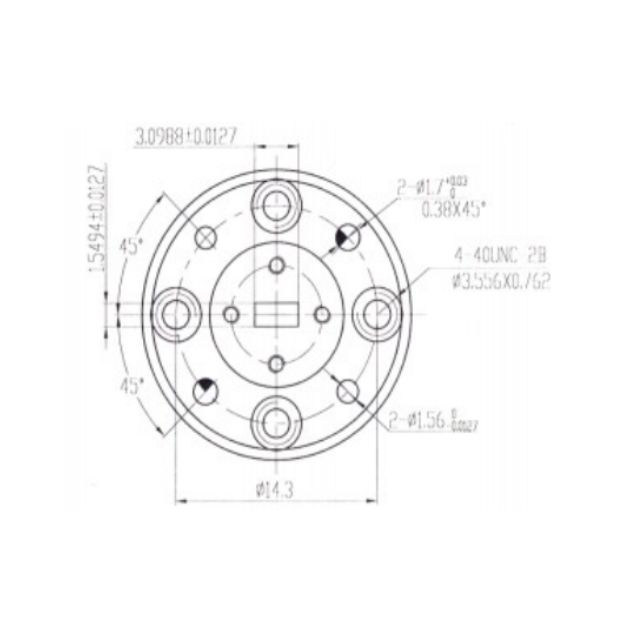

WR740 to 1.0mm End Launch Adaptor
Designed for millimeter-wave communication and ultra-high-frequency testing applications.
WR900 to 1.0mm End Launch Adaptor
Provides accurate signal transition in microwave and radar systems.

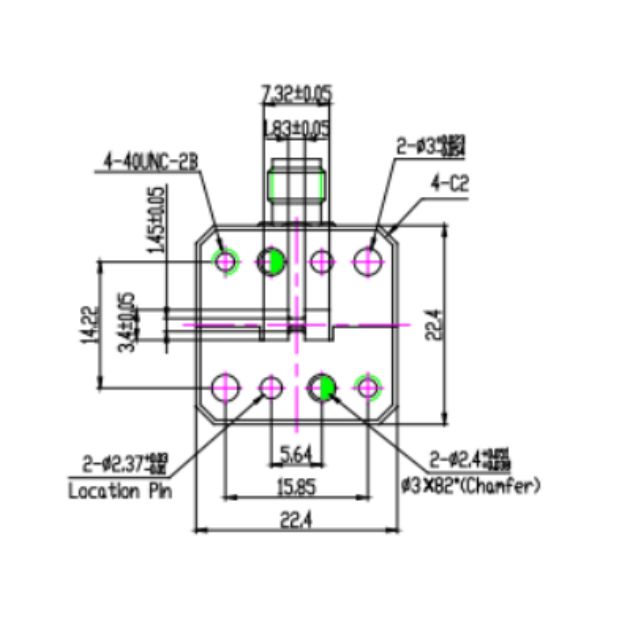

Double Ridged Waveguide to Coaxial Adaptor
Supports broadband frequency operation and advanced microwave applications.
Custom WG to Coaxial End Launch Adaptor
Available with customized waveguide sizes, connector interfaces, and frequency bands.
Technical Specifications
Below are general specifications of WG to Coaxial Adaptors (End Launch) (may vary depending on waveguide size and connector type):
Electrical Specifications
- Impedance: 50 Ohms
- Frequency Range: 2.6 GHz to 110 GHz+
- VSWR: ≤ 1.20 to 1.25
- Insertion Loss: Extremely Low
- Return Loss: Excellent
- Power Handling: High RF Power Capability
- Signal Transmission: Microwave & Millimeter-Wave Performance
- RF Performance: Precision Measurement Grade
- Waveguide Band: Application Specific
Mechanical Specifications
- Connector Types: SMA, 2.92mm (K), 2.4mm, 1.85mm, 1.0mm
- Waveguide Type: Rectangular Waveguide
- Body Material: Aluminum / Brass / Stainless Steel
- Contact Material: Beryllium Copper
- Plating: Gold Plated Contacts
- Mounting Type: End Launch
- Flange Type: Standard Waveguide Flange
- Construction: Precision Machined Microwave Assembly
Environmental Specifications
- Operating Temperature: -55°C to +125°C
- Corrosion Resistance: High-Durability Protective Finish
- Moisture Resistance: Excellent
- Weather Resistance: Suitable for Industrial Applications
- RoHS Compliance: Yes
- Application Suitability: RF, Microwave, Aerospace & Defense Systems
Applications of WG to Coaxial Adaptor (End Launch)
WG to Coaxial End Launch Adaptors are widely used in:
- Radar systems
- Satellite communication equipment
- Microwave communication systems
- Aerospace electronics
- Defense communication systems
- RF testing laboratories
- Vector Network Analyzers
- Signal generators
- Antenna measurement systems
- EMC/EMI testing facilities
- Millimeter-wave communication
- Research and development laboratories
Features of WG to Coaxial Adaptor (End Launch)
Excellent Waveguide-to-Coaxial Transition
Provides efficient microwave signal conversion with minimal transmission loss.
Low VSWR Performance
Reduces signal reflections and improves overall system efficiency.
Wide Frequency Coverage
Supports microwave and millimeter-wave frequency applications.
Precision RF Engineering
Manufactured with advanced microwave engineering techniques for consistent performance.
Low Insertion Loss
Ensures maximum signal transfer between waveguide and coaxial systems.
Superior Mechanical Stability
Precision-machined construction provides reliable and durable connectivity.
High Reliability Design
Suitable for critical aerospace, defense, telecom, and laboratory applications.
WG to Coaxial Adaptor (End Launch) Product Specifications
| Adaptor Type | Connector Interface | Frequency Range | Application |
|---|---|---|---|
| WR320 End Launch Adaptor | 2.4mm | Microwave Band | RF Testing Systems |
| WR320 End Launch Adaptor | SMA | High Frequency Range | Communication Systems |
| WR620 End Launch Adaptor | 1.85mm | Microwave Applications | Laboratory Measurements |
| WR740 End Launch Adaptor | 1.0mm | Millimeter Wave Range | Advanced RF Testing |
| WR900 End Launch Adaptor | 1.0mm | High Frequency Range | Radar Systems |
| Double Ridged WG Adaptor | 2.92mm | Broadband Frequency Range | EMC Testing |
| Custom End Launch Adaptor | Custom Interface | Application Specific | Specialized Microwave Systems |
Why Choose us
Precision Microwave Engineering
Our WG to Coaxial Adaptors are manufactured using advanced microwave engineering technology for superior RF performance.
Low Signal Loss
Designed to deliver excellent signal transmission with minimal insertion loss and reflection.
Wide Frequency Support
Supports microwave and millimeter-wave applications across multiple waveguide bands.
Premium Quality Construction
Manufactured using precision-machined components and high-grade materials.
Frequently Asked Questions
A microwave component used to transition signals from a waveguide to a coaxial transmission line.
End-launch designs provide efficient signal coupling with low insertion loss and excellent impedance matching.
Most WG to Coaxial Adaptors are designed with 50 Ohm impedance.
Common connector interfaces include SMA, 2.92mm (K), 2.4mm, 1.85mm, and 1.0mm.
They are used in radar, satellite communication, aerospace, defense, and RF testing applications.
VSWR indicates impedance matching quality. Lower VSWR means better RF performance.
Yes, certain models support frequencies exceeding 100 GHz.
Yes, custom waveguide bands and connector interfaces can be manufactured as per requirements.
