HN Connector
HN Connectors are high-power threaded RF coaxial connectors designed for reliable signal transmission in telecom, RF, microwave, broadcasting, and wireless communication systems. These connectors provide excellent electrical performance, secure mechanical locking, low insertion loss, and stable impedance matching for demanding RF applications.
At SRFS Teleinfra, we manufacture premium-quality HN RF connectors using precision-engineered components and high-grade materials to ensure reliable RF connectivity, superior shielding effectiveness, and long operational durability. Our HN connectors are widely used in telecom infrastructure, outdoor RF systems, antenna installations, and high-power communication networks.
HN connectors are specially designed for medium-to-high-power RF applications where strong mechanical stability and low signal reflection are critical. Their threaded coupling mechanism provides secure vibration-resistant connectivity in harsh industrial and outdoor environments.
What is an HN Connector?
An HN Connector is a threaded RF coaxial connector designed for high-power radio frequency communication systems. These connectors are widely used in telecom, broadcasting, military communication, wireless infrastructure, and microwave applications because of their strong mechanical construction and stable RF performance.
HN connectors are commonly used in:
- RF communication systems
- Telecom infrastructure
- Outdoor antenna systems
- Microwave communication networks
- Broadcasting systems
- High-power RF equipment
- Wireless communication devices
- RF testing applications
These connectors provide low VSWR, stable impedance matching, and excellent shielding effectiveness for reliable RF signal transmission.
Types of HN Connector

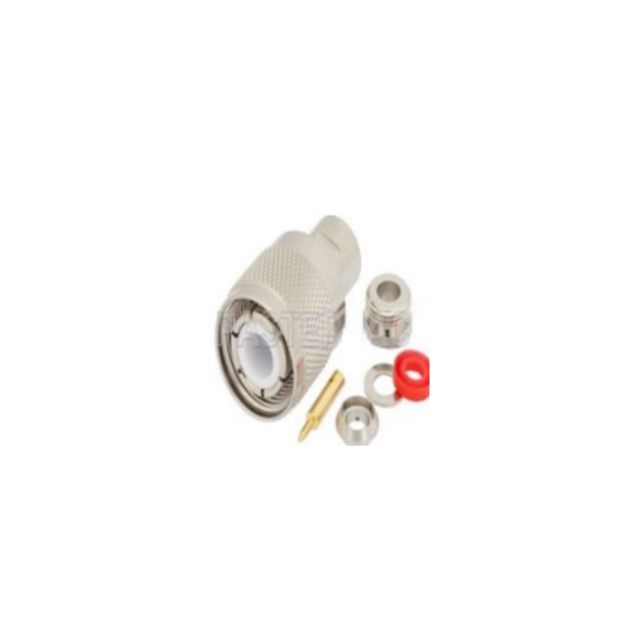

HN Male Connector
HN Male Connectors are designed with threaded coupling and center pin contacts for secure high-power RF signal transmission.

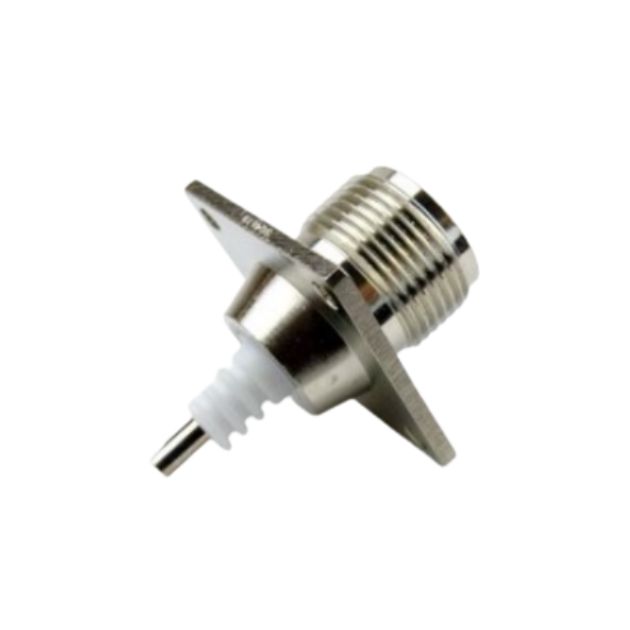

HN Female Connector
HN Female Connectors provide stable impedance matching and reliable RF connectivity in telecom and microwave systems.
Panel Mount HN Connector
Panel Mount HN Connectors are used in RF equipment, telecom panels, and broadcasting systems for secure installation.
Cable Mount HN Connector
Cable Mount HN Connectors are designed for RF cable assemblies and coaxial cable connectivity applications.
Right Angle HN Connector
Right Angle HN Connectors are ideal for compact RF systems requiring flexible cable routing and space-saving installation.
Bulkhead HN Connector
Bulkhead HN Connectors are engineered for panel-through mounting applications in RF and telecom systems.
RF Cable Assembly HN Connector
These connectors are integrated with RF coaxial cable assemblies for reliable high-frequency signal transmission.
HN Connector Product Specifications
| HN Connector Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| HN Male Connector | 50 Ohm | DC – 4 GHz | RF Cable Assemblies |
| HN Female Connector | 50 Ohm | High Frequency RF Range | RF Communication Systems |
| Panel Mount HN Connector | 50 Ohm | Microwave Frequency Range | Telecom Equipment |
| HN Bulkhead Connector | 50 Ohm | RF & Microwave Range | Panel Mount Applications |
| HN Cable Mount Connector | 50 Ohm | GHz Frequency Applications | Wireless Communication Systems |
| Right Angle HN Connector | 50 Ohm | RF Signal Transmission | Compact RF Installations |
| HN RF Cable Assembly | 50 Ohm | RF Communication Range | Outdoor RF Systems |
Technical Specifications
Below are general specifications of HN Connectors (may vary depending on connector type and cable compatibility):
Electrical Specifications
- Impedance: 50 Ohms
- Frequency Range: DC to 4 GHz
- VSWR: Low VSWR Performance
- Insertion Loss: Low Signal Loss
- Return Loss: Excellent RF Performance
- Shielding Effectiveness: High EMI Protection
Mechanical Specifications
- Connector Type: HN Male / HN Female
- Coupling Mechanism: Threaded Coupling
- Contact Material: Brass / Beryllium Copper
- Body Material: Brass / Stainless Steel
- Plating: Silver / Nickel Plated
- Insulator Material: PTFE / Teflon
- Cable Compatibility: RG Series & RF Coaxial Cables
Environmental Specifications
- Operating Temperature: -40°C to +85°C
- Weather Resistance: Suitable for Indoor & Outdoor Applications
- Corrosion Resistance: High Durability Protective Plating
- Moisture Resistance: Reliable Performance in Humid Conditions
- Application Suitability: Telecom, RF, Microwave & Broadcasting Systems
Applications of HN Connector
HN connectors are widely used in:
- Telecom infrastructure
- RF communication systems
- Broadcasting equipment
- Wireless networking systems
- Antenna installations
- Microwave communication systems
- RF cable assemblies
- Military & defense electronics
- RF testing & laboratory equipment
- Outdoor communication systems
Features of HN Connector
High Power RF Performance
Designed for stable RF signal transmission in high-power communication systems.
Threaded Coupling Mechanism
Provides secure mechanical locking and vibration-resistant RF connectivity.
Low VSWR Performance
Ensures minimal signal reflection and efficient RF transmission.
Excellent Shielding Effectiveness
Reduces EMI interference and maintains signal integrity.
Durable Construction
Manufactured using premium-grade materials for long operational life.
Reliable Outdoor Performance
Suitable for telecom towers, antenna systems, and harsh environmental conditions.
Applications of HN Connector
HN connectors are widely used in:
- Telecom infrastructure
- RF communication systems
- Broadcasting equipment
- Wireless networking systems
- Antenna installations
- Microwave communication systems
- RF cable assemblies
- Military & defense electronics
- RF testing & laboratory equipment
- Outdoor communication systems
Why Choose us
Precision RF Engineering
Our HN connectors are manufactured using precision machining for reliable impedance matching and stable RF performance.
High Power Handling
Designed for high-power RF applications with excellent signal transmission efficiency.
Secure Threaded Locking
The threaded coupling mechanism ensures strong mechanical stability and vibration resistance.
Durable Construction
Manufactured using premium-grade materials for long-lasting outdoor and industrial RF applications.
Frequently Asked Questions
An HN connector is a threaded RF coaxial connector designed for high-power RF and microwave communication systems.
Most HN connectors are designed with standard 50 Ohm impedance for RF communication applications.
HN connectors are used in telecom systems, antenna networks, broadcasting systems, RF communication equipment, and microwave applications.
HN connectors generally support RF frequencies up to 4 GHz depending on connector design and application.
HN connectors provide low VSWR, secure threaded locking, strong shielding, stable RF performance, and high-power handling capability.
Yes, HN connectors are designed for reliable outdoor RF and telecom installations with durable weather-resistant construction.
Yes, SRFS Teleinfra manufactures premium-quality RF connectors and telecom components for reliable communication applications.
