Horn Antenna
Horn Antennas are high-gain directional microwave antennas designed to efficiently transmit and receive RF and microwave signals with excellent directivity, wide bandwidth, and low signal loss. These antennas are widely used in radar systems, satellite communication, RF testing laboratories, aerospace applications, defense communication systems, electromagnetic compatibility (EMC) testing, wireless communication networks, and microwave measurement systems. Horn antennas provide superior gain and highly focused radiation patterns, making them ideal for high-frequency communication applications.
At SRFS Teleinfra, we manufacture premium-quality Horn Antennas engineered for microwave and millimeter-wave applications. Our horn antennas are manufactured using precision RF engineering and high-quality metallic structures to deliver excellent gain, low VSWR, high efficiency, and reliable performance across a broad frequency range.
Horn antennas are commonly used as feed antennas for parabolic reflectors, satellite communication systems, radar equipment, antenna measurement systems, EMC/EMI testing facilities, and RF research laboratories where high directivity and measurement accuracy are essential.
What is a Horn Antenna?
A Horn Antenna is a directional microwave antenna that consists of a flared metallic waveguide designed to efficiently radiate electromagnetic energy into free space or receive incoming signals with minimal reflection and loss. The flared horn structure provides improved impedance matching between the waveguide and free space, resulting in high gain, wide bandwidth, and excellent radiation performance.
Horn antennas are commonly used in:
- Radar systems
- Satellite communication
- RF & microwave testing
- Aerospace applications
- Defense communication systems
- EMC/EMI testing
- Antenna measurement ranges
- Radio astronomy
- Wireless communication systems
- Research laboratories
- Millimeter-wave communication
- 5G testing applications
These antennas provide high gain, excellent directivity, low VSWR, and reliable microwave signal transmission.
Types of Horn Antenna
Pyramidal Horn Antenna
Pyramidal horn antennas feature a rectangular waveguide with flared E-plane and H-plane sections, providing high gain and directional radiation patterns.
Sectoral Horn Antenna
Sectoral horn antennas are flared in only one plane and are commonly used in radar and microwave communication systems.
E-Plane Horn Antenna
Designed with flare in the electric field direction for specific radiation pattern requirements.
H-Plane Horn Antenna
Features flare in the magnetic field direction and provides directional microwave radiation.
Conical Horn Antenna
Conical horn antennas use circular waveguides and offer symmetrical radiation patterns.
Corrugated Horn Antenna
Designed for low cross-polarization and superior radiation performance in satellite and precision microwave applications.
Standard Gain Horn Antenna
Widely used as calibration antennas in antenna measurement and RF testing laboratories.

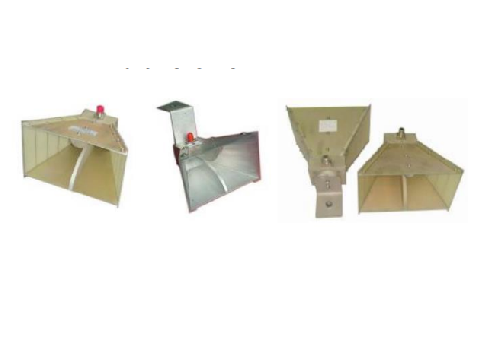

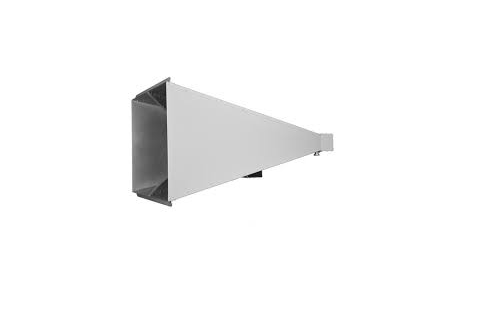

Double Ridged Horn Antenna
Provides ultra-wideband performance for broadband RF and EMC testing applications.
Technical Specifications
Below are general specifications of Horn Antennas (may vary depending on model and frequency band):
Electrical Specifications
- Frequency Range: 0.5 GHz to 110 GHz
- Impedance: 50 Ohms
- Gain: 10 dBi to 30 dBi
- VSWR: ≤ 1.20 to 1.50
- Polarization: Linear / Circular
- Bandwidth: Wideband Performance
- Return Loss: Excellent
- Radiation Pattern: Directional
- Beamwidth: Application Specific
- Power Handling: High RF Power Capability
Mechanical Specifications
- Antenna Type: Pyramidal / Sectoral / Conical / Corrugated
- Waveguide Type: Standard Microwave Waveguide
- Material: Aluminum / Brass / Copper
- Surface Finish: Conductive Protective Coating
- Mounting Type: Flange Mount
- Connector Type: Waveguide Interface
- Construction: Precision Machined Metal Body
Environmental Specifications
- Operating Temperature: -40°C to +85°C
- Weather Resistance: Available for Outdoor Applications
- Corrosion Resistance: High Durability Finish
- Moisture Resistance: Suitable for Industrial Environments
- RoHS Compliance: Yes
- Application Suitability: RF, Microwave, Radar & Satellite Systems
Applications of Horn Antenna
Horn Antennas are widely used in:
- Radar systems
- Satellite communication
- Aerospace electronics
- Defense communication systems
- RF & microwave testing
- EMC/EMI testing laboratories
- Antenna measurement ranges
- Radio astronomy
- Wireless communication systems
- Microwave communication links
- Research & development laboratories
- 5G millimeter-wave testing applications
Features of Horn Antenna
High Gain Performance
Provides highly directional radiation patterns for long-distance microwave communication.
Wide Bandwidth Operation
Supports broad frequency ranges for RF and microwave applications.
Excellent Directivity
Concentrates RF energy into a focused beam for improved communication efficiency.
Low VSWR
Ensures efficient impedance matching and reduced signal reflection.
Precision RF Engineering
Manufactured using advanced microwave design techniques for reliable performance.
Low Insertion Loss
Provides efficient transmission and reception of RF signals.
Rugged Construction
Built using durable metallic structures suitable for laboratory and industrial environments.
Horn Antenna Product Specifications
| Horn Antenna Type | Frequency Range | Gain | Application |
|---|---|---|---|
| Pyramidal Horn Antenna | 1 GHz – 40 GHz | 10 – 25 dBi | Microwave Communication |
| Sectoral Horn Antenna | 1 GHz – 50 GHz | 10 – 20 dBi | Radar Systems |
| E-Plane Horn Antenna | Microwave Bands | High Gain | Directional Applications |
| H-Plane Horn Antenna | Microwave Bands | High Gain | Communication Systems |
| Conical Horn Antenna | Broadband Frequency Range | 10 – 25 dBi | Satellite Communication |
| Corrugated Horn Antenna | High Frequency Range | High Precision Gain | Satellite & Astronomy |
| Standard Gain Horn Antenna | GHz Frequency Range | Calibration Grade | RF Testing Laboratories |
Why Choose us
Precision Microwave Engineering
Our Horn Antennas are designed using advanced microwave engineering techniques for superior radiation performance.
High Gain and Directivity
Optimized antenna structures provide excellent gain and focused signal transmission.
Wide Frequency Coverage
Supports RF, microwave, and millimeter-wave communication applications.
Premium Manufacturing Quality
Manufactured using precision-machined metallic structures and stringent quality standards.
Frequently Asked Questions
A Horn Antenna is a directional microwave antenna that uses a flared waveguide structure to efficiently radiate or receive RF signals.
Horn antennas provide high gain, wide bandwidth, excellent directivity, and low signal loss.
Depending on design, horn antennas can operate from hundreds of MHz to over 110 GHz.
Typical gain ranges from 10 dBi to 30 dBi depending on antenna size and frequency.
They are used in radar, satellite communication, RF testing, EMC testing, and microwave communication systems.
A standard gain horn is a calibrated horn antenna used as a reference antenna in RF measurements.
It offers high efficiency, low VSWR, wide bandwidth, and strong directional performance.
Yes, SRFS Teleinfra manufactures premium-quality SMA RF adaptors and telecom connectivity solutions.
