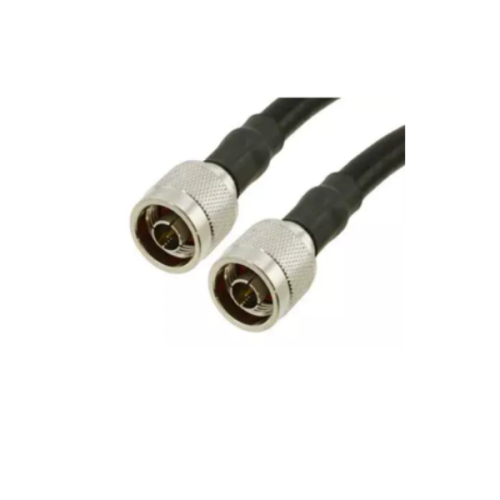

Low Loss RF Cable Assemblies with Flame Retardant Jacket are designed for reliable signal transmission in demanding RF and communication applications. Their low-loss construction helps minimize signal attenuation and maintain excellent signal integrity across high-frequency systems. The flame retardant jacket provides enhanced protection and supports safer installation in environments with specific fire-performance requirements. These cable assemblies are suitable for telecommunications, wireless networks, RF test and measurement, aerospace, defense, industrial systems, and electronic equipment. Engineered for dependable connectivity, durability, and stable electrical performance, they provide a practical solution for professional RF systems requiring reliable transmission and enhanced cable protection.
| Conductor Material | Copper Clad Aluminum |
| Stranding | 1 / 4.47 mm |
| Dielectric | Foamed Polyethylene (FPE) |
| Diameter of Dielectric | 11.56 mm |
| Screen Material (1) | Bonded Aluminum/Polyester/Aluminium |
| Screen Material (2) | Tinned Copper wire Braid (90%) |
| Outer Sheath Material | Polyethylene, UV Resistant |
| Outer Sheath Color | Black |
| Impedance | 50Ω |
| Cutoff Frequency | 16.2 GHz |
| Connectors Type | N (M) Straight |
| Cable Length | 200 m |
| Velocity of Propagation | 85% |
| Dielectric Constant | 1.38 |
| Shielding Effectiveness | >90 dB |
| Withstand Voltage | 4.6 kV |
| Jacket Spark | 8.0 kV (rms) |
| Capacitance | 24 pF/ft (78.7 pF/m) |
| Inductance | 0.21 μH/m |
| Conductor Resistance | ≤ 1.7 Ω/Km |
| Outer Conductor Resistance | ≤ 5.7 Ω/Km |
| Return loss (30 – 2800 MHz) | ≥ 15 dB |
| Peak Power | 40.0 kW |
| Overall Diameter | 15.0 mm |
| Min. Bend Radius | 38.1 mm |
| Temperature Rating | -30°C to +85°C |
| Weight | 100 kg/km |
| Frequency (MHz) | Attenuation | |
|---|---|---|
| dB/100 ft | dB/100m | |
| 30 | 0.5 | 1.6 |
| 50 | 0.6 | 2.0 |
| 150 | 1.0 | 3.2 |
| 220 | 1.2 | 3.8 |
| 450 | 1.7 | 5.6 |
| 900 | 2.5 | 8.2 |
| 1500 | 3.3 | 10.8 |
| 1800 | 3.7 | 12.0 |
| 2000 | 3.9 | 12.7 |
| 2500 | 4.4 | 14.5 |
