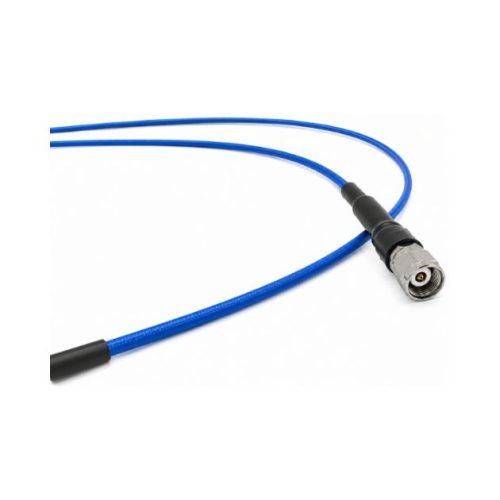

Phase Stable LP 360 P

Phase Stable LP 360 P

Phase Stable LP 360P is a precision RF cable designed to provide consistent phase performance and reliable signal transmission in demanding high-frequency applications. Its specialized construction helps maintain stable electrical characteristics, excellent signal integrity, and repeatable performance during operation and flexing. The LP 360P is suitable for RF test and measurement equipment, telecommunications, aerospace, defense, wireless communication, laboratory systems, and electronic applications. Its flexible design supports convenient routing and installation in compact or complex equipment configurations. With dependable phase stability and consistent RF performance, LP 360P provides a reliable solution for precision systems requiring accurate measurements and stable signal transmission.

Construction

Construction Size (mm) Materials
Center Conductor 0.72 Solid silver-plated copper
Dielectric 2.15 Low density PTFE
Outer Conductor 2.30 Silver-plated copper tape wrap
Interlayer 2.60 Low density PTFE
Outer Shield 3.05 Silver-plated copper wire braid
Jacket 3.60 FEP

Electrical Specifications

Frequency DC-50 GHz
Impedance 50 Ω
Velocity of Propagation 76%
Shielding Effectiveness >90 dB
Withstanding Voltage 1000 V
Mechanical Phase Stability <±5°
Amplitude Stability vs Shaking <±0.1 dB
Temp Phase Stability <1300 ppm (-40°C to +85°C)
* Wrapped 360° around a 36 mm radius mandrel.

Mechanical & Environmental

Min. Bending Radius Static 18 mm
Min. Bending Radius Repeated 36 mm
Weight 34 g/m
Temperature (Operation) -50 ~ 150 °C
Temperature (Storage) -60 ~ 160 °C
