3dB Hybrid Coupler
3dB Hybrid Couplers are high-performance RF passive components designed to split or combine RF signals equally while maintaining phase difference and stable impedance matching in telecom, DAS, IBS, microwave, wireless communication, and RF distribution systems. These couplers provide low insertion loss, excellent isolation, low VSWR, and reliable RF signal transmission for high-frequency communication networks.
At SRFS Teleinfra, we manufacture premium-quality 3dB Hybrid Couplers engineered for telecom infrastructure, distributed antenna systems, RF signal distribution, and 4G/5G communication networks. Our hybrid couplers are designed using precision RF technology to ensure excellent electrical performance, low PIM characteristics, and long operational durability.
3dB Hybrid Couplers are widely used as 4-port directional couplers for equal RF power splitting and combining applications. These couplers help improve signal distribution efficiency while maintaining high isolation between output ports and minimizing RF signal interference.
What is a 3dB Hybrid Coupler?
A 3dB Hybrid Coupler is a four-port RF passive device designed to split an input RF signal into two equal output signals with a specific phase difference or combine two RF signals into a single output. These couplers are commonly used in RF communication systems where equal power division, signal combining, and impedance matching are required.
3dB Hybrid Couplers are commonly used in:
- DAS (Distributed Antenna Systems)
- IBS (In-Building Solutions)
- Telecom infrastructure
- 4G & 5G communication systems
- RF signal distribution networks
- Wireless communication systems
- Microwave communication equipment
- RF testing & measurement systems
These couplers provide stable RF performance with low insertion loss, excellent isolation, and reliable power distribution efficiency.
Types of 3dB Hybrid Coupler
N Female 3dB Hybrid Coupler
N Female hybrid couplers provide reliable RF signal distribution for telecom and DAS systems.

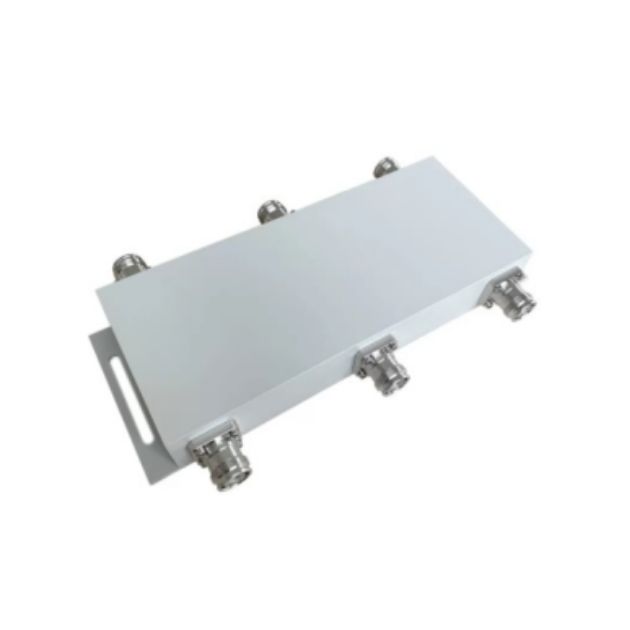

4.3-10 Female 3dB Hybrid Coupler
4.3-10 hybrid couplers are designed for low PIM telecom applications and modern wireless communication systems.

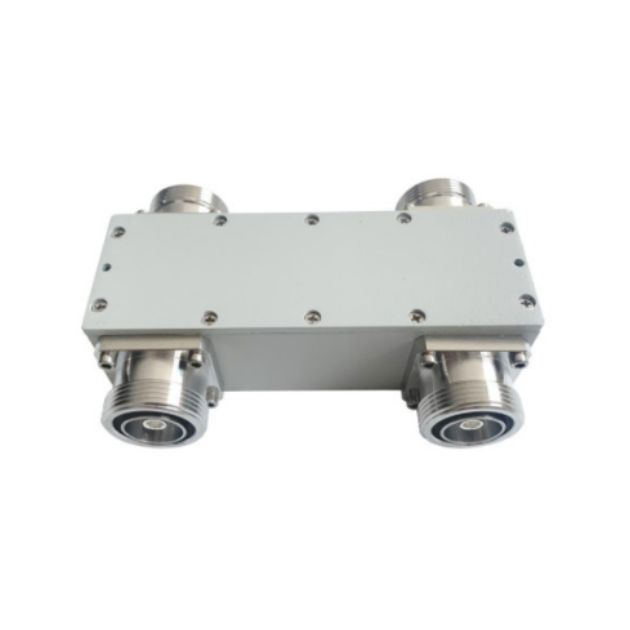

Low PIM 3dB Hybrid Coupler
Low PIM hybrid couplers reduce signal interference and improve network performance in 4G and 5G communication systems.

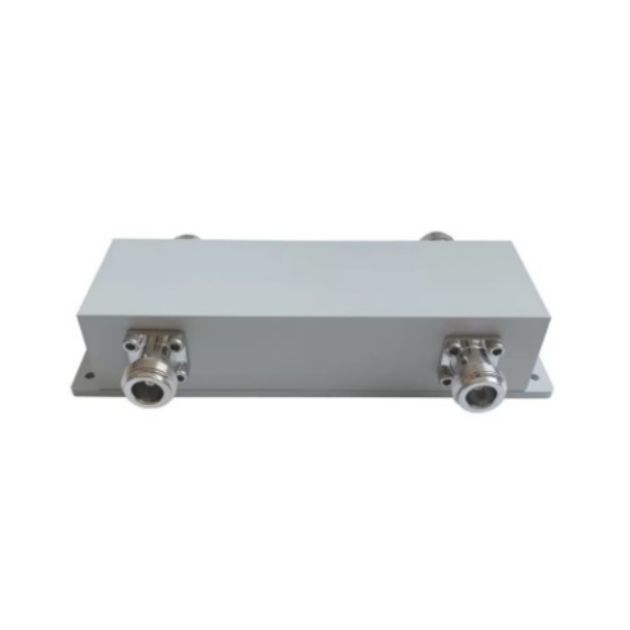

Quadrature Hybrid Coupler
Quadrature hybrid couplers provide 90-degree phase-shifted signal outputs for RF distribution applications.

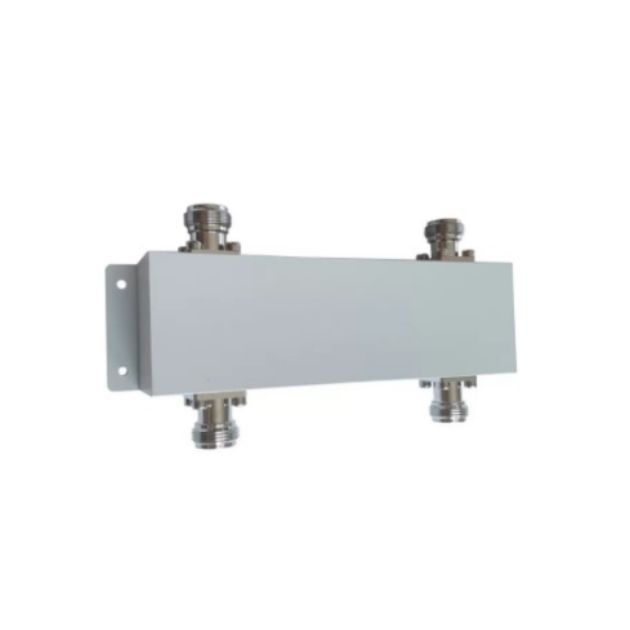

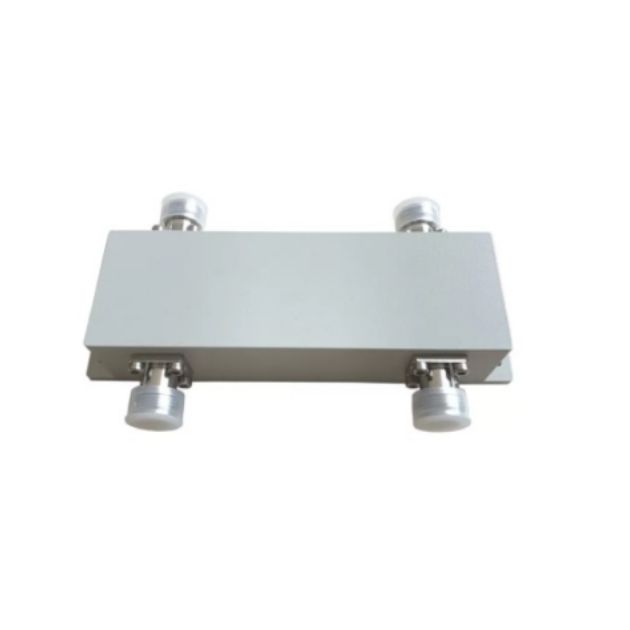

2 In 2 Out Hybrid Coupler
These hybrid couplers are designed for equal RF signal splitting and combining in communication systems.

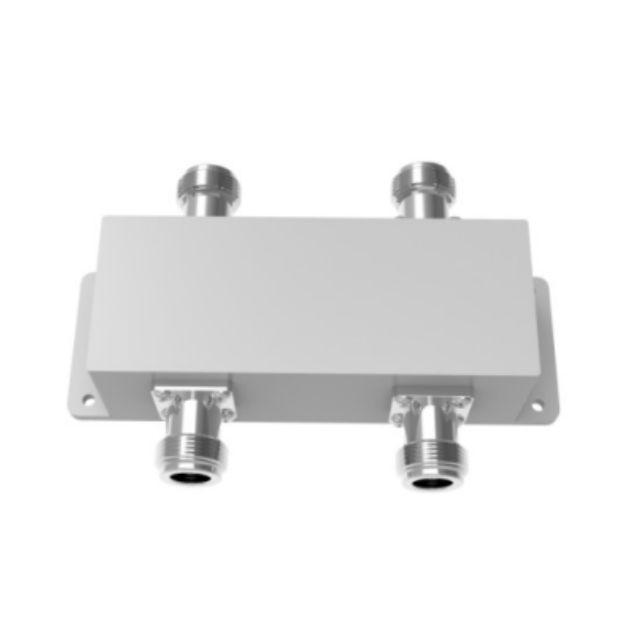

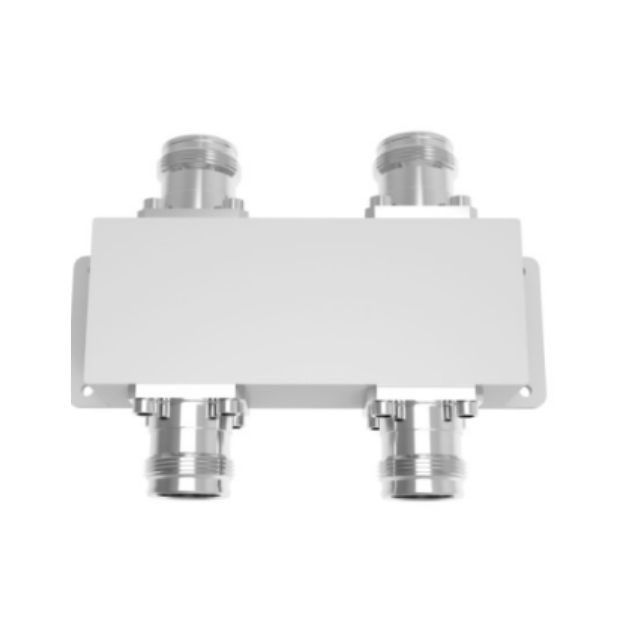

Broadband 3dB Hybrid Coupler
Broadband hybrid couplers support wide frequency ranges for telecom and RF communication networks.
High Power Hybrid Coupler
High power hybrid couplers are engineered for RF transmission systems requiring high RF power handling capability.

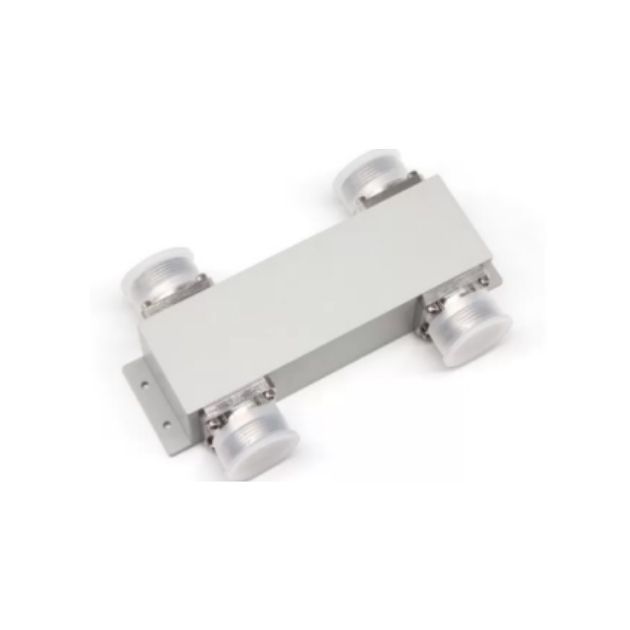

DAS Hybrid Combiner
DAS hybrid combiners are widely used in indoor coverage systems and distributed antenna networks.
Technical Specifications
Below are general specifications of 3dB Hybrid Couplers (may vary depending on connector type and frequency range):
Electrical Specifications
- Frequency Range: 550 MHz to 6000 MHz
- Impedance: 50 Ohms
- Coupling Value: 3 dB
- VSWR: ≤ 1.25
- Insertion Loss: ≤ 0.8 dB
- Isolation: ≥ 19 dB to 25 dB
- PIM (IM3): Up to -160 dBc / -163 dBc
- Power Handling: 200W to 500W
Mechanical Specifications
- Connector Type: N Female / 4.3-10 Female
- Construction Type: 4 Port RF Hybrid Coupler
- Body Material: Aluminum Alloy
- Connector Material: Brass
- Plating: Nickel Plated
- Mounting Type: Indoor & Outdoor Installation
- Protection Rating: IP65 Rated Housing
Environmental Specifications
- Operating Temperature: -40°C to +80°C
- Weather Resistance: Suitable for Indoor & Outdoor Applications
- Corrosion Resistance: High Durability Protective Coating
- Humidity Resistance: Up to 95% RH
- Application Suitability: DAS, IBS, Telecom & RF Communication Systems
Applications of 3dB Hybrid Coupler
3dB Hybrid Couplers are widely used in:
- DAS systems
- IBS networks
- Telecom infrastructure
- 4G & 5G communication systems
- RF signal distribution networks
- Wireless communication systems
- Antenna systems
- RF testing equipment
- Microwave communication systems
- Indoor coverage solutions
Features of 3dB Hybrid Coupler
Equal Power Division
Provides accurate 3dB RF signal splitting with balanced output performance.
Low VSWR Performance
Ensures minimal signal reflection and improved RF transmission efficiency.
Excellent Isolation
Maintains high isolation between output ports for stable communication performance.
Low PIM Technology
Reduces passive intermodulation interference in telecom and 5G applications.
Wide Frequency Support
Supports broadband RF communication and wireless network systems.
High Power Handling Capability
Designed for reliable operation in high-power RF communication environments.
3dB Hybrid Coupler Product Specifications
| 3dB Hybrid Coupler Type | Frequency Range | Power Rating | Application |
|---|---|---|---|

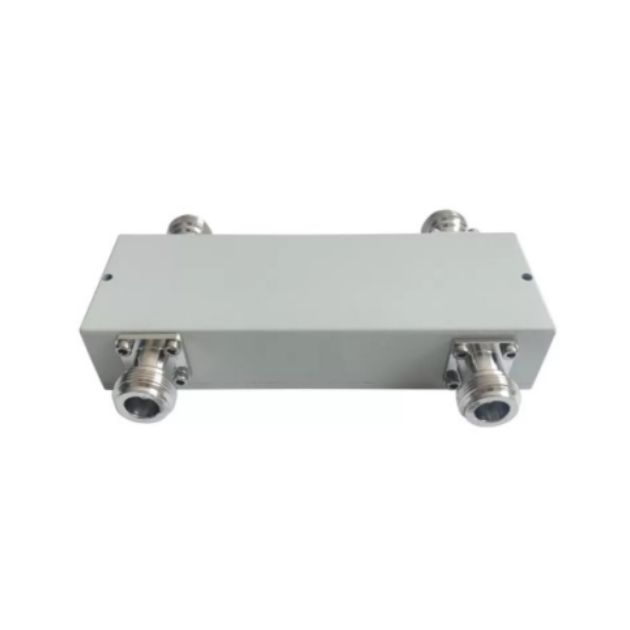

| N Female 3dB Hybrid Coupler | 550 – 2700 MHz | 300 Watt | DAS & IBS Systems |

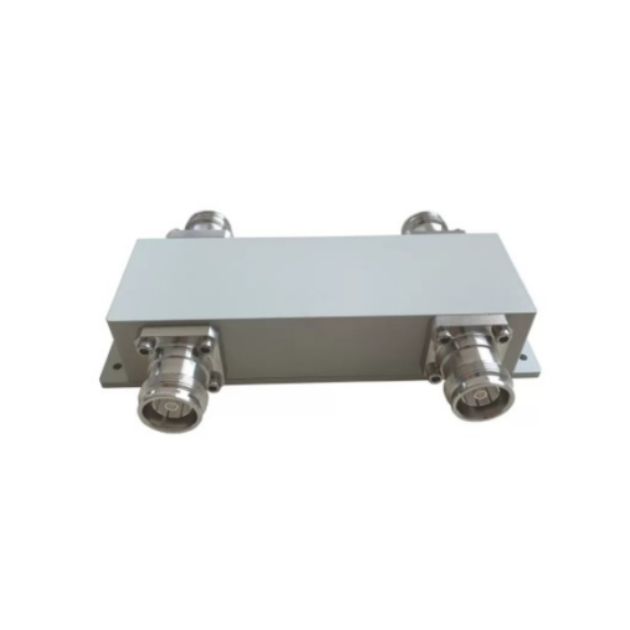

| 4.3-10 Female Hybrid Coupler | 698 – 3800 MHz | 200 Watt | 4G & 5G Networks |
| Low PIM 3dB Hybrid Coupler | 698 – 2700 MHz | 300 Watt | Telecom Infrastructure |
| Quadrature Hybrid Coupler | 550 – 3800 MHz | 300 Watt | RF Signal Distribution |
| Broadband Hybrid Coupler | 600 – 6000 MHz | High Power | Microwave RF Systems |
| 2 In 2 Out Hybrid Coupler | 698 – 4000 MHz | 500 Watt | Wireless Communication Systems |

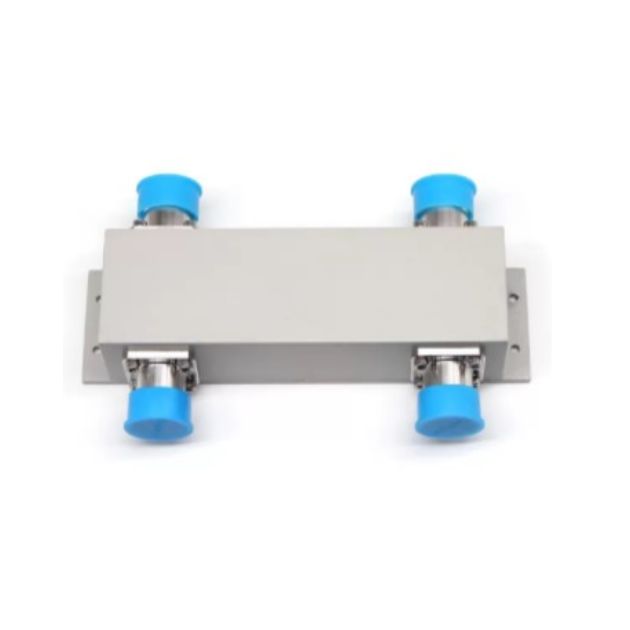

| DAS Hybrid Combiner | 698 – 3800 MHz | 200 – 500 Watt | Indoor Coverage Networks |
Why Choose us
Precision RF Engineering
Our 3dB Hybrid Couplers are manufactured using advanced RF technology for accurate signal splitting and combining performance.
Low PIM Performance
Designed for modern 4G and 5G telecom networks requiring minimal signal interference.
High Isolation Design
Provides excellent port isolation for improved RF signal quality and network efficiency.
Wide Frequency Support
Supports broadband communication systems from 550 MHz up to 6000 MHz.
Frequently Asked Questions
A 3dB Hybrid Coupler is a four-port RF device used to split or combine RF signals equally while maintaining phase difference.
They are used in DAS systems, telecom infrastructure, RF signal distribution networks, wireless communication systems, and microwave applications.
Most 3dB Hybrid Couplers are designed with standard 50 Ohm impedance for RF communication systems.
Hybrid couplers generally support frequencies from 550 MHz to 6000 MHz depending on design and application.
Low PIM hybrid couplers reduce passive intermodulation interference and improve telecom network performance.
Yes, these couplers are widely used in 4G LTE and 5G telecom infrastructure systems.
Hybrid couplers are commonly available with N Female and 4.3-10 Female RF connectors.
Yes, SRFS Teleinfra manufactures premium-quality RF hybrid couplers and telecom connectivity solutions.
Yes, SRFS Teleinfra manufactures premium-quality RF attenuators and telecom connectivity solutions.
