An SMA connector is a high-frequency radio frequency connector widely used in RF communication systems, wireless networking, antennas, telecommunications, aerospace, and electronic equipment. SMA connectors are known for their compact size, threaded coupling mechanism, excellent electrical performance, and ability to support microwave frequencies.
The term SMA stands for SubMiniature Version A. These connectors were developed for reliable high-frequency signal transmission in compact electronic systems. Due to their precision design and low signal loss, SMA connectors are commonly used in applications requiring stable RF performance and secure connectivity.
SMA connectors are extensively used in Wi-Fi devices, GPS systems, RF modules, antennas, test instruments, IoT devices, and telecom infrastructure. They are capable of handling frequencies up to 18 GHz and beyond, making them suitable for modern communication technologies.
Today, SMA connectors remain one of the most popular RF connector types in both commercial and industrial communication systems.
What is an SMA Connector?
An SMA connector is a threaded coaxial RF connector designed for transmitting high-frequency radio signals between cables, antennas, and communication devices.
The connector consists of:
- A center conductor
- Dielectric insulation
- Threaded outer coupling
- Metal shielding body
SMA connectors provide secure mechanical connections and excellent electrical performance for microwave and RF applications.

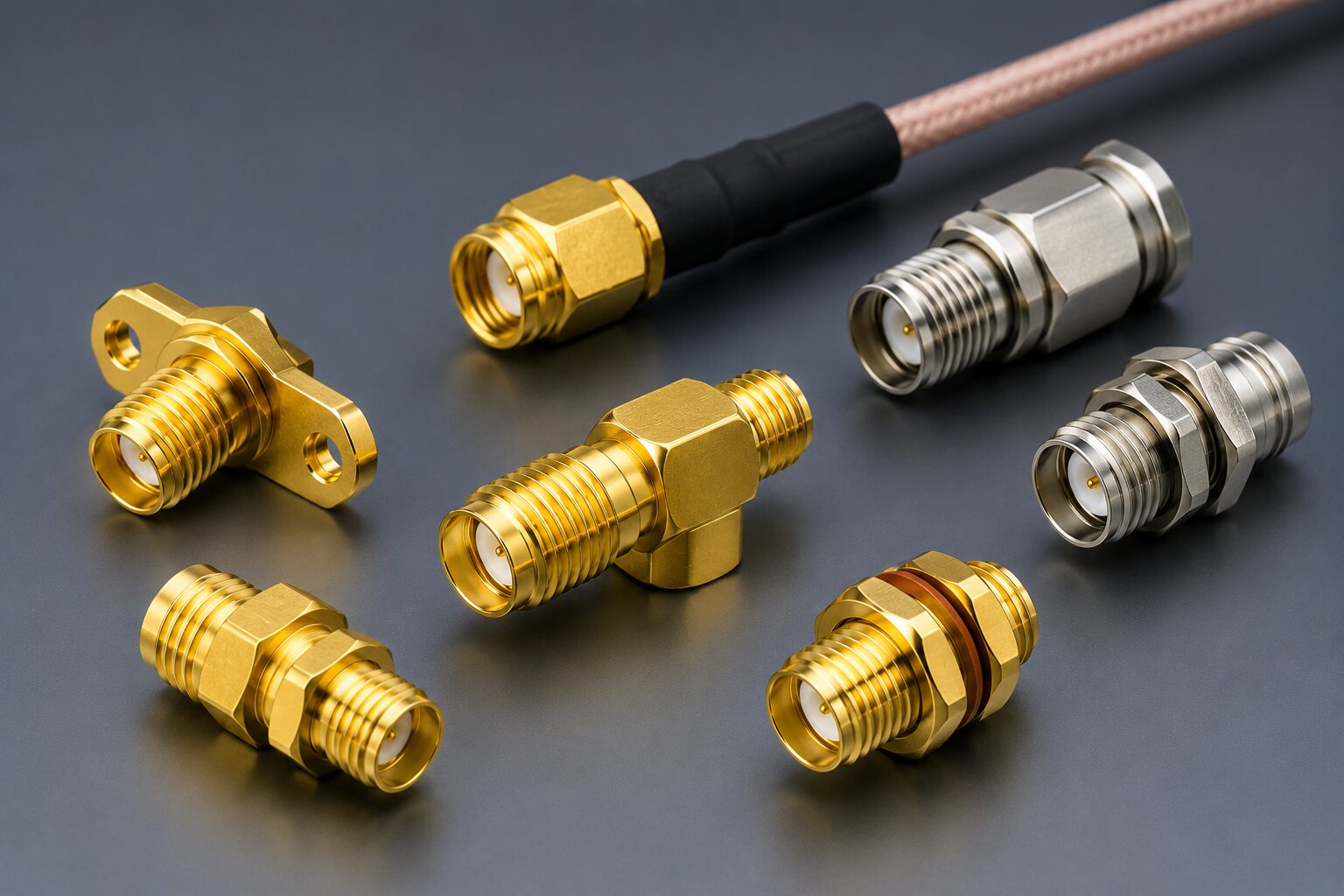

These connectors are available in:
- Male connectors
- Female connectors
- Reverse polarity SMA connectors
- Right-angle connectors
- Bulkhead connectors
SMA connectors are commonly used with coaxial cables such as RG58, RG174, RG316, and other RF cable assemblies.
Importance of SMA Connectors
Modern communication systems require stable and low-loss signal transmission at high frequencies. SMA connectors are important because they provide reliable RF performance while maintaining compact dimensions.
SMA connectors help:
- Minimize signal loss
- Improve RF connectivity
- Support high-frequency transmission
- Reduce electromagnetic interference
- Maintain signal integrity
Because of these advantages, SMA connectors are widely used in wireless communication and RF networking systems.
How Does an SMA Connector Work?
An SMA connector works by creating a secure electrical connection between RF cables and electronic devices. The center conductor carries the radio frequency signal, while the outer metal body provides shielding and grounding protection.
The threaded coupling mechanism ensures a firm connection that prevents accidental disconnection and maintains stable signal transmission.
High-quality SMA connectors provide:
- Low insertion loss
- Excellent impedance matching
- High-frequency stability
- Reduced signal reflection
These characteristics make SMA connectors suitable for microwave and RF applications.
Components of an SMA Connector
An SMA connector contains several important parts that help maintain RF performance and mechanical stability.
Center Pin
The center pin transfers the RF signal between connected devices.
Dielectric Insulator
The insulator separates the center conductor from the outer body and maintains impedance consistency.
Threaded Coupling Nut
The threaded mechanism secures the connector firmly during installation.
Outer Shield
The metal outer shell provides EMI and RF shielding protection.
Cable Termination Section
This section connects the coaxial cable to the connector body.
Types of SMA Connectors
SMA connectors are available in different configurations depending on application requirements.
SMA Male Connector
The SMA male connector contains a center pin and threaded outer coupling.
Applications
- Antenna connections
- RF modules
- Wireless communication systems
SMA Female Connector
The SMA female connector accepts the male center pin and threaded connection.
Uses
- RF devices
- Testing instruments
- Communication equipment
Reverse Polarity SMA Connector
Reverse polarity SMA connectors are designed with reversed gender pin configurations.
Applications
- Wi-Fi routers
- Wireless networking devices
- Antenna systems
Right Angle SMA Connector
Right-angle connectors are used where installation space is limited.
Benefits
- Better cable routing
- Space-saving installation
- Reduced cable stress
Bulkhead SMA Connector
Bulkhead connectors are designed for panel-mount applications.
Uses
- Enclosures
- RF panels
- Communication cabinets
Applications of SMA Connectors
SMA connectors are used in a wide range of industries and RF communication systems.
Wireless Communication Systems
SMA connectors are commonly used in wireless communication devices.
Applications
- Wi-Fi routers
- Wireless modules
- RF transceivers
- Bluetooth devices
Antenna Systems
Many RF antennas use SMA connectors for stable signal connectivity.
Examples
- GPS antennas
- LTE antennas
- RF antennas
- IoT antennas
Telecommunications Industry
Telecom infrastructure uses SMA connectors in RF communication equipment.
Uses
- Base stations
- RF modules
- Signal amplifiers
Test and Measurement Equipment
Electronic laboratories use SMA connectors in precision testing instruments.
Equipment
- Spectrum analyzers
- Signal generators
- Oscilloscopes
- Network analyzers
Aerospace and Defense
Military and aerospace systems require high-reliability SMA connectivity.
Benefits
- Stable RF performance
- Vibration resistance
- High-frequency support
Medical Equipment
Medical communication systems use SMA connectors in monitoring and RF-based devices.
Advantages of SMA Connectors
SMA connectors provide several important benefits for RF communication systems.
High-Frequency Performance
SMA connectors support microwave frequencies up to 18 GHz and higher.
Secure Threaded Connection
The threaded design ensures stable and reliable connectivity.
Low Signal Loss
Precision manufacturing minimizes insertion loss and signal reflection.
Compact Size
Their small size makes them ideal for compact electronic devices.
Excellent Shielding
The metal body protects signals from electromagnetic interference.
Long Operational Life
SMA connectors are built for repeated connections and long-term reliability.
Technical Specifications of SMA Connectors
SMA connector specifications vary depending on design and application.
Impedance
Common impedance values include:
- 50 ohm
- 75 ohm
Frequency Range
Most SMA connectors support frequencies up to 18 GHz, while precision versions may exceed 26 GHz.
Material
SMA connectors are commonly manufactured using:
- Brass
- Stainless steel
- Gold-plated contacts
- Nickel-plated bodies
Operating Temperature
Industrial SMA connectors can operate in harsh environmental conditions.
Insertion Loss
High-quality connectors provide low insertion loss for efficient signal transmission.
Cable Types Used with SMA Connectors
SMA connectors are compatible with multiple coaxial cable types.
RG174 Cable
Used in compact RF applications and wireless systems.
RG316 Cable
Provides excellent flexibility and high-frequency performance.
RG58 Cable
Commonly used in RF communication systems.
Installation Methods of SMA Connectors
Proper installation helps maintain stable RF performance.
Crimp Type SMA Connector
Installed using crimping tools for secure cable termination.
Solder Type SMA Connector
Uses soldering for durable electrical connections.
Compression Type SMA Connector
Provides stronger cable retention and weather resistance.
Difference Between SMA and Other RF Connectors
SMA connectors differ from other RF connector types in design and application.
SMA vs BNC Connector
SMA Connector
- Threaded locking mechanism
- Higher frequency support
- Compact size
BNC Connector
- Bayonet locking system
- Faster connection
- Lower frequency range
SMA vs N Type Connector
SMA Connector
- Smaller size
- Suitable for compact devices
- High-frequency capability
N Type Connector
- Better for high-power applications
- Larger design
- Outdoor suitability
Common Problems with SMA Connectors
Improper installation or poor-quality connectors may create performance issues.
Signal Loss
Low-quality connectors can reduce RF performance.
Loose Connections
Improper tightening may affect signal transmission.
Connector Damage
Over-tightening can damage threaded sections.
Corrosion
Outdoor applications may expose connectors to moisture.
Tips for Choosing the Right SMA Connector
Selecting the correct SMA connector improves communication reliability and RF performance.
Match Cable Compatibility
Ensure the connector supports the required coaxial cable type.
Verify Frequency Requirements
Choose connectors suitable for operating frequency ranges.
Check Impedance
Use proper impedance values to minimize reflection.
Consider Environmental Conditions
Outdoor systems may require weather-resistant connectors.
Select High-Quality Materials
Durable materials improve performance and lifespan.
Future of SMA Connectors
SMA connectors continue to evolve with advancements in wireless communication technologies.
Modern developments include:
- High-frequency SMA connectors
- Precision microwave connectors
- Miniature RF connectivity solutions
- Enhanced shielding designs
- 5G communication compatibility
As wireless communication, IoT, and high-speed networking continue to expand, SMA connectors will remain important components in RF and microwave systems.
Conclusion
SMA connectors are essential RF components used for reliable high-frequency signal transmission in wireless communication, telecommunications, antennas, aerospace, and testing equipment. Their compact size, threaded locking mechanism, low signal loss, and excellent RF performance make them ideal for modern communication systems.
From Wi-Fi devices and GPS antennas to telecom infrastructure and laboratory instruments, SMA connectors provide stable and efficient RF connectivity across numerous industries. Understanding their types, applications, specifications, and installation methods helps in selecting the right connector for professional communication and networking systems.
