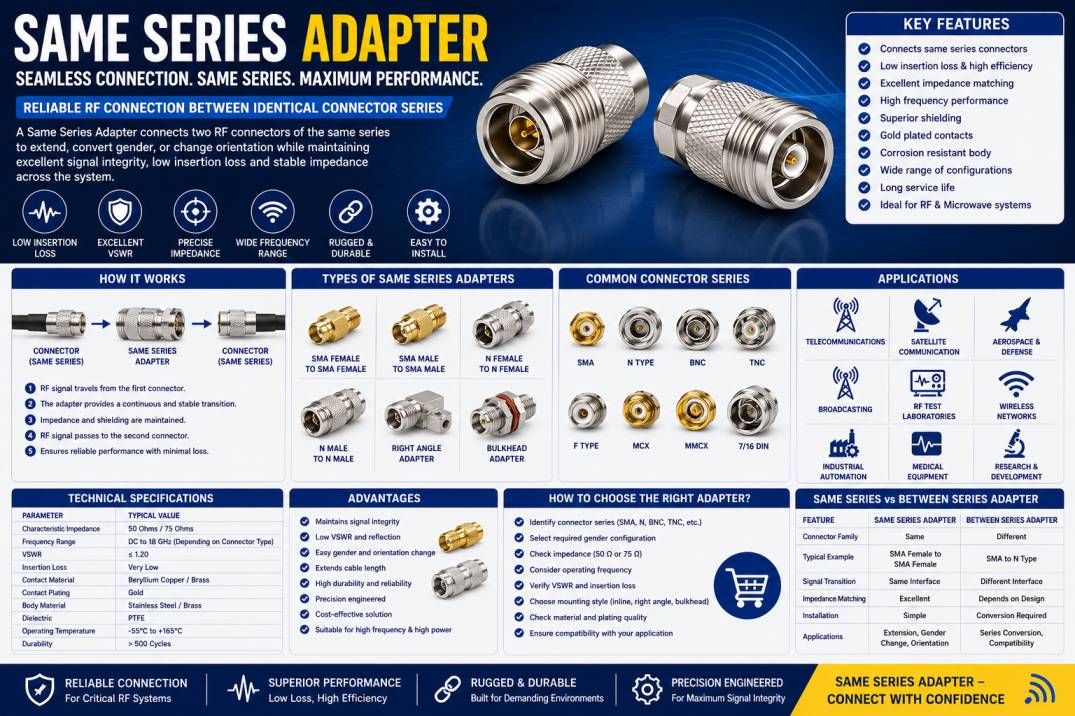

A Same Series Adapter is an essential radio frequency (RF) connector accessory designed to connect two RF connectors belonging to the same connector family while maintaining excellent signal integrity and electrical performance. These adapters are widely used in RF communication systems, wireless networking, test laboratories, aerospace, defense, satellite communication, broadcasting, and industrial automation where reliable interconnection between RF devices is required.
Unlike between-series adapters, which connect different connector types such as SMA to N-Type or BNC to TNC, a Same Series Adapter connects identical connector families while changing connector gender, orientation, or mounting style. For example, an SMA Female to SMA Female adapter or an N Male to N Male adapter is considered a Same Series Adapter.
These adapters simplify system integration, extend cable connections, adapt connector interfaces, and reduce the need for replacing existing RF cables. Manufactured with precision machining and high-quality conductive materials, Same Series Adapters provide low insertion loss, excellent impedance matching, and dependable performance across a wide frequency range.
This comprehensive guide explains everything you need to know about Same Series Adapters, including their construction, working principle, specifications, types, applications, advantages, and selection criteria.
What Is a Same Series Adapter?
A Same Series Adapter is an RF interconnect component designed to join two connectors of the same connector series while preserving the electrical characteristics of the RF transmission line.
These adapters are commonly used to:
- Change connector gender
- Extend RF cable connections
- Convert mounting orientation
- Join two RF cables
- Connect test equipment
- Improve installation flexibility
Common Same Series Adapter families include:
- SMA to SMA
- N-Type to N-Type
- BNC to BNC
- TNC to TNC
- F-Type to F-Type
- MCX to MCX
- MMCX to MMCX
- 7/16 DIN to 7/16 DIN
How Does a Same Series Adapter Work?
A Same Series Adapter creates a continuous RF transmission path between two identical connector interfaces.
When connected:
- The center contacts transfer the RF signal.
- The outer body maintains grounding and shielding.
- Precision impedance matching minimizes reflections.
- RF signals travel with minimal insertion loss.
Because both connector interfaces belong to the same series, signal integrity is maintained while providing greater installation flexibility.
Construction of a Same Series Adapter
Center Contact
The center conductor transfers the RF signal between connectors.
Common materials include:
- Beryllium Copper
- Brass
- Phosphor Bronze
Most contacts are gold-plated for excellent conductivity and corrosion resistance.
Dielectric Insulator
The dielectric separates the center contact from the outer body.
Common materials include:
- PTFE
- Teflon
- High-performance engineering plastics
These materials provide stable impedance and excellent insulation.
Connector Body
The housing is manufactured using:
- Stainless Steel
- Brass
- Nickel-Plated Brass
These materials provide mechanical durability and environmental resistance.
Outer Shield
The outer conductor maintains grounding and provides excellent EMI shielding throughout the RF connection.
Working Principle of a Same Series Adapter
The adapter functions as a precision RF transition.
The process includes:
- RF signal enters the first connector.
- Signal travels through the precision center conductor.
- Constant impedance is maintained.
- The shield minimizes electromagnetic interference.
- RF signal exits through the second connector.
This controlled transition minimizes return loss and preserves signal quality across the connection.
Types of Same Series Adapters
SMA Female to SMA Female Adapter
Used for joining two SMA Male cables.
SMA Male to SMA Male Adapter
Used to connect two SMA Female connectors.
N Female to N Female Adapter
Commonly used in wireless communication systems.
N Male to N Male Adapter
Provides secure high-power RF interconnection.
BNC Female to BNC Female Adapter
Used in broadcasting, laboratory equipment, and CCTV systems.
TNC Female to TNC Female Adapter
Suitable for vibration-resistant RF systems.
Right Angle Same Series Adapter
Provides 90-degree cable routing where installation space is limited.
Bulkhead Same Series Adapter
Designed for panel mounting applications.
Technical Specifications
| Specification | Typical Value |
|---|---|
| Characteristic Impedance | 50 Ohms / 75 Ohms |
| Frequency Range | DC to 18 GHz (depending on connector type) |
| VSWR | ≤ 1.20 |
| Insertion Loss | Very Low |
| Contact Material | Beryllium Copper / Brass |
| Contact Plating | Gold |
| Body Material | Stainless Steel / Brass |
| Dielectric | PTFE |
| Mounting Style | Inline / Bulkhead / Right Angle |
| Operating Temperature | -55°C to +165°C |
Key Features of Same Series Adapters
- Low insertion loss
- Excellent impedance matching
- High-frequency performance
- Superior shielding
- Precision machining
- Corrosion-resistant materials
- Wide connector compatibility
- Compact design
- Easy installation
- Long service life
- Reliable mechanical strength
- Excellent return loss
Common Connector Series
Same Series Adapters are available for numerous RF connector families.
Popular options include:
- SMA
- N-Type
- BNC
- TNC
- MCX
- MMCX
- SMB
- SMC
- F-Type
- UHF (PL-259)
- 7/16 DIN
- 4.3-10
Applications of Same Series Adapters
Telecommunications
Connects RF equipment, antennas, and base stations.
Wireless Communication
Supports Wi-Fi, LTE, and 5G installations.
Satellite Communication
Interconnects satellite receivers, transmitters, and RF modules.
Broadcasting
Used in television and radio transmission equipment.
Aerospace
Supports aircraft communication and navigation systems.
Military and Defense
Used in secure communication systems, radar, and electronic warfare.
RF Test Laboratories
Connects:
- Network analyzers
- Spectrum analyzers
- Signal generators
- RF calibration equipment
Industrial Automation
Supports wireless industrial communication systems.
Medical Equipment
Used in MRI systems, RF imaging equipment, and diagnostic instruments.
Research and Development
Provides flexible RF interconnections for prototype testing.
Advantages of Same Series Adapters
- Preserves signal integrity
- Low signal loss
- Excellent shielding performance
- Easy connector conversion
- Reduces cable replacement costs
- High mechanical reliability
- Supports high-frequency applications
- Compact and lightweight
- Long operational life
- Wide product availability
- Cost-effective RF solution
- Easy installation and maintenance
Limitations of Same Series Adapters
- Every additional adapter introduces a small amount of insertion loss
- Incorrect impedance selection can affect RF performance
- High-frequency precision models are more expensive
- Improper tightening may damage connector threads
- Connector compatibility must be verified before installation
How to Choose the Right Same Series Adapter
Before selecting a Same Series Adapter, consider:
- Connector series
- Connector gender
- Characteristic impedance
- Operating frequency
- Mounting style
- VSWR
- Insertion loss
- Environmental conditions
- Material quality
- Power handling requirements
Same Series Adapter vs Between Series Adapter
| Feature | Same Series Adapter | Between Series Adapter |
|---|---|---|
| Connector Family | Same | Different |
| Signal Transition | Same Interface | Different Interface |
| Typical Example | SMA Female to SMA Female | SMA to N-Type |
| Impedance Matching | Excellent | Depends on Design |
| Installation | Simple | Conversion Required |
| Applications | Cable Extension | Connector Conversion |
Industries Using Same Series Adapters
Same Series Adapters are widely used in:
- Telecommunications
- Broadcasting
- Aerospace
- Defense
- Satellite Communication
- Industrial Automation
- Scientific Research
- Medical Electronics
- Wireless Networking
- RF Testing Laboratories
Maintenance Tips
To maximize service life:
- Keep connectors clean.
- Avoid over-tightening.
- Inspect connector threads regularly.
- Use proper torque tools.
- Protect connectors from moisture.
- Replace worn adapters immediately.
- Store adapters in clean, dry environments.
Future Trends of Same Series Adapters
As RF systems continue to evolve with 5G Advanced, satellite internet, Open RAN, industrial IoT, and emerging 6G technologies, Same Series Adapters are being engineered with tighter machining tolerances, improved plating materials, lower insertion loss, and higher frequency capabilities. Manufacturers are also introducing lightweight, corrosion-resistant designs and precision adapters capable of supporting millimeter-wave communication systems above 40 GHz, ensuring dependable performance for next-generation wireless infrastructure and advanced RF testing applications.
Conclusion
Same Series Adapters are indispensable RF interconnect components that enable seamless connections between identical connector families while maintaining excellent electrical performance. Their low insertion loss, controlled impedance, robust construction, and wide compatibility make them ideal for telecommunications, aerospace, defense, satellite communication, broadcasting, industrial automation, and RF testing. Choosing the correct Same Series Adapter based on connector type, impedance, operating frequency, and application requirements ensures reliable signal transmission and long-term system performance.
Frequently Asked Questions (FAQs)
1. What is a Same Series Adapter?
A Same Series Adapter is an RF connector adapter used to connect two connectors belonging to the same connector family while maintaining signal integrity.
2. What is a Same Series Adapter used for?
It is used to extend RF cable connections, change connector gender, modify connector orientation, and connect RF equipment with identical connector types.
3. What is the difference between a Same Series Adapter and a Between Series Adapter?
A Same Series Adapter connects identical connector families, while a Between Series Adapter connects different connector types, such as SMA to N-Type.
4. What connector types are available?
Common connector families include SMA, N-Type, BNC, TNC, F-Type, MCX, MMCX, SMB, SMC, UHF, 7/16 DIN, and 4.3-10.
5. What impedance options are available?
Most Same Series Adapters are available in 50 Ohm and 75 Ohm configurations.
6. What frequency range can a Same Series Adapter support?
Depending on the connector type and design, Same Series Adapters can support frequencies from DC up to 18 GHz or higher.
7. What materials are used in Same Series Adapters?
They are typically manufactured using stainless steel or brass bodies, gold-plated beryllium copper contacts, and PTFE dielectric insulation.
8. What are the advantages of using a Same Series Adapter?
They provide low insertion loss, excellent impedance matching, easy connector conversion, reliable RF performance, and long service life.
9. Where are Same Series Adapters commonly used?
They are widely used in telecommunications, satellite communication, aerospace, defense, broadcasting, industrial automation, medical electronics, and RF laboratories.
10. How do I choose the right Same Series Adapter?
Choose a Same Series Adapter based on connector family, connector gender, impedance, operating frequency, power handling, mounting style, insertion loss, and environmental conditions.
