A 90 Degree Hybrid Coupler is a four-port passive RF and microwave component designed to divide or combine electromagnetic signals while maintaining a precise 90-degree phase relationship between its output signals. It is widely used in RF communication systems, microwave networks, antenna systems, radar, test equipment, and signal-processing applications where accurate power distribution and phase control are essential.
Also known as a quadrature hybrid coupler, the 90 Degree Hybrid Coupler typically divides an input signal into two output signals with approximately equal amplitude and a phase difference of 90 degrees. It can also operate in the reverse direction to combine signals.
What Is a 90 Degree Hybrid Coupler?
A 90 Degree Hybrid Coupler is a passive four-port RF device that provides controlled power coupling between its ports. In a typical configuration, one input signal is applied to the input port, while the device produces two output signals that have a defined phase difference of approximately 90 degrees.
The fourth port is generally isolated from the input under ideal operating conditions.
The device is commonly designed for 50-ohm RF systems, although other impedance configurations may be available depending on the application and manufacturer.
The main functions of a 90 Degree Hybrid Coupler include:
- RF signal splitting
- RF signal combining
- Quadrature phase generation
- Power distribution
- Signal isolation
- Balanced signal generation
- Antenna feed and combining
- Phase and amplitude control
How Does a 90 Degree Hybrid Coupler Work?
The working principle of a 90 Degree Hybrid Coupler is based on controlled electromagnetic coupling inside its RF structure.
When an RF signal enters the input port, the coupler distributes the signal between two output ports. Ideally, the two output signals have equal power but differ in phase by 90 degrees.
For example, if a signal enters Port 1, the output may be distributed between Port 2 and Port 3 with approximately equal amplitude:
Port 2 → 0° phase reference
Port 3 → 90° phase shift
Port 4 remains ideally isolated from the input signal.
The exact port numbering and phase convention depend on the specific coupler design, so the manufacturer’s datasheet should always be checked when integrating a particular model.

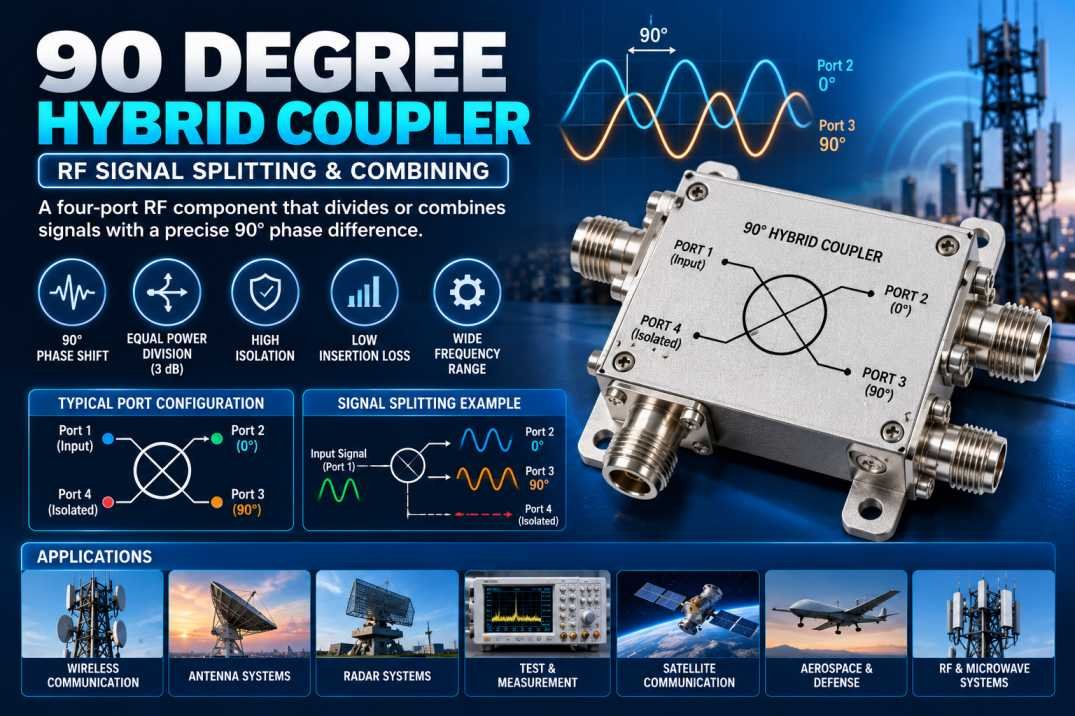

Basic Port Configuration
A typical 90 Degree Hybrid Coupler has four ports:
| Port | Typical Function |
|---|---|
| Port 1 | Input |
| Port 2 | Coupled Output |
| Port 3 | Quadrature Output |
| Port 4 | Isolated Port |
When the device is used as a splitter, one input signal can be divided between two output ports. When operated in reverse, the two signals can be combined to produce an output signal.
This bidirectional characteristic makes the 90 Degree Hybrid Coupler useful in many RF architectures.
Construction of a 90 Degree Hybrid Coupler
The internal construction depends on the operating frequency, power level, physical size, and required RF performance.
Common implementations include:
Branch-Line Hybrid
A branch-line hybrid uses interconnected transmission-line sections to achieve the required power division and phase relationship. It is commonly implemented in microstrip or stripline technology for microwave circuits.
Coupled-Line Structure
Coupled transmission lines can be designed to provide controlled electromagnetic coupling between RF paths. This approach is used in various RF and microwave hybrid configurations.
Waveguide Hybrid
For high-frequency or high-power applications, waveguide-based structures can provide excellent RF performance and power-handling capability.
Coaxial Hybrid
Coaxial designs are useful when a compact, mechanically robust RF component is required for cable-based systems and equipment integration.
Key Specifications of a 90 Degree Hybrid Coupler
Several electrical and mechanical parameters should be considered when selecting a 90 Degree Hybrid Coupler.
Frequency Range
The operating frequency range defines where the coupler can provide its specified RF performance. A coupler should be selected according to the exact frequency band of the application.
Coupling and Power Division
A typical 90-degree hybrid provides approximately equal power division between two output ports. In an ideal 3 dB hybrid, each output receives approximately half of the input power, apart from losses.
Phase Difference
The defining characteristic is the approximately 90-degree phase difference between the two output signals.
Insertion Loss
Insertion loss represents the RF power lost as the signal passes through the component. Lower insertion loss generally indicates better transmission efficiency.
Isolation
Isolation describes how effectively the isolated port is separated from the input or other ports. High isolation is important in systems where unwanted signal interaction must be minimized.
VSWR
Voltage Standing Wave Ratio indicates how well the coupler is impedance matched to the RF system. Good matching helps reduce signal reflections.
Return Loss
Return loss indicates the amount of signal reflected toward the source due to impedance mismatch. Higher return loss generally indicates better matching.
Important Features of a 90 Degree Hybrid Coupler
A high-quality 90 Degree Hybrid Coupler can provide several important RF system benefits:
- Precise quadrature phase relationship
- Controlled RF power division
- Low insertion loss
- Good port-to-port isolation
- Low VSWR
- High return loss
- Compact construction
- Wide operating frequency options
- Reliable RF performance
- Suitable for signal combining and splitting
- Available in coaxial, microstrip, stripline, and waveguide configurations
Applications of 90 Degree Hybrid Coupler
The 90 Degree Hybrid Coupler is used in numerous RF and microwave applications.
Antenna Systems
Hybrid couplers can feed antenna elements with controlled amplitude and phase relationships. They are particularly useful in phased and balanced antenna architectures.
Wireless Communication
In wireless communication equipment, hybrid couplers can be used for signal splitting, combining, balanced circuits, and RF front-end architectures.
Radar Systems
Radar systems often require precise phase and amplitude control. A 90 Degree Hybrid Coupler can support signal distribution and combining within radar RF networks.
RF Power Amplifiers
Hybrid couplers can be used around amplifier architectures for power combining, signal distribution, and balanced amplifier configurations.
Balanced Mixers
Quadrature hybrids can provide the phase relationships required by certain balanced mixer and frequency-conversion circuits.
Test and Measurement
RF test systems use hybrid couplers for signal routing, phase comparison, power division, and measurement configurations.
Satellite and Aerospace Systems
Compact and reliable RF components are essential in satellite and aerospace communication systems. Hybrid couplers can be integrated into antenna feeds, transceivers, and microwave subsystems.
Electronic Warfare and Defense
RF signal distribution and phase control are important in many defense electronics. Hybrid couplers can support antenna networks, RF front ends, and signal-processing architectures.
Advantages of a 90 Degree Hybrid Coupler
The major advantage of a 90 Degree Hybrid Coupler is its ability to provide controlled power division with a defined quadrature phase relationship.
Other benefits include:
Accurate Phase Control: The 90-degree phase relationship can be useful for generating circular polarization and balanced RF signals.
Signal Isolation: The isolated port helps reduce unwanted interaction between RF paths.
Bidirectional Operation: Many hybrid couplers can function as both signal dividers and combiners.
Flexible Integration: Different construction technologies allow hybrid couplers to be used across various frequency ranges and system architectures.
Improved RF System Design: Hybrid couplers can simplify signal distribution and phase-management requirements in complex RF networks.
90 Degree Hybrid Coupler vs 180 Degree Hybrid Coupler
Although both devices are hybrid couplers, their phase relationships are different.
| Feature | 90 Degree Hybrid | 180 Degree Hybrid |
|---|---|---|
| Phase Relationship | 90° | 180° |
| Common Name | Quadrature Hybrid | Rat-Race Hybrid |
| Typical Function | Quadrature splitting/combining | In-phase or out-of-phase combining |
| Applications | Balanced circuits, antenna feeds, mixers | Power combining, balanced networks |
| Port Configuration | Four-port device | Four-port device |
The appropriate type depends on the required phase relationship and RF architecture.
How to Select a 90 Degree Hybrid Coupler
Selecting the correct hybrid coupler requires evaluating both electrical and mechanical requirements.
1. Determine the Operating Frequency
Select a model whose specified frequency range covers the complete operating band of your system.
2. Check Power Handling
The coupler must safely handle the maximum RF input power, including continuous and peak power where applicable.
3. Evaluate Insertion Loss
Choose a low-loss design when signal efficiency is critical.
4. Check Phase Balance
If the system requires accurate quadrature operation, review the phase balance specification across the complete frequency range.
5. Check Amplitude Balance
The output power levels should remain sufficiently balanced for the intended application.
6. Review VSWR and Isolation
Good impedance matching and isolation can improve overall RF system performance.
7. Consider Connector Type
Depending on the system, couplers may be available with SMA, N, TNC, 7/16 DIN, 2.92 mm, 2.4 mm, waveguide, or other interfaces.
8. Consider Mechanical Requirements
Check mounting style, dimensions, weight, environmental rating, and enclosure requirements before installation.
Why Is a 90 Degree Hybrid Coupler Important in RF Systems?
Modern RF systems often require more than simple signal transmission. They may need accurate phase relationships, controlled power distribution, isolation, and signal combining.
A 90 Degree Hybrid Coupler provides these functions in a compact passive device. By producing two controlled RF outputs with a quadrature phase relationship, it can support advanced architectures such as balanced amplifiers, antenna systems, mixers, radar systems, and wireless communication equipment.
Its passive operation also means that it does not require an external power supply to perform its basic RF coupling function.
Conclusion
A 90 Degree Hybrid Coupler is an important passive RF and microwave component used for controlled signal splitting, combining, isolation, and quadrature phase generation. Its ability to provide approximately equal power distribution with a 90-degree phase relationship makes it valuable in wireless communication, antenna systems, radar, aerospace, defense, test equipment, and microwave electronics.
When selecting a hybrid coupler, engineers should evaluate frequency range, power handling, insertion loss, VSWR, isolation, amplitude balance, phase balance, connector type, and mechanical configuration. Choosing a device that matches the complete RF system requirements helps achieve reliable and predictable performance.
FAQs About 90 Degree Hybrid Coupler
1. What is a 90 Degree Hybrid Coupler?
A 90 Degree Hybrid Coupler is a four-port passive RF device that divides or combines signals while maintaining an approximately 90-degree phase difference between selected ports.
2. Why is it called a 90 Degree Hybrid Coupler?
It is called a 90-degree hybrid because the device creates a quadrature, or approximately 90-degree, phase relationship between its output signals.
3. Is a 90 Degree Hybrid Coupler a power splitter?
It can function as a power splitter, but it also provides a controlled phase relationship and an isolated port, making it more specialized than a basic splitter.
4. What is a 3 dB 90 Degree Hybrid Coupler?
A 3 dB 90-degree hybrid is designed to divide input power approximately equally between two output ports, with each output ideally receiving half of the input power apart from losses.
5. What are the main applications of a 90 Degree Hybrid Coupler?
Applications include antenna systems, wireless communication, radar, balanced amplifiers, mixers, satellite systems, test equipment, aerospace, and defense electronics.
6. What is the difference between a 90-degree and 180-degree hybrid?
A 90-degree hybrid produces a quadrature phase relationship, while a 180-degree hybrid provides an in-phase or out-of-phase relationship depending on the ports used.
7. What specifications are important when choosing a hybrid coupler?
Important specifications include frequency range, insertion loss, isolation, VSWR, return loss, phase balance, amplitude balance, power handling, and connector configuration.
8. Can a 90 Degree Hybrid Coupler combine signals?
Yes. Depending on the port configuration, a hybrid coupler can operate in reverse as a signal combiner.
9. Does a 90 Degree Hybrid Coupler require power?
No. It is generally a passive RF component and does not require an external DC power supply for its basic coupling operation.
10. Where can a 90 Degree Hybrid Coupler be used?
It can be integrated into RF front ends, antenna networks, communication systems, radar equipment, microwave circuits, test systems, satellite equipment, and defense electronics.
