N RF Terminations
N RF Terminations are precision RF and microwave components designed to absorb RF signal power and eliminate unwanted reflections in coaxial transmission lines. Supporting frequencies from DC up to 18 GHz, these terminations provide accurate 50 Ohm impedance matching, ensuring superior signal integrity and reliable RF system performance. They are widely used in telecommunications, wireless communication, aerospace, defense, radar systems, satellite communication, broadcasting, RF laboratories, and microwave test & measurement applications. Precision Type N terminations are commonly used to terminate unused RF ports and improve measurement accuracy in broadband RF systems.
At SRFS Teleinfra, we manufacture premium-quality N RF Terminations using precision resistive elements, high-grade Type N connectors, and advanced CNC machining technology. Our RF terminations deliver low VSWR, excellent return loss, stable impedance, and long service life, making them suitable for demanding commercial and military RF applications.
All our N RF Terminations are manufactured in India under stringent quality control procedures using premium raw materials and advanced manufacturing processes. Every product undergoes comprehensive electrical and mechanical testing to ensure dependable performance, excellent durability, and consistent RF measurements.
What is an N RF Termination?
An N RF Termination is a precision matched load designed to absorb RF energy and terminate unused RF ports without causing signal reflections. It provides an accurate 50 Ohm impedance, helping maximize power transfer, protect RF equipment, and improve measurement accuracy in RF and microwave systems.
The threaded Type N connector offers outstanding mechanical strength, weather resistance, and vibration resistance, making it one of the most widely used RF connector interfaces for indoor and outdoor communication systems. Precision Type N terminations are available up to 18 GHz for high-frequency applications.
Types of N RF Terminations

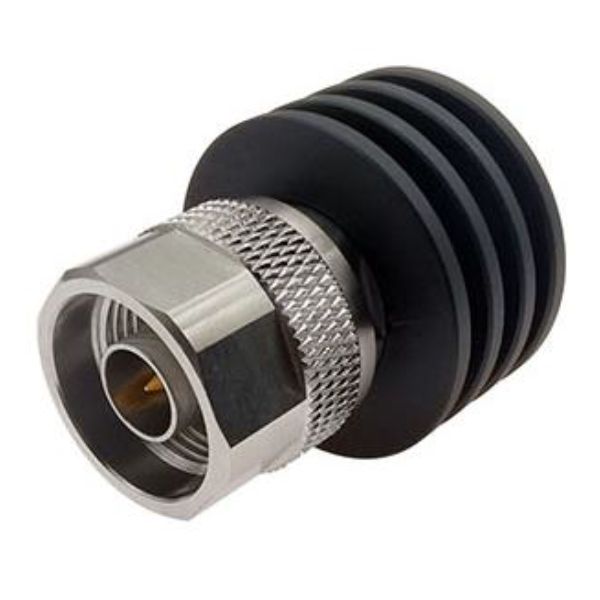

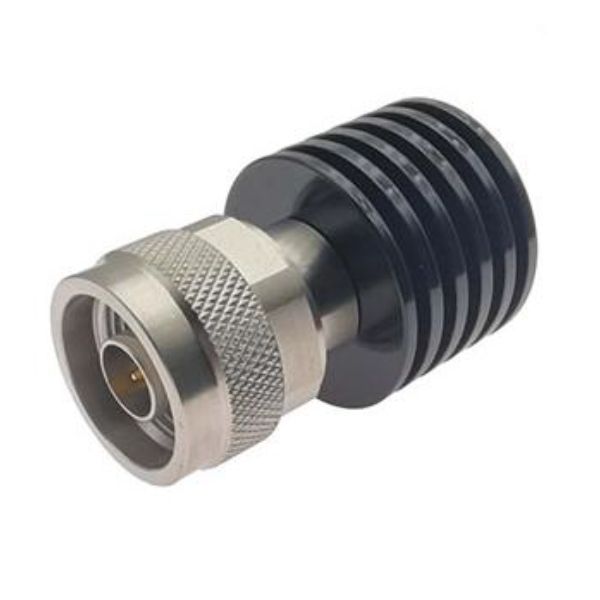

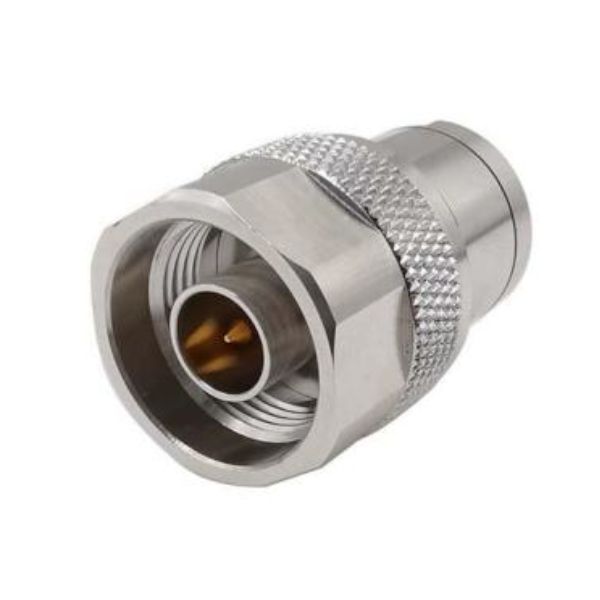

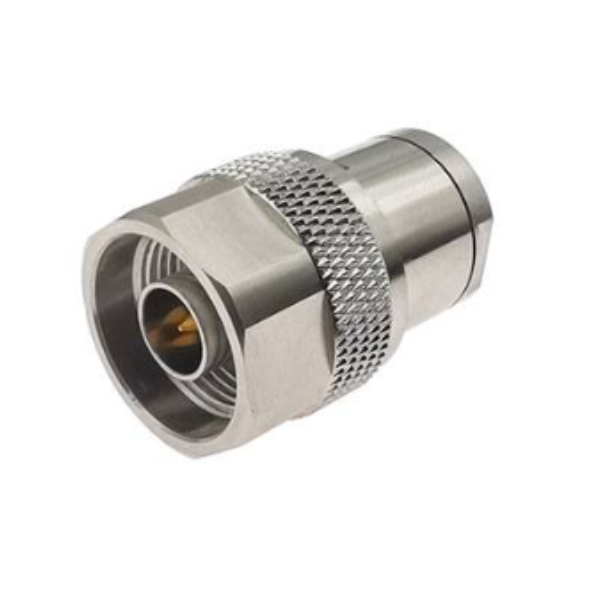

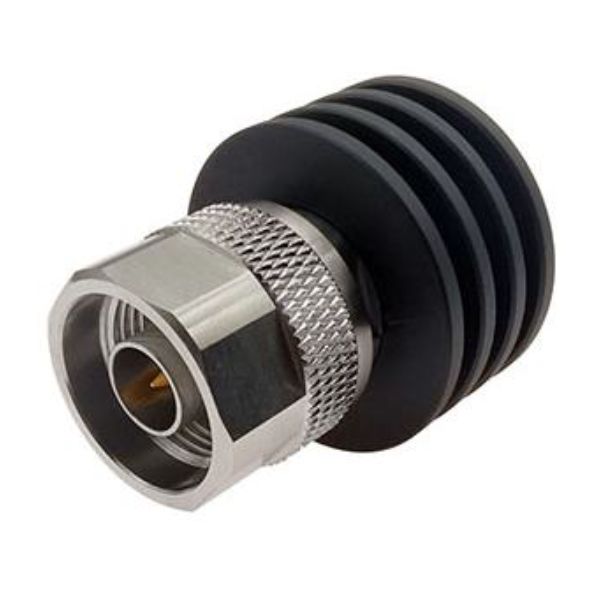

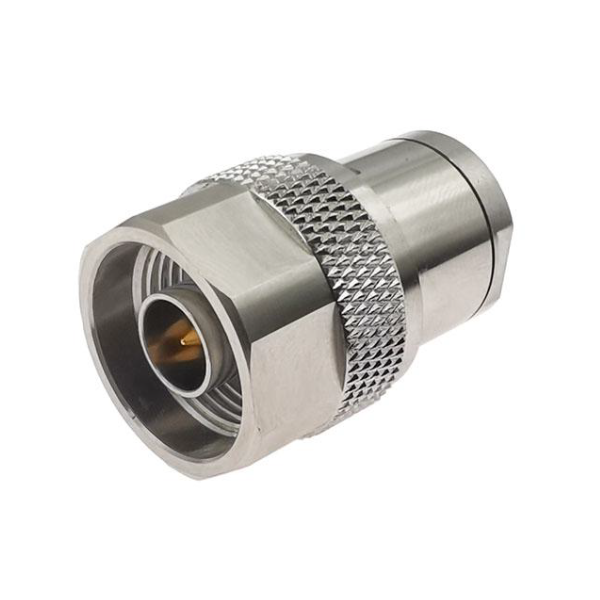

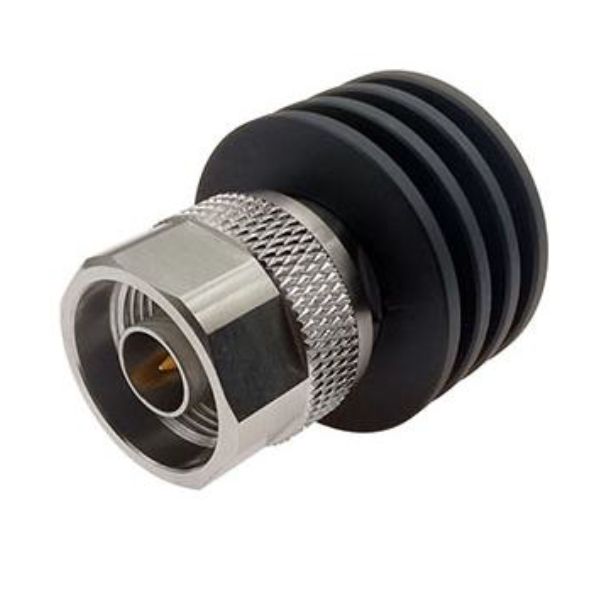

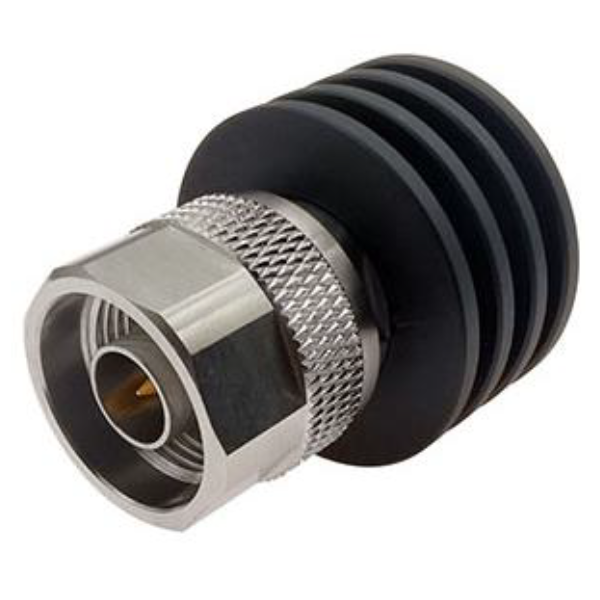

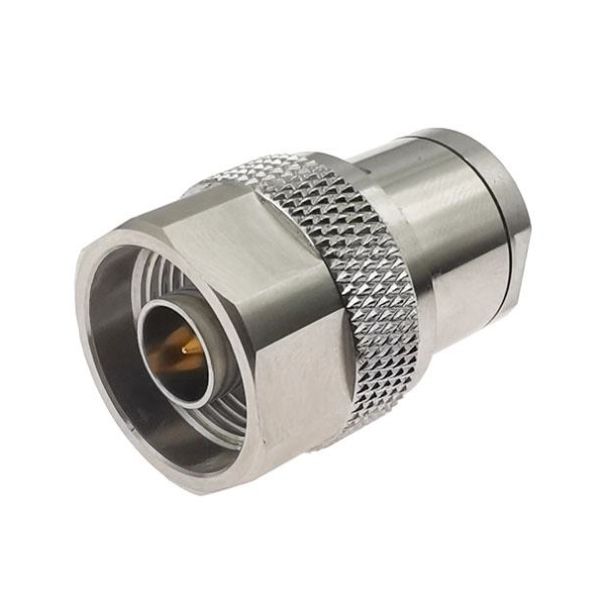

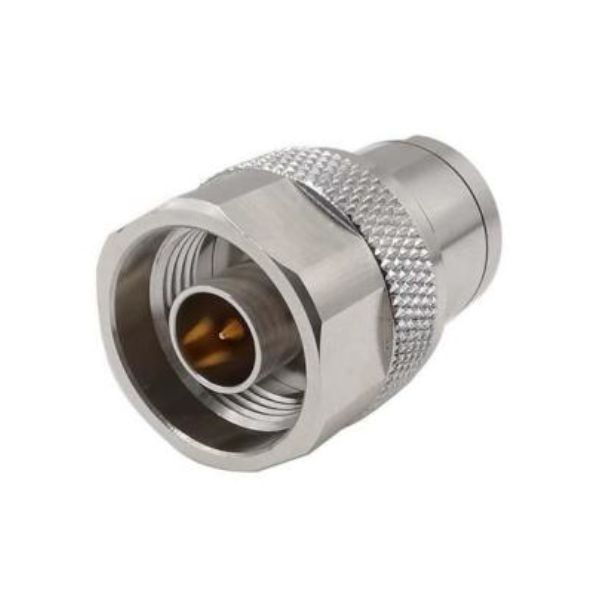

N Male RF Termination
Designed with a Type N male connector to terminate female RF ports while maintaining accurate impedance matching.

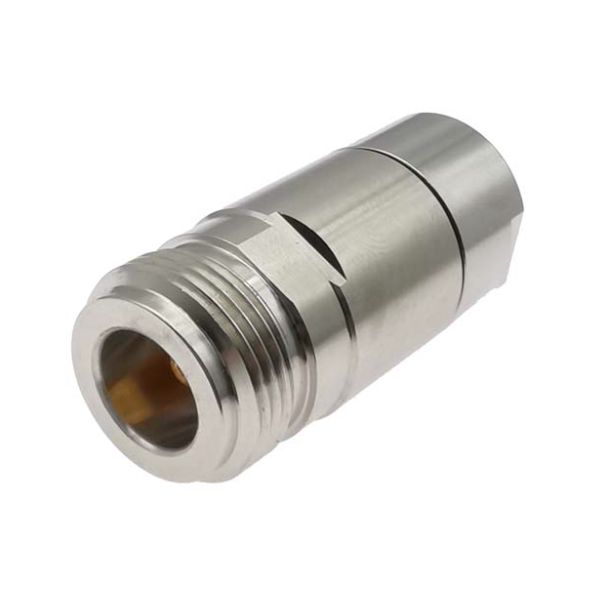

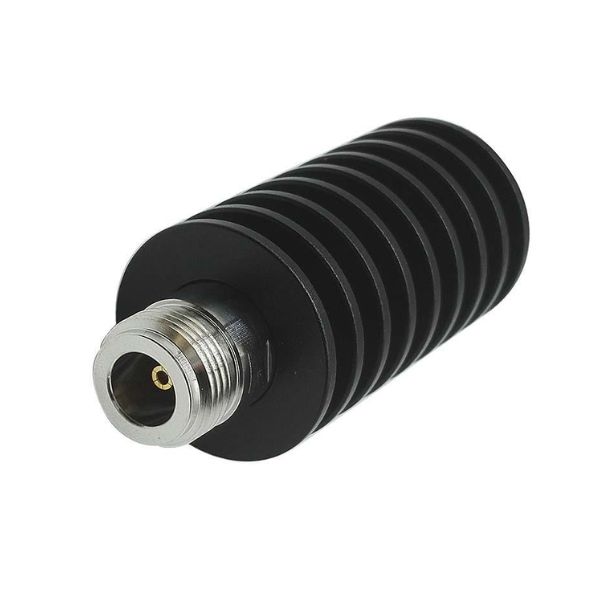

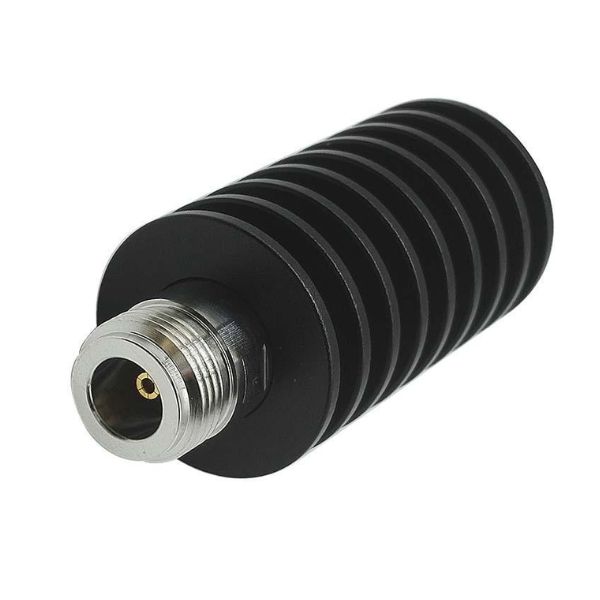

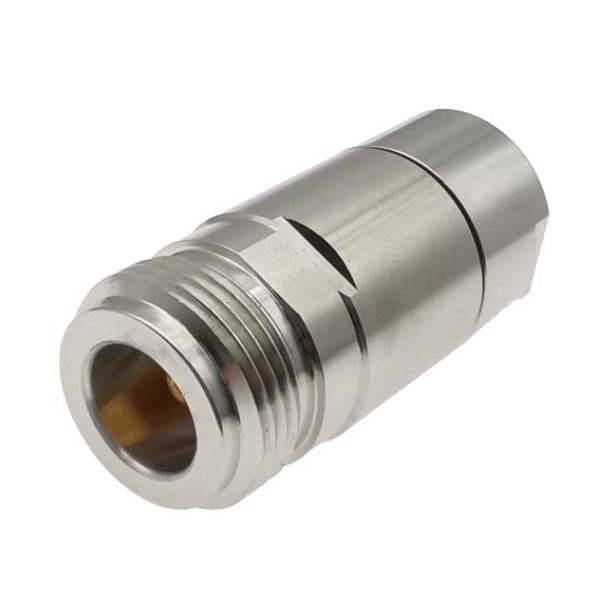

N Female RF Termination
Features a Type N female connector for terminating male RF connectors with excellent electrical performance.
Precision Microwave Termination
Manufactured with tight electrical tolerances for laboratory-grade RF measurements and calibration.

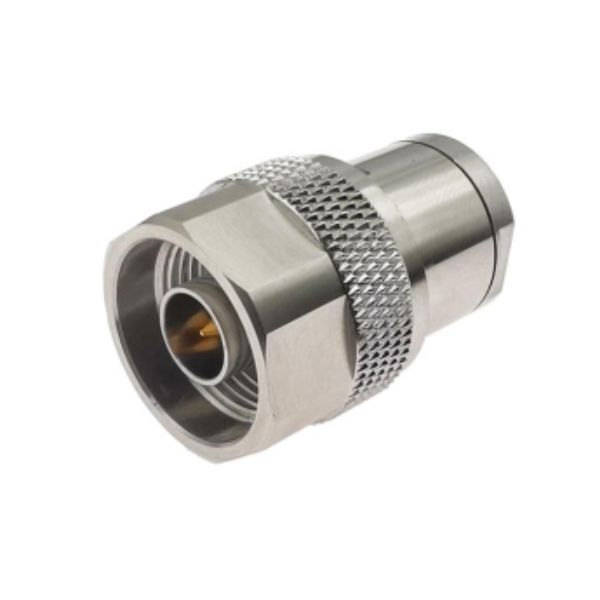

Low Power N RF Termination
Suitable for RF testing, calibration, and laboratory measurement applications.

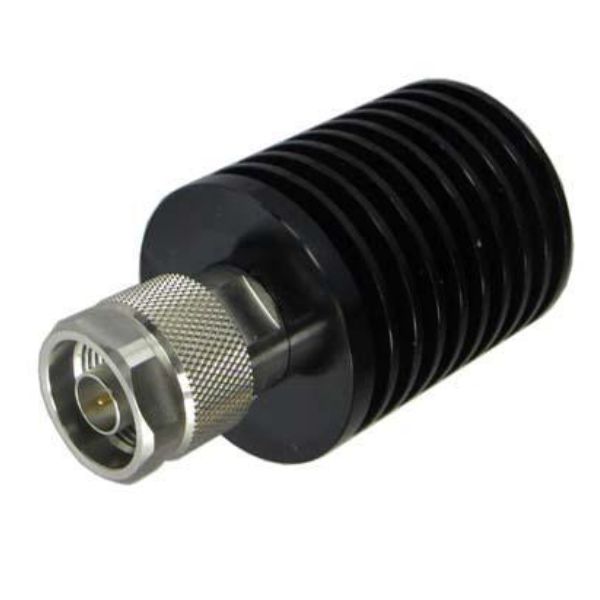

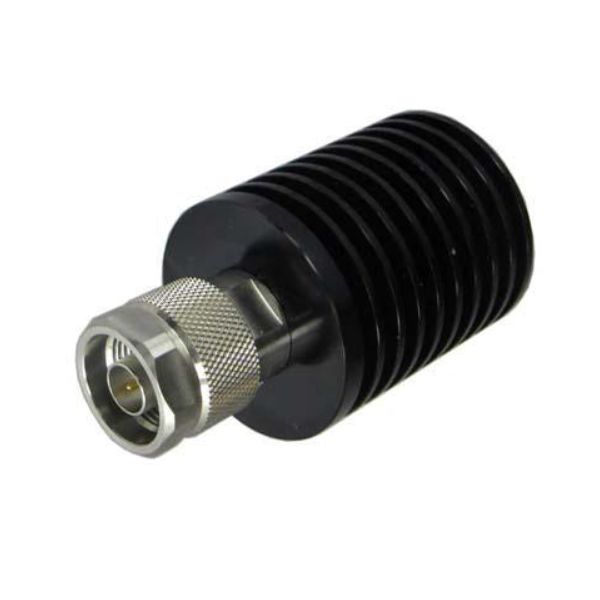

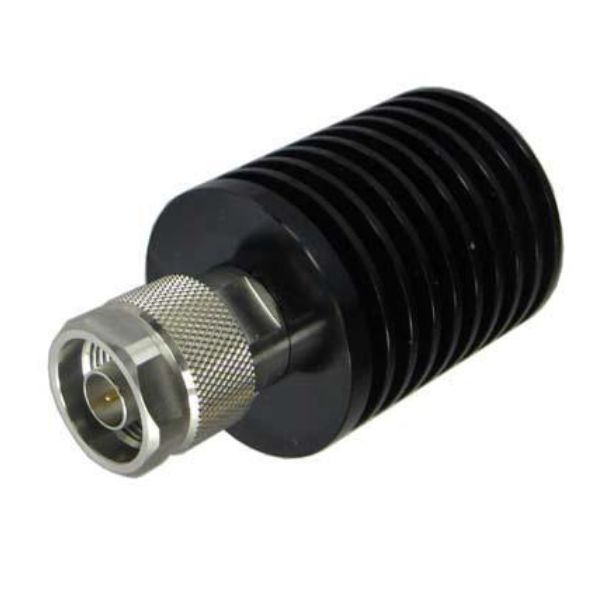

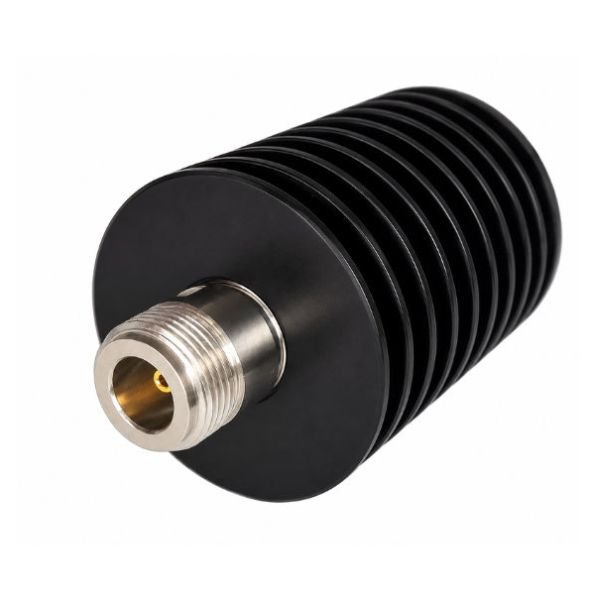

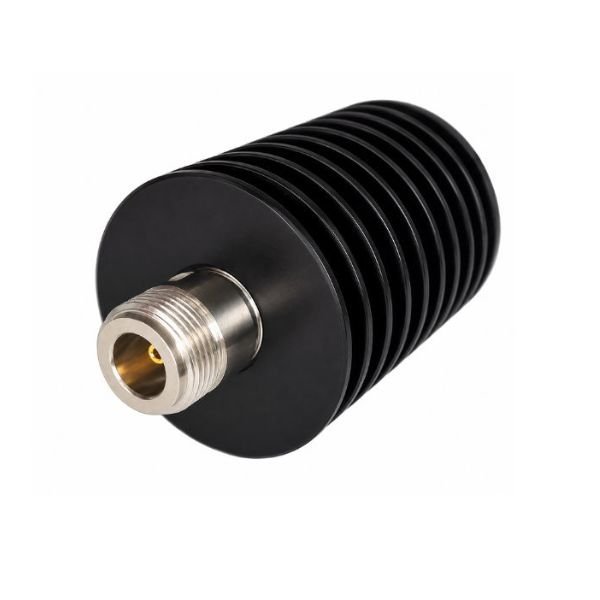

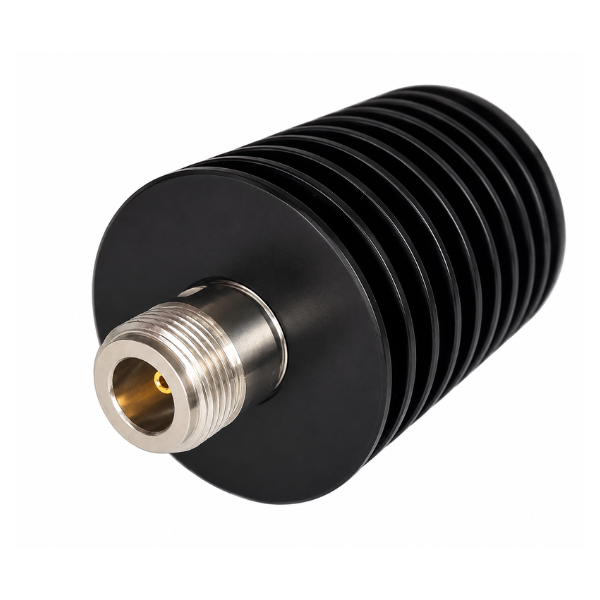

High Power N RF Termination
Designed to safely dissipate higher RF power while maintaining stable electrical performance.
Technical Specifications
Our N RF Terminations are precision engineered to meet demanding RF and microwave performance requirements.
Impedance
Standard 50 Ohm impedance for accurate impedance matching.
Frequency Range
Supports frequencies from DC to 18 GHz.
Power Rating
Available in multiple power ratings for laboratory, telecom, industrial, and defense applications.
VSWR
Low VSWR for excellent return loss and minimal signal reflections.
Connector Interface
Precision Type N Male and Female threaded connectors.
Construction Material
Manufactured using stainless steel, brass, PTFE dielectric, and gold-plated beryllium copper contacts.
Operating Temperature
Designed for reliable operation across a wide operating temperature range.
Compliance
Manufactured according to international RF and microwave quality standards.
Applications of N RF Terminations
Our N RF Terminations are widely used in:
- Telecom base stations
- 4G & 5G infrastructure
- Distributed Antenna Systems (DAS)
- RF laboratories
- Vector Network Analyzer (VNA) calibration
- Microwave communication systems
- Aerospace communication
- Defense electronics
- Radar systems
- Satellite communication
- Broadcasting equipment
- RF production testing
- Test & measurement equipment
- Industrial RF systems
- Outdoor antenna installations
Key Performance Factors
Selecting the right N RF Termination ensures accurate RF measurements and dependable system performance.
- Precision 50 Ohm impedance
- Frequency support up to 18 GHz
- Low VSWR
- Excellent return loss
- Multiple power handling options
- Threaded Type N connector interface
- Weather-resistant construction
- Superior mechanical durability
- Corrosion-resistant materials
- Precision CNC machining
- Stable RF performance
- Long operational life
High-quality N RF Terminations minimize signal reflections, protect valuable RF equipment, improve measurement accuracy, and provide reliable impedance matching for telecom, aerospace, defense, satellite communication, broadcasting, and industrial RF applications.
Product Specifications
| Product Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| N Male RF Termination | 50 Ohm | DC to 18 GHz | Terminate Female RF Ports |
| N Female RF Termination | 50 Ohm | DC to 18 GHz | Terminate Male RF Ports |
| N Male Dummy Load | 50 Ohm | DC to 18 GHz | RF Testing & Calibration |
| N Female Dummy Load | 50 Ohm | DC to 18 GHz | Microwave Test Equipment |
| N Precision Microwave Termination | 50 Ohm | DC to 18 GHz | Vector Network Analyzer (VNA) |
| N Low Power Termination | 50 Ohm | DC to 18 GHz | Laboratory RF Measurements |
| N High Power Termination | 50 Ohm | DC to 18 GHz | High Power RF Systems |
| N Coaxial Termination | 50 Ohm | DC to 18 GHz | Microwave Communication |
| N Precision Dummy Load | 50 Ohm | DC to 18 GHz | Signal Reflection Control |
| N Test Port Termination | 50 Ohm | DC to 18 GHz | RF Production Testing |
Why Choose us
Precision RF Engineering
Our N RF Terminations are designed to deliver outstanding RF performance, accurate impedance matching, and reliable signal termination.
Low VSWR & Excellent Return Loss
Manufactured to minimize signal reflections and maximize RF measurement accuracy.
Rugged Construction
The threaded Type N connector provides secure, vibration-resistant, and weatherproof performance for indoor and outdoor RF installations.
Manufactured in India
All our N RF Terminations are manufactured in India using premium materials, precision machining, and strict quality control procedures to ensure dependable RF performance and long service life.
Frequently Asked Questions
An N RF Termination is a precision matched load that absorbs RF energy, eliminates unwanted signal reflections, and provides accurate 50 Ohm impedance matching.
Most precision N RF Terminations support frequencies from DC to 18 GHz.
Standard 50 Ohm impedance for RF and microwave applications.
They are widely used in telecom infrastructure, RF testing, microwave communication, aerospace, defense, radar systems, satellite communication, broadcasting, and laboratory measurements.
Yes. They are extensively used for VNA calibration, RF testing, microwave measurements, and laboratory applications.
We offer multiple power ratings to meet laboratory, industrial, telecom, and defense application requirements.
Yes. SRFS Teleinfra manufactures customized N RF Terminations with different power ratings, connector configurations, and mechanical designs.
Yes. All our N RF Terminations are manufactured in India using premium materials, advanced CNC machining, and comprehensive quality testing.
Our terminations are manufactured using stainless steel or brass bodies, gold-plated contacts, PTFE dielectric, and precision resistive elements.
SRFS Teleinfra offers precision-engineered N RF Terminations with excellent RF performance, customized manufacturing, stringent quality control, competitive pricing, fast delivery, and expert technical support.
