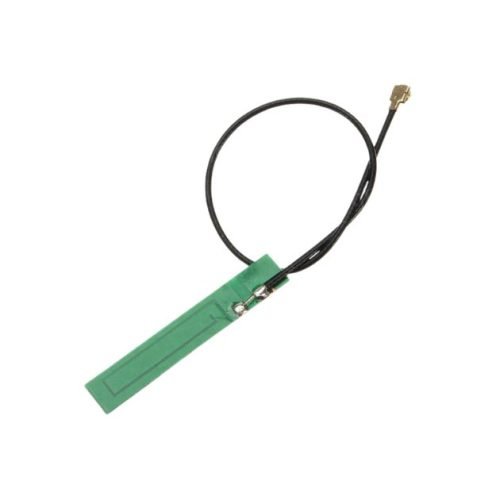

GSM PCB Internal Antenna / Sound Box Antenna with 1.13mm L=15cm + UFL

GSM PCB Internal Antenna / Sound Box Antenna with 1.13mm L=15cm + UFL

The GSM PCB Internal Antenna / Sound Box Antenna with 1.13mm cable, 15cm length, and U.FL connector is designed for reliable wireless signal transmission in compact electronic devices. Its compact PCB-compatible design makes it suitable for integration into sound boxes, GSM-enabled equipment, IoT devices, and embedded communication systems. The 1.13mm coaxial cable provides flexible routing within limited spaces, while the U.FL connector enables convenient connection to compatible RF modules. This antenna solution supports efficient GSM connectivity and is ideal for applications requiring compact installation, dependable wireless communication, and practical integration into electronic assemblies.

Electrical Specifications

Center Frequency 824~960 / 1710~2170 MHz
Polarization Linear
Gain 2 dBi
V.S.W.R <2
Impedance 50 Ω
Power 50 Watt

Mechanical Specifications

Cable RF1.13 or others
PCB Size Length: 4 cm (40 mm)
Width: 6 mm
Connector IPEX or others
Inner Material PCB
Connector Type IPEX/UFL or customizable
Mounting Method IPEX Connector
Operating Temperature (°C) -40 to +85°C
Environmental Friendly RoHS Compliant
