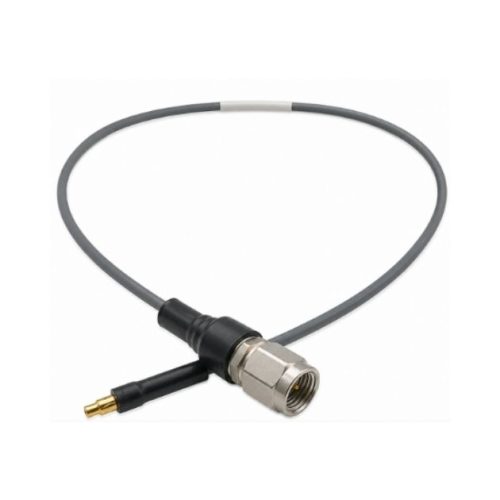

Ultra-Low Loss Phase and Amplitude Stable Flexible Cable DC-26.5 GHz
Ultra-Low Loss Phase and Amplitude Stable Flexible Cable DC-26.5 GHz is a precision RF cable designed for high-frequency applications requiring exceptional signal integrity and stable electrical performance. Its low-loss construction minimizes signal attenuation, while excellent phase and amplitude stability helps maintain consistent performance during operation and flexing. The flexible design enables easy routing and installation in complex RF systems. It is suitable for RF test and measurement equipment, telecommunications, aerospace, defense, wireless communication, laboratory systems, and high-frequency applications. This cable provides dependable signal transmission, repeatable measurements, and reliable performance for demanding RF environments.
Construction
| Construction | Size (mm) | Materials |
|---|---|---|
| Center conductor | 1.45 | Silver Plated Copper |
| Dielectric | 4.00 | LD PTFE |
| Outer conductor | 4.20 | Silver Plated Copper Wrap |
| Interlayer | 4.45 | PTFE |
| Outer shield | 4.90 | Silver Plated Copper Braid |
| Jacket | 5.40 | Grey FEP |
Electrical & Mechanical Specification
| Frequency range | DC-26.5 GHz |
| Impedance | 50 Ω |
| Min. Bending Radius Static | 26 mm |
| Min. Bending Radius Repeated | 52 mm |
| Velocity of Propagation | 82% |
| Weight | 63 g/m |
| Shielding Effectiveness | >90 dB |
| Temperature (Operation) | -55 ~ 150 °C |
| Withstanding Voltage | 1500 V |
| Temperature (Storage) | -60 ~ 160 °C |
| *Mechanical Phase Stability | <±5° |
| Amplitude Stability vs Shaking | <±0.1 dB |
| Temp Phase Stability | <550 ppm (-40°C to +85°C) |
