RF Coaxial Connector
SRFS Teleinfra is a leading RF coaxial connectors manufacturer in India. We make high-quality connectors for telecom and wireless systems. Our connectors help send signals with low loss and strong connection.
RF coaxial connectors connect cables to devices like antennas and base stations. They carry high-frequency signals. They also reduce signal loss and interference.
We design and manufacture connectors in our own facility. We use quality materials for better strength and performance. Each connector is tested to ensure it works well.
Our connectors offer low signal loss, high durability, and long life. We also provide different types and custom options based on your needs.
These connectors are used in telecom towers, 4G and 5G networks, antennas, and wireless systems. They are easy to install and work reliably.
As a manufacturer, we check quality at every step. Choose SRFS Teleinfra for strong and reliable RF coaxial connectors.
What is an RF Coaxial Connector?
An RF coaxial connector is a specialized device used to connect coaxial cables to transmit radio frequency (RF) signals efficiently between devices or systems. It ensures minimal signal loss, maintains impedance, and provides a secure and stable connection.
In telecom and wireless communication systems, RF coaxial connectors are critical for linking antennas, base stations, test equipment, and other RF components while preserving signal integrity.
Types of RF Coaxial Connectors
RF coaxial connectors come in various types depending on application, frequency range, and mechanical requirements:
SMA Connectors
Used widely in RF systems and test equipment, SMA connectors provide stable performance up to high microwave frequencies.
N-Type Connectors
Durable and weather-resistant, N-type connectors are ideal for outdoor telecom installations and high-power applications.
BNC Connectors
Common in broadcast, CCTV, and laboratory equipment, BNC connectors are easy to install and reliable for low- to mid-frequency applications.
TNC Connectors
Similar to BNC connectors but with threaded coupling, TNC connectors offer improved performance at higher frequencies.
SMB / SMC Connectors
Compact connectors designed for miniature devices, wireless modules, and IoT applications.
DIN / 7-16 Connectors
High-power connectors used in cellular networks, repeaters, and antenna systems for minimal signal loss and high durability.
Custom Connectors
Tailored to specific frequency, power, or environmental requirements.
RF Coaxial Connector Types & Specifications
| Connector Type | Impedance | Frequency Range | Coupling Type | Application |
|---|---|---|---|---|

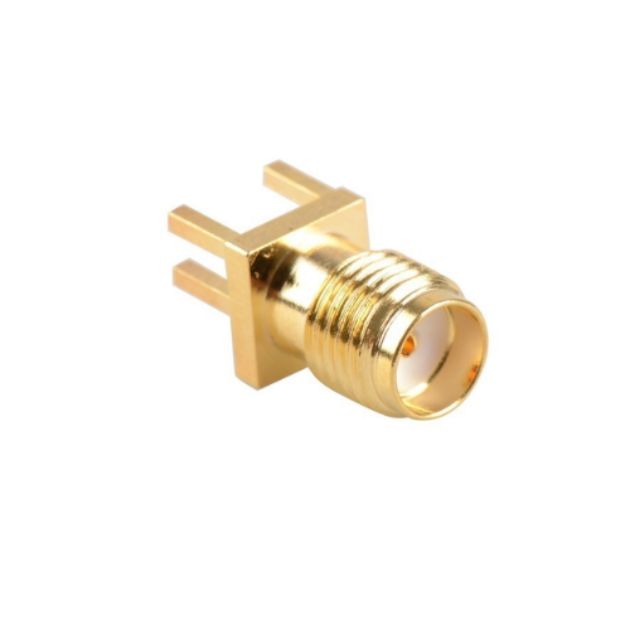

| SMA Connector | 50 Ohm | DC–18 GHz | Threaded | RF Systems, Antennas, Test Equipment |

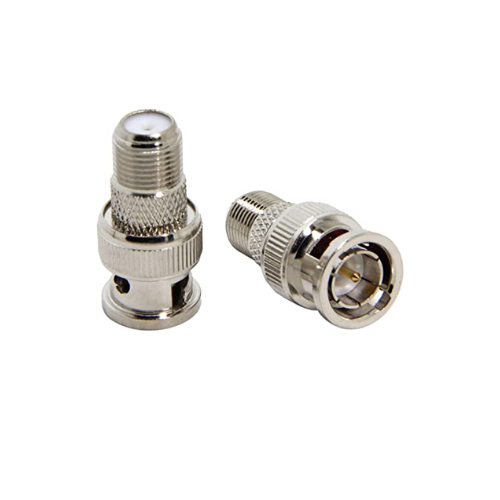

| BNC Connector | 50 / 75 Ohm | DC–4 GHz | Bayonet | CCTV, Broadcast, Laboratory Equipment |

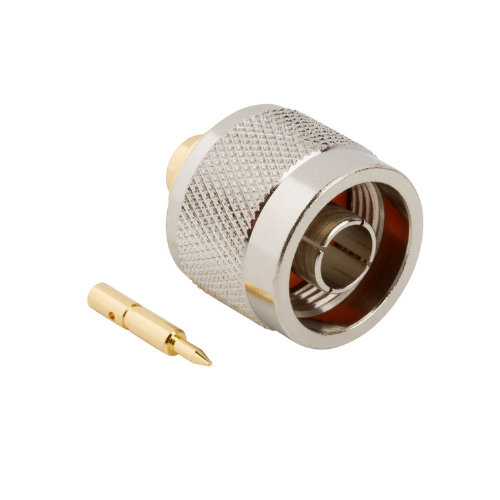

| N Connector | 50 Ohm | DC–11 GHz | Threaded | Outdoor Telecom, BTS, Base Stations |

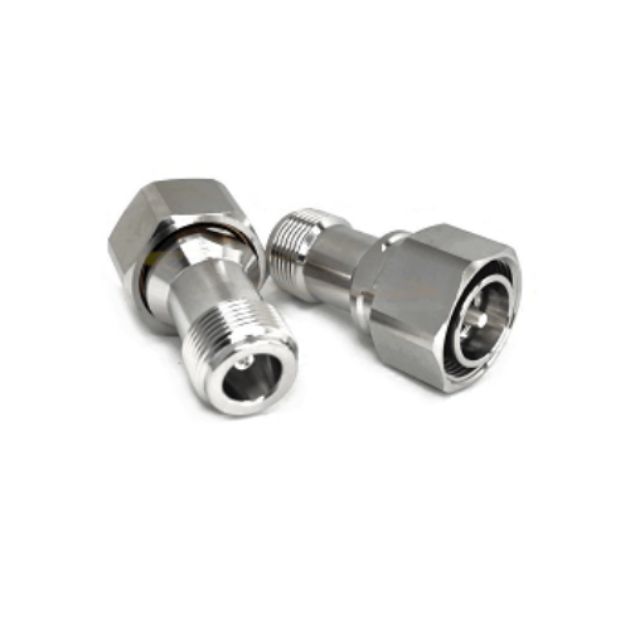

| DIN Connector | 50 Ohm | DC–7.5 GHz | Threaded | High-Power Cellular & RF Systems |

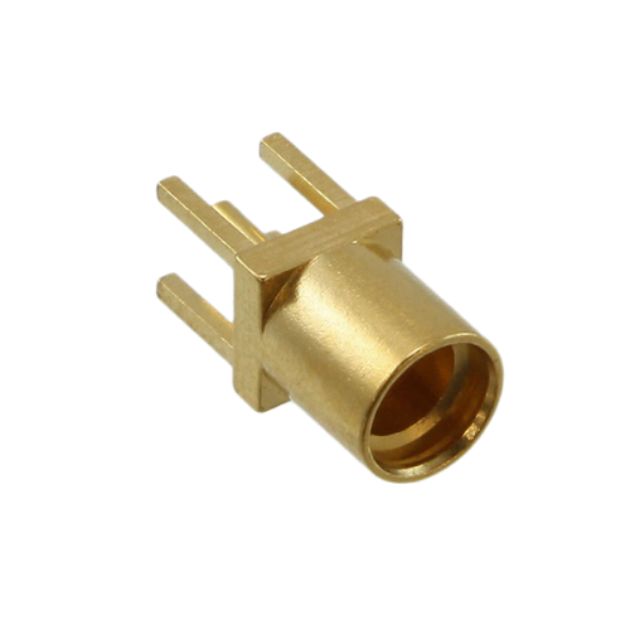

| MCX & MMCX Connector | 50 Ohm | DC–6 GHz | Snap-On | Compact Devices, Wireless Modules, IoT |

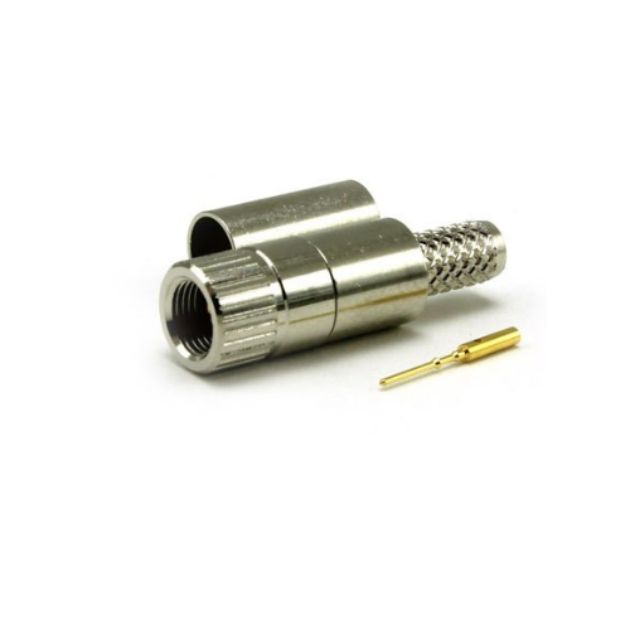

| SAA & SMB Connector | 50 Ohm | DC–4 GHz | Snap-On | Miniature RF Applications, IoT Devices |

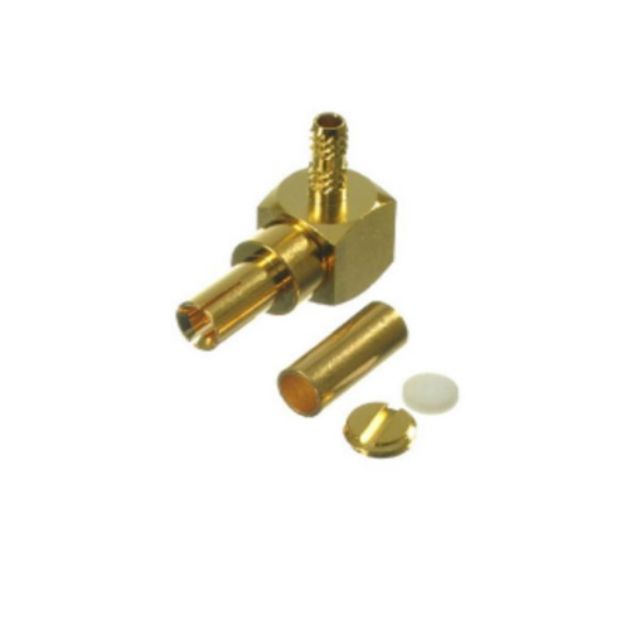

| CRC9 & TS9 Connector | 50 Ohm | DC–3 GHz | Snap-On | Mobile Routers, USB Dongles |

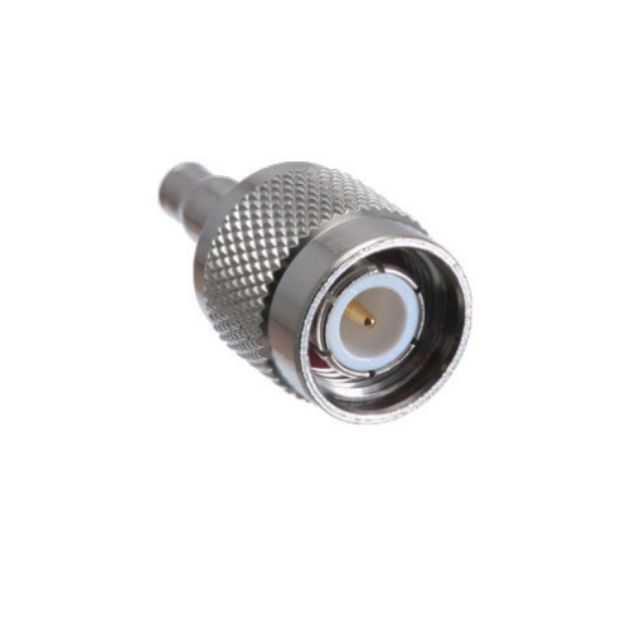

| TNC Connector | 50 Ohm | DC–11 GHz | Threaded | Wireless Networks, Outdoor RF Systems |

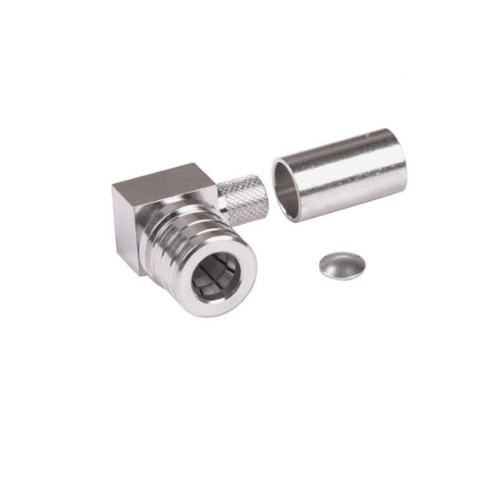

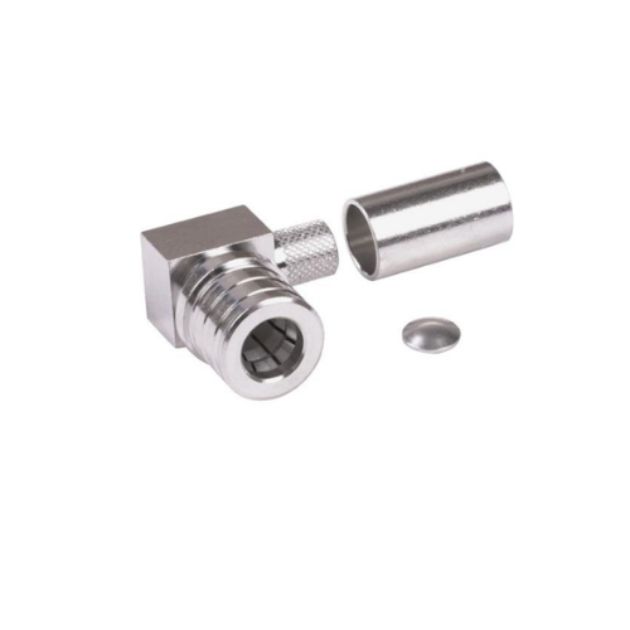

| QMA Connector | 50 Ohm | DC–12.4 GHz | Quick Lock | High-Frequency Wireless Systems |

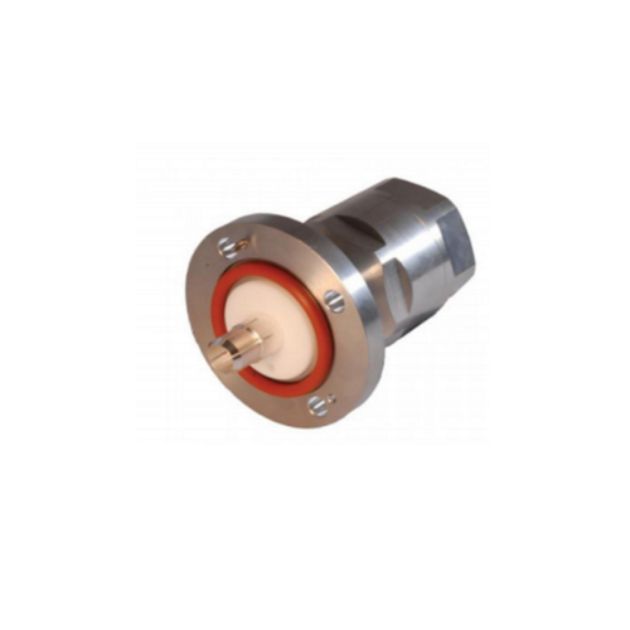

| EIA Flange Connector | 50 Ohm | DC–7 GHz | Flange Mount | High-Power RF Equipment, Broadcast |

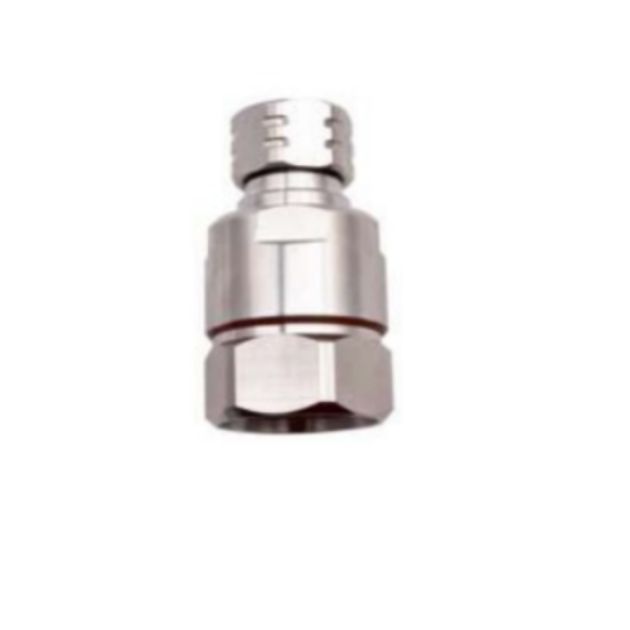

| Mini DIN Connector | 50 Ohm | DC–2 GHz | Push-In | Miniature RF Devices, Laboratory |

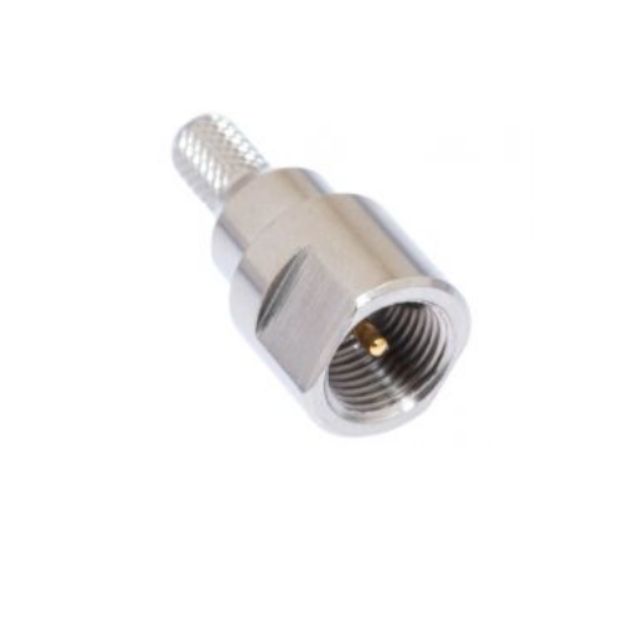

| FME Connector | 50 Ohm | DC–2.5 GHz | Threaded | Cellular Antennas, Routers |

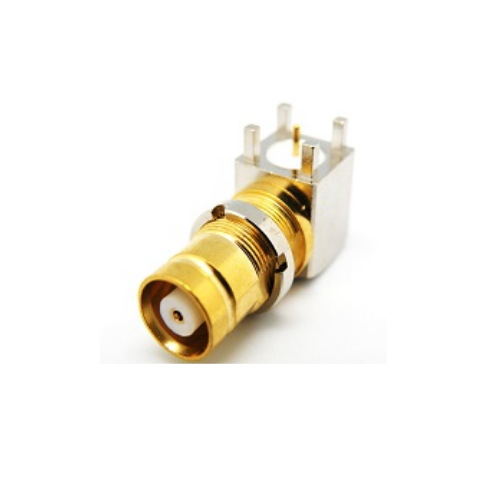

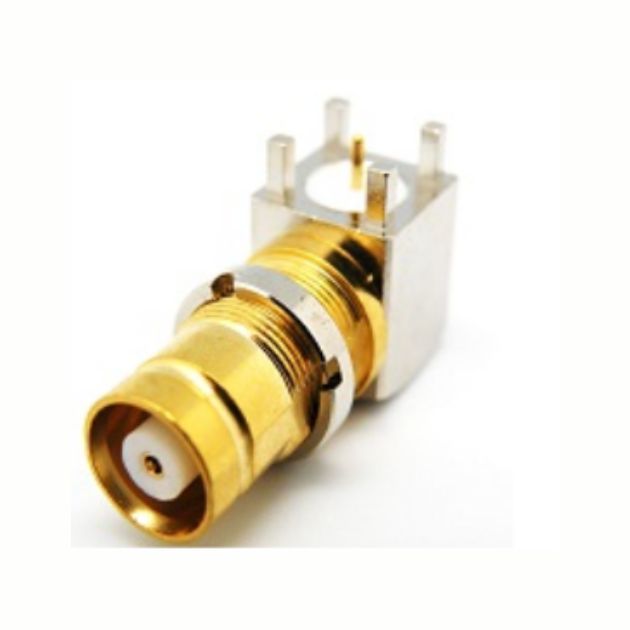

| L9 (1.6/5.6) Connector | 50 Ohm | DC–6 GHz | Threaded | Wireless Systems, Telecom Equipment |

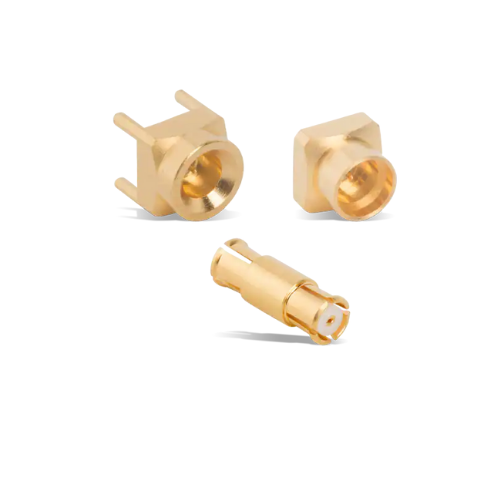

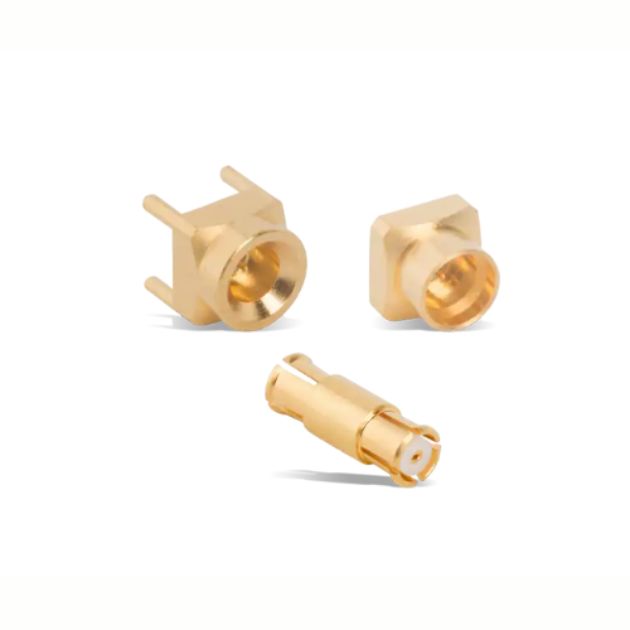

| SMP Connector | 50 Ohm | DC–40 GHz | Snap-On | High-Frequency Testing, Microwave Systems |

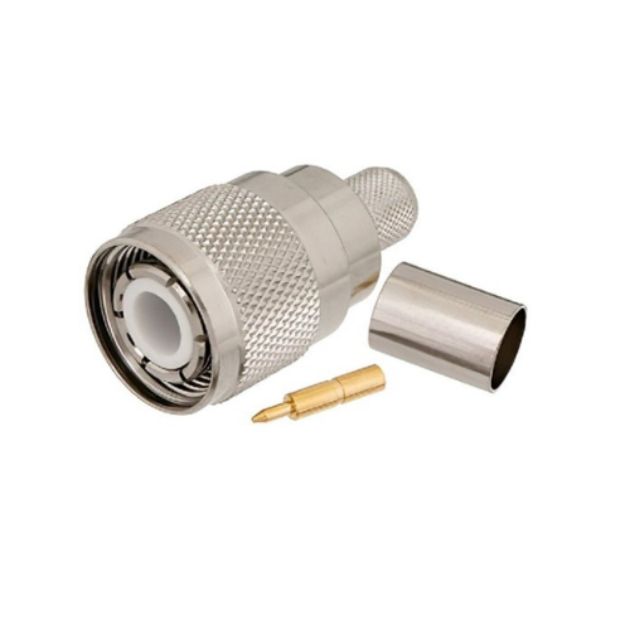

| HN Connector | 50 Ohm | DC–3 GHz | Threaded | High-Power Telecom, Outdoor RF Systems |

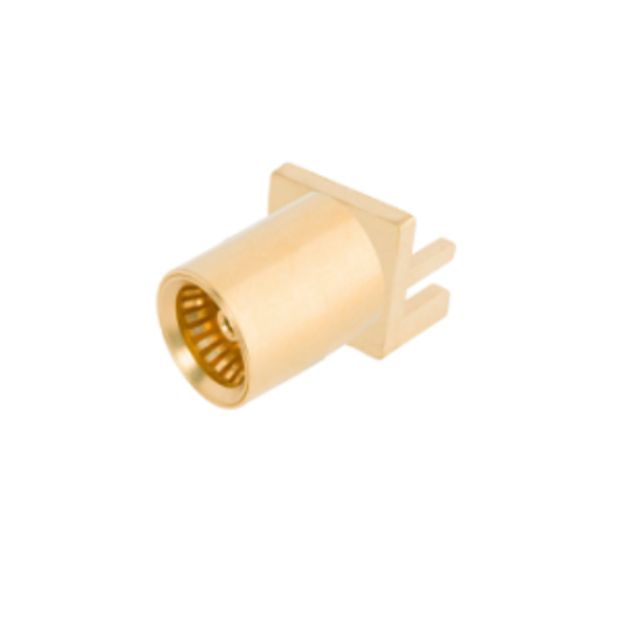

| BMA Connector | 50 Ohm | DC–26.5 GHz | Snap-On | Test Equipment, Microwave Systems |
| SMZ Connector | 50 Ohm | DC–65 GHz | Snap-On | Ultra High-Frequency Testing, Lab |

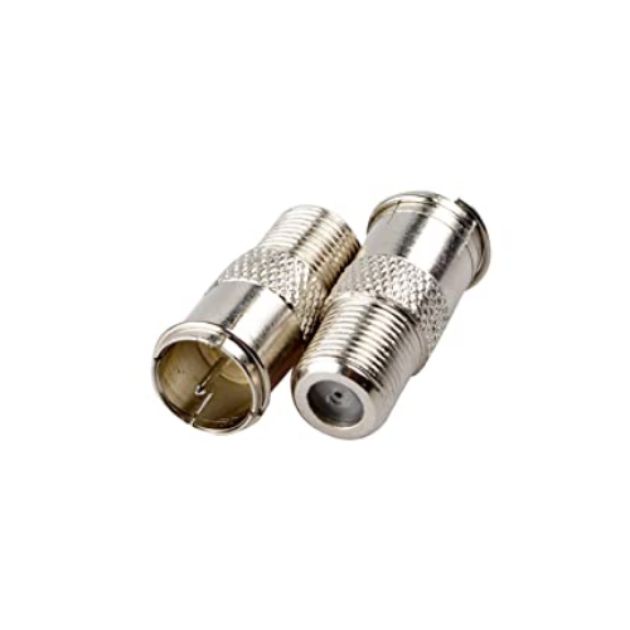

| F Connector | 75 Ohm | DC–1 GHz | Threaded | Cable TV, Satellite, Home Networks |
Technical Specifications
Our RF coaxial connectors are designed to meet telecom and industry standards, ensuring reliability and precision:
- Impedance: 50 Ohm (commonly) for optimal signal matching.
- Frequency Range: Supports MHz to GHz frequencies depending on connector type.
- VSWR: Low Voltage Standing Wave Ratio to minimize signal reflection.
- Durability: Weatherproof and corrosion-resistant options for outdoor applications.
- Compatibility: Works with standard coaxial cables (RG, LMR, semi-rigid, etc.).
Applications of RF Cable Assembly
RF coaxial connectors are essential in:
- Telecom base stations and BTS systems
- 4G / 5G network infrastructure
- Antenna-to-equipment connections
- RF testing and laboratory measurement systems
- Wireless communication networks
- Broadcasting, satellite, and microwave systems
They are critical for maintaining signal integrity, reducing losses, and ensuring reliable connectivity.
Key Performance Factors
Choosing the right RF coaxial connector depends on:
- Impedance compatibility (50 Ohm or 75 Ohm)
- Frequency handling capability
- Coupling type (threaded, bayonet, snap-on)
- Cable compatibility (flexible, semi-rigid, low-loss)
- Environmental durability (outdoor vs indoor)
- VSWR and insertion loss
Proper selection ensures minimal signal loss, stable RF performance, and long-term reliability.
Construction of RF Cable Assembly
RF coaxial connectors are built to interface perfectly with coaxial cables and maintain signal quality:
- Inner Conductor: Connects directly to cable conductor for signal transmission.
- Dielectric Insulation: Maintains impedance and signal integrity.
- Shielding Contact: Connects to cable shield to prevent EMI and signal leakage.
- Outer Housing / Shell: Provides mechanical stability and protects the connector.
This structure ensures secure, low-loss, and high-frequency RF transmission across telecom and wireless networks.
Why Choose us
Trusted Manufacturer
We design and manufacture RF coaxial connectors with strict quality control and reliable performance.
High Precision Quality
Our connectors ensure secure fit, low signal loss, and strong signal stability.
Wide Range & Custom Options
We offer multiple connector types and custom solutions based on your needs.
Fast Delivery & Support
We ensure fast production and timely delivery for all orders.
Frequently Asked Questions
RF coaxial connectors are electrical connectors used to connect coaxial cables to devices. They help transmit high-frequency signals with low loss and stable performance.
They are used in telecom networks, antennas, base stations, broadcasting, and wireless communication systems for reliable signal transfer.
Common types include BNC, SMA, N-type, and F-type connectors. Each type is used based on frequency, application, and system requirements.
The main function is to ensure secure connection and maintain signal quality by reducing loss and interference.
They are designed with proper shielding and impedance matching, which helps prevent signal leakage and interference.
Yes, RF connectors can be selected or customized based on frequency range, size, impedance, and application needs.
Choose based on frequency, impedance (50Ω or 75Ω), connector type, and the specific application for best performance.
