RF Adaptor
RF adaptors are critical components used in telecom and RF systems to connect different types of RF connectors while maintaining proper impedance and signal integrity. At SRFS Teleinfra, we manufacture and supply high-quality RF adaptors designed for stable signal transmission with minimal insertion loss and reflection.
Our RF adaptors are engineered to support seamless connectivity between connectors such as N-type, SMA, TNC, BNC, and other RF interfaces used in telecom infrastructure, antennas, testing equipment, and wireless communication systems.
Manufactured using precision-machined components and high-grade materials, our RF adaptors ensure accurate impedance matching (50 Ohm), low VSWR, and long-term durability even in demanding environments.
All our RF adaptors are made in India under strict quality standards, offering consistent performance, reliable connectivity, and cost-effective solutions for telecom networks, RF testing, and industrial communication applications.
Our RF adaptors are engineered using advanced materials and precision manufacturing techniques to ensure secure connectivity, accurate impedance matching, and low signal reflection for stable and reliable performance.
All our RF adaptors are manufactured in India using quality-tested materials and strict production standards, ensuring consistent quality, reliable operation, and cost-effective solutions for telecom, testing, and wireless communication applications across the country.
What are RF Adaptors?
RF adaptors are essential components used in telecom and RF systems to connect different types of RF connectors while maintaining proper impedance and signal integrity. These adaptors enable seamless connection between incompatible connector interfaces such as N-type, SMA, BNC, and TNC without affecting signal performance.
RF adaptors play a crucial role in ensuring stable signal transmission, low insertion loss, and minimal signal reflection in wireless communication systems, including 4G, 5G, and telecom infrastructure.
Types of RF Adaptors
RF adaptors are available in various types depending on connector compatibility and application requirements:
Straight RF Adaptor
Used to connect two similar or different connectors in a straight configuration.

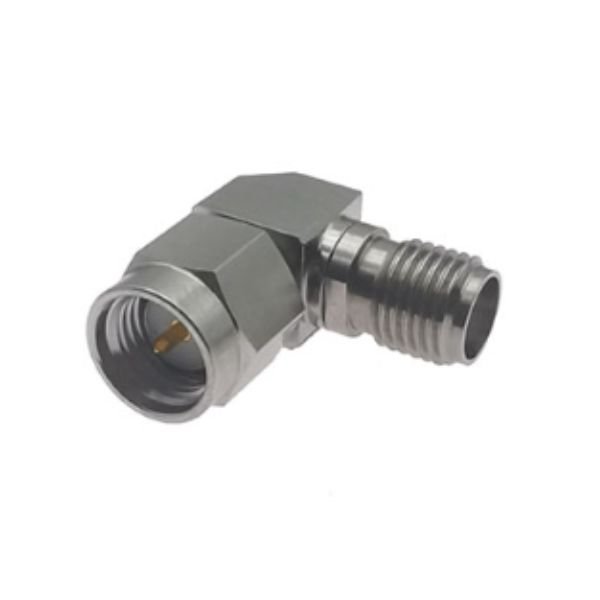

Right Angle RF Adaptor
Designed for installations where space is limited and cable bending needs to be minimized.

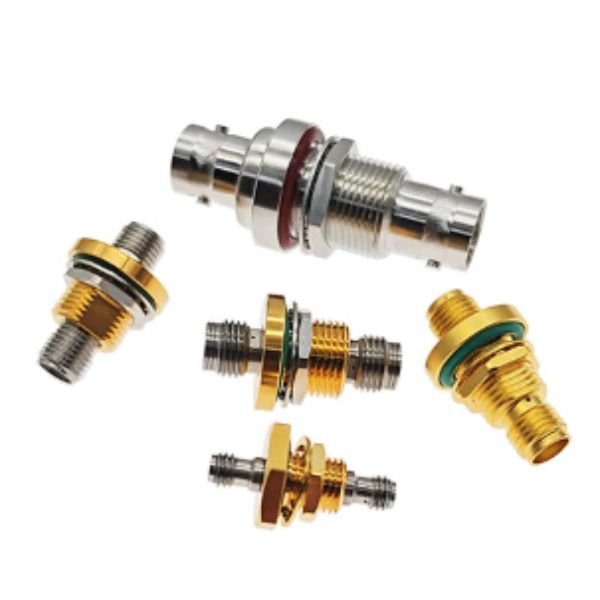

Bulkhead RF Adaptor
Used for panel mounting applications to connect internal and external RF connections.
Between-Series Adaptor
Connects two different connector types such as SMA to N-type or BNC to TNC.
In-Series Adaptor
Connects similar connector types to extend or join RF connections.
Technical Specifications
Our RF adaptors are designed to meet telecom industry standards and deliver reliable performance:
Impedance
Typically available in 50 Ohm to ensure proper signal matching and minimal reflection.
Frequency Range
Supports operation from MHz to GHz range, suitable for telecom and RF applications.
VSWR (Voltage Standing Wave Ratio)
Low VSWR ensures minimal signal reflection and efficient signal transmission.
Insertion Loss
Engineered for low signal loss to maintain signal strength across connections.
Connector Types
Available in multiple connector types such as N-type, SMA, BNC, TNC, and more.
Applications of RF Adaptors
RF adaptors are widely used across telecom and RF systems:
- Telecom towers and BTS installations
- 4G / 5G network infrastructure
- Antenna and RF system connections
- Testing and measurement equipment
- Broadcasting and communication systems
- Wireless communication networks
Key Performance Factors
Choosing the right RF adaptor depends on several important factors:
- Impedance matching (50 Ohm compatibility)
- Frequency handling capability
- Connector compatibility and precision fit
- Low VSWR and minimal insertion loss
- Durability and corrosion resistance
Proper selection ensures stable connectivity, efficient signal transmission, and long-term performance in telecom and RF systems.
RF Coaxial Adaptor Specifications
| Adaptor Type | Impedance | Frequency Range | Application |
|---|---|---|---|

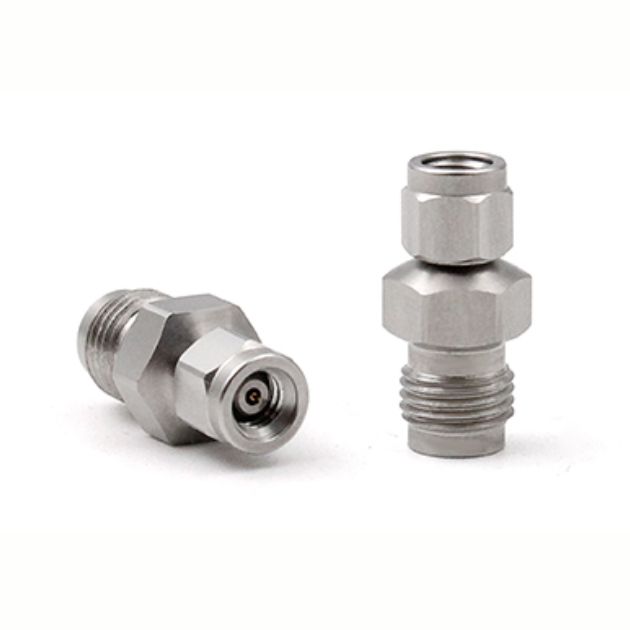

| 1.0mm Coaxial Adaptor | 50 Ohm | Up to 110 GHz | Millimeter Wave Testing |

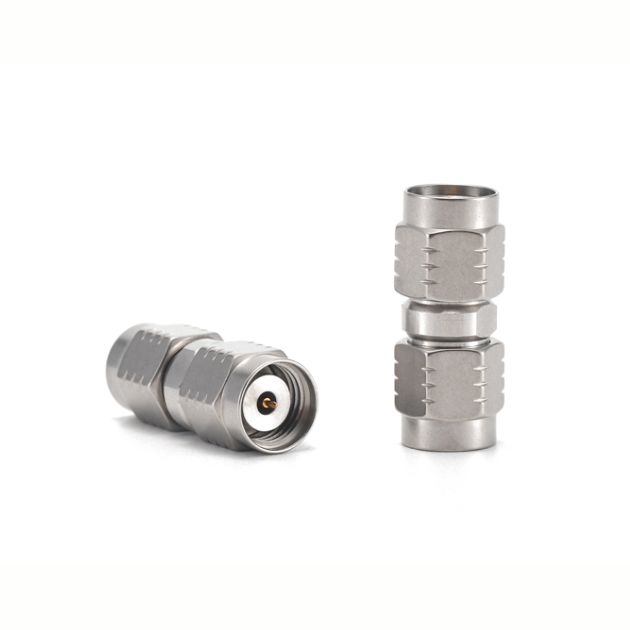

| 1.85mm Coaxial Adaptor | 50 Ohm | Up to 67 GHz | Microwave Systems |

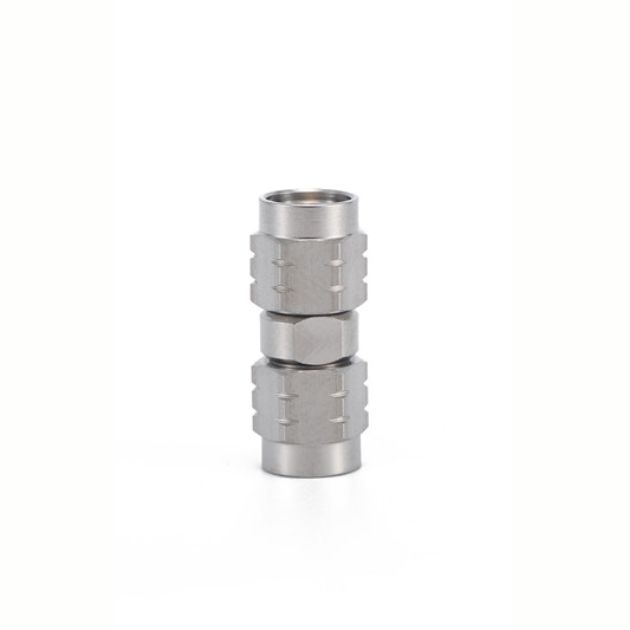

| 2.92mm Coaxial Adaptor | 50 Ohm | Up to 40 GHz | High Frequency RF Systems |
| 2.4mm Coaxial Adaptor | 50 Ohm | Up to 50 GHz | Precision RF Testing |

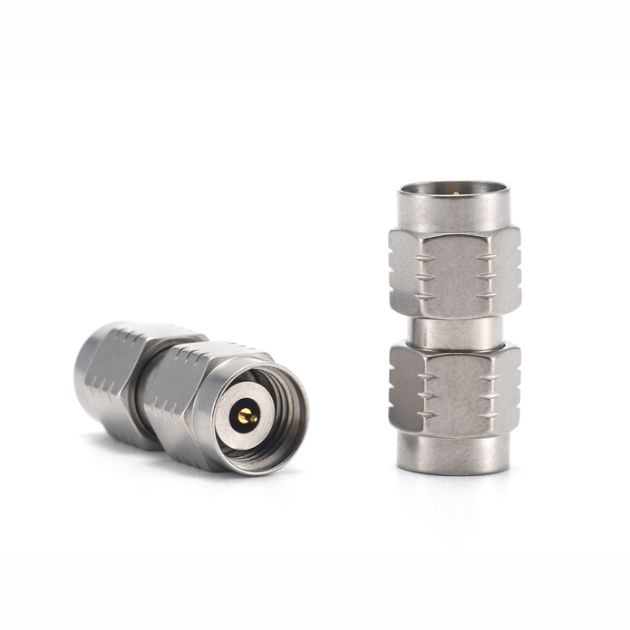

| 3.5mm Coaxial Adaptor | 50 Ohm | Up to 26.5 GHz | RF Measurement Equipment |

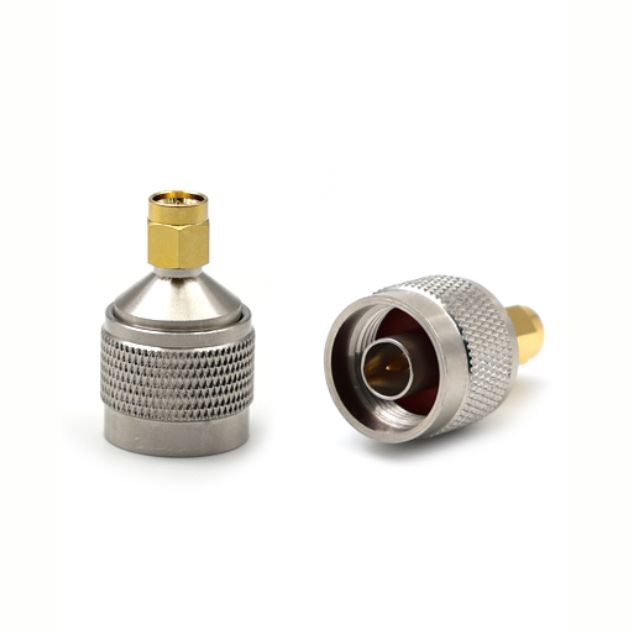

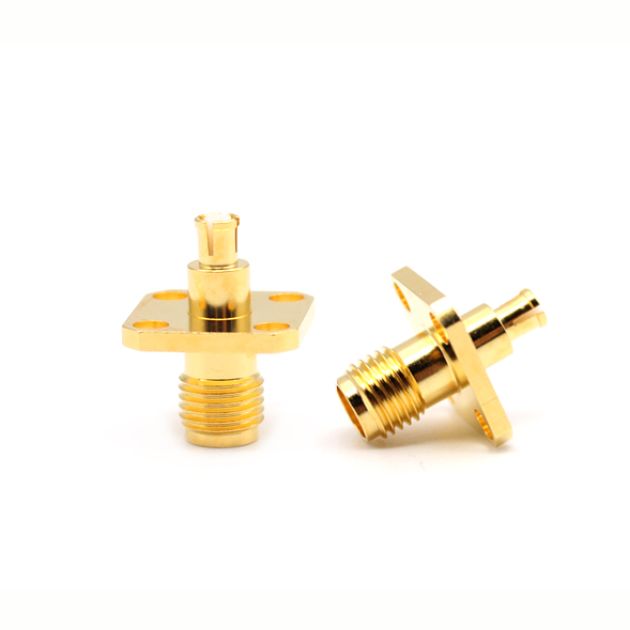

| SMA Coaxial Adaptor | 50 Ohm | Up to 18 GHz | General RF & Telecom Applications |

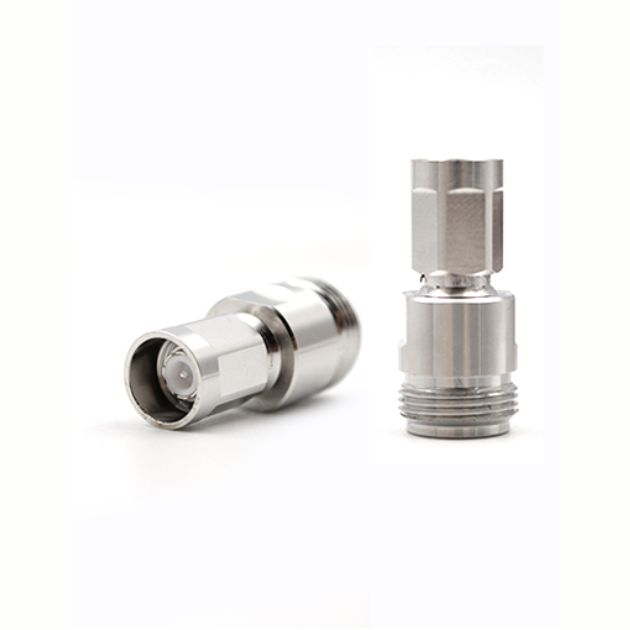

| N Coaxial Adaptor | 50 / 75 Ohm | Up to 11 GHz | Telecom & Antenna Systems |
| BNC Coaxial Adaptor | 50 / 75 Ohm | Up to 4 GHz | Testing & Video Systems |

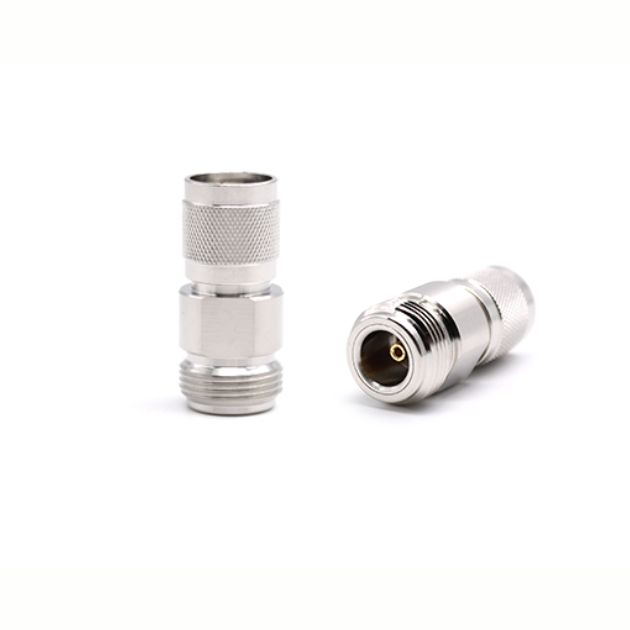

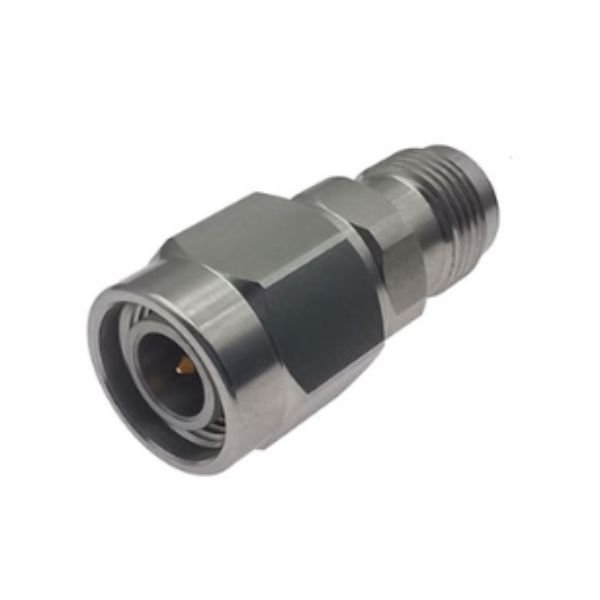

| TNC Coaxial Adaptor | 50 Ohm | Up to 11 GHz | RF Communication Systems |

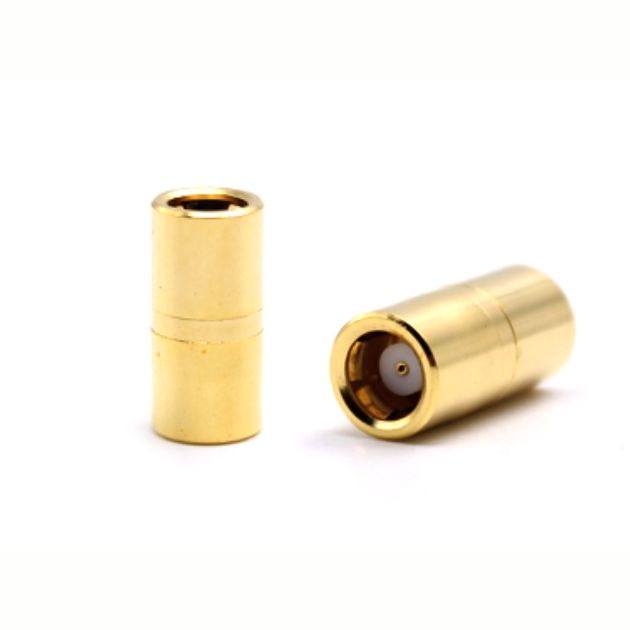

| SMB Coaxial Adaptor | 50 Ohm | Up to 4 GHz | Compact RF Devices |

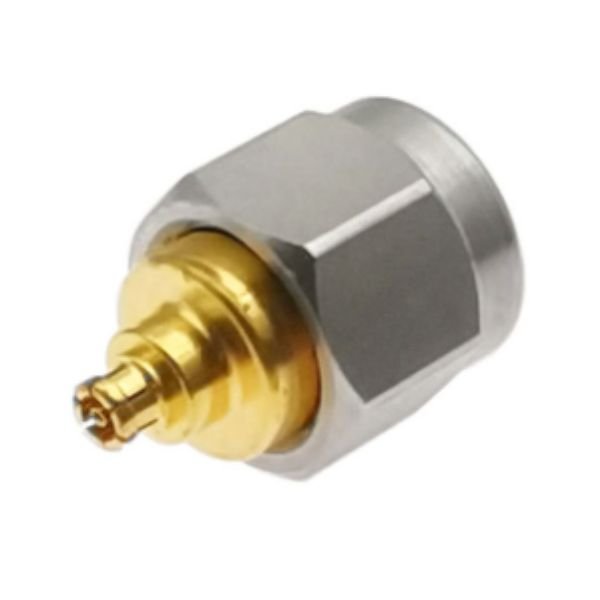

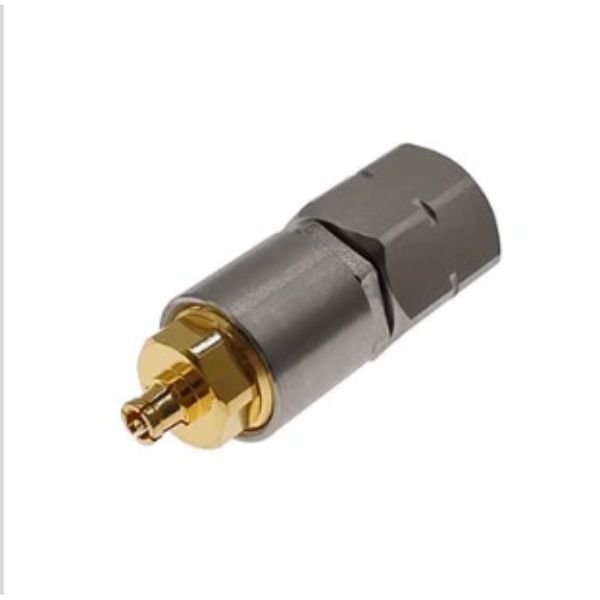

| SMP Coaxial Adaptor | 50 Ohm | Up to 40 GHz | High Density RF Modules |

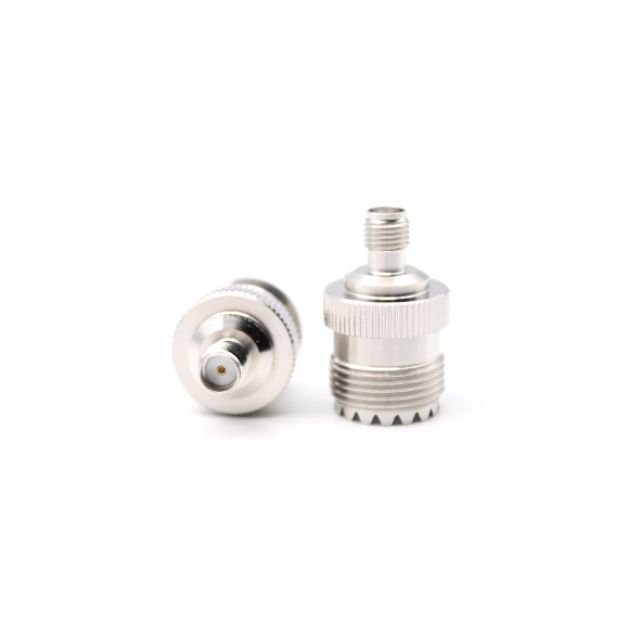

| UHF Coaxial Adaptor | 50 Ohm | Low Frequency RF | Radio Communication |

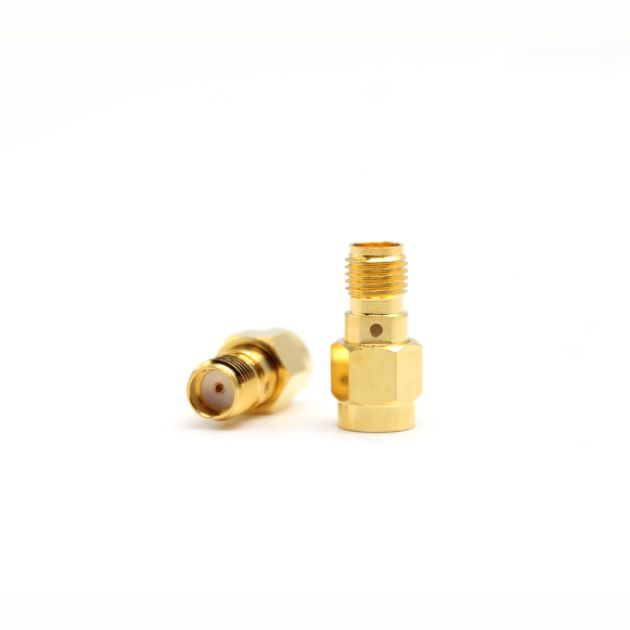

| RPSMA Coaxial Adaptor | 50 Ohm | Up to 18 GHz | WiFi & Wireless Devices |
Why Choose us
Accurate Impedance Matching
Our RF adaptors are engineered to provide precise impedance matching (50 Ohm), reducing signal reflection and ensuring stable signal transmission across RF systems.
Reliable & Secure Connectivity
Designed for consistent performance, our adaptors ensure tight and secure connections with minimal insertion loss for uninterrupted signal flow.
Durable & Corrosion-Resistant Build
Manufactured using high-quality materials and protective plating, our RF adaptors offer excellent durability, corrosion resistance, and long service life in demanding environments.
Ideal for 4G & 5G Applications
Optimized for modern telecom applications, our RF adaptors support reliable connectivity in 4G, 5G, antenna systems, and wireless communication networks.
Frequently Asked Questions
An RF adaptor is a device used to connect different types of RF connectors, allowing signal transmission between incompatible interfaces.
RF adaptors help connect various RF components, ensuring proper signal flow and compatibility between devices in telecom networks.
Impedance, usually 50 Ohm, ensures proper signal matching and reduces signal reflection for efficient transmission.
Common types include male-to-female adaptors, same-series adaptors, between-series adaptors, and right-angle adaptors.
Same-series adaptors connect identical connector types, while between-series adaptors connect different connector types like SMA to N-type.
VSWR (Voltage Standing Wave Ratio) measures signal reflection. Lower VSWR indicates better signal transmission and minimal loss.
They are used in telecom towers, 4G/5G networks, antenna systems, RF testing equipment, and wireless communication systems.
Selection depends on connector type, frequency range, impedance, and application requirements.
RF adaptors are made from materials like brass or stainless steel with corrosion-resistant plating for durability and performance.
Low signal loss ensures efficient signal transmission, better performance, and reliable communication in RF systems.
