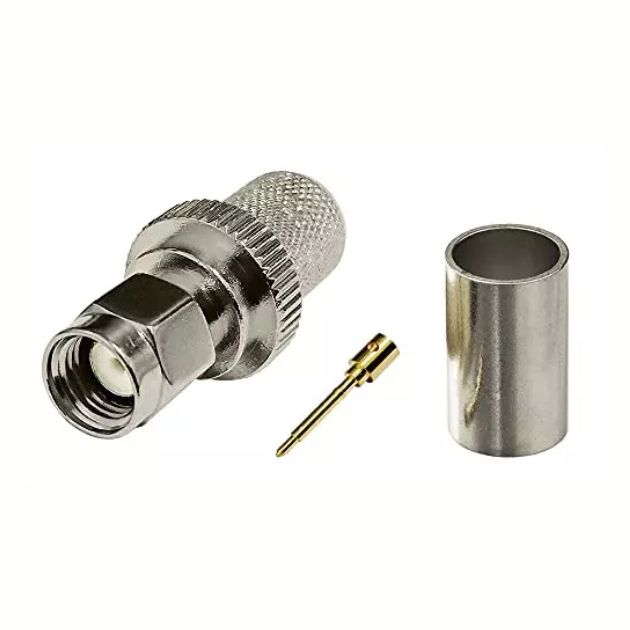

SMA(M) for LMR 400 Crimp

SMA(M) for LMR 400 Crimp

The SMA (Male) Connector for LMR 400 Crimp is a high-performance RF connector designed for secure and reliable signal transmission in demanding applications. Engineered for use with LMR 400 coaxial cables, it ensures low signal loss, excellent VSWR, and strong mechanical stability. The crimp-type design provides a firm and durable connection, making it suitable for telecom, wireless communication, and RF systems. Built with precision-machined components and high-quality materials, it offers superior conductivity and corrosion resistance. Ideal for both indoor and outdoor installations, this connector delivers consistent performance in high-frequency environments.

Electrical & Mechanical Specifications

SPECIFICATIONS Details
Frequency Range
DC-6GHz
Impedance
50 Ohms
VSWR
1.22:1
Type
SMA Male Connector
Dielectric Withstanding Voltage(AC)
335 Vrms
Dielectric Withstanding Voltage (DC)
500 Vdc
Insulation Resistance
5000 MOhms
Type
LMR-400

Mechanical Specification

SPECIFICATIONS Details
Length
1.25in [ 31.75]
Width
0.5 in [12.70mm]

Material & Plating

Material Plating
Contact
Brass
Gold
Insulation
Teflon
Body
Brass
Tri-Metal
