High-Frequency Adapter
High-Frequency (H.F.) Adaptors are precision RF and microwave interconnect components designed to connect, convert, or extend signal paths between ultra-high-frequency coaxial interfaces. These adaptors are widely used in microwave communication systems, RF testing laboratories, aerospace, defense electronics, satellite communication, radar systems, telecom infrastructure, and high-frequency measurement applications.
At SRFS Teleinfra, we manufacture premium-quality H.F. Adaptors engineered to provide exceptional electrical performance, low insertion loss, excellent impedance matching, and superior signal integrity across high-frequency applications. Our adaptors are manufactured using precision-machined components and high-grade materials to ensure reliable RF connectivity even in the most demanding microwave environments.
H.F. adaptors are commonly used for interconnecting 1.0mm, 1.85mm, 2.4mm, 2.92mm, SMA, K, and other precision RF interfaces where signal accuracy and performance are critical. These adaptors help engineers maintain measurement accuracy while minimizing reflection, mismatch losses, and signal degradation.
What is an H.F. Adaptor?
An H.F. (High-Frequency) Adaptor is a precision RF coaxial adaptor designed to connect different high-frequency connector interfaces while maintaining consistent impedance and stable signal transmission. These adaptors are specifically engineered for microwave and millimeter-wave frequencies where precision electrical performance is essential.
H.F. adaptors are commonly used in:
- RF communication systems
- Microwave communication networks
- Satellite communication systems
- Aerospace electronics
- Defense communication equipment
- Radar systems
- RF testing laboratories
- Vector Network Analyzers (VNA)
- Signal generators and spectrum analyzers
- Research & development facilities
- Telecom infrastructure
- High-frequency measurement systems
These adaptors provide reliable RF connectivity with low insertion loss, low VSWR, and excellent return loss performance.
Types of H.F. Adaptors

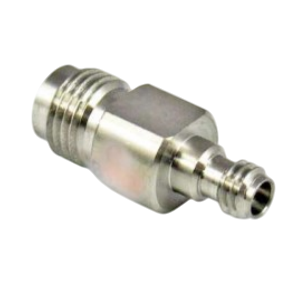

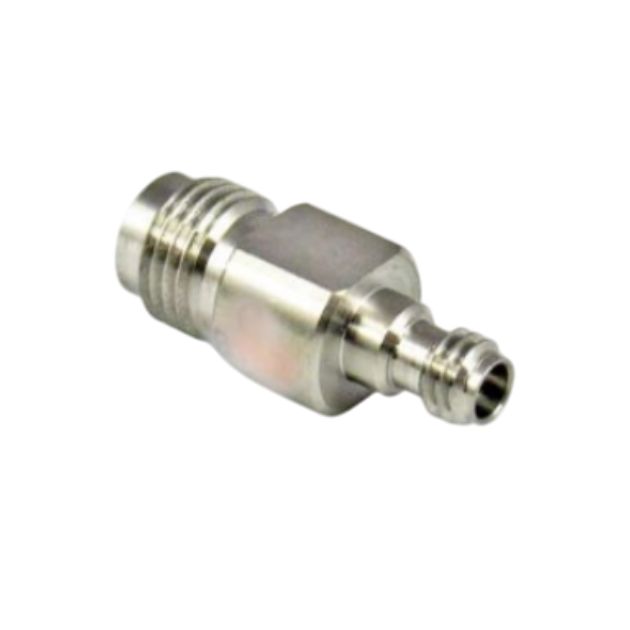

1.0mm Female to 1.85mm Female Adaptor
Designed for precision microwave and millimeter-wave applications requiring connectivity between 1.0mm and 1.85mm interfaces.

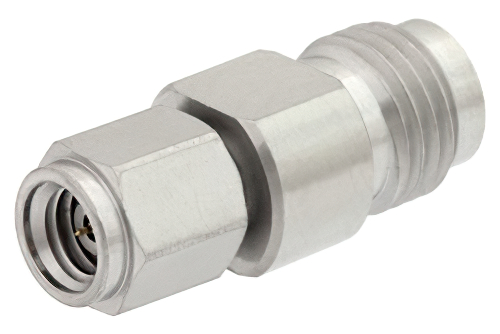

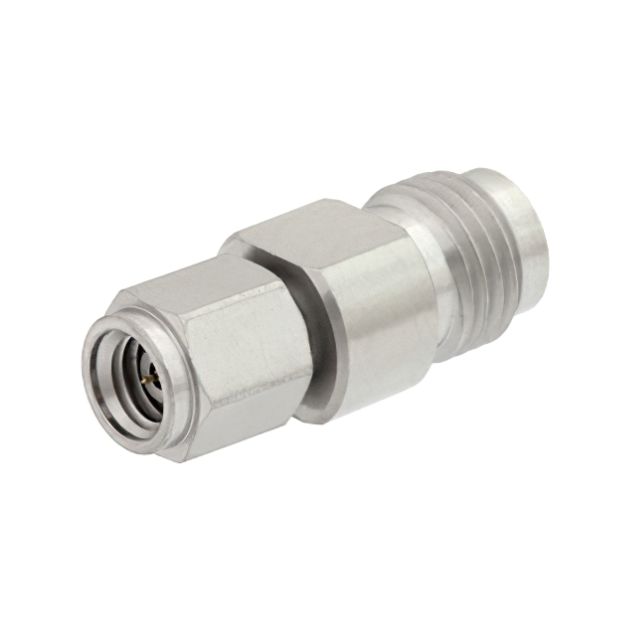

1.0mm Male to 1.85mm Female Adaptor
Provides seamless interface conversion while maintaining high-frequency signal integrity.

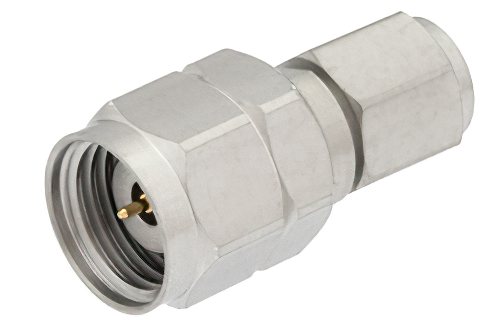

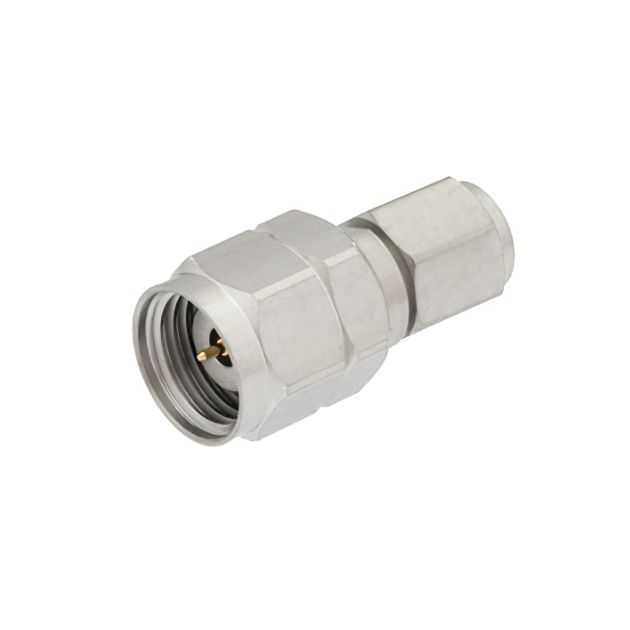

1.0mm Male to 1.85mm Male Adaptor
Used in advanced RF test setups and microwave communication systems.

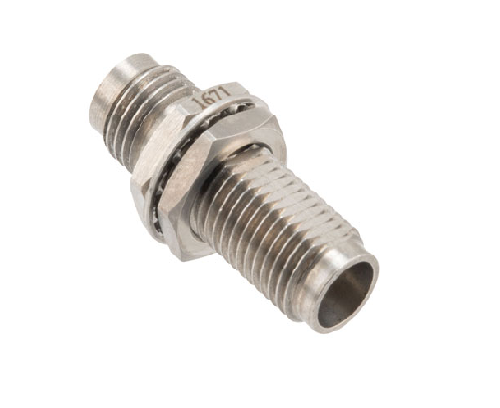

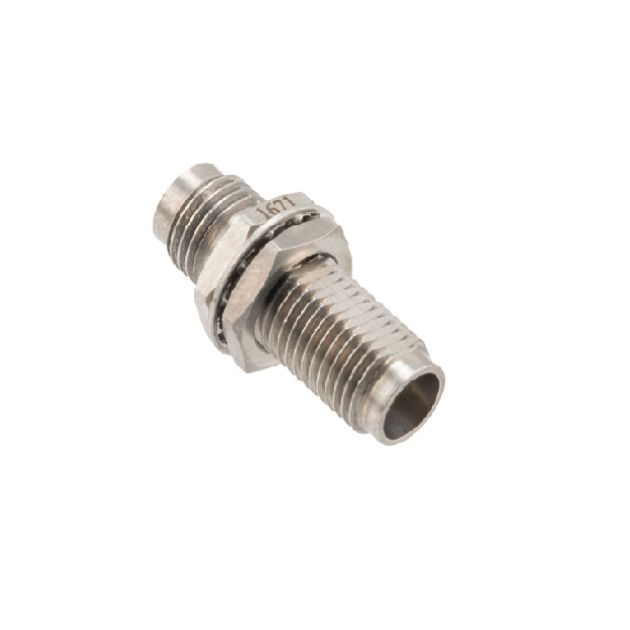

1.85mm Female to 1.85mm Female Bulkhead Adaptor
Ideal for panel-mount installations and laboratory measurement systems.

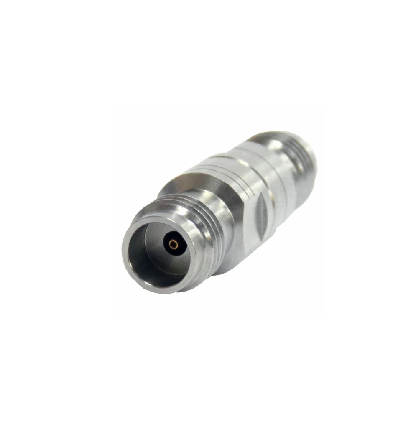

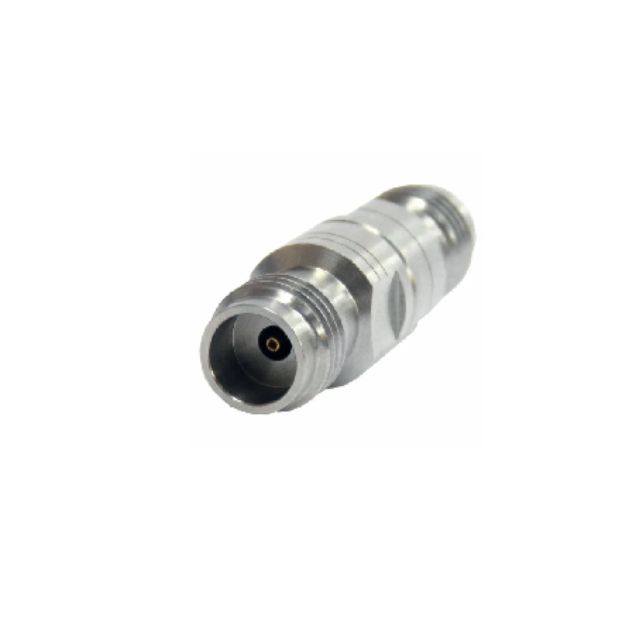

1.85mm Female to 2.4mm Female Adaptor
Enables connectivity between precision RF interfaces used in microwave applications.

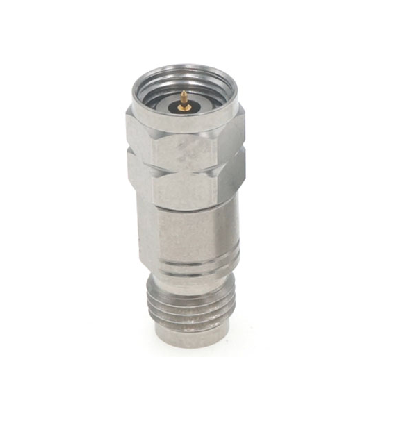

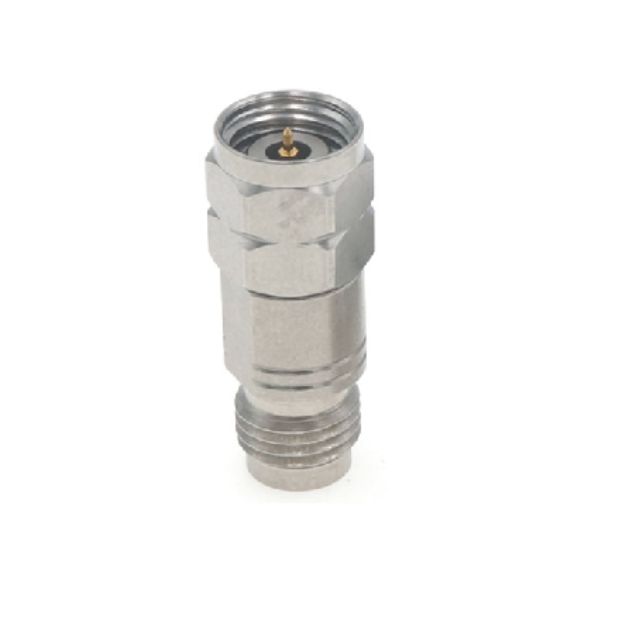

1.85mm Female to 2.4mm Male Adaptor
Provides accurate signal transmission between different high-frequency connector systems.

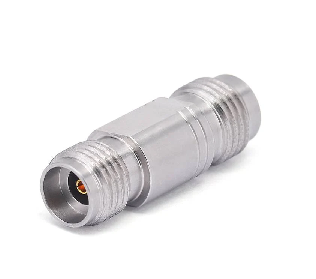

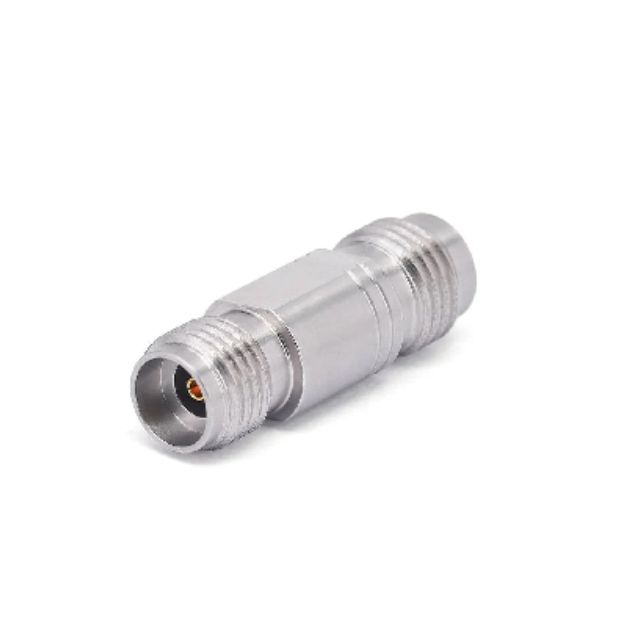

1.85mm Female to 2.92mm Female Adaptor
Designed for RF testing, calibration systems, and advanced communication equipment.
Custom H.F. Adaptors
Customized adaptor solutions available for specialized RF, microwave, defense, and telecom applications.
Technical Specifications
Below are general specifications of H.F. Adaptors (may vary depending on adaptor type and interface configuration):
Electrical Specifications
- Impedance: 50 Ohms
- Frequency Range: DC to 67 GHz+
- Precision Models: Up to 110 GHz
- VSWR: ≤ 1.15 to 1.25
- Insertion Loss: Extremely Low
- Return Loss: Excellent RF Performance
- Shielding Effectiveness: High EMI Protection
- RF Signal Transmission: Microwave & Millimeter-Wave Performance
- Signal Integrity: High Precision Measurement Grade
Mechanical Specifications
- Connector Type: 1.0mm / 1.85mm / 2.4mm / 2.92mm
- Coupling Mechanism: Precision Threaded RF Coupling
- Contact Material: Beryllium Copper
- Body Material: Stainless Steel
- Plating: Gold Plated Contacts
- Insulator Material: High-Performance Dielectric
- Durability: ≥ 500 Mating Cycles
- Adaptor Configuration: Straight / Bulkhead
Environmental Specifications
- Operating Temperature: -55°C to +165°C
- Weather Resistance: Suitable for Indoor & Outdoor Installations
- Corrosion Resistance: High-Durability Protective Finish
- Moisture Resistance: Reliable Performance in Harsh Environments
- RoHS Compliance: Yes
- Application Suitability: RF, Microwave, Aerospace, Defense & Telecom Systems
Applications of H.F. Adaptors
H.F. Adaptors are widely used in:
- Microwave communication systems
- RF testing laboratories
- Vector Network Analyzers (VNA)
- Signal generators
- Spectrum analyzers
- Aerospace electronics
- Defense communication systems
- Radar systems
- Satellite communication equipment
- Telecom infrastructure
- Research and development laboratories
- High-frequency calibration systems
Features of H.F. Adaptors
Ultra High-Frequency Performance
Designed for microwave and millimeter-wave applications requiring precise signal transmission.
Low VSWR Performance
Minimizes signal reflections and improves overall system efficiency.
Excellent Signal Integrity
Maintains accurate RF measurements and minimizes transmission losses.
Precision RF Engineering
Manufactured using advanced machining techniques for consistent electrical performance.
Superior Mechanical Stability
Threaded precision interfaces provide secure and vibration-resistant connectivity.
Low Insertion Loss
Ensures efficient signal transfer across high-frequency communication systems.
High Reliability Construction
Manufactured using premium-grade materials for long service life and dependable performance.
H.F. Adaptor Product Specifications
| H.F. Adaptor Type | Impedance | Frequency Range | Application |
|---|---|---|---|
| 1.0mm Female to 1.85mm Female | 50 Ohm | Up to 110 GHz | Microwave Testing |
| 1.0mm Male to 1.85mm Female | 50 Ohm | Up to 110 GHz | Precision RF Conversion |
| 1.0mm Male to 1.85mm Male | 50 Ohm | Millimeter Wave Range | RF Measurement Systems |
| 1.85mm Female to Female Bulkhead | 50 Ohm | High Frequency Range | Panel Mount Applications |
| 1.85mm Female to 2.4mm Female | 50 Ohm | Microwave Frequency Range | RF Interface Conversion |
| 1.85mm Female to 2.4mm Male | 50 Ohm | Up to 50 GHz+ | Telecom & Defense Systems |
| 1.85mm Female to 2.92mm Female | 50 Ohm | Broadband RF Range | Laboratory Applications |
Why Choose us
Precision RF Engineering
Our H.F. Adaptors are manufactured using precision machining technology to ensure excellent impedance matching and measurement accuracy.
Ultra-Low Signal Loss
Designed for efficient microwave signal transmission with minimal insertion loss and reflection.
Wide Frequency Support
Supports microwave and millimeter-wave frequency applications up to 110 GHz depending on connector configuration.
Premium Quality Materials
Manufactured using high-grade stainless steel, gold-plated contacts, and precision dielectric materials.
Frequently Asked Questions
An H.F. Adaptor is a precision RF connector adaptor used to connect different high-frequency coaxial interfaces while maintaining signal integrity and impedance matching.
H.F. stands for High Frequency, referring to RF and microwave frequency applications.
Most H.F. Adaptors are designed with a standard 50 Ohm impedance.
Depending on the connector type, H.F. Adaptors can support frequencies from DC up to 110 GHz or higher.
They are used in telecom, aerospace, defense, satellite communication, radar systems, and RF testing laboratories.
VSWR (Voltage Standing Wave Ratio) indicates impedance matching quality. Lower VSWR means better RF performance.
Low insertion loss ensures maximum signal transmission and minimizes power loss in RF systems.
Yes, they are extensively used in vector network analyzers, calibration systems, and precision measurement equipment.
