Cracking the Code: Unveiling the Secrets of Wire Colors

Electrical lines are particularly color to make it simple to distinguish between their functions. The function of the wire for household circuits and appliances is determined by its color and how it should be handle. Additionally, it specifies which socket port it uses. The wire color code in India follows a specific standard to ensure electrical safety. Understanding the wire color code is crucial for electricians and individuals working with electrical systems. Familiarize yourself with the wire color code in India to identify the purpose of each wire and ensure proper installation and maintenance of electrical circuits.

Red, Black, and Green are the three most frequently utilized colors. They can be use for:

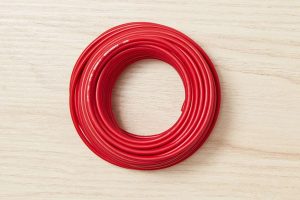

Red:

Because it is the live wire, only the red wire, which indicates the phase of the circuit, may be connect to another red or black wire. It is frequently employed as a switch leg, with the wire coming from the switch’s bottom terminal and acting as a light source. When the switch is switch on, the wire heats up. The leg may be utilize to switch on or off the load.

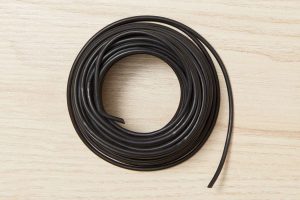

Black:

Black wires in an electrical panel are link to a neutral bus bar as neutral wires. A conductive metal object use for distribution is called a bus bar. The neutral black wire does carry a charge and can be link to another neutral black wire. The imbalance load is the return current or charge that flows back into the electrical panel.

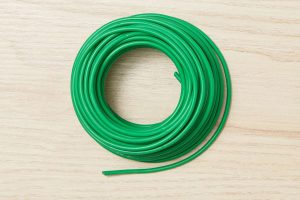

Green:

The green wires represent the circuit’s grounding and earthing cables. Only other green wires can be link to the green wire. The grounding wire is primarily use for socket reasons, such as air conditioners, geysers, and other high-load appliances, and is not intend for use with lights or fans. Neutral and phase are the only two wires that the switch typically has. The green wire joins a big copper plate bury in the earth of the society’s meter box, providing a conduit to the ground for the circuit’s electrical current.

Before touching the wires, it is important to comprehen the color coding of each one. Each nation has its color coding system. Therefore, it’s better to consult an expert before using your hands.
