An RF Power Splitter is an important passive RF component used to divide a single radio frequency signal into multiple output signals with controlled power distribution. RF power splitters are widely used in telecommunications, wireless communication systems, broadcasting, satellite communication, RF testing laboratories, antenna systems, and microwave networks.
These devices help distribute RF signals evenly across multiple communication paths while maintaining proper impedance matching and minimizing signal loss. RF power splitters are essential components in modern telecom infrastructure because they allow multiple devices, antennas, or communication systems to share a single RF signal source efficiently.
Modern wireless communication systems rely heavily on RF power splitters in 4G LTE networks, 5G communication systems, distributed antenna systems, Wi-Fi infrastructure, base stations, and RF testing equipment. They are designed to support high-frequency communication with stable signal distribution and low insertion loss.
As telecom and wireless technologies continue to evolve, RF power splitters remain critical components in RF signal management and communication systems.

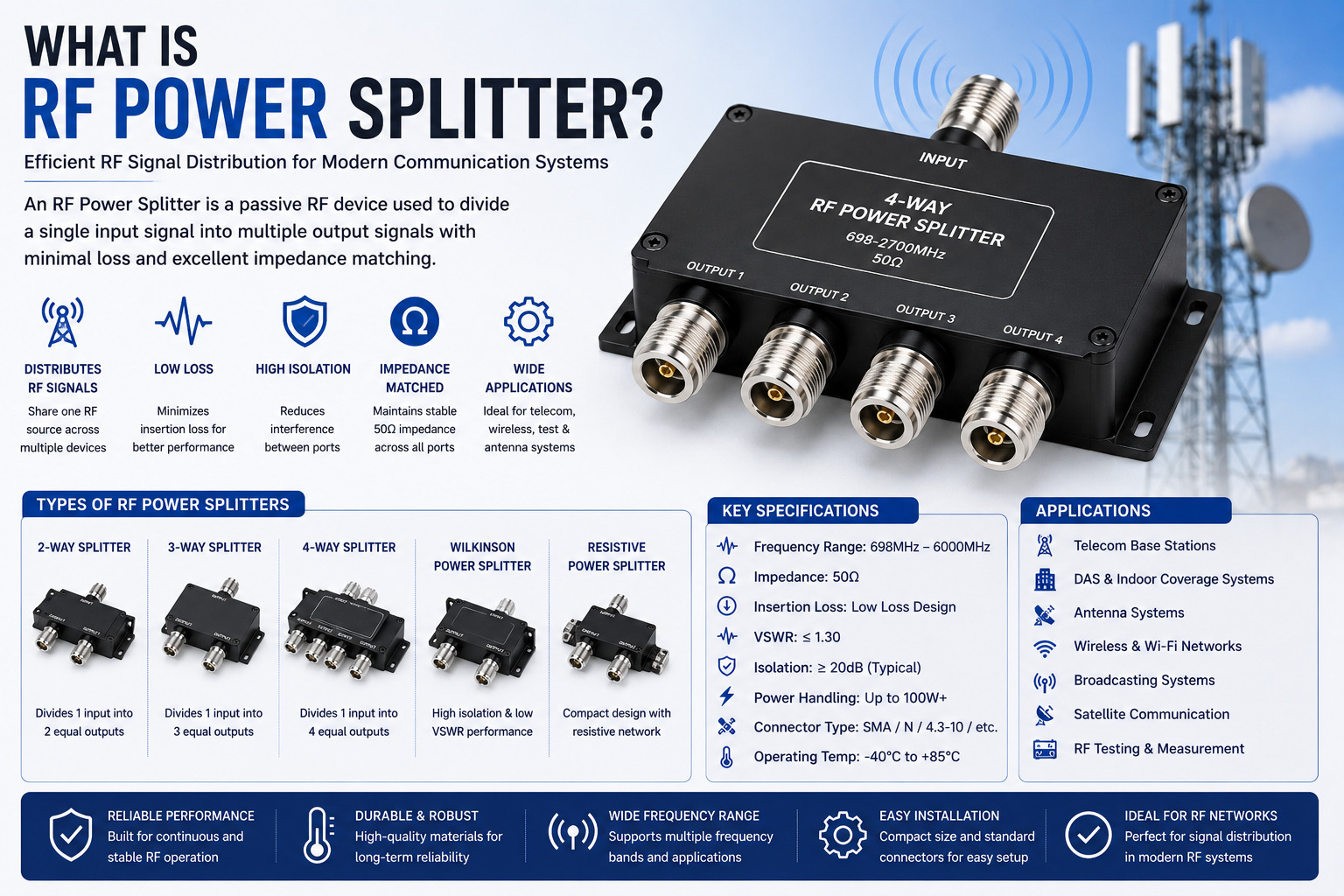

What is an RF Power Splitter?
An RF Power Splitter is a passive RF device designed to divide one input RF signal into two or more output signals while maintaining signal integrity and impedance matching.
The splitter distributes the incoming RF power across multiple output ports, allowing several devices or antennas to receive the same communication signal simultaneously.
RF power splitters are commonly used in:
- Telecom infrastructure
- Wireless communication systems
- RF testing equipment
- Antenna systems
- Broadcasting systems
- Satellite communication
- DAS networks
These devices are commonly designed with:
- 50 ohm impedance
- 75 ohm impedance
RF power splitters help improve communication flexibility and signal distribution efficiency.
Importance of RF Power Splitters
Modern communication systems often require multiple devices or antennas to share a single RF signal source. RF power splitters are important because they allow efficient signal distribution without requiring separate signal generators or transmitters.
RF power splitters help:
- Distribute RF signals efficiently
- Support multi-device communication
- Improve network flexibility
- Maintain impedance matching
- Reduce infrastructure complexity
- Support antenna sharing systems
Because of these advantages, RF power splitters are widely used in telecom and RF communication networks.
How Does an RF Power Splitter Work?
An RF power splitter works by receiving an RF signal through the input port and dividing the signal power evenly or unevenly across multiple output ports.
The device uses internal RF transmission line structures and impedance-matching circuits to ensure stable signal distribution with minimal reflection and insertion loss.
The working process includes:
- RF signal input
- Signal division
- Power distribution
- Impedance matching
- RF signal output
High-quality RF power splitters provide stable communication performance with low VSWR and minimal signal distortion.
Components of an RF Power Splitter
An RF power splitter contains several important RF components designed for signal distribution and communication stability.
Input Port
The input port receives the RF signal from the communication source.
Output Ports
Output ports distribute RF signals to multiple devices or antennas.
Internal RF Circuit
The RF transmission structure controls signal splitting and impedance matching.
Shielded Housing
The metal housing protects against EMI and RF interference.
RF Connectors
Common RF connector interfaces include:
- SMA
- N Type
- BNC
- TNC
- DIN
- 4.3-10
Types of RF Power Splitters
RF power splitters are available in multiple configurations depending on communication requirements.
2-Way RF Power Splitter
A 2-way splitter divides one RF signal into two equal output signals.
Applications
- Antenna systems
- RF testing
- Wireless communication
3-Way RF Power Splitter
Divides RF power into three output channels.
4-Way RF Power Splitter
Used for distributing RF signals to four communication paths.
Uses
- DAS systems
- Telecom infrastructure
- Wi-Fi communication
Wilkinson Power Splitter
Wilkinson splitters provide excellent isolation and impedance matching.
Resistive RF Power Splitter
Uses resistor networks for signal distribution.
Reactive RF Power Splitter
Uses transmission line techniques for lower insertion loss and better efficiency.
Specifications of RF Power Splitters
The specifications of RF power splitters determine RF performance and communication compatibility.
Frequency Range
RF power splitters support multiple frequency bands from MHz to GHz ranges.
Common ranges include:
- 698 MHz to 2700 MHz
- 5G frequency bands
- Microwave frequencies
Impedance
Most RF power splitters use:
- 50 ohm impedance
- 75 ohm impedance
Insertion Loss
Insertion loss measures signal power reduction during splitting.
Lower insertion loss improves communication efficiency.
Isolation
Isolation measures signal separation between output ports.
Higher isolation reduces interference.
VSWR
Low VSWR indicates excellent impedance matching and reduced reflection.
Power Handling Capacity
RF power splitters support various RF power levels depending on application requirements.
Connector Type
Common connector interfaces include:
- SMA Female
- N Female
- DIN Female
- BNC Female
Applications of RF Power Splitters
RF power splitters are widely used across numerous communication and RF industries.
Telecommunications Industry
Telecom systems use RF power splitters for signal distribution and antenna sharing.
Applications
- Mobile towers
- Base stations
- DAS systems
- 5G communication infrastructure
Wireless Networking
Wi-Fi communication systems use RF splitters for antenna distribution.
Antenna Systems
RF splitters distribute signals across multiple antennas.
Broadcasting Systems
Broadcast communication systems use power splitters for RF signal management.
Satellite Communication
Satellite systems use RF power splitters for microwave signal distribution.
RF Testing Laboratories
Testing equipment uses RF splitters for calibration and measurement systems.
Equipment
- Signal generators
- Spectrum analyzers
- Network analyzers
Advantages of RF Power Splitters
RF power splitters provide several important communication and networking benefits.
Efficient Signal Distribution
They allow multiple devices to share one RF signal source.
Improved Network Flexibility
Power splitters simplify communication infrastructure.
Stable Impedance Matching
Proper impedance improves signal quality and communication stability.
Low Signal Reflection
High-quality splitters reduce VSWR and signal loss.
Wide Frequency Support
RF power splitters support modern telecom and microwave systems.
Reliable Communication Performance
Precision RF designs maintain stable signal transmission.
Technical Features of RF Power Splitters
Modern RF power splitters include several advanced RF design features.
Balanced Signal Distribution
Signals are evenly distributed across output ports.
High Isolation
Improves signal separation and reduces interference.
Compact Design
Compact RF splitters simplify telecom installations.
Durable Construction
Industrial-grade materials improve long-term reliability.
Difference Between RF Power Splitter and RF Combiner
Both RF devices manage signal distribution but perform opposite functions.
RF Power Splitter
- Divides one RF signal into multiple outputs
- Used for signal distribution
- Supports multi-device communication
RF Combiner
- Combines multiple RF signals into one output
- Used for signal merging
- Supports antenna sharing systems
RF power splitters divide signals, while RF combiners combine them.
Common Problems with RF Power Splitters
Improper installation or poor-quality devices may affect communication performance.
Signal Loss
Excessive insertion loss may reduce communication quality.
Impedance Mismatch
Incorrect impedance may increase signal reflection.
Connector Damage
Improper connector installation may interrupt RF transmission.
Port Isolation Issues
Poor isolation may create interference between outputs.
Tips for Choosing the Right RF Power Splitter
Selecting the correct RF splitter improves communication reliability and system performance.
Verify Frequency Compatibility
Choose splitters suitable for operating frequency bands.
Check Power Requirements
Ensure the splitter supports required RF power levels.
Verify Connector Compatibility
Ensure compatibility with RF cables and communication devices.
Select Low VSWR Devices
Low VSWR improves communication efficiency.
Consider Output Configuration
Choose 2-way, 3-way, or multi-way splitters based on system requirements.
Future of RF Power Splitters
Modern telecom systems continue to demand advanced RF signal management technologies.
Recent developments include:
- Wideband RF splitters
- 5G communication systems
- Low-loss microwave splitters
- Compact wireless networking infrastructure
- Advanced antenna distribution systems
As wireless communication and telecom infrastructure continue to expand, RF power splitters will remain essential components in RF communication and networking systems.
Conclusion
An RF Power Splitter is a critical RF component used to divide radio frequency signals across multiple communication paths while maintaining stable signal performance and impedance matching. These devices are widely used in telecommunications, wireless networking, satellite communication, broadcasting, antenna systems, and RF testing applications.
From telecom towers and DAS systems to RF laboratories and wireless communication networks, RF power splitters provide reliable and efficient RF signal distribution solutions for modern communication infrastructure.
Understanding RF power splitter types, specifications, applications, advantages, and working principles helps communication professionals select the right RF distribution solution for stable and high-performance RF communication systems.
